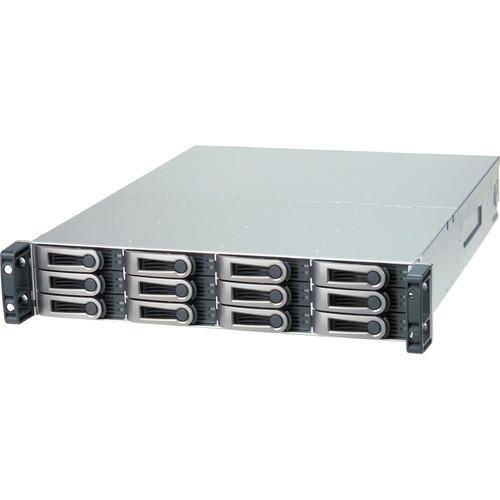

User Manual for Promise Technology VTrak E310fS RAID Storage System Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak E310fS RAID Storage
- Product category: NAS Enclosures Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology NAS Enclosures
|
User manual for the Promise Technology VTrak E310fS RAID Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The VTrak E310fS RAID Storage System from Promise Technology is a 12-bay RAID storage system with a 2U rackmount. It supports both SAS and SATA hard disk drives with speeds of 3Gb/s. It can also run any variations of supported SAS and SATA hard disk drives simultaneously. It also has dual hot-swappable power supplies, which means you can replace the power supplies without shutting down the entire system. This storage system has a single failover/failback RAID controller, which has a total of two fibre channel host ports with JBOD expansion. This means that up to 4 Promise VTrak J-Class JBOD systems can be connected. It also supports various RAID levels simultaneously. Note: Another Failover/Failback RAID controller can be added - Intelligent Design Delivers Scalability & Upgradeability
- Each RAID controller has two Fibre Channel (FC) host interface ports, which provides reliable connectivity into widely deployed Fibre Channel storage networks. This is perfect for supplementing existing storage networks and for building new application storage systems. This storage system gives you the flexibility to change the host interface simply by changing the controllers and also increase your available storage by adding up to four JBOD Promise VTrak J-Class systems. One of the key advantages of SAS technology is implemented into this storage system, which is the ability to connect either SAS or SATA hard disk drives with the same interface. This simplifies data management by allowing easy SAS storage expansion and SATA storage migration
- No Single Point of Failure
- This storage system narrows the gap between simple fault tolerance and No Single Point of Failure. This storage system incorporates an intelligent cable-less system design which includes fully redundant, hot-swappable controllers, power and cooling units, which are all field replaceable. All system components are constantly monitored to ensure continuous operation in case of disk failure as well as controller, power supply or cooling fan malfunction
- Comprehensive Data Management
- This storage system features integrated management software, WebPAM PROe, which eliminates the need to install additional software on the network. This storage system, as well as other VTrak systems that are connected to your network, can be configured and monitored through a single, easy-to-manage web-based graphic user interface (GUI). The software works through the Ethernet port locally, across a LAN or an Internet connection. It can monitor other VTrak systems and provide error reporting through pop-up messages, event logging and email notification. In the event of a controller failure, the Promise's management software will seamlessly failover and failback. This storage system also simplifies integration with third-party management applications using industry-standard SNMP and CIM protocols
UPC: 704118020614 In the Box Promise Technology VTrak E310fS RAID Storage System 50 x Screw for Disk Drives 2 x 4.9-foot (1.5m) Power Cord RJ11-to-DB9 Serial Data Cable 3.3-foot (1.0m) SFF-8088 4X-to-4X External SAS Cable Left & Right Mounting Rails Left & Right Center-Mount Brackets Front Bezel & Key Quick Start Guide CD- SNMP Files
- Product Manual
- Quick Start Guide
Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak E310fS RAID Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x10 Specs | Interface | External | | Drive Types Supported | Size: 3.5"
Type: SAS 3Gb/s, SATA II 3Gb/s, SATA II 1.5GB/s
Direct SATA LED support
Supports any mix of supported SAS and SATA HDDs simultaneously Direct connect in single I/O controller configuration or uses the Promise SATA MUX Adapter in dual I/O controller configuration | | Drive Bays | 12 | | Connectors | 2 x Fibre Channel host interface port
1 x external 3Gb/s SAS (x4) port for JBOD expansion (up to 4 VTrak J-Class JBOD systems) | | Cache | 512MB (mirrored & shared)
Automatic write cache destaging
72-hour battery backup for 512MB Max 12GB - must be purchased through Promise Technology | | RAID | RAID Levels: 0, 1, 1E, 5, 6, 10, 50, 60
RAID Stripe Size: 64K, 128K, 256K, 512K, and 1MB (per disk)
RAID Robustness:
Physical Drive Error Recovery
Predictive Data Migration (PDM)
Bad Sector Re-Mapping
Media Patrol
SMART
Intelligent error recovery mechanisms for erroneous RAID members
RAID 5/6 inconsistent data prevention
Data Content Error Prevention
NVRAM event logging
Background Task Priority Tuning: Adjustment of minimum I/O reserved for server use during all background tasks Any combination of these RAID levels can exist at the same time | | Management | Multi-Path I/O Support: PerfectPath Manager (Windows only)
Management Tools:
Operating system independent
Localized in multiple languages
SSL Security support
WebPAM PROe
Web based GUI via Ethernet port
Command Line Interface and Utility via serial port or Ethernet (Telnet)
Auto, Express and Advanced configuration support for novice and skilled users
Seamless software failover and failback on management Ethernet port
Interfaces/Protocols:
Embedded Web server and management support (no host needed)
Ethernet
RJ-11 serial port
CIM/WBEM
SNMP
SSL
SLP
Telnet
Event Notification:
Email
NETSEND
Audible buzzer
Visible LED alarm | | System Requirements | OS: Windows 2000 / 2003, Linux (Red Hat, SuSE) | | Power Requirements | Power: Dual 400W
Voltage: 100-240 vac auto-ranging
Frequency: 50-60Hz
Current (max): 8A @ 100 Vac, 4A @ Vac
Power Consumption:
Without HDD: 157.8W
With HDD: 468W Tested with SAS HDD | | Environmental Requirements | Temperature:
Operational: 5°C to 40°C
Non-Operational: -40°C to 60°C
Humidity:
Operational: 10% to 90% (non-condensing)
Non-Operational: 5% to 95% (non-condensing) | | Compliant Standards | Safety: CE, FCC Class A, VCCI, C-Tick, cUL, TUV, CB, BSMI | | Dimensions | 3.5 x 17.5 x 22.1" / 8.8 x 44.4 x 56.1cm | | Weight | 57 lbs / 26 kg Weight without drives | | | | Package Weight | 62.2 lb | | Box Dimensions (LxWxH) | 29.9 x 23.6 x 9.8" |
