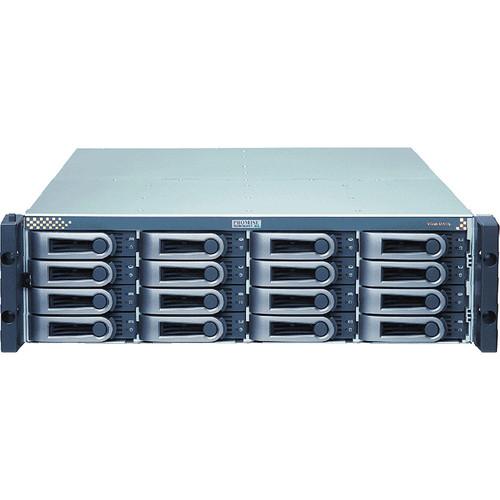

User Manual for Promise Technology VTrak E610fD RAID Storage System Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak E610fD RAID Storage
- Product category: NAS Enclosures Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology NAS Enclosures
|
User manual for the Promise Technology VTrak E610fD RAID Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The VTrak E310fD RAID Storage System from Promise Technology is a 12-bay RAID storage system with a 2U rackmount. It supports both SAS and SATA hard disk drives with speeds of 3Gb/s. It can also run any variations of supported SAS and SATA hard disk drives simultaneously. It also has dual hot-swappable power supplies, which means you can replace the power supplies without shutting down the entire system. This storage system has dual failover/failback RAID controllers, which has a total of four 4G Fibre Channel host ports with JBOD expansion. This means that up to 4 Promise VTrak J-Class JBOD systems can be connected. It also supports various RAID levels simultaneously. - 4G Fibre Channel Performance and Reliability
- This storage system features SAN technology, which can exceed the performance and bandwidth requirements of even the most data intensive applications. Fibre Channel's flexible and mature technology is a popular choice for mission critical applications
- No Single Point of Failure
- This storage system narrows the gap between simple fault tolerance and No Single Point of Failure. This storage system incorporates an intelligent cable-less system design which includes fully redundant, hot-swappable controllers, power and cooling units, which are all field replaceable. All system components are constantly monitored to ensure continuous operation in case of disk failure as well as controller, power supply or cooling fan malfunction
- RAID 6 Support
- RAID 6 (double parity) delivers the highest level of reliability and data protection in a cost-efficient solution. As the capacity of storage arrays increases, so does the risk of encountering unrecoverable read errors with single parity RAID levels. RAID 6 can handle double drive failures, providing greater protection against data loss. This dramatically reduces the risk of complete data loss during RAID rebuilding
- Easy Installation and Management
- This storage system features an embedded browser based management interface, WebPAM PROe, which eliminates the need to install additional software. This storage system can be configured and managed in an easy-to-use interface through an out-of-band Ethernet port. By using industry-standard management protocols, this storage system simplifies integration with third-party management applications
UPC: 704118023912 In the Box Promise Technology VTrak E610fD RAID Storage System 70 x Screw for Disk Drives 2 x 4.9-foot (1.5m) Power Cord RJ11-to-DB9 Serial Data Cable 3.3-foot (1.0m) SFF-8088 4X-to-4X External SAS Cable Left & Right Mounting Rails Left & Right Center-Mount Brackets Quick Start Guide CD- SNMP Files
- Product Manual
- Quick Start Guide
Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak E610fD RAID Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x10 Specs | Interface | External | | Drive Types Supported | Size: 3.5"
Type: SAS 3Gb/s, SATA II 3Gb/s
Supports any mix of supported SAS and SATA HDDs simultaneously
Direct SATA LED support, staggered physical drive spin-up Direct connect in single I/O controller configuration or uses the Promise SATA MUX Adapter in dual I/O controller configuration | | Drive Bays | 16 | | Connectors | 4 x 4G Fibre Channel host interface port
2 x external 3Gb/s SAS (x4) port for JBOD expansion (up to 4 VTrak J-Class JBOD systems) | | Cache | 512MB (mirrored & shared)
Automatic write cache destaging
72-hour battery backup for 512MB Max 2GB - must be purchased through Promise Technology | | RAID | RAID Levels: 0, 1, 1E, 5, 6, 10, 50, 60
RAID Stripe Size: 64K, 128K, 256K, 512K, and 1MB (per disk)
PerfectRAID:
Physical Drive Error Recovery
Predictive Data Migration (PDM)
Bad Sector Re-Mapping
Media Patrol
SMART
RAID 5/6 inconsistent data prevention
Data Content Error Prevention
NVRAM event logging
Background Task Priority Tuning: Adjustment of minimum I/O reserved for server use during all background tasks Any combination of these RAID levels can exist at the same time | | Management | Management Tools:
Operating system independent
Localized in multiple languages
SSL Security support
WebPAM PROe
Web based GUI via Ethernet port
Command Line Interface and Utility via serial port or Ethernet (Telnet)
Auto, Express and Advanced configuration support for novice and skilled users
Seamless software failover and failback on management Ethernet port
Interfaces/Protocols:
Embedded Web server and management support (no host needed)
Ethernet
RJ-11 serial port
CIM/WBEM
SNMP
SSL
SLP
Telnet
Event Notification:
Email
NETSEND
Audible buzzer
Visible LED alarm | | System Requirements | OS: Windows 2003, Linux (Red Hat, SuSE) | | Power Requirements | Power: Dual 500W
Voltage: 100-240 Vac auto-ranging
Frequency: 50-60Hz
Current (max): 8A @ 100 Vac, 4A @ 240 Vac
Power Consumption:
Without HDD: 108.4W
With HDD: 523.9W Tested with SAS HDD | | Environmental Requirements | Temperature:
Operational: 5°C to 40°C
Non-Operational: -40°C to 60°C
Humidity:
Operational: 10% to 90% (non-condensing)
Non-Operational: 5% to 95% (non-condensing) | | Compliant Standards | Safety: CE, FCC Class A, VCCI, C-Tick, cUL, TUV, CB, BSMI | | Dimensions | 5.2 x 17.6 x 22.1" / 13.1 x 44.7 x 56.1cm | | Weight | 67.2 lbs / 30.5 kg Weight without drives | | | | Package Weight | 78.15 lb | | Box Dimensions (LxWxH) | 30.0 x 23.0 x 12.0" |
