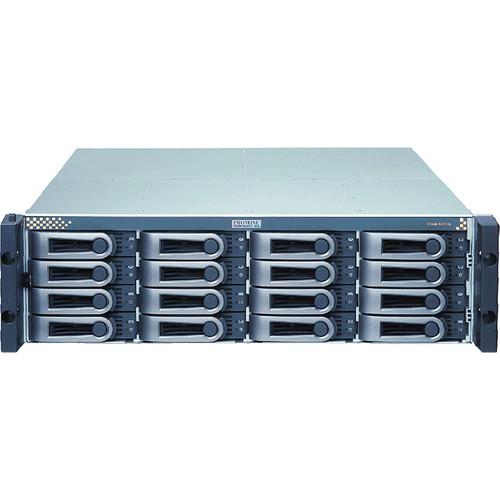

User Manual for Promise Technology VTrak E610sS RAID Storage System Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak E610sS RAID Storage
- Product category: NAS Enclosures Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology NAS Enclosures
|
User manual for the Promise Technology VTrak E610sS RAID Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The VTrak E610sS RAID Storage System from Promise Technology is a 12-bay RAID storage system with a 2U rackmount. It supports both SAS and SATA hard disk drives with speeds of 3Gb/s. It can also run any variations of supported SAS and SATA hard disk drives simultaneously. It also has dual hot-swappable power supplies, which means you can replace the power supplies without shutting down the entire system. This RAID storage system has a single failback/failover RAID controller, which has a total of 4 SAS-wide (4x) ports with JBOD expansion. This means that up to four Promise VTrak J-Class JBOD systems can be connected. It also supports various RAID levels simultaneously. Note: Another RAID controller can be added - High Availability
- This storage system 4 SAS (x4) host interface ports to provide a reliable, high-performance alternative to Ultra SCSI 320 storage applications. As a standard 3U 19" rack unit, this storage system can support up to 16 off-the-shelf 3.5" SAS or SATA 3Gb/s hard disk drives. Four SAS JBOD systems can also be connected to this storage system to deliver 80 drive bays of direct attached storage
- Simple and Familiar Direct Attached Storage (DAS)
- Direct attached storage has remained a favorite among SMB users worldwide. Easy to configure and familiar to even novice system administrators, SAS inherits all of the benefits of DAS with none of its limitations. With advanced multi-pathing capabilities, cascade support and full redundancy, this storage system transfers and stores data quickly and safely
- No Single Point of Failure
- This storage system features a cable-less system design, which includes fully redundant, hot-swappable RAID controllers, power and cooling fans. All system components are constantly monitored using industry standard protocols to ensure continuous operation in case of failure or component malfunction
- Easy to Install and Manage
- This storage system features Promise Technology's embedded browser management interface, WebPAM PROe, which eliminates the need to install additional software. With the ability to configure and monitor all connected VTrak systems, WebPAM PROe is easy to use through an out-of-band Ethernet port. By using industry-standard management protocols, this storage system simplifies integration with third-party management applications
UPC: 704118024018 In the Box Promise Technology VTrak E610sS RAID Storage System 70 x Screw for Disk Drives 2 x 4.9-foot (1.5m) Power Cord RJ11-to-DB9 Serial Data Cable 3.3-foot (1.0m) SFF-8088 4X-to-4X External SAS Cable Left & Right Mounting Rails Left & Right Center-Mount Brackets Quick Start Guide CD- SNMP Files
- Product Manual
- Quick Start Guide
Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak E610sS RAID Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x10 Specs | Interface | External | | Drive Types Supported | Size: 3.5"
Type: SAS 3Gb/s, SATA II 3Gb/s, SATA II 1.5GB/s
Direct SATA LED support
Supports any mix of supported SAS and SATA HDDs simultaneously
Direct SATA LED support
Staggered physical drive spin-up Direct connect in single controller configuration or uses the Promise SATA MUX Adapter in dual controller configuration | | Drive Bays | 16 | | Connectors | 4 x SAS-wide (x4) host interface port
1 x external 3Gb/s SAS-wide (x4) port for JBOD expansion (up to 4 VTrak J-Class JBOD systems) | | RAID | Levels: 0, 1, 1E, 5, 6, 10, 50, 60 Any combination of these RAID levels can exist at the same time | | Management | Multi-Path I/O Support: PerfectPath Manager (Windows only)
Management Tools:
Operating system independent
Localized in multiple languages
SSL Security support
WebPAM PROe
Web based GUI via Ethernet port
Command Line Interface and Utility via serial port or Ethernet (Telnet)
Auto, Express and Advanced configuration support for novice and skilled users
Interfaces/Protocols:
Embedded Web server and management support (no host needed)
Ethernet
RJ-11 serial port
CIM/WBEM
SNMP
SSL
SLP
Telnet
Event Notification:
Email
NETSEND
Audible buzzer
Visible LED alarm | | System Requirements | OS: Windows 2003, Linux (Red Hat, SuSE) | | Power Requirements | Power: Dual 500W
Voltage: 100-240 Vac auto-ranging
Frequency: 50-60Hz
Current (max): 8A @ 100 Vac, 4A @ Vac
Power Consumption:
Without HDD: 158.4W
With HDD: 523.9W Tested with SAS HDD | | Environmental Requirements | Temperature:
Operational: 5°C to 40°C
Non-Operational: -40°C to 60°C
Humidity:
Operational: 10% to 90% (non-condensing)
Non-Operational: 5% to 95% (non-condensing) | | Compliant Standards | Safety: CE, FCC Class A, VCCI, C-Tick, cUL, TUV, CB, BSMI | | Dimensions | 5.2 x 17.6 x 22.1" / 13.1 x 44.7 x 56.1cm | | Weight | 67.2 lbs / 30.5 kg Weight without drives | | | | Package Weight | 76.0 lb | | Box Dimensions (LxWxH) | 29.5 x 23.0 x 11.5" |
