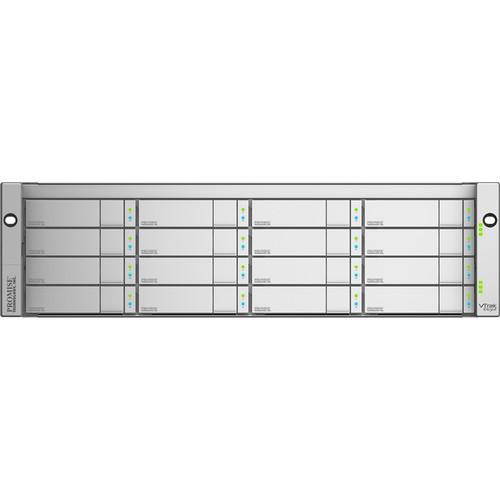

User Manual for Promise Technology VTrak Ex30 16-Bay RAID Subsystem with Quad 8 Gpbs FC Ports Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak Ex30 16-Bay RAID
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
|
User manual for the Promise Technology VTrak Ex30 16-Bay RAID contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description Provided by third party: The Promise VTrak E630f is coupled with high speed 8 Gbps fiber channel host connectivity, support for 6 Gbps SAS and SATA disks and a next generation embedded storage I/O processing platform out to set a new performance standard while providing a reliable, flexible and easy to manage RAID storage system.
- Key Features
-
- RAID storage subsystem for big data, rich media, surveillance, and virtualization
- Quad 8Gbps FC ports
- Fibre Channel performance delivers up to four times more performance than previous generation, delivering up to 5.5 GB/s for reads and 2.4 GB/s for writes in RAID5
- High-availability design
- Out-of-the-box support with zero software installation required
- Scale up to 9 expansion chassis for a total of 240 drives
- PerfectFlash enables firmware updates without requiring downtime
- Designed for data intensive applications
- With rapidly growing demands on Storage Area Networks (SAN), IT departments require the best performance, capacity and overall value from their storage investment. The Promise VTrak E630f delivers on all fronts, with unparalleled next generation storage processing power. Using high-speed 8 Gbps host connectivity coupled with massive internal bandwidth, the VTrak E630f features the 6 Gbps SAS/SATA drive technology to set a new performance standard. While disk performance is critical, the VTrak E630f features an easy to use web interface to simplify storage setup and management.
- Delivering a high performance, reliable enterprise-level storage architecture
- Dual active-active controller modules are internally connected using high performance PCIe generation 2 and delivered in an industry standard Storage Bridge Bay (SBB) 2.0 compliant package. Hosts connect to VTrak E630f through quad 8 Gbps FC ports per controller, giving users a staggering 6.4 Gbps of bandwidth to their stored data.
- GreenRAID
- Promise cares about the environment. VTrak product utilizes environmentally friendly production methods and materials and is designed with high-efficiency in mind. Powered by 80Plus Bronze certified power supplies that offer up to 85% power efficiency, all VTrak E630 product improves total cost of ownership by conserving power, reducing heat output and improving cooling costs. Additionally, the Promise greenRAID initiative includes advanced power management support for hard disk drives providing up to 65% energy savings.
UPC: 704118104741 Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak Ex30 16-Bay RAID Subsystem with Quad 8 Gpbs FC Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology E630FDQS6 Specs | | | Device Type | Hard drive array | | Enclosure Type | Rack-mountable - 3U | | | | Installed Devices / Modules Qty | 16 | | Supported Devices / Modules Qty | 16 | | Supported Drives | SATA-600 / SAS-2 | | | | Total Array Capacity | 96 TB | | HDD Array External Interface | 8Gb Fibre Channel | | Maximum LUNs | 32 | | | | Type | 2 x RAID | | Interface Type | SATA 6Gb/s / SAS 6Gb/s | | Data Transfer Rate | 600 MBps | | Cache / Buffer Size (Max) | 4 GB | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 1E, RAID 60 | | | | Type | HDD - hot-swap | | Capacity | 16 x 6 TB | | Interface Type | SAS 6Gb/s | | Spindle Speed | 7200 rpm | | Features | Nearline | | | | Expansion Bays | 16 (total) / 0 (free) x hot-swap - 2.5" / 3.5" shared | | Interfaces | 8 x 8Gb Fibre Channel
2 x SAS (cascading) - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
2 x Ethernet (management) - RJ-45
2 x serial RS-232 (management) - 9 pin D-Sub (DB-9)
2 x serial RS-232 (management) - RJ-11
4 x USB - 4 pin USB Type A | | | | OS Required | Microsoft Windows 7, Microsoft Windows Server 2008 R2, Microsoft Windows 7 SP1, Microsoft Windows Server 2008 R2 SP1, Apple MacOS X 10.7 Lion, Windows 8, SuSE Linux Enterprise Server 11 SP2, Microsoft Windows Server 2012, Apple MacOS X 10.8, Red Hat Enterprise Linux 6.3, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.4, Apple MacOS X 10.9, SuSE Linux Enterprise Server 11 SP3, Microsoft Windows Server 2012 with Hyper-V | | | | Compliant Standards | FCC Class A certified, UL, TUV, C-Tick, cUL, NOM, CB, IRAM, RoHS, KCC, WEEE, GOST-R, S Mark, BSMI Class A, VCCI Class A | | | | Power Device | 2 x internal power supply - hot-plug | | Max Supported Qty | 2 | | Power Redundancy | Yes | | Power Redundancy Scheme | 1+1 | | Voltage Required | AC 120/230 V - 50/60 Hz | | Power Provided | 580 Watt | | 80 PLUS Certification | 80 PLUS Bronze | | Power Factor Correction | Yes | | | | Width | 17.6 in | | Depth | 20 in | | Height | 5.2 in | | | | Bundled Services | 3 Years PROMISE ServicePlus Plan | | Service & Support | Limited warranty - advance parts replacement - 3 years - on-site
Technical support - phone consulting - 3 years
Product info support - e-mail consulting - 3 years | | | | Min Operating Temperature | 41
