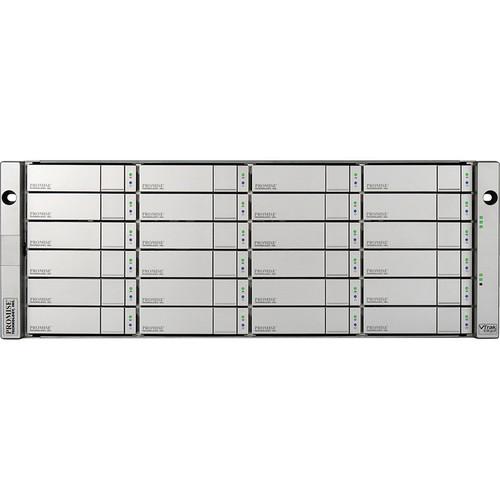

User Manual for Promise Technology VTrak Ex30f 24-Bay 8 Gb s Fibre Channel to 6 Gb s SAS SATA Storage Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak Ex30f 24-Bay 8
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
|
User manual for the Promise Technology VTrak Ex30f 24-Bay 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description With increasing demands on storage infrastructure complexity, IT administrators are constantly looking to gain an edge on performance and capacity. The 24-bay Promise Technology VTrak Ex30F is coupled with high-speed 8 Gb/s Fibre Channel host connectivity, support for 6 Gb/s SAS and SATA disks, and a next-generation embedded storage I/O processing platform that delivers enhanced performance while providing a reliable, flexible, and easy to manage RAID storage system.As performance needs grow, the Promise Technology VTrak Ex30F is designed with the embedded, high-performance Intel Xeon processor C5500/C3500 series to keep pace with those demands. Paired with quad 8 Gb/s FC ports per controller and support for 6 Gb/s SAS and SATA hard disk drives and SSDs, the VTrak Ex30F delivers high performance. The Ex30F offers the full redundancy that is expected of an enterprise solution. Dual active-active controller modules with cache mirroring over a high-speed PCIe Gen 2 link allow for redundant data paths to ensure data availability while dual power supplies/cooling units are in place to minimize downtime and any disruption to business continuity.This VTrak product utilizes environmentally friendly production methods and materials and is designed with efficiency in mind. Powered by an 80Plus certified power supply that offers up to 85% power efficiency, it improves total cost of ownership by conserving power, reducing heat output, and improving cooling costs. Additionally, the GreenRAID story includes advanced power management support for hard disk drives providing up to 65% energy savings. - General
-
- Active-Active dual controller support with ALUA support
- Quad 8 Gb/s FC ports per controller provides maximum system throughput
- Supports 6 and 3 Gb/s SAS & SATA drives simultaneously
- Up to 85% power efficiency
- PerfectFlash eliminates downtime for software updates
- Automatic parity rebuild and data integrity checking
- Minimizes maintenance time using Predictive Data Migration (PDM)
- Seamless online capacity expansion
- Embedded I/O performance and power usage monitoring
- Advanced Storage Features
-
- Advanced Cache Mirroring over PCIe Gen2
- Simple, drag-and-drop LUN Masking and Mapping
- Asymmetric LUN Unit Access (ALUA)
- Volume Copy
- PerfectFlash: Non-Disruptive Software Update
- I/O performance & power monitoring tools
- USB service log LDAP support for central user management
- Background Activities
-
- Media patrol
- Background synchronization
- Foreground initialization
- Rebuild Redundancy check
- Disk SMART polling
- Online Capacity Expansion (OCE)
- RAID Level Migration (RLM)
- UPS monitoring
- Feature rich task scheduler for background activities
- PerfectRAID
-
- Predictive Data Migration (PDM)
- Intelligent bad sector remapping
- SMART error handling NVRAM error logging Disk slot power control
- Read/write check table
- Write hole table
- GreenRAID
-
- Four levels of advanced power management disk drive (MAID) support
- Efficient 80Plus certified power supply
- Management Interfaces
-
- Secure 128-bit SSL Web based management using WebPAM PROe (Ethernet)
- Command Line Interface (CLI) or Command Line Utility (serial port or Ethernet via Telnet, SSH)
- Bonjour discovery
- Offline volume copy
- Monitoring
-
- Statistical charts for bandwidth, latency, and IOPs for each port, logical drive, and physical disk
- Power and cache usage monitor
- Email monitoring support with customizable event notification list
- SNMP, CIM for third-party monitoring software
- Intelligent UPS monitoring
- Support
-
- 24/7 email and phone support (English only)
- 24/7 access to Promise support site-drivers, firmware, and compatibility lists
UPC: 704118094592 In the Box Promise Technology VTrak Ex30f 24-Bay 8 Gb/s Fibre Channel to 6 Gb/s SAS/SATA Storage (96TB) 24 x 4TB NL-SAS HDDs 2 x Power Cords for US Rack Mount Kit HDD Screws 2 x 6G SAS Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak Ex30f 24-Bay 8 Gb s Fibre Channel to 6 Gb s SAS SATA Storage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x30 Specs | | | Storage Controller Cache | 2 GB per Controller | | | | Total Raw Capacity | 96 TB | | Included Drives | 24 x 4 TB 3.5" HDD | | Interface | SAS | | Rotational Speed | 7200 rpm | | | | Number of Bays | 24 x 2.5"/3.5" | | Connections | 1 x Mini SAS (SFF-8088)
4 x LC (FC (8 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA III | | RAID Modes | RAID 0, 1, 10, 1E, 5, 50, 6, 60 | | | | AC Input Power | 100 to 200 VAC, 50 / 60 Hz at 5 to 10 A | | PSU Wattage | 2 x 750 W (Supports Redundancy) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, Kcc, RoHS, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Noise Level | 55 to 65 dBA | | Dimensions | 6.9 x 17.6 x 20.0" / 17.4 x 44.7 x 50.7 cm | | Weight | 60.0 lb / 27.0 kg without Drives |
