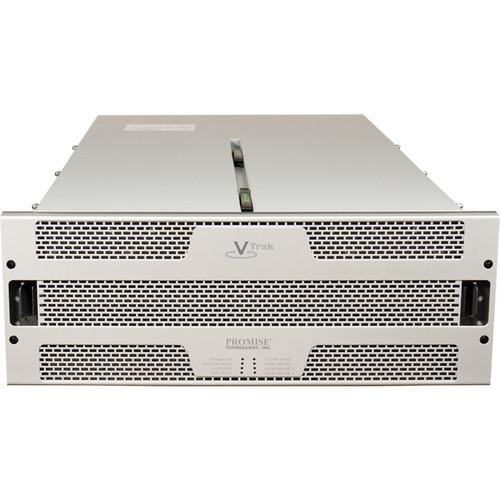

User Manual for Promise Technology VTrak Jx30 Ultra Dense Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak Jx30 Ultra Dense
- Product category: Hard Drive Arrays Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Hard Drive Arrays
|
User manual for the Promise Technology VTrak Jx30 Ultra Dense contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More dtqfbweqzvfvywca The Promise Technology VTrak Jx30 Ultra Dense Expansion Chassis is a 4U/60-bay enclosure that delivers high performance 6G SAS with advanced enterprise level reliability and redundancy. Dual active-active JBOD I/O modules allow for redundant data paths to ensure data availability while dual power and cooling provides power efficiency to improve operational cost over traditional storage deployments.Using a multi-lane 6G SAS host interface, the VTrak J930s has the available bandwidth and low latency performance to support a multitude of applications. The 4 physical ports per controller give the user flexible connectivity options. Paired with the VTrakEx30 series RAID subsystems, the J930s is capable of delivering enhanced performance while offering massive scalability and the reliability of an enterprise-class RAID solution. In addition, the J930s conforms to SAS standards allowing it to attach to server based 6G SAS host bus adapters.This VTrak unit utilizes environmentally friendly production methods and materials as well as an efficiency design that saves energy. The high-efficiency power supply offers up to 90% power efficiency, helping the VTrak J930 to improve the total cost of ownership by conserving power, reducing heat output, and improving cooling costs. The internal 6G SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives, like the MAID 2.0 features built into the VTrak Ex30 RAID subsystem. - 4U/60-bay ultra-dense enclosure
- Dual active/active SAS I/O modules
- Up to 90% power efficiency
- Eight 6G mini SAS (4x) ports
- Redundant, hot-swap field replaceable units (FRUs)
- SES-3 compliant in-band enclosure management
- ANSI T10 SAS 2.0 compliant I/O module with in-band management, redundant cable support, and support for auto-negotiation of data path speeds
- Self configuring expander supports full SAS domian topology management
- 24/7 telephone and email support
UPC: 704118094578 In the Box Promise Technology VTrak Jx30 Ultra Dense Expansion Chassis (4TB, 60-Bay) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak Jx30 Ultra Dense Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x30 Specs | Capacity | 60 x 4 TB 7200 RPM SAS drives | | Form Factor | Ultra-dense 4U / 60-bay | | External I/O Ports | Each I/O module has four 6G SAS ports using industry-standard Mini SAS 4x wideport- SAS connectors (SFF-8088) | | Voltage | 90 to 264 V, 47 to 63 Hz auto ranging | | Current (Maximum) | 14.5 A RMS maximum @ 110 VAC | | Power Conversion Efficiency | 20% load @ 115 V, 87%
50% load @ 115 V, 90%
20% load @ 230 V, 88%
50% load @ 230 V, 92% | | Vibration | Operational: 0.15G RMS
Non-Operational: 0.5G, 5 to 500 Hz | | Shock | Operational: 5G, 11 ms duration, 1/2 sine wave pulse
Non-Operational: 10G, 11 ms duration, 1/2 sine wave pulse | | Safety | IEC/EN/UL/CSA 60950-1, 2nd edition | | Environmental Standards | RoHS and WEEE compliant | | Power Supply | Redundant 1200 W hot-plug auto-switching, 90 to 264 V, 47 to 63 Hz, 14.5 A RMS max @ 110 VAC | | Temperature Range | Operational: 50 to 95°F (10 to 35°C)
Temperature Gradient: 20°C per hour
Non-Operational: -40 to 158°F (-40 to 70°C) | | Humidity | Operational: 10 to 80% (non-condensing)
Humidity Gradient: 10% per hour
Non-Operational: 5 to 95% (non-condensing) | | Dimensions (H x W x D) | 6.90 x 16.56 x 35.10" (175.30 x 420.60 x 891.50 mm)
With Cable Management: 6.90 x 16.56 x 39.17" (175.30 x 420.60 x 994.90 mm) | | Weight | Unpopulated: 105.0 lb (47.7 kg), Fully Populated with 60 Drives: 213.0 lb (96.8 kg) |
