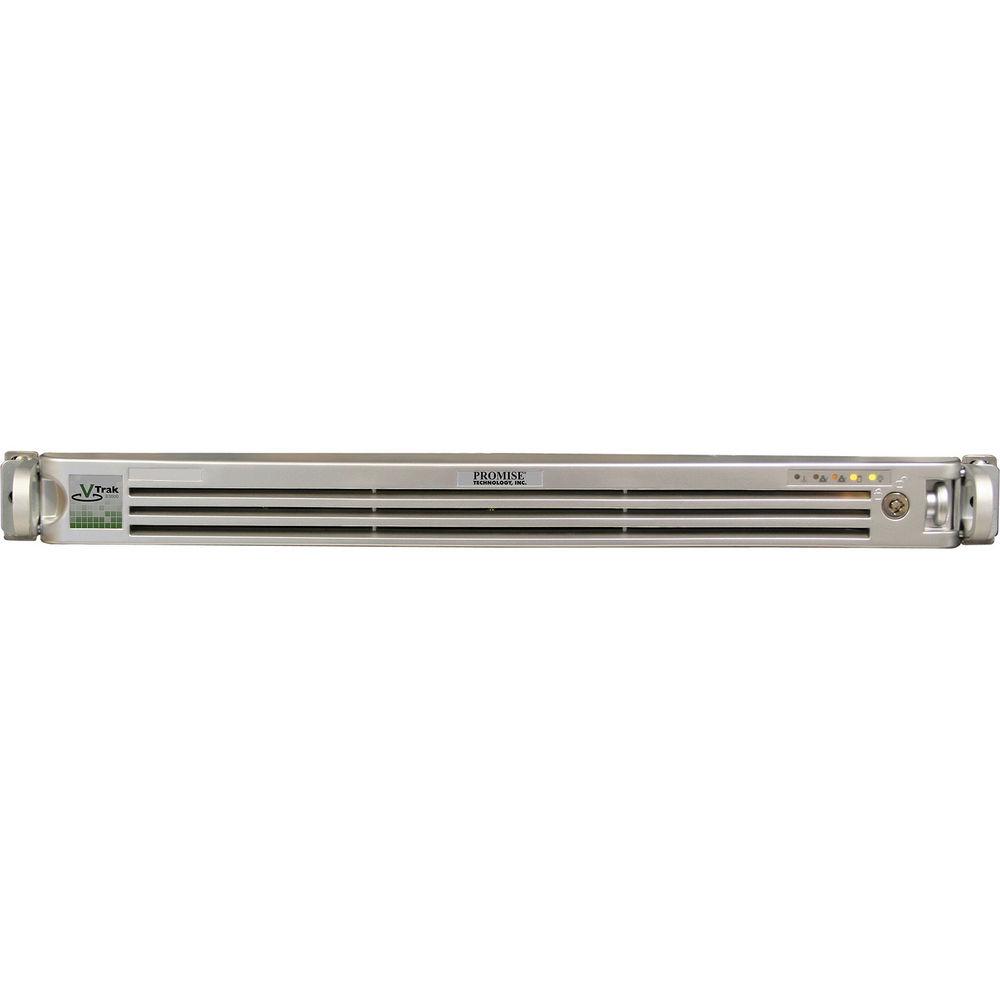

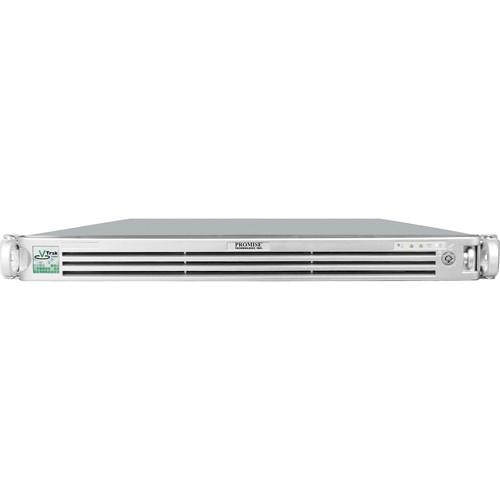

User Manual for Promise Technology VTrak S3000 Enterprise Class FC SAN Appliance Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak S3000 Enterprise Class
- Product category: NAS Accessories Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology NAS Accessories
 |
User manual for the Promise Technology VTrak S3000 Enterprise Class contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|

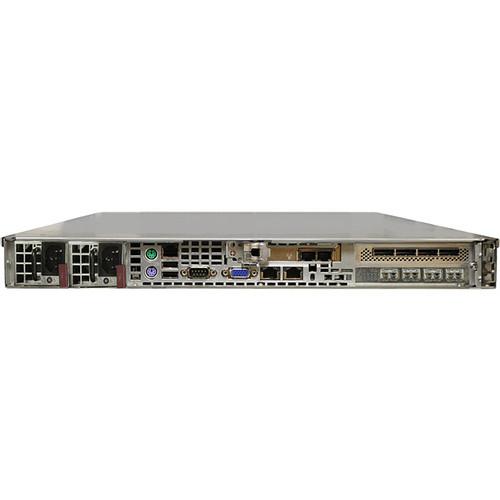

Product description The Promise Technologies VTrak S3000 Enterprise Class iSCSI SAN Appliance is designed to provide an affordable and manageable enterprise SAN solution to protect your entire organization's data. It features two 8 Gbps Fibre Channel interfaces (host interconnect), two 1 Gbps iSCSI (secondary host interconnect), and four x4 6 Gbps SAS-wide connectors.Snapshot feature creates images of specified data files and helps you recover deleted or inconsistent data. Synchronous mirroring copies real time production data to different disks during system failures. Asynchronous remote replication allows for fast data synchronization of storage volumes from one S3000 appliance to another over the IP network. Efficient network utilization can be achieved with DeltaScan technology that limits the amount of data transferred during replication.HyperCache technology speeds up I/O performance for both read/write operations via intelligent disk caching algorithms using high performance media. You can also allocate storage space more efficiently with the iSCSI thin-provisioning.The S3000 SAN appliance is compatible with Promise VTrak X10 and X30 series RAID storage subsystems. It has been approved for use with VMware, Hyper-V, and Citrix XenServer virtualization systems. Tight integration with VMware Site Recovery Manager minimizes system downtime. - Safeguards your entire organization's data by providing an affordable and manageable enterprise SAN solution
- Two 10 Gbps iSCSI interfaces and four x4 6 Gbps SAS-wide connectors •24 GB DDR3 Memory and dual Intel Xeon Quad core processors
- 24 GB DDR3 Memory and dual Intel Xeon Quad core processors
- Recover your deleted or inconsistent data by creating images with the help of Snapshot feature
- Synchronous mirroring copies real time production data to another disk during system failures
- Rapid data synchronization of storage volumes from one S3000 appliance to another over the IP network with the help of Asynchronous remote replication
- Minimize the amount of data transferred during replication with the help of DeltaScan technology
- Speed up I/O performance for both read/write operations using HyperCache technology
- iSCSI thin-provisioning helps in efficient storage space allocation
- Works with Promise VTrak X10 and X30 series RAID storage subsystems
- VMware, Hyper-V, and Citrix XenServer certified
- VMware Site Recovery Manager integration reduces system downtime
- Fail-over and fail-back capability can be achieved with support for multiple nodes
In the Box Promise Technology VTrak S3000 Enterprise Class FC SAN Appliance 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak S3000 Enterprise Class FC SAN Appliance in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology VTS3K2F4SS Specs | Base Form Factor | 1U (1.75" / 44.45 mm) | | Processing Power | Dual Intel Xeon® Quad Core Processors | | System Memory | 24 GB DDR3 | | RoHS Compliant | Yes | | Operating Temperature | 10 to 35° C (50 to 95° F) | | Non-Operating Temperature | -40 to 70° C (-40 to 158° F) | | Operating Humidity | 8 to 90% (non-condensing) | | Non-Operating Humidity | 5 to 95% (non-condensing) | | Management Interface | Dedicated IPMI LAN port with SNMP Trap, Console GUI | | Supported Operating Systems | Windows, Linux, Mac OS X, VMware ESX / ESXi, Hyper-V, and Citrix XenServer | | Disaster Recovery/Site Failover | PROMISE Storage Replication Adapter (SRA) for VMware vCenter Site Recovery Manager (SRM) | | Recovery Agents | Message Recovery for Microsoft Exchange and Microsoft VSS Recovery Agent provide instant recovery to satisfy Recovery Time Objectives (RTO) | | Snapshot Agents | Transactional integrity and point-in-time consistency are ensured through application specific agents for MS Exchange, MS SQL, Oracle, MySQL, Windows and Linux File Systems; standard agent for MS Volume Shadow Copy Services (VSS); and through PROMISE Snapshot Director Virtual Appliance. Along with flexible scheduling, VTrak S3000 meets and exceeds Recovery Point Objectives (RPO) required by organizations | | Power Supply | Redundant 80PLUS Gold 700 W hot-plug auto-switching 110 / 220 V, 50-60 Hz, 4 - 8 Amp | | Board Dimensions (H x W x D) | 1.7 x 17.2 x 25.6" (43 x 437 x 650 mm) | | Weight | 46 lb (20.9 kg) | | | | SAS Attached RAID Storage | VTrak E310sD & VTrak E610sD RAID Subsystem | | FC RAID Storage | VTrak E310fD & VTrak E610fD RAID Subsystem
PROMISE VTrak E630fD & E830fD RAID Subsystem | | SAS Expansion Chassis | VTrak J310sD & VTrak J610sD Expansion Chassis
PROMISE VTrak J630sD & J830sD Expansion Chassis |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
