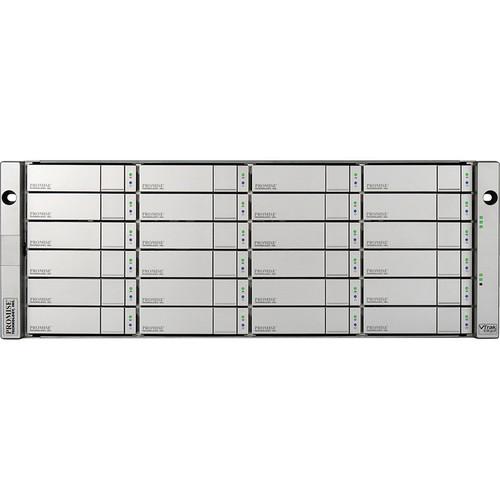

User Manual for Promise Technology VTrak x30 RAID Subsystem Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak x30 RAID Subsystem
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
|
User manual for the Promise Technology VTrak x30 RAID Subsystem contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The Promise Technology VTrak x30 RAID Subsystem (48 TB) with 3U form factor has 24 drive bays that hold 24 x 2 TB drives and can be scaled up to 7 Expansion Chassis for a total of 136 drives. Compatible with Mac OS X, Windows, and Linux, the subsystem offers 5.5 GB/s for reads and 2.2 GB/s for writes to meet the demands of video workflow.
Featured dual active-active 8 Gbps fiber channel controller with cache mirroring over a high-speed PCIe Gen 2 link ensures data availability by providing redundant data paths. Integrated dual power supply units, battery backed cache, and intelligent cache management protects your data and minimizes system downtime.
Protective features like controller fail-over strategies and autonomous healing technologies, along with robust RAID 5 and RAID 6 algorithms, improve system fault tolerance limits and ensure uninterrupted data access.
A Xeon C3500 Series processor, cached mirroring design, auto-regeneration of data to compensate frame drops, and quad 8 Gbps FC ports per controller combine together for faster video edit and playback. With automatic configurations tuned feature for common applications, the VTrak x30 RAID Subsystem also contains other performance enhancing features such as non-disruptive software updates, power savings scheduler, power monitoring statistics, drag-and-drop LUN mapping/masking, and more. - RAID Subsystem with 3U form factor has 24 drive bays that hold 24 x 2 TB drives
- Scale up to 7 Expansion Chassis for a total of 136 drives
- Compatible with Mac OS X, Windows, and Linux
- Supports 5.5 GB/s for reads and 2.2 GB/s for writes
- Dual active-active 8 Gbps fiber channel controller with cache mirroring over a high-speed PCIe Gen 2 link ensures data availability
- Dual power supply units, battery backed cache, and intelligent cache management protect your data and minimize system downtime
- Controller fail-over strategies and autonomous healing technologies, along with robust RAID 5 and RAID 6 algorithms, improve system fault tolerance limits and ensure uninterrupted data access
- Powered by Xeon C3500 Series processor
- Cached mirroring design, auto-regeneration of data to compensate frame drops, and quad 8Gbps FC ports per controller combine together for faster video edit and playback
- Includes automatic configurations tuned feature for common applications
- Non-disruptive software updates, power savings scheduler, power monitoring statistics, drag-and-drop LUN mapping/masking, and more
- Energy efficient power supply offers up to 85% power efficiency
- Administer access control through Open Directory & LDAP
- Out-of-the box support with zero software install required
- Redesigned WebPAM PROe Management Suite
UPC: 704118072514 In the Box Promise Technology VTrak x30 RAID Subsystem (48 TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak x30 RAID Subsystem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x30 Specs | | | Storage Controller Cache | 8 GB | | | | Number of Bays | 24 x 3.5" | | Connections | 8 x LC (FC (8 Gb/s))
1 x Mini SAS (SFF-8088) | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 5, 50, 6, 60 | | Expansion | Up to 7 Storage Units | | | | AC Input Power | 100 to 200 VAC, 50 / 60 Hz at 5 to 10 A | | PSU Wattage | 2 x 580 W (Supports Redundancy) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, Kcc, RoHS, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Noise Level | 55 to 65 dBA | | Dimensions | 6.9 x 17.6 x 20.0" / 17.4 x 44.7 x 50.7 cm | | Weight | 121.0 lb / 54.9 kg |
