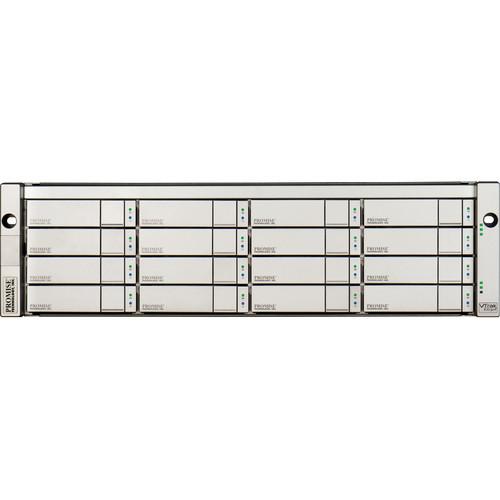

User Manual for Promise Technology VTrak x30 Series 3U 64TB 8 Gb s FC RAID Subsystem Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak x30 Series 3U
- Product category: Network Attached Storage Drives Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Network Attached Storage Drives
|
User manual for the Promise Technology VTrak x30 Series 3U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The VTrak x30 Series 3U 64TB 8 Gb/s FC RAID Subsystem from Promise Technology is a high performance, scalable 8 Gb/s Fibre Channel storage subsystem designed to provide an enterprise-class availability. Optimized to work within an OS X environment, the VTrak x30 8 Gb/s Fibre Channel SAN storage offers up to four times more performance than the previous generation, delivering up to 5.5 GB/s for reads and 2.4 GB/s for writes. This VTrak x30 series RAID solution was developed to meet the needs of demanding video workflows. At the heart of the PROMISE VTrak x30 series RAID subsystem is a high-performance RAID engine. This system is powered by next-generation processing power from Intel, the Xeon C3500 series processors. The VTrak x30 series supports OS X, Windows, and Linux. Tested and qualified across diverse OS and SAN environments such as XSAN and StorNext, the VTrak x30 is built for enterprise workload. - Edit and Playback Video
- Enhanced cached mirroring design, auto-regeneration of data to mitigate frame drops and optimized disk access all add up to more performance for broadcast and editing environments
- Redesigned WebPAM PROe Management Suite
- The WebPAM PROe included are automatic configurations tuned for common applications, non-disruptive software updates, power savings scheduler, performance and power monitoring statistics, drag-and-drop LUN mapping/masking, and more. Everything you need is built-in, just login through Safari
- Heterogeneous Environments
- The VTrak x30 series supports OS X, Windows, and Linux. Tested and qualified across diverse OS and SAN environments such as XSAN and StorNext, the VTrak x30 is built for the enterprise workload
VTrak x30 Advantages - Quad 8 Gb/s Fibre Channel ports per controller
- Delivers up to four times more performance than previous generation
- Out-of-the-box support with zero software install required
- Scale up to nine expansion chassis for a total of 240 drives
- PerfectFlash enables software updates without requiring downtime
- Administer access control through Open Directory and LDAP
- Energy efficient power supplies offering up to 85% power efficiency
- Qualified solution for OS X, XSAN, Final Cut Pro and Adobe Premiere
- Certified for Windows, Linux, and StorNext
- VTrak A-Class storage node support ready
UPC: 704118094622 In the Box Promise Technology VTrak x30 Series 3U 64TB 8 Gb/s FC RAID Subsystem Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak x30 Series 3U 64TB 8 Gb s FC RAID Subsystem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology E630fD Specs | | | CPU | Intel Xeon | | # of RAID Controllers | Dual | | Storage Controller Cache | 4 GB | | | | Total Raw Capacity | 64 TB | | Included Drives | 16 x 4 TB 3.5" HDD | | Interface | SAS | | Rotational Speed | 7200 rpm | | | | Number of Bays | 16 x 3.5" | | Connections | 4 x LC (FC (8 Gb/s))
1 x Mini SAS (SFF-8088) | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 5, 50, 6, 60 | | Expansion | Up to 9 Storage Units | | | | AC Input Power | 100 to 200 VAC, 50 / 60 Hz at 5 to 10 A | | PSU Wattage | 2 x 580 W (Supports Redundancy) | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | BSMI, C-Tick, CE, FCC, Kcc, RoHS, TUV, UL, VCCI, WEEE, cUL, as per Manufacturer | | | | Noise Level | 55 to 65 dBA | | Dimensions | 17.6 x 5.2 x 20.0" / 44.7 x 13.2 x 50.7 cm |
