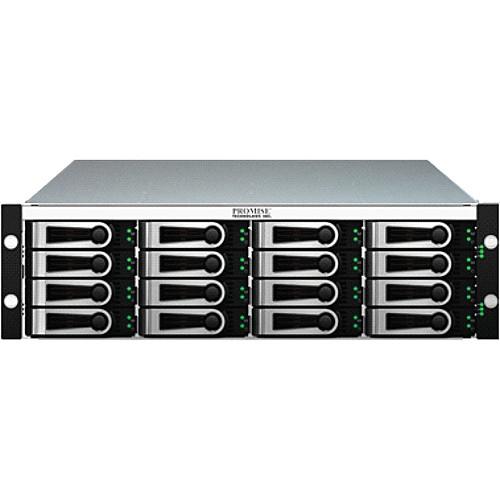

User Manual for Promise Technology VTrak x30 Series 6G SAS 3U 16 Bay Dual Controller Expansion Chassis Click to enlarge the picture
Contents of the user manual for the Promise Technology VTrak x30 Series 6G
- Product category: Hard Drive Enclosures & Docks Promise Technology
- Brand: Promise Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Promise Technology Hard Drive Enclosures & Docks
|
User manual for the Promise Technology VTrak x30 Series 6G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Promise Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Promise Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Promise Technology product will considerably shorten its lifespan!
|
Product description The VTrak x30 Series 6G SAS 3U 16 Bay Dual Controller Expansion Chassis from Promise Technology is a robust, high-availability 6G SAS JBOD storage expansion platform with dual I/O modules. The 3U 16 Bay Expansion Chassis allows storage applications to access their data at fast speeds, providing up to 24 Gbps of bandwidth over the external multilane 6G SAS host interface.As the demands for capacity expansion of digital media continues to explode, IT infrastructures and its growing complexities have become increasingly difficult to manage. With the technology moving towards the storage boom, the IT administrators are looking for a robust storage expansion platform. This Expansion Chassis provides high-availability, flexibility and energy-efficiency in a cost effective package that meets their application demands. Note: Drives are not included in this expansion chassis. SATA drives require SAS to SATA adapter which is sold separately in pack of 4. - Delivering a Reliable Enterprise Level Storage Architecture
- The 3U 16 Bay Expansion Chassis delivers a high performance SAS solution with advanced enterprise level reliability and functionality. Delivered in a Storage Bridge Bay (SBB) 2.0 compliant package, the x30 Series offers the full redundancy that is expected of an enterprise solution. Dual active-active JBOD I/O modules allow for redundant data paths to ensure data availability. The dual power supplies and cooling fans are in place to minimize downtime and any disruption to business continuity.
- 6G SAS Performance
- The 3U 16 Bay Expansion Chassis allows storage applications to access their data at fast speeds, provides up to 24 Gbps of bandwidth over the external multilane 6G SAS host interface. The 6G SAS architecture paves the way for immense available bandwidth to support the flood of unstructured data flowing across networks. In this Expansion Chassis you have the ability to deploy 3G and 6G SAS/SATA hard drives and Solid State Devices (SSD) that are fully backward compatible with 3G SAS/SATA devices.
- GreenRAID
- The 3U 16 Bay Expansion Chassis utilizes the environmental friendly production methods and materials as well as a high-efficiency design that saves energy. The Expansion Chassis sports 80 Plus Bronze Certified power supplies that offer up to 85% power efficiency. It improves the total cost of ownership by conserving power, reducing heat output and improving cooling costs. The internal 6G SAS expander based architecture also allows for transparent access to each drive and enables full utilization of the power management features built into modern hard drives.
- It features up to four 6G mini SAS (4x) ports, two ports per I/O module
- This Expansion Chassis has redundant, hot-swappable Field Replaceable Units (FRUs)
- It also has SES-2 compliant enclosure management
- The Expansion Chassis is compatible with SAS & SATA drives, HBAs and RAID controllers
UPC: 704118075218 In the Box Promise Technology VTrak x30 Series 6G SAS 3U 16 Bay Dual Controller Expansion Chassis Rack Mount Kit 2 x Power Cords* 2 x 6G SAS Cables HDD Screws Product CD Quick Start Guide Limited 3-Year Warranty Note: * For North America Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak x30 Series 6G SAS 3U 16 Bay Dual Controller Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x30 Specs | Number of Bays | 16 x 2.5"/3.5" | | Connections | 2 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Rackmount (3 RU) | | | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 580 W (Supports Redundancy) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Storage Humidity | 5 to 95% | | Certifications | RoHS, WEEE, as per Manufacturer | | | | Noise Level | 65 dBA | | Weight | 62.0 lb / 28.1 kg | | | | Package Weight | 62.0 lb | | Box Dimensions (LxWxH) | 31.0 x 23.5 x 11.7" |
