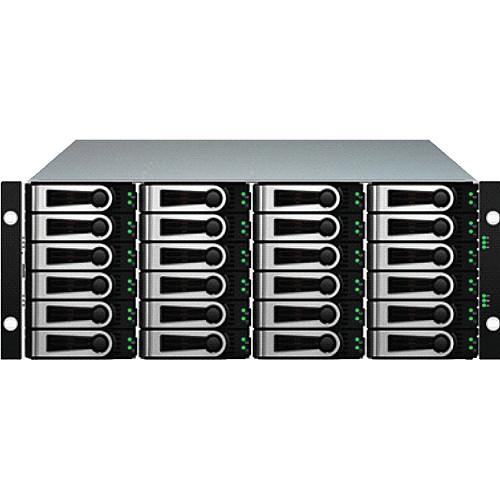

Product description The VTrak x30 Series 6G SAS 4U 24 Bay Dual Controller Expansion Chassis from Promise Technology is robust, high-availability 6G SAS JBOD storage expansion platform with dual /O modules. The 4U 24 Bay Expansion Chassis allows storage applications to access their data at fast speeds, providing up to 24 Gbps of bandwidth over the external multilane 6G SAS host interface.As the demands for capacity expansion of digital media continues to explode, IT infrastructures and its growing complexities have become increasingly difficult to manage. With no end in sight of this storage boom, IT administrators are faced with finding a robust storage expansion platform to serve as a building block to provide high-availability, flexibility and energy-efficiency in a cost effective package that meets their application demands. Note: Drives are not included in this expansion chassis. SATA drives require SAS to SATA adapter which is sold separately in pack of 4. - Delivering a Reliable Enterprise Level Storage Architecture
- The 4U 24 Bay Expansion Chassis delivers a high performance SAS solution with advanced enterprise level reliability and functionality. Delivered in a Storage Bridge Bay (SBB) 2.0 compliant package, the x30 Series offers the full redundancy that is expected of an enterprise solution. Dual active-active JBOD I/O modules allow for redundant data paths to ensure data availability. The dual power supplies and cooling fans are in place to minimize downtime and any disruption to business continuity.
- 6G SAS Performance
- The 4U 24 Bay Expansion Chassis allows storage applications to access their data at fast speeds, provides up to 24 Gbps of bandwidth over the external multilane 6G SAS host interface. The 6G SAS architecture paves the way for immense available bandwidth to support the flood of unstructured data flowing across networks. In this Expansion Chassis you have the ability to deploy 3G and 6G SAS/SATA hard drives and Solid State Devices (SSD) that are fully backward compatible with 3G SAS/SATA devices.
- GreenRAID
- The 4U 24 Bay Expansion Chassis utilizes the environmental friendly production methods and materials as well as a high-efficiency design that saves energy. The Expansion Chassis sports 80 Plus Bronze Certified power supplies that offer up to 85% power efficiency. It improves the total cost of ownership by conserving power, reducing heat output and improving cooling costs. The internal 6G SAS expander based architecture also allows for transparent access to each drive and enables full utilization of the power management features built into modern hard drives.
- It features up to four 6G mini SAS (4x) ports, two ports per I/O module
- This Expansion Chassis has redundant, hot-swappable Field Replaceable Units (FRUs)
- It also has SES-2 compliant enclosure management
- The Expansion Chassis is compatible with SAS & SATA drives, HBAs and RAID controllers
UPC: 704118075010 In the Box Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay Dual Controller Expansion Chassis Rack Mount Kit 2 x Power Cords* 2 x 6G SAS Cables HDD Screws Product CD Quick Start Guide Limited 3-Year Warranty Note: * For North America Table of Contents
|
Upload User Manual
Have you got an user manual for the Promise Technology VTrak x30 Series 6G SAS 4U 24 Bay Dual Controller Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPromise Technology x30 Specs | Controller | Dual | | Form Factor | 4U | | Compatible | SAS & SATA drives, HBAs and RAID controllers | | | | Drive Support | - Up to twenty-four 3.5/2.5” (8.89 / 6.35 cm) HDDs or SSDs
- SAS 6 Gbps, 3 Gbps, SATA 6 Gbps, 3 Gbps and 1.5 Gbps
- Supports any mix of SAS and SATA drives simultaneously in the same enclosure
| | External I/O Ports | Each SBB 2.0 I/O module has two SAS ports using mini SAS 4x wide port SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs | | | | Compliance | ANSI T10 SAS 2.0 and 2.1 compliant | | Expander Management Features | - Self configuring expander supports full SAS domain topology management
- SMP - SAS management protocol
- In-band access to expander and PHY information
- Statistic counters and performance monitors
- SES EM - SES enclosure management (ANSI T10 SES 2 compliant)
- SCSI SES command set over virtual SSP device
| | | | Management Interfaces | - LED status indicator support for drives, FRU and enclosure environmental
- In-band SES enclosure management alerts you to out of spec operation: thermal condition, voltage condition or component failures, protects data and hardware
- Full subsystem management CLI through out-of-band RS232 serial port
| | Enclosure Management Protocols | SES over in-band SAS | | | | Voltage | 100 - 240 VAC auto ranging | | Current (Maximum) | 15 A @ 110 VAC; 6 A @ 240 VAC | | Power Conversion Efficiency | >80% @ 110 V (>20% load), >80% @ 240 V (>20% load) | | Temperature Range | - Operational: 41 to 104°F (5 to 40°C)
- Non-operational: -40 to 140°F (-40 to 60°C)
| | Humidity | - Operational: 10 to 90% (non-condensing)
- Non-operational: 5 to 95% (non-condensing)
| | Acoustic Noise Levels | - 55 dB (typical)
- 65 dB (maximum)
| | Shock | - Operational: 5G, 11 mS duration
- Non-operational: 10G, 11mS duration
| | Vibration | - Operational: 0.3G, 5 to 500 Hz
- Non-operational: 1G, 5 to 500 Hz
| | Safety | CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark | | Environmental Standards | RoHS, GreenPC, WEEE | | Power Supply | Dual 750 W, 100-240 VAC auto ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design | | Dimensions (H x W x D) | 6.9 x 17.6 x 19.96" (17.53 x 44.70 x 50.7 cm) | | Weight | 72 lb (32.66 kg) | | | | Package Weight | 77.0 lb | | Box Dimensions (LxWxH) | 31.0 x 24.0 x 14.0" |
