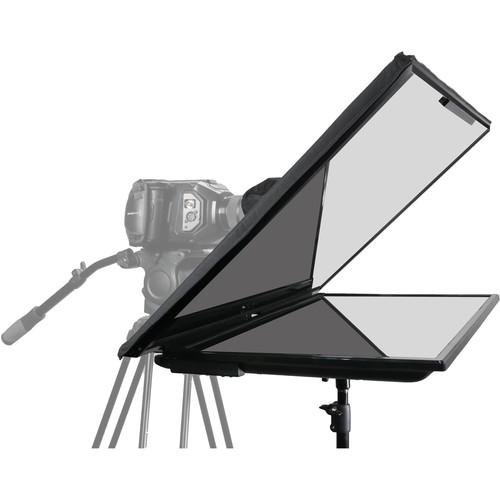

Product description Anatomy of a Teleprompter Read More The Prompter People Q-Gear QPro FreeStand 32" Teleprompter Bundle with Reversing 32" Monitor features a 32" reversing monitor, 60/40 rectangular beamsplitter glass, and a reading range over 17'. The teleprompter supports nearly any camcorder, ranging from handheld camcorders to ENG. You mount your camera onto your tripod, which allows you to use a tripod with a lighter payload as the monitor and hood mount onto an included stand. The teleprompter setup includes a LowBoy stand with a 5/8" baby-pin that the monitor bracket mounts onto via the 5/8" receiver.
The included controller interfaces with the FlipQ Pro software, which features a dual-screen scrolling engine, reverses the secondary PC or Mac laptop output without reversing the operator's display. This enables the use of less expensive non-reversing VGA displays without sacrificing the functionality or performance. It features an RTF text editor, and allows you to import RTF and TXT files. Additionally, FlipQ Pro software offers color background, color fonts, preset font size, color, style, black and white fonts, user selectable cue points, run lists, run from selected cursor and selectable cue marker. The software comes on a USB dongle so that it can be used on multiple computers. Just plug the dongle into the computer you want to use at a given time. - The 60/40 beamsplitter glass provides a bright overlay of text that your talent can read from over 17' away, yet the text is invisible to your camera.
- Supports nearly any camera ranging from handheld camcorders to DSLR, and ENG cameras.
- Aluminum extrusion frame - provides counterweight-free balance when used with any camera size.
- Supports HDMI, VGA, and composite inputs.
- Monitor is self-reversing.
- Freestanding mounting is when the glass, hood, and monitor are mounted on a stand in front of the camera instead of mounting the camera to the prompter and then mounting the entire set up on a tripod.
Flip-Q Pro Software - Dual-screen scrolling engine—reverses the secondary PC or laptop output without reversing the operators display.
- Enables the use of less-expensive non-reversing VGA displays without sacrificing the functionality or performance.
- Features an RTF text editor.
- Allows you to import RTF and TXT files.
- Offers color background, color fonts, preset font size, color, style, black and white fonts, user selectable cue points, run lists, run from selected cursor and selectable cue marker.
- Features mirror secondary display, quarter size operator display, sensitivity control, UNICODE support, and foot pedal support.
- Comes with find, replace, and undo functions, wireless controller option, text justification, variable line spacing, and interface in 9 different languages.
In the Box Prompter People Q-Gear QPro FreeStand 32" Teleprompter Bundle with Reversing 32" Monitor 32" Reversing Monitor Hood 60/40 Beamsplitter LowBoy Stand with 5/8" Pin USB Dongle with Flip-Q PRO Software Wireless Remote Limited 3-Year Warranty Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Prompter People Q-Gear QPro FreeStand 32" Teleprompter Bundle with Reversing 32" Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrompter People Q-Gear Pro 32 Specs | | | Reading Range | 17' / 5.2 m | | Beamsplitter Ratio | 60/40 | | Beamsplitter Size | 32 x 22" / 81.3 x 55.9 cm | | | | Size (Diagonal) | 32" / 81.3 cm | | Maximum Brightness | 400 cd/m2 | | Input | 1 x HDMI
1 x VGA
1 x Composite | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Supported Operating Systems | Windows, Mac | | | | Material of Construction | Aluminum | | Dimensions | 32.0 x 28.0 x 24.0" / 81.3 x 71.1 x 61.0 cm | | Weight | 26 lb / 11.79 kg |
