User Manual for ProPrompter HDi PRO2 package with 10" LCD Click to enlarge the picture
Contents of the user manual for the ProPrompter HDi PRO2 package with 10"
- Product category: Teleprompters ProPrompter
- Brand: ProPrompter
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProPrompter Teleprompters
 |
User manual for the ProPrompter HDi PRO2 package with 10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProPrompter product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProPrompter user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProPrompter product will considerably shorten its lifespan!
|

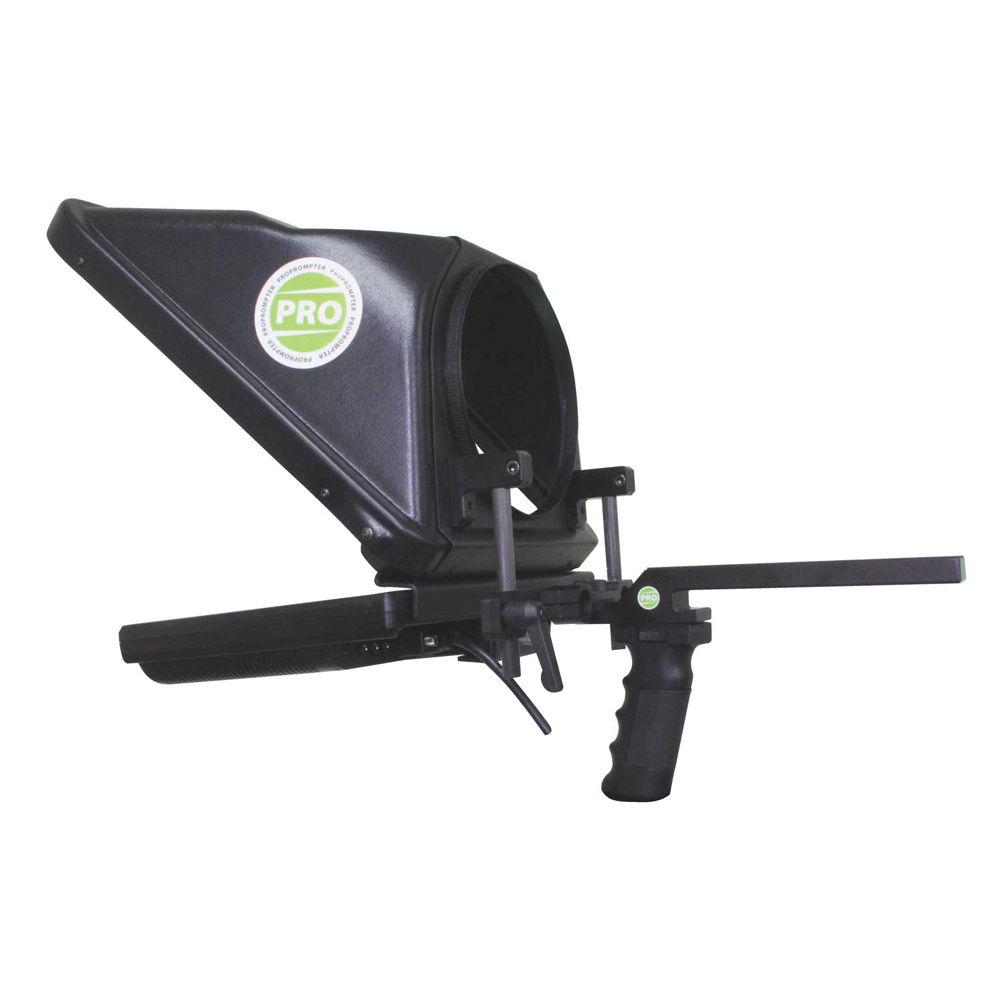

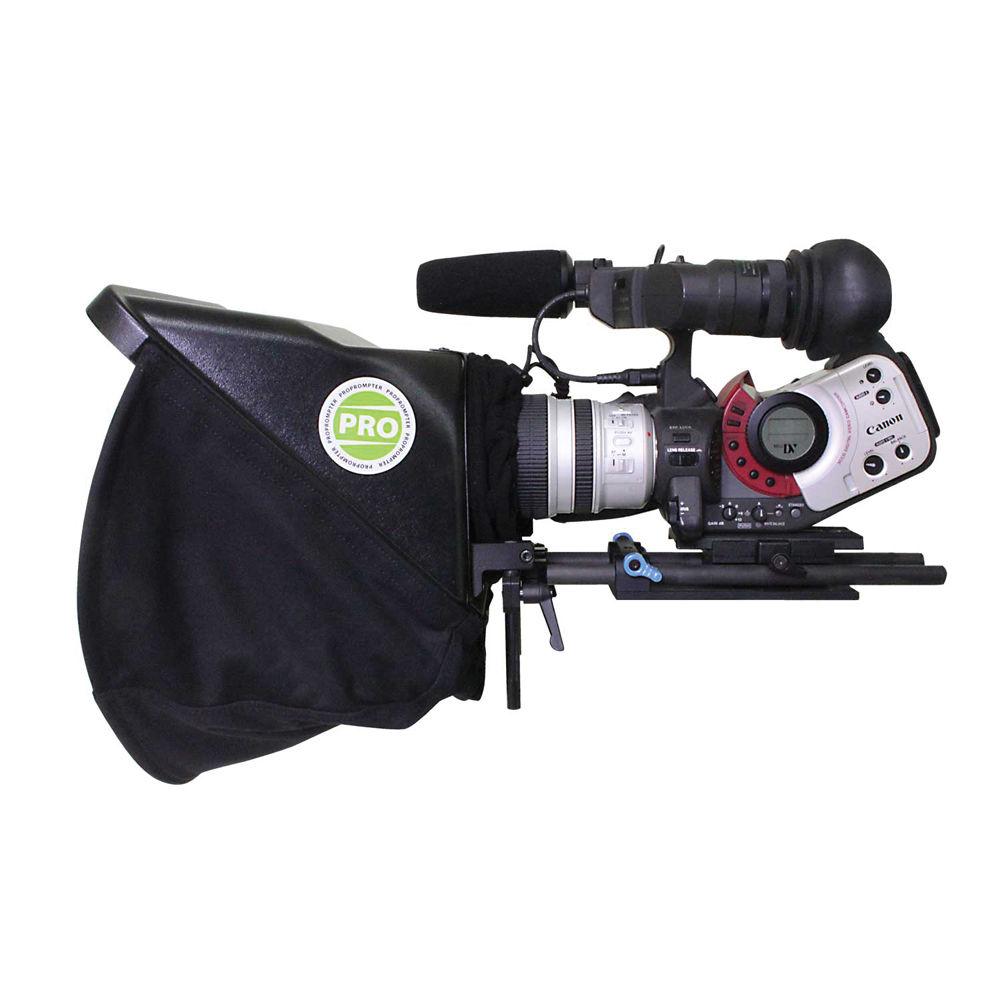

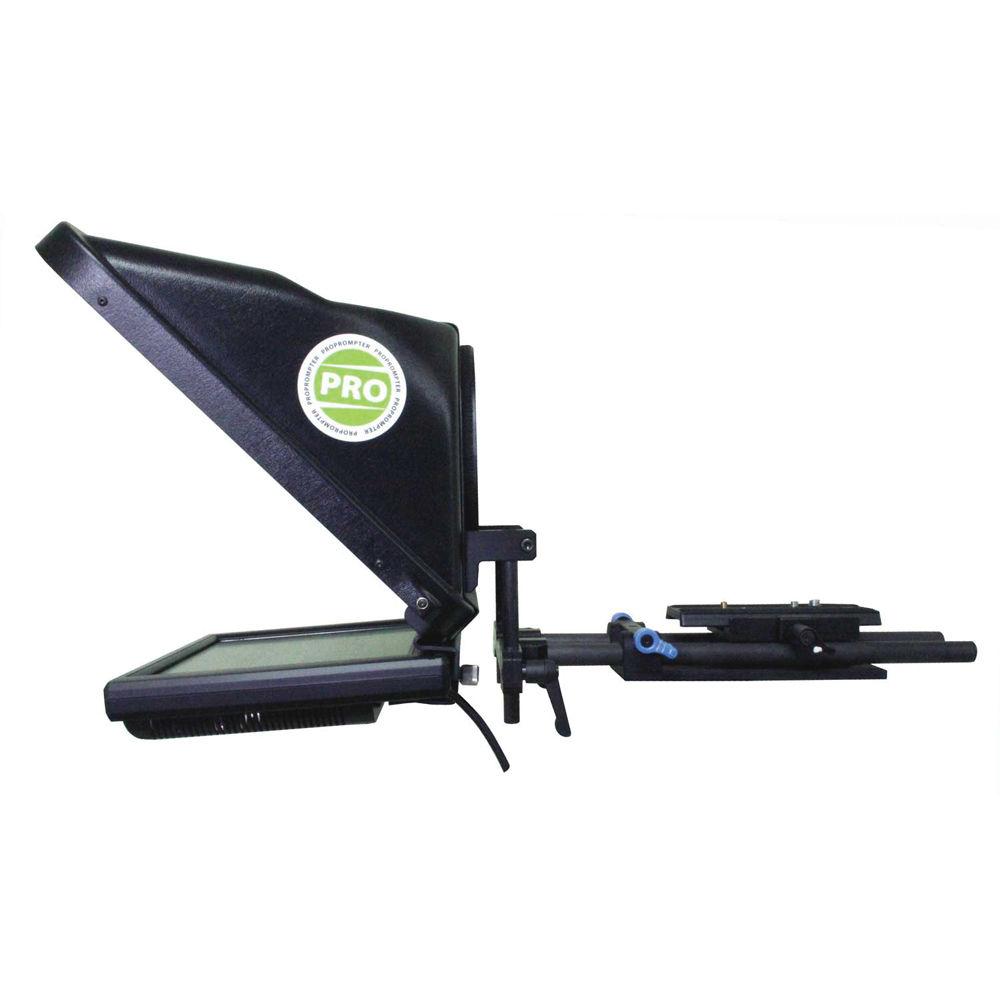

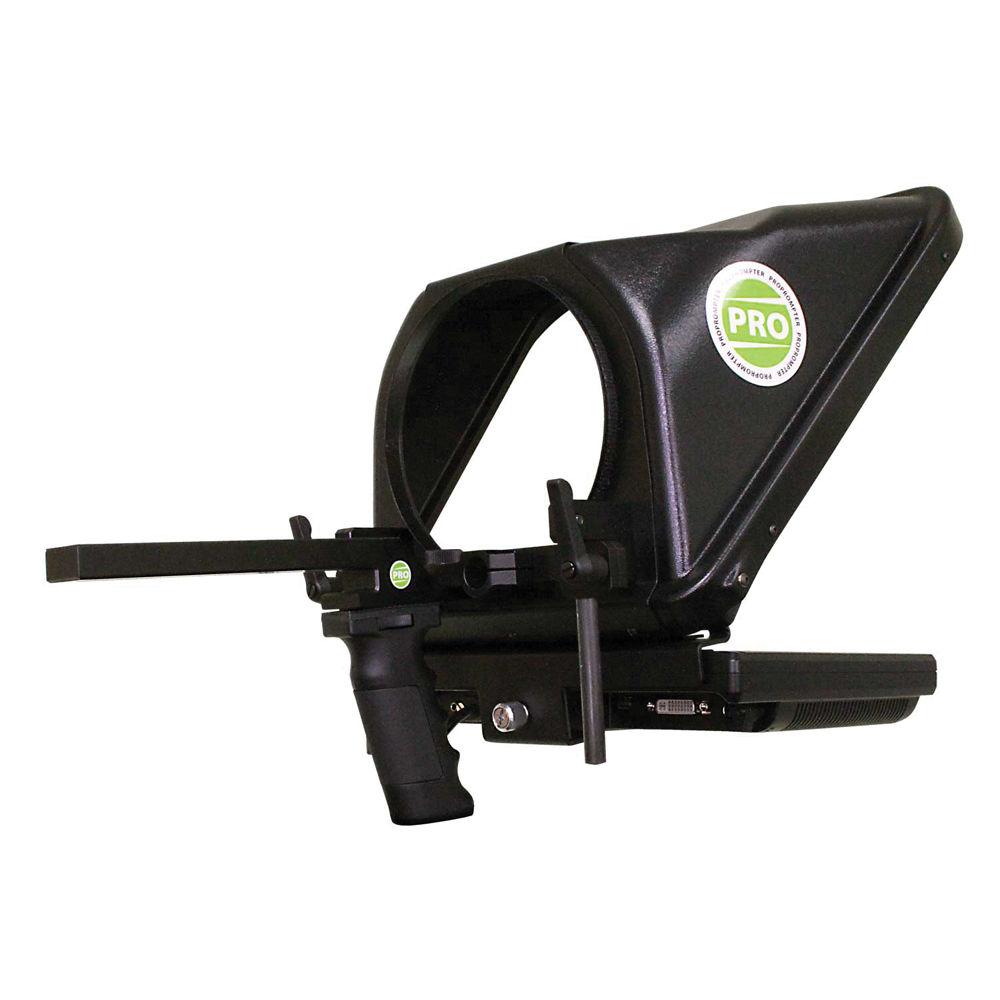

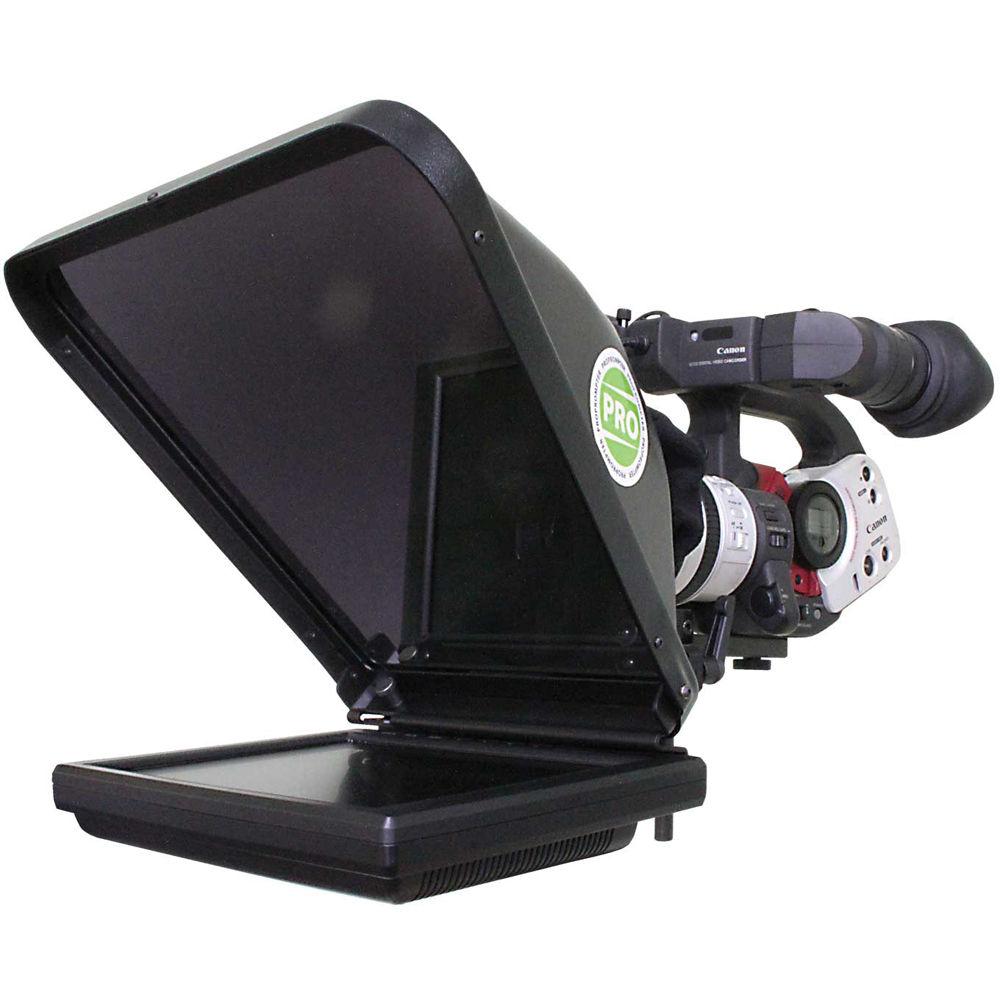

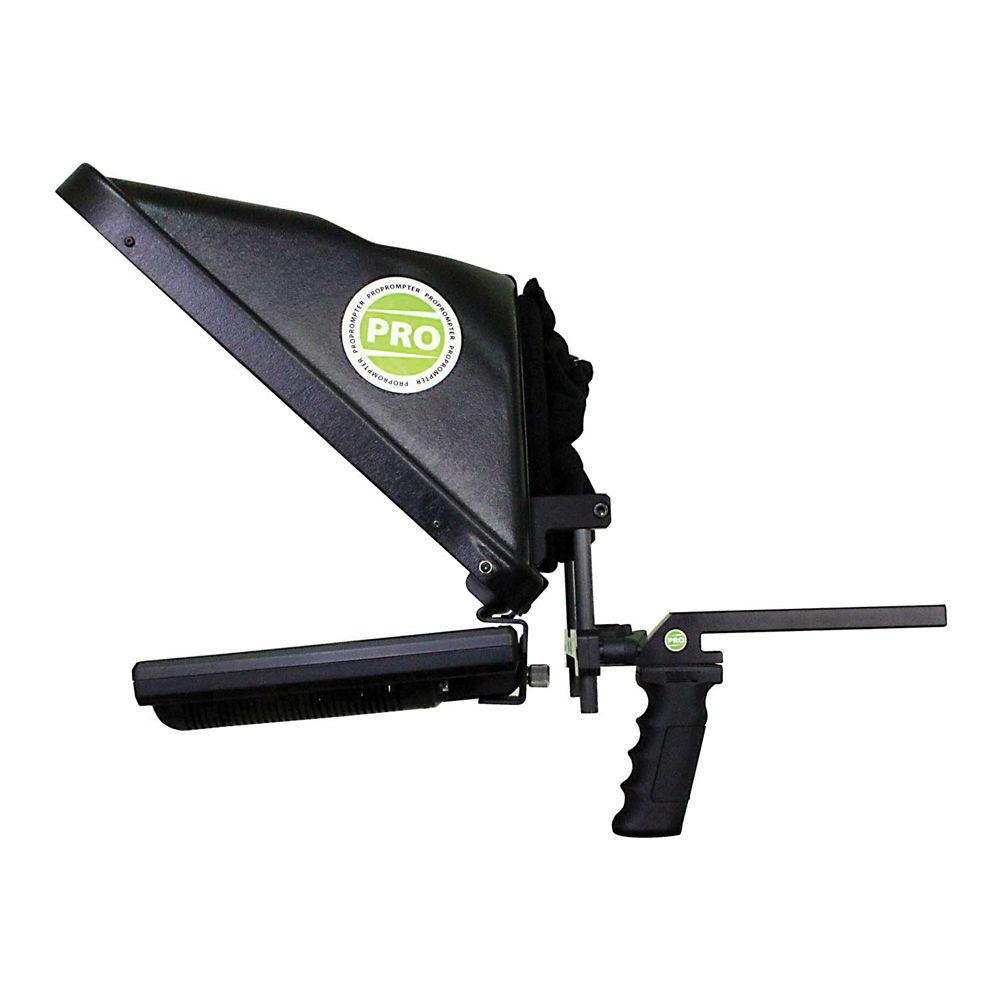

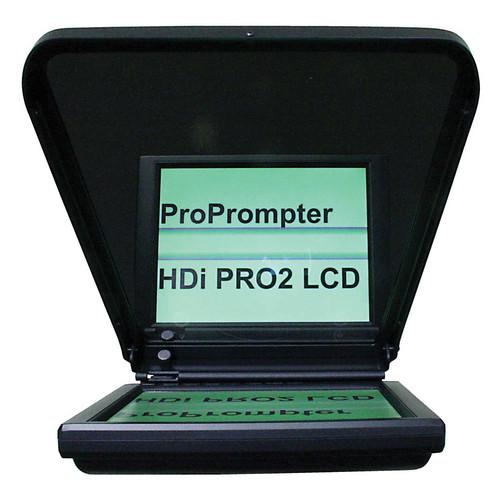

Product description Anatomy of a Teleprompter Read More The ProPrompter HDi PRO2 package with 10" LCD is a versatile teleprompter system that works with cameras ranging in size from small consumer camcorders to large ENG cameras. It includes a 10.4" color LCD with a menu based mirror function and a 15-foot VGA cable. The studio quality 60/40 beamsplitter glass provides bright readable text without stealing excessive light from the image, allowing talent to read from up to 15 feet away. The included camera mounting hardware provides flexibility and mounting options.
The prompter lens hood accepts lenses with an outer diameter of up to 6 inches (150 mm), while the included lens sock and anti-reflection hood block reflections that could affect the image. The HDi PRO2 with LCD monitor includes basic teleprompter software for both Mac and Windows. The Teleprompter package packs into an included waterproof/air tight rolling case for transport and storage. The ProPrompter HDi PRO2 package with 10" LCD is made in the USA. Beamsplitter - The beamsplitter is a studio quality 60/40 glass that fits snugly in the trapezoidal shaped hood, and presents easily readable text to the talent, without affecting the image.
LCD Monitor - Featuring VGA, HDMI, DVI, and composite video inputs and a built-in mirror function it is designed to work as either a prompter, or stand alone monitor.
Mounting - The included camera bar, allows you to mount the prompter and available camera in the traditional manner, to a common support mounts to a tripod with a 1/4"-20 screw. A provided 1/4"-20 camera tie down thumb screw attaches your camera of choice to the camera bar. This works well with small to medium sized camcorders.
- The included rod mounts allows you to bypass the camera bar and mount the teleprompter directly to available 15mm rod supports. This is for use with larger ENG cameras that have a 15mm rod support system that may be too long to use with the camera bar mounting system.
- The package includes carbon fiber vertical adjusting rods to center your camera when using either the camera bar support or rod mount.
- The package includes a pistol grip so you can hand hold the entire rig.
ProPrompter Basic Software v4 - Horizontal and vertical mirroring
- Multiple text and font colors
- Built-in word processor and script editor
- Copy and paste from other programs
UPC: 810487016629 In the Box ProPrompter HDi PRO2 package with 10" LCD 15' VGA Cable 1/4"-20 Camera Tie Down Thumb Screw Black Lens Sock Duvetyne Anti-Reflection Mask (Black) Mounting Bracket Compatible with 15mm Rods Carbon Fiber Vertical Adjustment Rods Camera Mounting Bar Grip for ProPrompter Wing Camera Mount ProPrompter Basic Software for Mac/Win 4 mm Hex Wrench Custom i-Series SKB Case Power Supply Limited 1-Year Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProPrompter HDi PRO2 package with 10" LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProPrompter PP-HD-I-PRO2-LCD Specs | | | Reading Range | 15' / 4.6 m | | Beamsplitter Ratio | 60/40 | | Beamsplitter Size | 13 x 12" / 33 x 30.5 cm | | Beamsplitter Shape | Trapezoidal | | Beamsplitter Material | Glass | | Lens Opening | 5.9" / 150 mm | | Tripod Mount Type | 1 x 1/4"-20 | | | | Size (Diagonal) | 10.4" / 26.4 cm | | Input | 1 x HDMI
1 x VGA
1 x DVI
1 x Composite | | Output Voltage | 12 VDC | | Weight | 5 lb / 2.3 kg | | | | Supported Operating Systems | Windows, Mac | | | | Material of Construction | ABS, Aluminum, Carbon Fiber, Cloth | | Dimensions | 22.0 x 15.0 x 13.0" / 55.9 x 38.1 x 33.0 cm | | Weight | 21 lb / 9.5 kg | | | | Package Weight | 25.4 lb | | Box Dimensions (LxWxH) | 22.0 x 18.5 x 12.2" |
