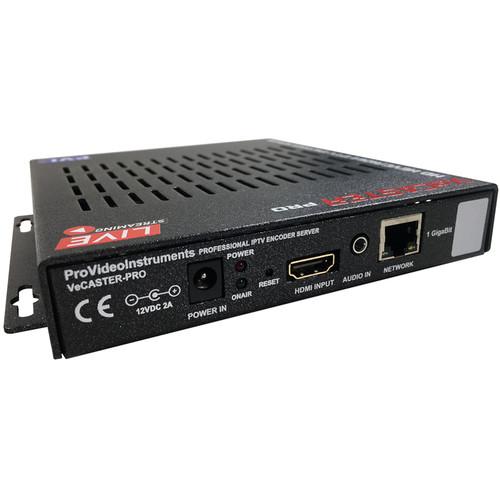

User Manual for ProVideoInstruments VeCASTER Pro HD HDMI to IPTV Streaming Encoder Click to enlarge the picture
Contents of the user manual for the ProVideoInstruments VeCASTER Pro HD HDMI to
- Product category: Streaming Media Solutions ProVideoInstruments
- Brand: ProVideoInstruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProVideoInstruments Streaming Media Solutions
|
User manual for the ProVideoInstruments VeCASTER Pro HD HDMI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProVideoInstruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProVideoInstruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProVideoInstruments product will considerably shorten its lifespan!
|
Product description The VeCASTER Pro HD HDMI to IPTV Streaming Encoder from ProVideoInstruments distributes any HDMI 2.0 Full HD video directly to unlimited smart TVs, mobile phones, tablets, PCs, and IP boxes over an IP network. This device can encode up to two simultaneous streams from the same HDMI with selectable scaling and formats. It connects directly to an existing LAN switch, Wi-Fi, or internet router and is suitable for streaming HDMI video directly onto additional repeater servers such as YouTube, Facebook, Amazon, and Wowza.
The VeCASTER HDMI Encoder features include a latency of <200 ms, EDID management, dual simultaneous encoders and scalers, selectable audio format for each channel, and closed caption compatibility. This encoder also features remote control using your PC and web interface. - Two simultaneous encoding formats with selectable scaling and formats
- Built-in simultaneous M3U8, HLS, RTMP, HTTP, UDP, and RTSP IPTV streaming server
- Streams directly onto internet, YouTube Red, Facebook, Wowza, and Akami
- Simple configuration via login-protected web interface
- Expandable, modular design
- Advanced EDID control to manage any video source automatically
- Frame rate encoding control for each channel, from 1-60 fps
- Fast processing for live real-time applications
- Add multiple units for more channels by setting different IP addresses for each unit
- Selectable audio format for each channel including Dolby Digital AC3, Mpeg1L2, and AAC
- Stream descriptors control for editing programs names, PIDs, channel numbers, and descriptors
- Compact dimensions and noiseless operation
UPC: 649070905824 In the Box ProVideoInstruments VeCASTER Pro HD HDMI to IPTV Streaming Encoder Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProVideoInstruments VeCASTER Pro HD HDMI to IPTV Streaming Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProVideoInstruments VeCASTER Specs | | | HDMI | 1 x HDMI 2.0, up to 1080p @ 60 fps | | EDID | Advanced EDID auto control compatible with any HDMI video source | | Auto Detect | Auto frame-rate input switching | | Closed Caption | Digital input HDMI CC video pass | | Video Resolution | 1080p, 1080i, 720p, 576p, 576i, 480p, 480i (auto EDID or selectable scaler) | | Supported Frame Rates | 1 to 60 fps | | Aspect Ratio | 16:9, 4:3, film mode detection (3:2 pull-down) | | | | Audio Input | HDMI embedded | | | | Encoder Video Profile | MPEG4 H.264 base/main/high profiles | | Encoding Latency | In/Out: <50 ms | | Data Rates | Variable bit rate, 64 kb/s, 15 Mb/s per channel | | Color Profile | 4:2:0 broadcast grade sampling | | GOP Size | 15 | | | | Channels | 1 x stereo | | Supported Audio Formats | Dolby Digital (AC-3): 56 to 640 kb/s
MPEG-1 Layer II: 32 to 384 kb/s
AAC Advanced Audio Coding
MP3 audio encoding | | | | Connector | 1 x RJ45, LAN GigaBit port | | | | Power | 100 to 240 VAC, 50/60 Hz 10 W (max), 5 W (typical) | | Cooling | Fan-less / Noiseless | | Vibration | NSTA 1 A in carton | | MTBF | 55,000 hours | | Temperature | 32 to 115°F / 0 to 46°C | | Humidity | 10 to 80%, non-condensing | | Compliance | FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick | | Enclosure | EMI shielded metal | | Mounting | Stand-alone with side mounting ears
4 RU rack-mounting using optional rack bars | | Dimensions | 6.5 x 6.7 x 1.0" / 16.4 x 17.0 x 2.6 cm with side ears | | Weight | 9.6 oz / 250 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 12.3 x 7.9 x 2.4" |
