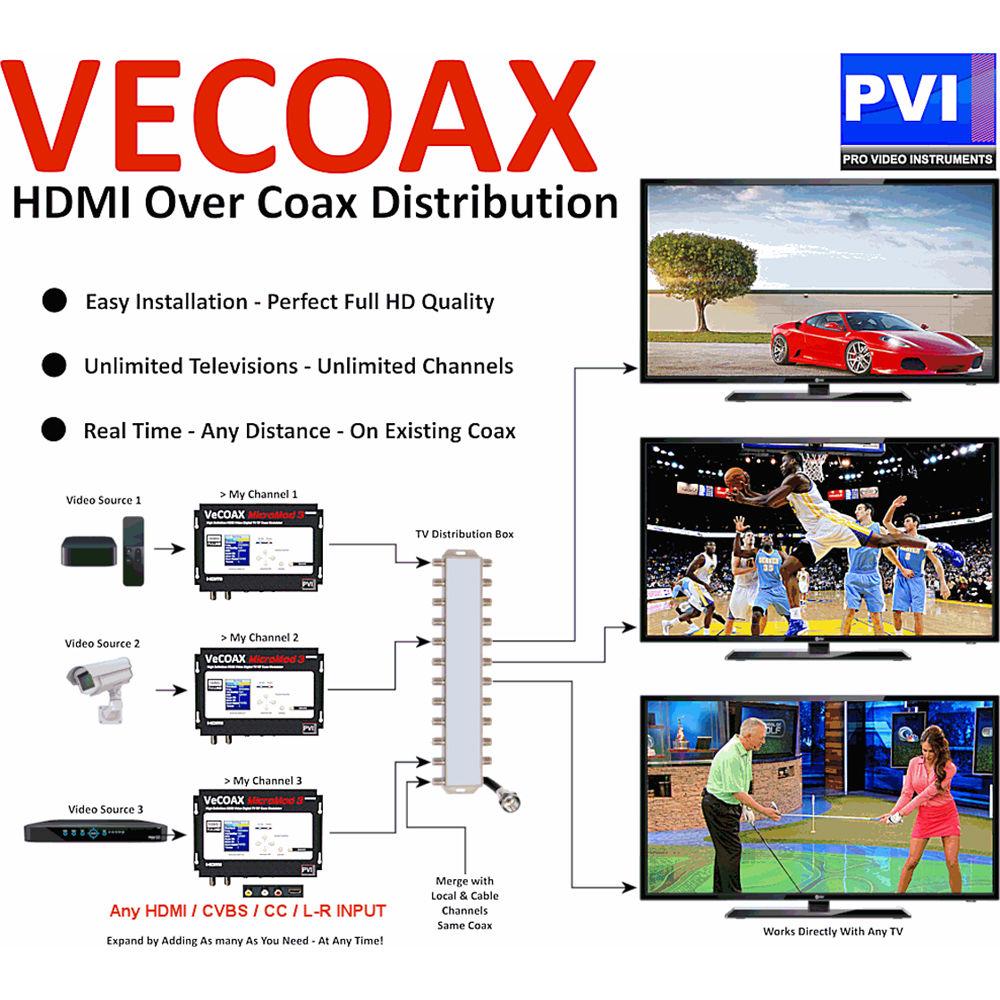

Product description This ProVideoInstruments VeCOAX MicroMod-3 HDMI-A/V-CC to RF Modulator converts HDMI video to HD video so it can run over coax cable. This enables sending your video signals over a significantly longer cable run compared to HDMI, without requiring signal boosters or extenders. It is primarily designed to allow you to integrate an HDMI source into a pre-existing RF-video system that requires a television with a digital tuner to display the video. You input a signal from a digital antenna into the device via one of the bi-directional F connectors, and the modulator will pass through that signal and add the HDMI signal into the RF-video signal as an additional channel, outputting it over the other F connector.

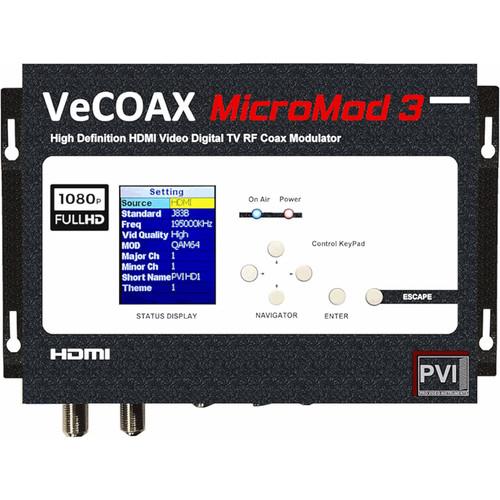

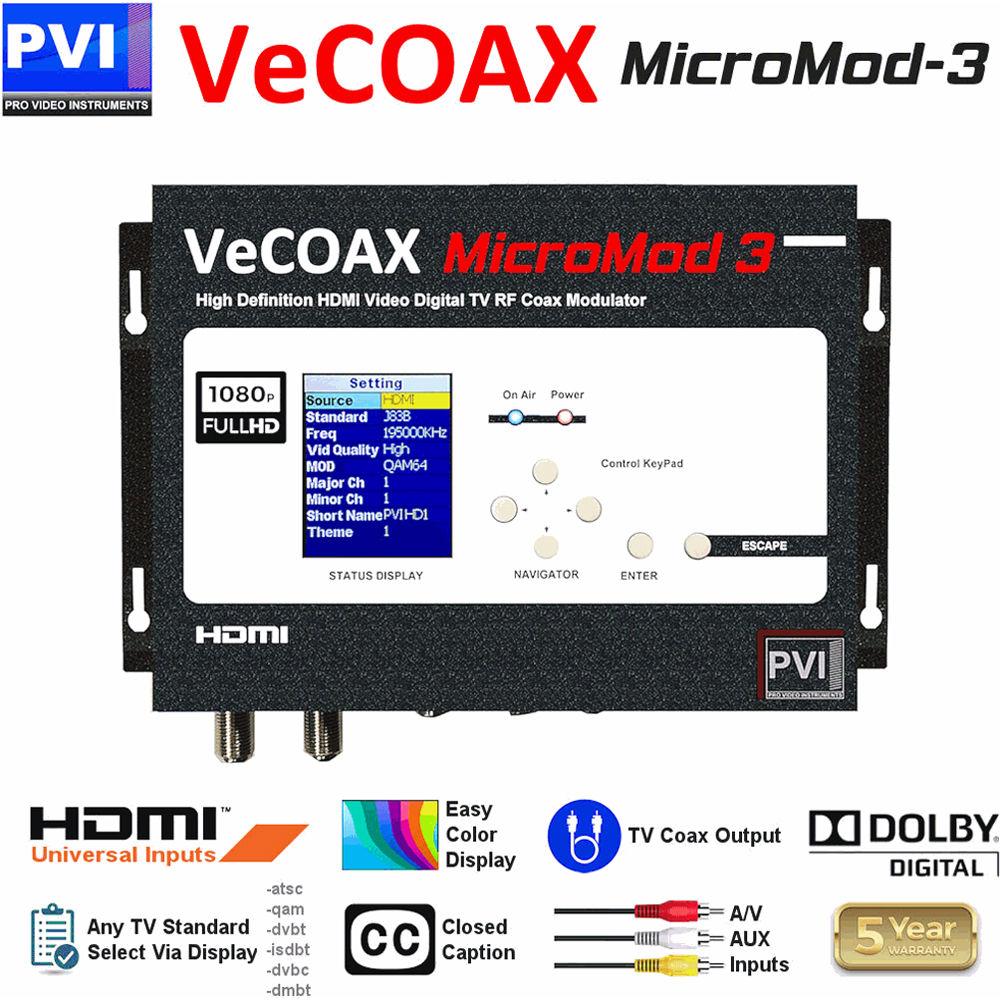

The unit supports video signals up to 1920 x 1080p and converts them to a variety of formats suitable for transmission to a digital tuner such as QAM, ATSC, ISDBT, DVBT, DVBC, and DMBT. One of the valuable features of this unit is the built-in color LCD display that provides a status display, as well as permitting menu navigation via front-panel buttons. It supports HDMI and SD composite analog signals, and is capable of handling Dolby Digital Audio and Closed Caption material. - The VeCOAX MicroMod-3 HDMI-A/V-CC to RF Modulator allows you to distribute 1 channel of HD video to TVs with a digital tuner using standard coax cables.
- It supports video up to 1920 x 1080p & Dolby Digital Audio from an HDMI source.
- It works with any HDMI, CC Closed Caption, or SD Composite AV Source.
- The unit is compatible with any HD compatible television, and its output can also mix with existing channels.

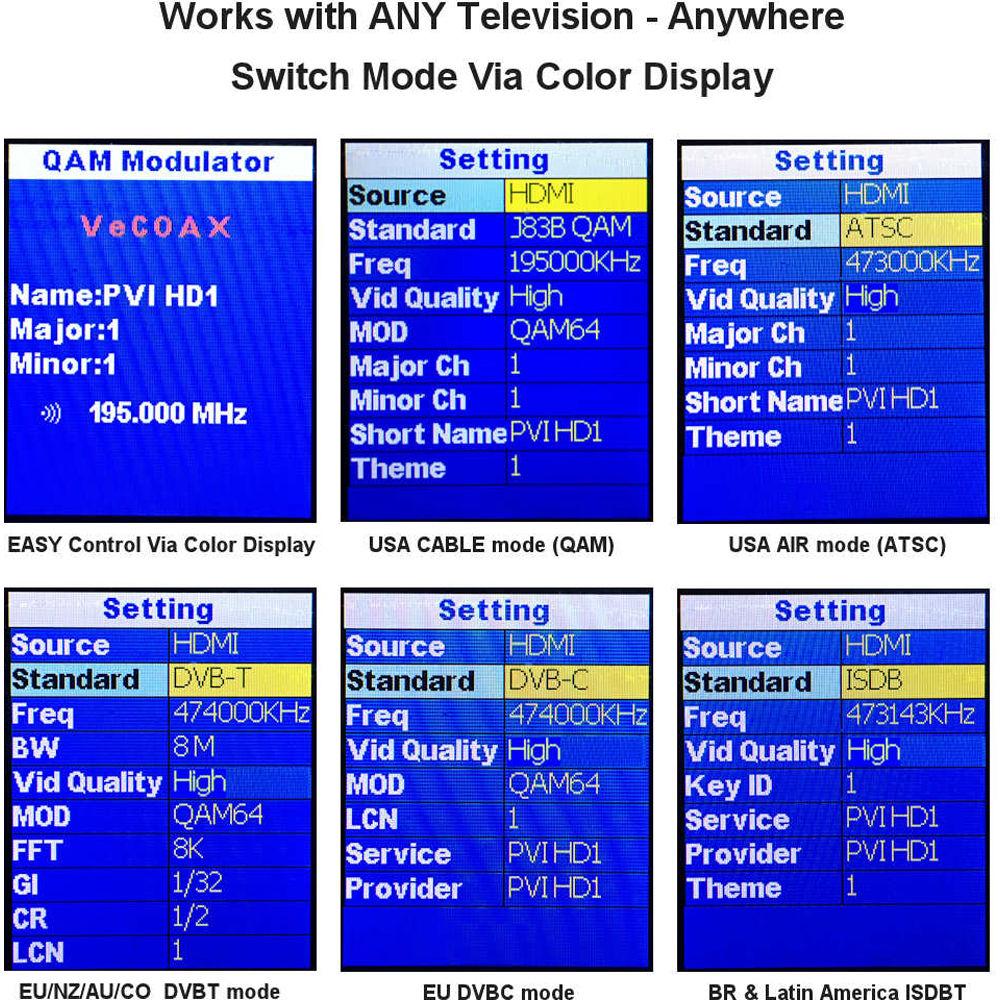

- The modulator outputs QAM, ATSC, ISDBT, DVBT, DVBC, and DMBT signals, which you select via the color LCD display and built-in front-panel buttons.

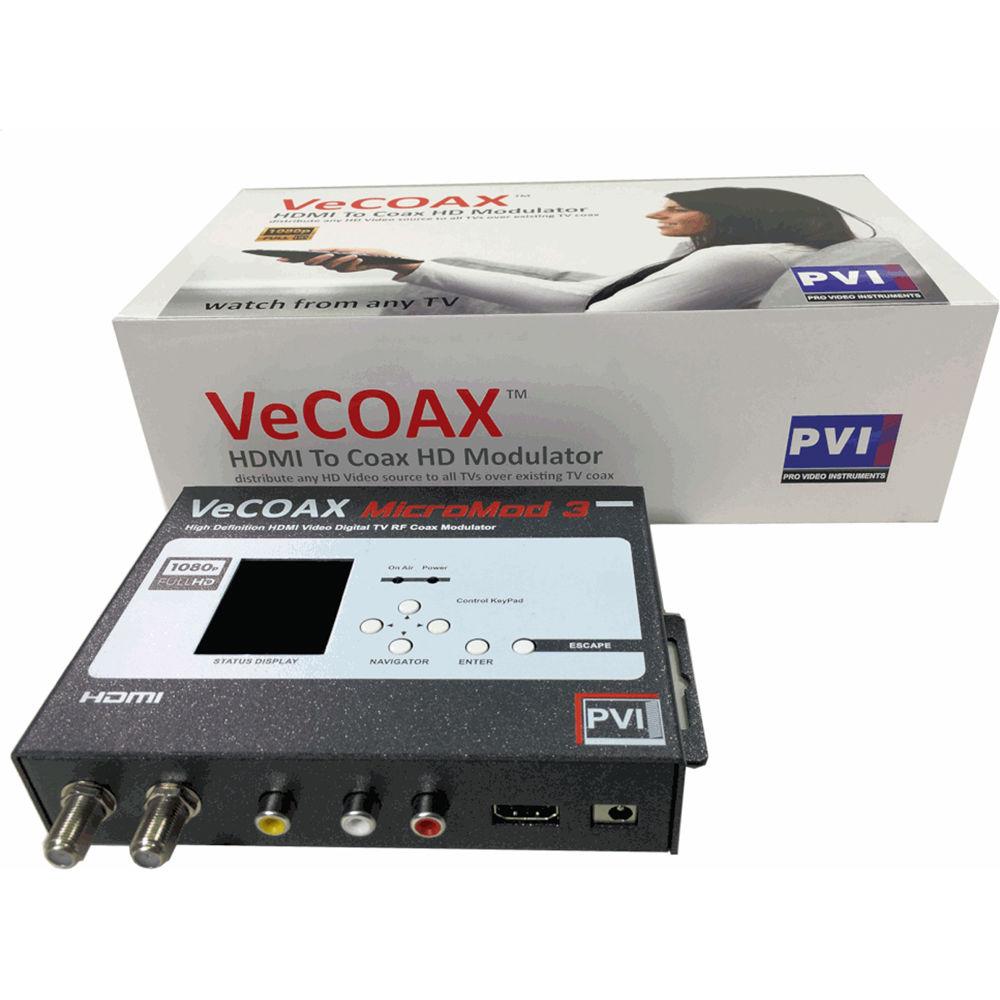

- The unit incorporates one HDMI input, two bi-directional coax F-type inputs, one RCA jack for video and two RCA jacks providing two-channels of audio in.
- The two F connectors can be used either as two outputs, or as a loop-through input/output. Using one F connector as an input and one as an output enables you to add the HDMI source into the RF video from your antennae.
- Power is provided by an included universal power supply, and built-in tabs permit mounting the item securely to a wall or desktop surface using mounting screws (not included).
UPC: 649070909044 In the Box ProVideoInstruments VeCOAX MicroMod-3 HDMI-A/V-CC to RF Modulator Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProVideoInstruments VeCOAX MicroMod-3 HDMI-A V-CC to RF Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProVideoInstruments MicroMod-3 Specs | Inputs | HDMI: 1 x Type-A
Composite Video: 1 x RCA jack
Audio: 2 x RCA jacks (unbalanced pair) | | Outputs | F: 2 x bi-directional (for loop through) | | Compatible Standards | QAM
ATSC
ISDBT
DVBT
DVBC
DMB | | Power | Input: 5 VDC
Power Supply: Universal | | Dimensions | 3 x 6 x 11" / 7.62 x 15.24 x 27.94 cm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 11.3 x 6.1 x 3.4" |
