User Manual for ProVideoInstruments VeCOAX MicroMod 3 SDI HDMI Digital TV RF Coax Modulator Click to enlarge the picture
Contents of the user manual for the ProVideoInstruments VeCOAX MicroMod 3 SDI HDMI
- Product category: RF Equipment ProVideoInstruments
- Brand: ProVideoInstruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProVideoInstruments RF Equipment
 |
User manual for the ProVideoInstruments VeCOAX MicroMod 3 SDI HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProVideoInstruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProVideoInstruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProVideoInstruments product will considerably shorten its lifespan!
|

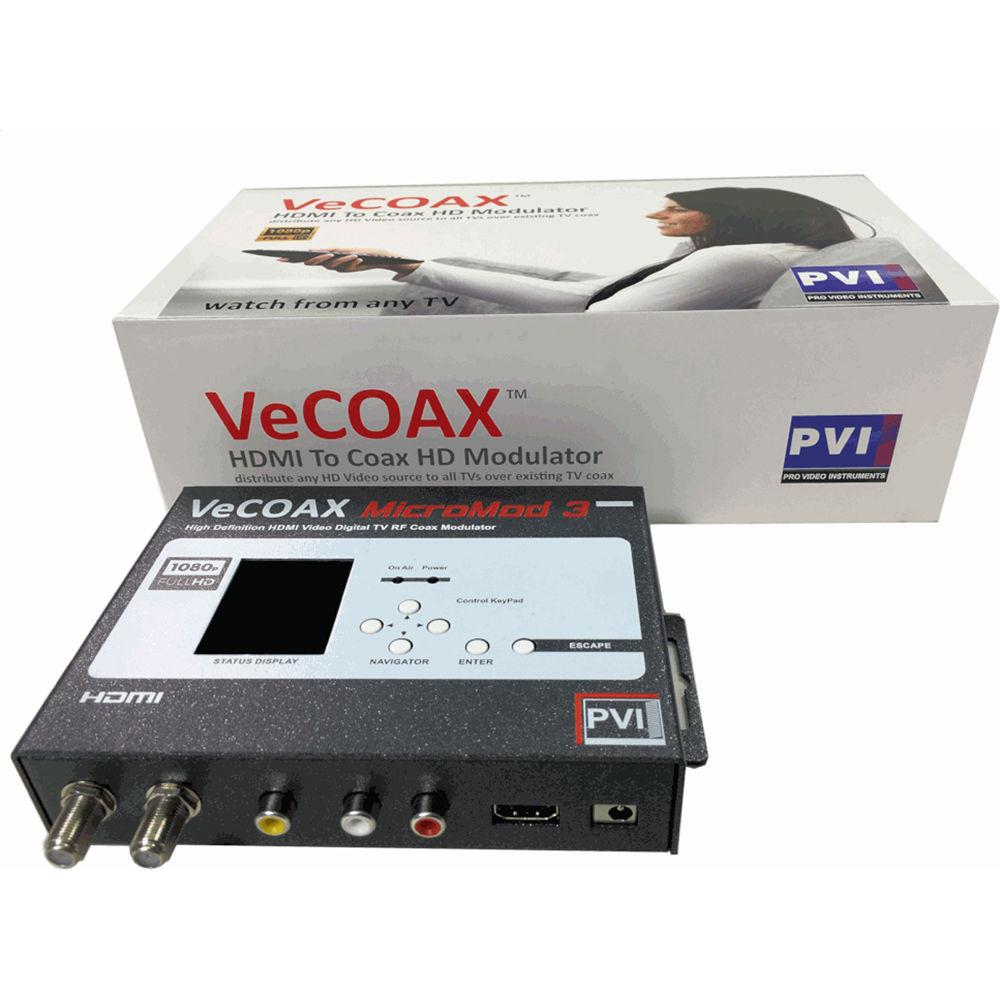

Product description Use the ProVideoInstruments VeCOAX MicroMod 3 SDI/HDMI Digital TV RF Coax Modulator to send an HDMI or SDI signal to televisions or monitors over a coaxial connection using RF. Since RF is used, multiple units can be programmed to send signals over different channels, enabling input selection for each screen. Using an RF distribution box, you can send the RF signals to as many screens as you require, up to 1500 feet away. Audio can be used from the embedded digital audio in the HDMI or SDI signal, or from an external stereo analog source via RCA. Using the color display on the unit itself, it's easy to set up. A computer running the free control software can also manage multiple units on a network. - Live HDMI video distribution over the existing coaxial cabling to an unlimited number of televisions
- Advanced EDID control to manage any video source from our color display and wanted formats
- Built-in color bars HD reference signal for installation and in case of input video loss
- SD/HD/3G SDI with embedded audio or audio from the L/R RCA analog input for separated feed
- Supports up to 1080p resolutions at 60 fps
- Multi-unit scalability for more channels with one-click setup recalling a different channel number from the display
- CC Closed Caption via SDI 608/708 embedded, or CVBS inputs or In-HDMI cc video
- Easy-to-use color screen for menu display
- Control via networked PC with free remote management software
- Selectable audio format between AC3, MPEG1 layer 2, and AAC
- PSIP & VCT control to edit programs names, PIDs, channel numbers, descriptors in ATSC/QAM USA applications
- PSI & LCN control to edit programs names, PIDs, channel numbers, descriptors in DVB applications
- Built-in output amplifier with up to 45 dB mV of gain to drive unlimited TVs up to 1500' away
UPC: 649070906111 In the Box ProVideoInstruments VeCOAX MicroMod 3 SDI/HDMI Digital TV RF Coax Modulator Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProVideoInstruments VeCOAX MicroMod 3 SDI HDMI Digital TV RF Coax Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProVideoInstruments VECOAX-MICROMOD-3-SDI Specs | Inputs | HDMI: 1 x HDMI type A
SDI: 1 x BNC, 3G/HD/SD-SDI
Audio: 1 x 2RCA, stereo analog audio
CC: 1 x RCA | | Video Resolution | 1080p
1080i
720p
576p
480p
NTSC
PAL | | Frame Rate Support | 60/59/94/50/30/29.97/25/24/23.98 | | Codec | Video: MPEG2
Audio: AC3 (Dolby Digital) 56-640 kb/s, MPEG-1 Layer II 32-384 kb/s, AAC | | Modulation Formats | USA QAM cable J.83B - any 256 & 64 modes
USA ATSC air 8VSB
Brazilian ISDBTb terrestrial
DVB-T eu au nz co Terrestrial 6/7/8 MHz BW worldwide
DVB-C cable
DTMB terrestrial | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 10 W max, 5 W typical | | Operating Temperature | 32 to 115°F / 0 to 46°C | | Dimensions | 1.5 x 5.9 x 2.5" / 3.8 x 15 x 6.4 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 11.1 x 6.1 x 3.4" |
