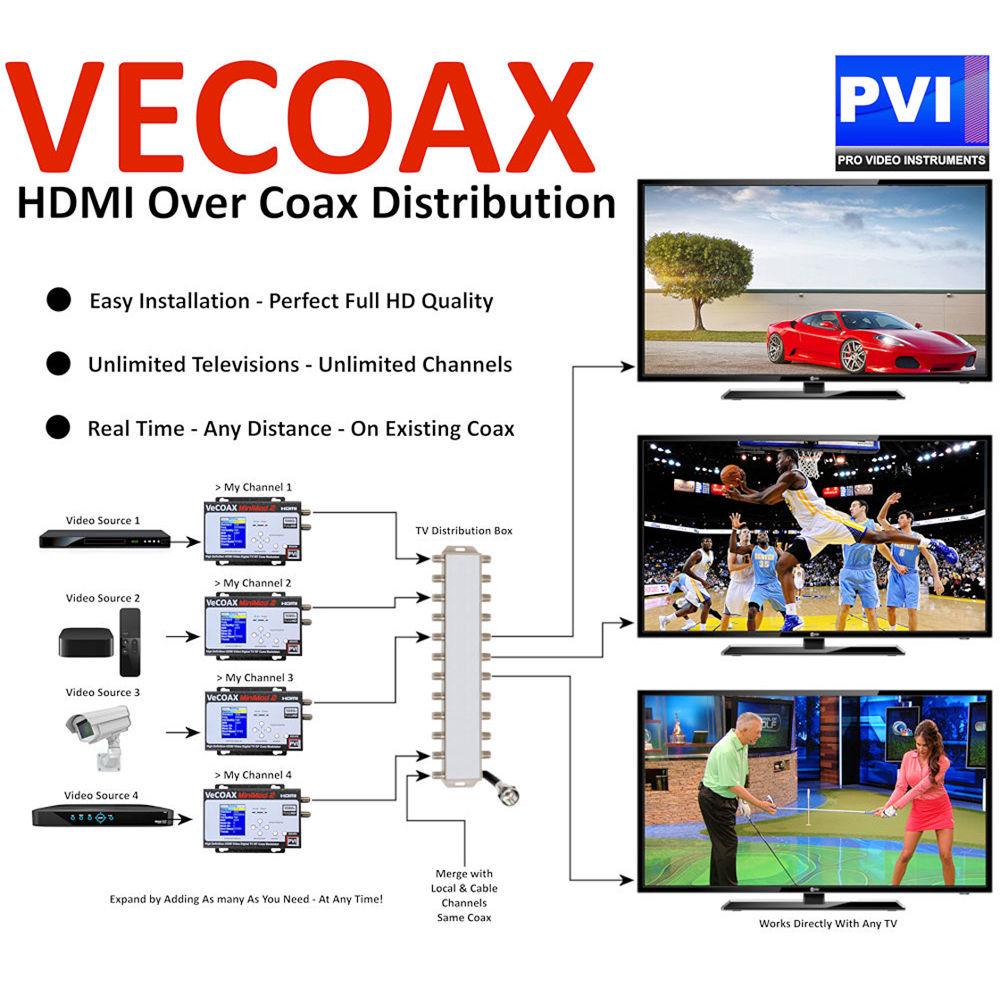

Product description This ProVideoInstruments VeCOAX MiniMod-2 HDMI to RF Modulator converts HDMI video to HD video so it can run over coax cable. This enables sending your video signals over a significantly longer cable run compared to HDMI, without requiring signal boosters or extenders. t is primarily designed to allow you to integrate an HDMI source into a pre-existing RF-video system that requires a television with a digital tuner to display the video. You input a signal from a digital antenna into the device via one of the bi-directional F connectors, and the modulator will pass through that signal and add the HDMI signal into the RF-video signal as an additional channel, outputting it over the other F connector.

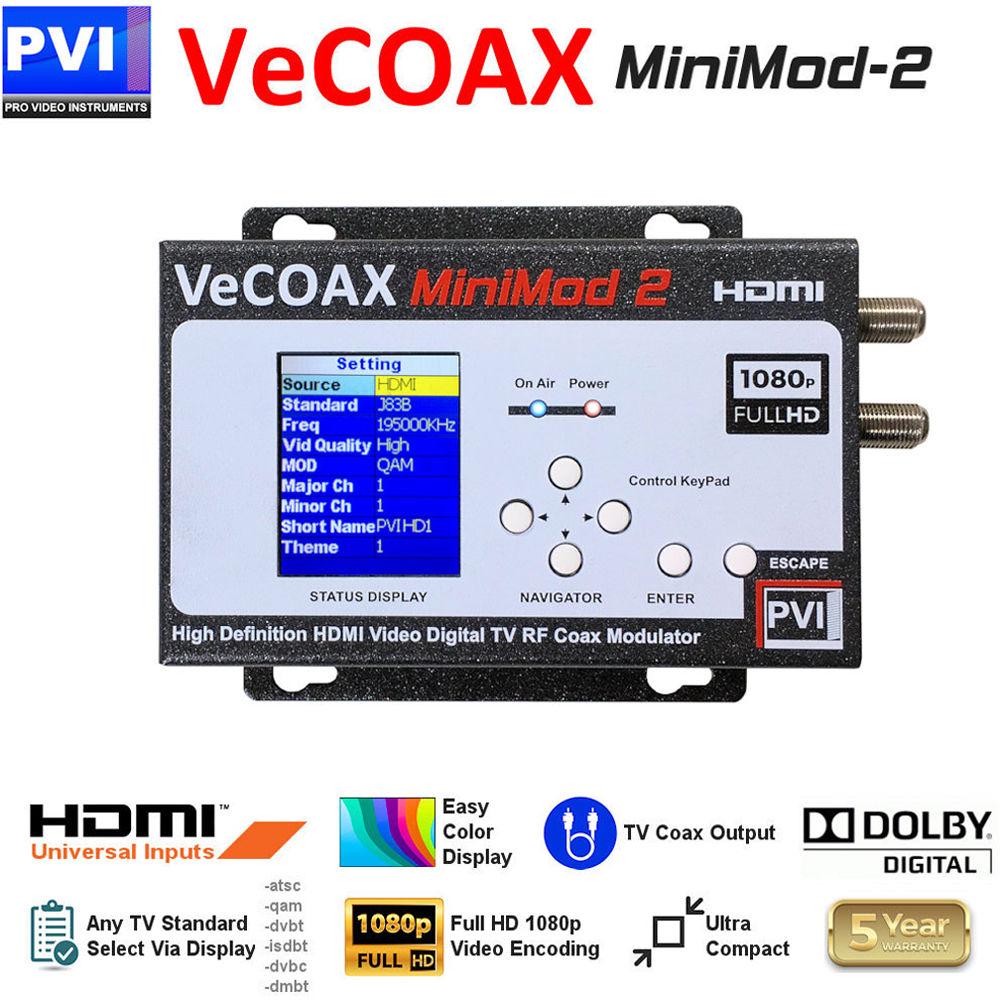

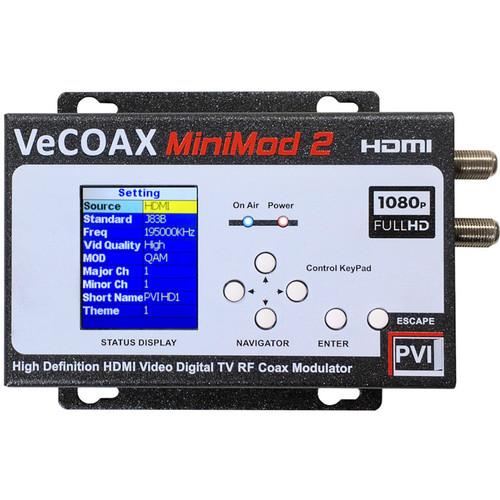

The unit supports video signals up to 1920 x 1080p and converts them to a variety of formats suitable for transmission by coaxial cable such as QAM, ATSC, ISDBT, DVBT, DVBC, and DMBT. One of the valuable features of this unit is the built-in color LCD display that provides a status display, as well as permitting menu navigation via front-panel buttons. This unit supports HDMI video signals up to 1920 x 1080p and Dolby Digital Audio. - VeCOAX MiniMod-2 HDMI to RF Modulator
- Allows you to distribute 1 channel of HD video to TVs with a digital tuner using standard coax cables.
- It supports video up to 1920 x 1080p & Dolby Digital Audio from an HDMI source.
- The unit is compatible with any HD compatible television, and its output can also mix with existing channels.

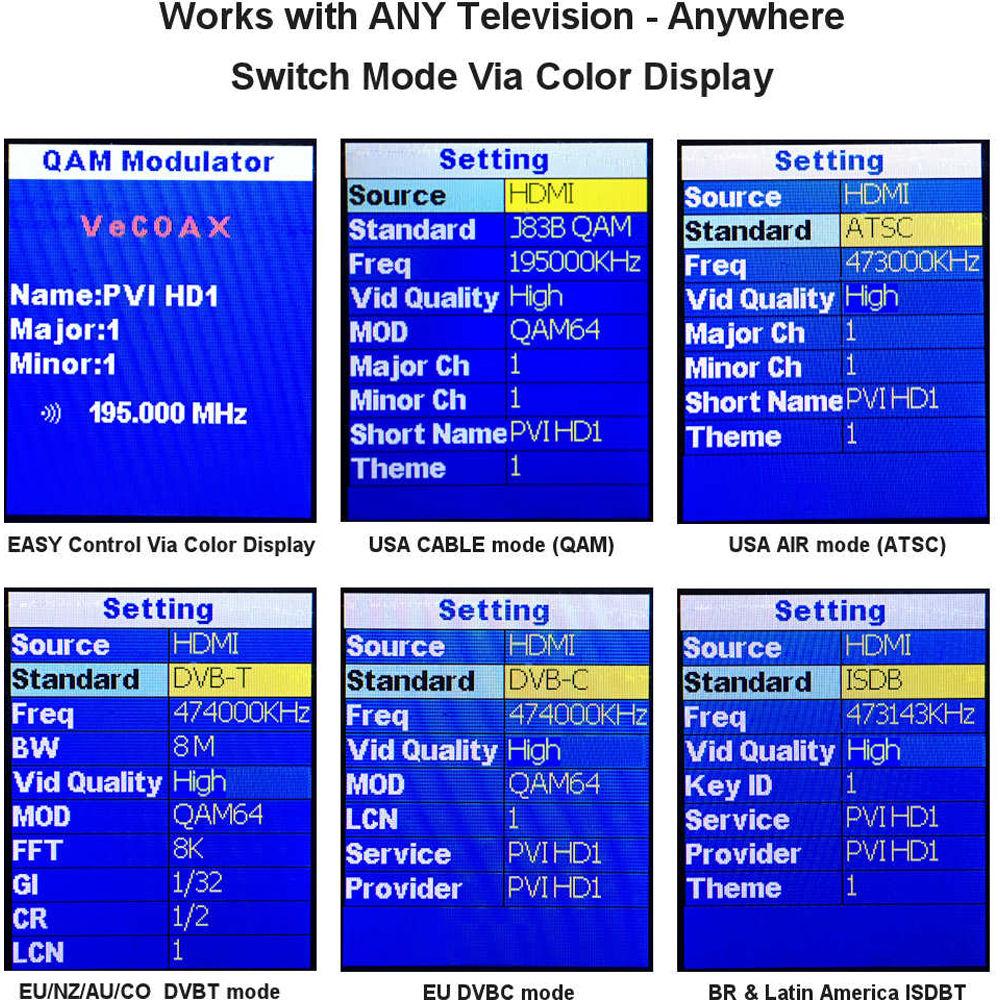

- The modulator outputs QAM, ATSC, ISDBT, DVBT, DVBC, and DMBT signals, which you select via the color LCD display and built-in front-panel buttons.

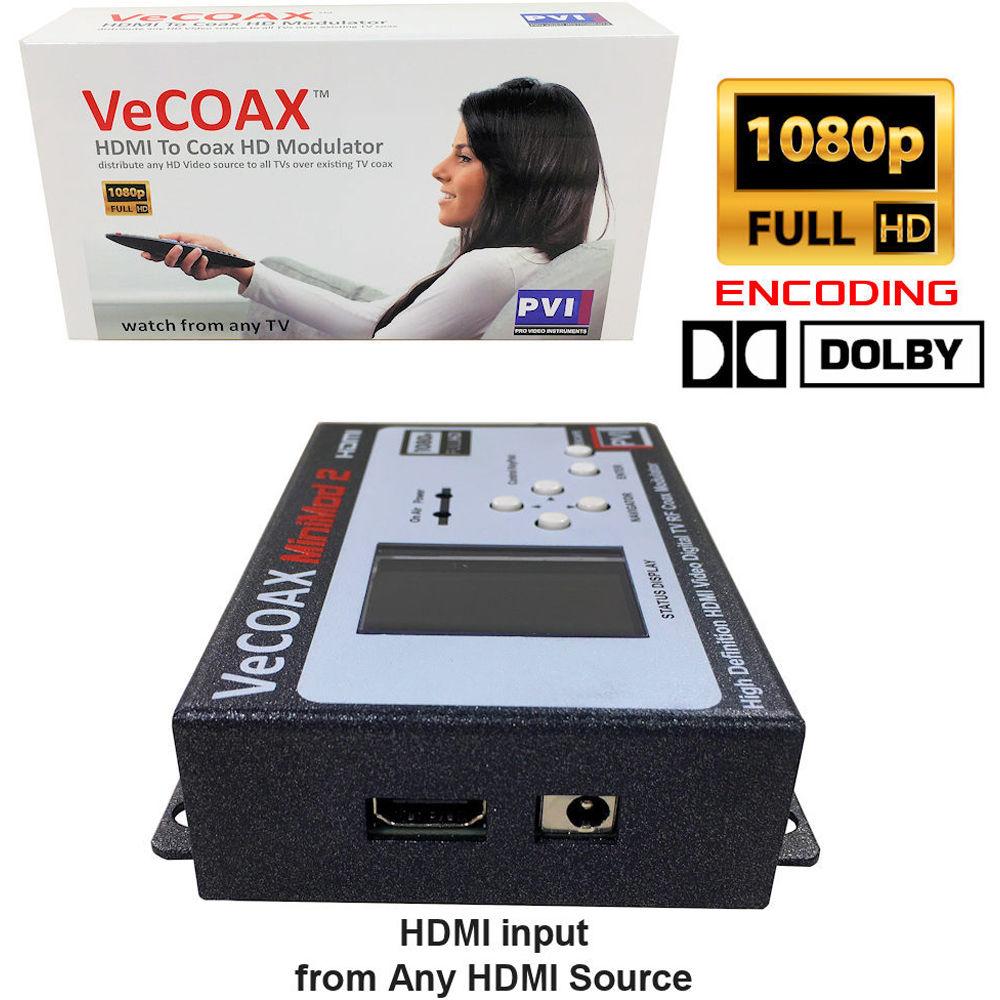

- The unit incorporates one HDMI input and two bi-directional coax F-type inputs, .

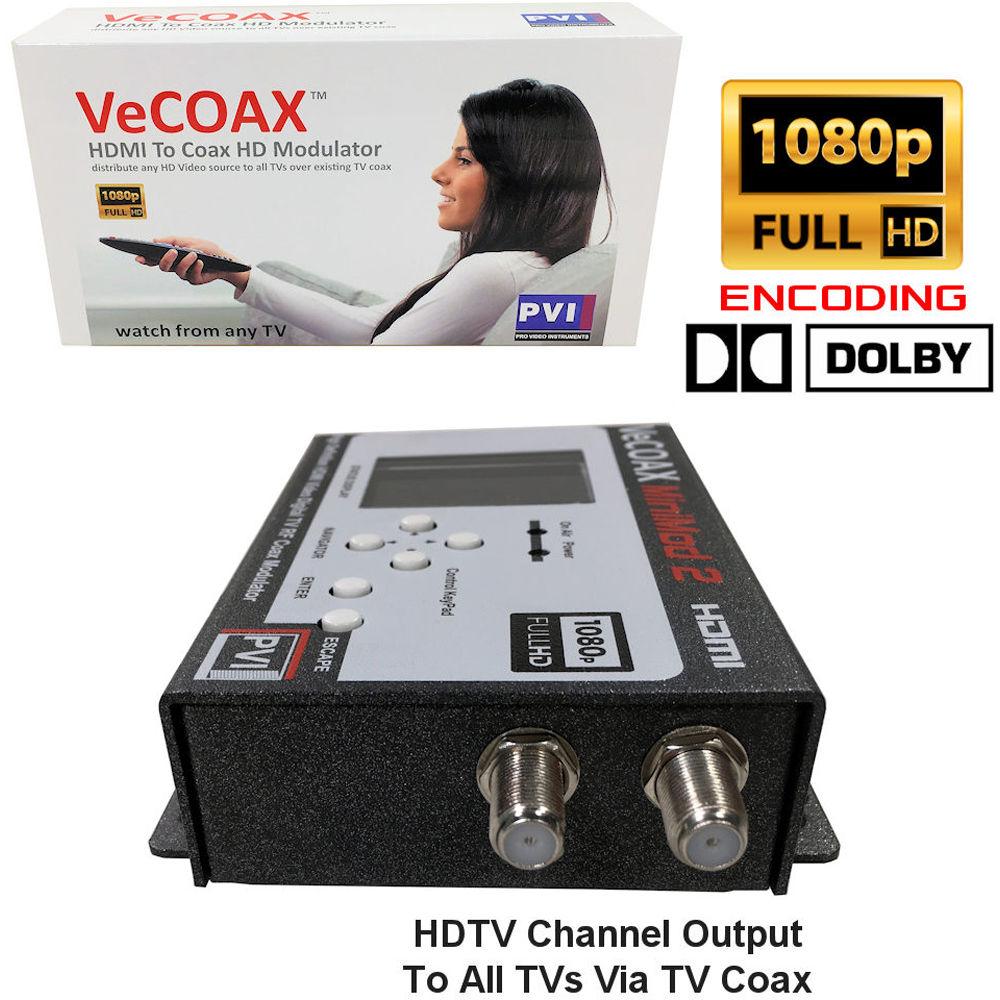

- The two F connectors can be used either as two outputs, or as a loop-through input/output. Using one F connector as an input and one as an output enables you to add the HDMI source into the RF video from your antennae.
- Power is provided by an included 5 VDC power supply, and built-in tabs permit mounting the item securely to a wall or desktop surface using mounting screws (not included).
UPC: 649070909051 In the Box ProVideoInstruments VeCOAX MiniMod-2 HDMI to RF Modulator Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProVideoInstruments VeCOAX MiniMod-2 HDMI to RF Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProVideoInstruments MiniMod-2 Specs | Inputs | HDMI: 1 x Type-A | | Outputs | F: 2 x bi-directional (for loop through) | | Compatible Standards | QAM
ATSC
ISDBT
DVBT
DVBC
DMB | | Power | Input: 5 VDC
Power Supply: Universal | | Dimensions | 3 x 6 x 11" / 7.62 x 15.24 x 27.94 cm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 11.3 x 6.2 x 3.4" |
