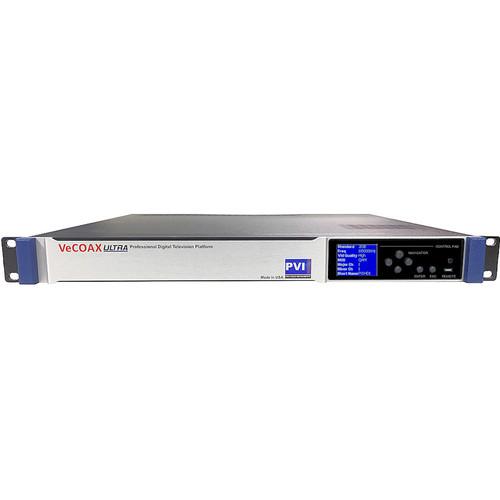

Product description The ProVideoInstruments VeCOAX ULTRA-1 HDMI Modulator converts one channel of HDMI video to one HDTV channel for distribution over your existing coaxial cable. Use this modulator to send your video signal to an unlimited number of TVs, using MPEG-2 encoding to support standards such as QAM, ATSC, ISDBT, DVBT, DVBC, and DMBT.The modular VeCOAX ULTRA-1 HDMI supports video signals up 1080p60, can be expanded with additional cards to a maximum of eight channels, and has a built-in amplifier. Features include a latency of <20 ms, EDID management, selectable audio formats including AC-3 Dolby Digital, built-in color bars, closed caption compatibility, and an internal power supply.This modulator also features remote control using your PC, and the downloadable software. One-click setup via the front panel display enables you to quickly set up the VeCOAX Ultra-1 HDMI modulator. - Features
-
- Converts one channel of HDMI video for distribution over your existing coaxial TV cable
- MPEG-2 encoding for QAM delivery; supports ATSC, ISDBT, DVBT, DVBC, and DMBT
- Supports up to 1080p60 video, and Dolby audio
- Modular design is expandable up to eight channels with additional cards
- Built-in amplifier up to +45 dB
- Plug-and-play installation via the front panel display
- Use coaxial splitters to send your signal to an unlimited number of TVs
- Internal power supply
- Modulation Standards
-
- USA QAM CABLE J.83B, any 256 and 64 mode
- USA ATSC air 8VSB
- Brazilian ISDB-T terrestrial
- DVB-T EU, AU, NZ terrestrial 6/7/8 MHz bandwidth worldwide
- DVB-C Cable
- DTMB terrestrial
UPC: 649070907118 In the Box ProVideoInstruments VeCOAX ULTRA-1-Channel HDMI to Coax HD Modulator Power Cord Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProVideoInstruments VeCOAX ULTRA-1-Channel HDMI to Coax HD Modulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProVideoInstruments VECOAX-ULTRA-1-HDMI Specs | | | Input | Input: 1 x HDMI
Version: Up to HDMI 2.0 | | Output | Coaxial: x 1
Amplifier: Up to +45 dBmV | | Video Resolutions | 1080p, 1080i
720p
576p, 576i
480p, 480i | | Frame Rates | 60/59.94/50/30/29.97/25/24/23.97 | | Aspect Ratio | 16:9
4:3
Film-mode detection (3:2 pull-down) | | Closed Caption Support | EIA/CEA-608: 1 x composite | | Compatible Standards | QAM
ATSC
ISDBT
DVBT
DVBC
DMB | | | | Encoder Video Profile | MPEG2 HD: ISO 13818-2 main profile at main level (SD)
MPEG2 HD: ISO 13818-2 main profile at high level (up to 1080p) | | Encoding Latency | Low Latency/Live Mode: 20 ms, HDMI input to RF output | | Encoding Data Rates | Variable 10 to 30 Mb/s | | Color Profile | 4:2:0 | | GOP Size | 15 | | | | Frequency Range | 30 to 960 MHz, in 1 kHz steps | | Output Power | Typical: +45 dBmV | | Output Level Adjust | +15 to +45 dBmV | | Modulation Error Ratio | MER: >43 dB (R&S ETL test)
MER per Carrier Shoulders: >55 dB (R&S ETL test) | | | | Audio Input | Embedded HDMI: 1 x stereo channel
Dolby Digital: 56 to 640 kb/s
MPEG-1 Layer II: 32 to 384 kb/s
AAC | | | | Fan | <20 dB | | Power | 100-240 VAC
50/60 Hz
60 W max, 30 W typical | | Operating Temperature / Humidity | 32 to 115°F / 0 to 46°
10 to 80% (non-condensing) | | Mean Time Between Failure (MTBF) | 55,000 | | Rack Mount | 1 RU | | Dimensions (WxDxH) | 19 x 12.5 x 1.7" / 48.3 x 31.8 x 4.4 cm | | Weight | 12.47 lb / 5.65 kg | | | | Package Weight | 8.01 lb | | Box Dimensions (LxWxH) | 22.7 x 15.1 x 3.8" |
