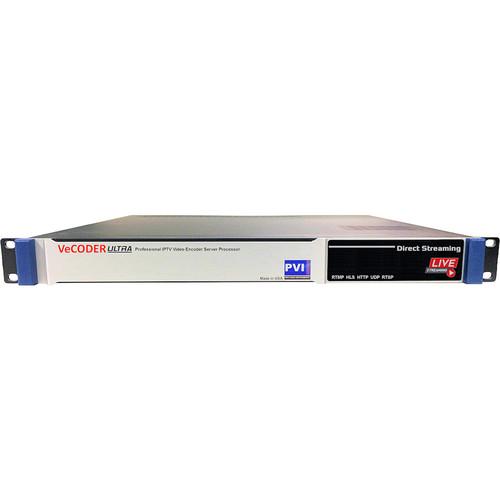

User Manual for ProVideoInstruments VeCODER ULTRA-4 HDMI IPTV Encoder Click to enlarge the picture
Contents of the user manual for the ProVideoInstruments VeCODER ULTRA-4 HDMI IPTV Encoder
- Product category: Streaming Media Solutions ProVideoInstruments
- Brand: ProVideoInstruments
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ProVideoInstruments Streaming Media Solutions
|
User manual for the ProVideoInstruments VeCODER ULTRA-4 HDMI IPTV Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ProVideoInstruments product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ProVideoInstruments user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ProVideoInstruments product will considerably shorten its lifespan!
|
Product description The VeCODER ULTRA-4 HDMI IPTV Encoder from ProVideoInstruments is a real-time IP video encoder providing simultaneous streaming of up to four channels of HDMI video. This hardware-based H.264 encoder supports multiple video rates up to 1080p and offers scaling, logo insertion, and multi-format audio encoding. A built-in gigabit IPTV server enables you to directly stream HDMI video via LAN, Wi-Fi, or internet using your existing routers and switches. Encoded content may be sent simultaneously to popular streaming platforms such as YouTube Red, Wowza, or Akamai. Multi-rate resolutions enable each of the HDMI input channels to be configured for up to four types of target devices such as smart TVs, tablets, PCs, and smartphones. Brand, watermark, or label each stream with up to four logo, graphic, or text inserts. VeCODER ULTRA-4 HDMI Encoder features include a latency of <50 ms, EDID management, independent scalers for each channel, HDMI-embedded audio support, and closed caption compatibility. This encoder also features remote control using your PC and the included management software. - Installation
-
- Remote control using your PC and the included management software
- Simple setup via a log-in protected web interface
- Direct-drive any LAN, Wi-Fi, or internet using M3U8, HLS, RTMP, HTTP, UDP, and RTSP
- Expandable, modular design
- Features
-
- Advanced EDID automatic control is compatible with any HDMI video source
- Automatic frame-rate input switching
- Digital in-HDMI closed captioning
- Built-in HD color bars generator
- Video pre-processing with noise reduction
- Selectable motion-estimation function
- PID numbering, and descriptor control to match network provider, or application requirements
UPC: 649070905725 In the Box ProVideoInstruments VeCODER ULTRA-4 HDMI IPTV Encoder 2 x 19" Rack Ear Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ProVideoInstruments VeCODER ULTRA-4 HDMI IPTV Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersProVideoInstruments VECODER Specs | | | HDMI | 4 x HDMI, up to HDMI 2.0 | | Supported Resolutions | 1080p, 1080i
720p
576p, 576i
480p, 480i | | Supported Frame Rates | 1-60 fps | | Aspect Ratios | 16:9, 4:3, film-mode detection (3:2 pull-down) | | | | Audio Input | HDMI embedded | | | | Compression | MPEG-4 H.264 base / main / high profiles | | Latency | In/Out: <50 ms | | Data Rates | Variable bit rate, 64 kb/s, 15 Mb/s per channel | | Color Profile | 4:2:0 | | GOP Size | 15 | | | | Channels | 1 x stereo | | Audio Formats Supported | Dolby Digital (AC-3): 56 to 640 kb/s
MPEG-1 Layer II: 32 to 384 kb/s
AAC
MP3 | | | | Mounting | 1 RU | | Power | 100-240 VAC
50/60 Hz
60 W (max), 30 W (typical) | | Fan | Level: <20 dB | | Mean Time Between Failures (MTBF) | 55,000 hours | | Operating Temperature & Humidity | 32 to 115°F / 0 to 46°C
Humidity: 10 to 80%, non-condensing | | Dimensions (WxDxH) | 19 x 12.5 x 1.72" / 48.3 x 31.8 x 4.4 cm | | Weight | 12.47 lb / 5.6 kg | | | | Package Weight | 6.34 lb | | Box Dimensions (LxWxH) | 23.7 x 15.8 x 2.9" |
