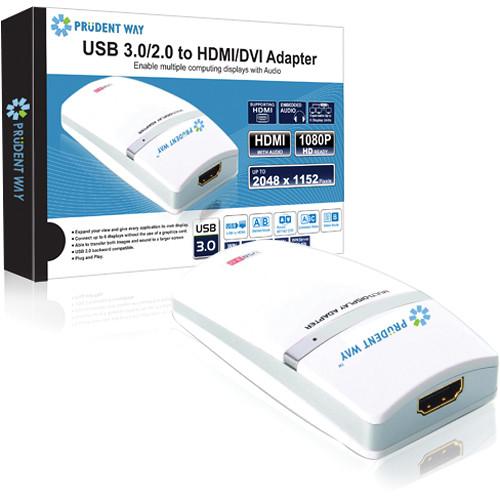

User Manual for Prudent Way USB 3.0 to HDMI DVI Adapter Click to enlarge the picture
Contents of the user manual for the Prudent Way USB 3.0 to HDMI
- Product category: Computer Monitor Adapters Prudent Way
- Brand: Prudent Way
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Prudent Way Computer Monitor Adapters
|
User manual for the Prudent Way USB 3.0 to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Prudent Way product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Prudent Way user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Prudent Way product will considerably shorten its lifespan!
|
Product description The Prudent Way USB 3.0 to HDMI/DVI Adapter allows you to easily connect extra monitors (TV) to your laptop or desktop PC's USB port. The connected monitors can be configured to either mirror your main screen or extend the Windows desktop, thereby allowing visibility of more applications at the same time. The USB graphics adapter can also be configured to be the primary display. Note: USB to HDMI Adapter scaling for HDTV. When TV does not scale properly then use the function key (Function name may differ on the remote depending on the TV brand) on the TV remote to adjust scaling. - Utilizing 5 Gb/s super speed USB as a display interface
- Easily connect additional monitors using a USB cable
- Plug-and-Play connectivity to HDMI, DVI displays
- Mirror or extend a computer display workspace
- Connect up to 6 adapters on any desktop or notebook to extend 6 displays with minimal configuration
- Bus powered (Ultra Low Power), no external power supply needed
- Supports up to 2K resolution displays 1920 x 1200 / 2048 x 1152 at 32-bit color
- Backward compatibility with USB 2.0
- Supports Windows 2000 / XP / VISTA / 7 / 8, Mac OS 10.4.11 or later, and Linux OS
- The USB Graphics Adapter Software allows full configuration of all additional USB displays, including: support for up to 6 additional USB displays, extended, mirrored, primary display, extend left, right, above, or below, rotation, layout of displays, and color depth
- Can be rotated left, right, or upside-down
- CRT, LCD, Projector, TV Displays Standard, and Widescreen ratio aspects
- Completely silent operation
- Onboard power and status indicator LEDs
- Portable, making it easy for travel
UPC: 894785001501 In the Box Prudent Way USB 3.0 to HDMI/DVI Adapter Driver CD USB 3.0 Cable HDMI to DVI Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Prudent Way USB 3.0 to HDMI DVI Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPrudent Way PWI-U3-HDA Specs | System Requirements | The DisplayLink software can be used on PCs from Netbooks, Notebooks/Laptops to Desktops. The performance of the software is dependent upon the processing power available, as well as the operating system in use.
Processors ranging from Atom N270 based PCs, basic single Core CPUs, and Dual core, Quad Core, and Core i3/i5/i7 CPUs
For 6 screens where 1 screen can run full screen DVD video: 1.8 GHz Core Duo, 1 GB memory
For 3 monitors where 1 could run DVD video, while also targeting productivity and business applications
Support only 1 video of DVD resolution at full screen: 1.6 GHz CPU, 1 GB memory
For 1-2 monitors, business usage, productivity target. This may not provide full frame rate DVD playback at full screen: 1.2 GHz Single Core CPU, 512 MB memory
Network access for software downloads, or access to a CD-ROM drive
At least one USB 3.0 port
Computer screen for use with the device | | Operating System | Windows 8 (32-bit or 64-bit)
Windows 7 (32-bit or 64-bit)
Windows Vista with Service Pack 1 or 2 (32-bit or 64-bit)
Windows XP Home or Professional (including Tablet edition) with Service Pack 2 or 3
Windows Server 2003, 2008, and 2008 R2 64-bit editions of XP are not supported. No Windows Server editions are supported. | | Graphics Card | For (Windows Vista / Windows 7/ Windows 8)
On Windows Vista, Windows 7, and Windows 8, the DisplayLink software interacts closely with the primary graphics card. The DisplayLink supports and tests a single graphics card (GPU) installed in a PC from all major GPU vendors (Intel, ATI, NVidia, and Via). | | GPU | Switchable Graphics (ATI/Intel)
Switchable Graphics (ATI/ATI)
Switchable Graphics (NVIDIA/Intel)
NVIDIASLI in SLI mode GPU configurations may exhibit compatibility issues on Windows 7 and Vista in certain circumstances. | | Configuration | Other GPU Configurations:
Hybrid Graphics
Hybrid SLI
Hybrid Crossfire
Crossfire
SLI not in SLI mode
Multiple WDDM 1.1 graphics drivers active at once Other GPU configurations are currently unsupported and will not function on Windows 7/Vista. | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.3 x 5.5 x 2.0" |
