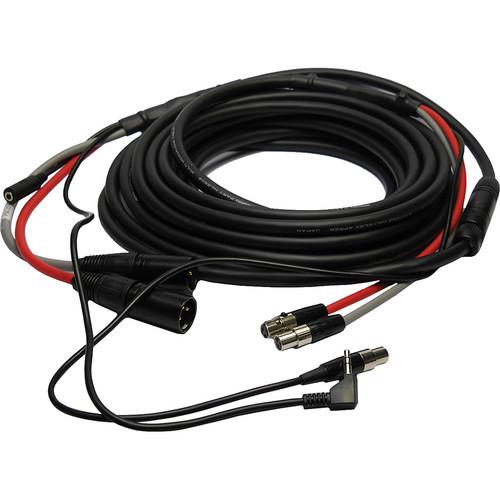

Product description The 25' PSC Breakaway Cable for SD788T 8-Channel Portable HD Recorder is used to connect the Sound Devices SD788T to a video camera. The recorder end of the cable features two TA3F XLR connectors for connecting to two outputs on the SD788T. A 24" TA3F mini XLR cable fans out from the cable snake to provides a return channel to the recorder.
The video camera side of the cable features left and right XLR-3M cables the plug into the inputs connectors of the video camera. A 3.5mm stereo mini right-angle connector provides a tape return signal from the camera to the recorder. A 3.5mm stereo mini female connector allows for the camera operator to connect a pair of headphones for monitoring. The cable uses Neutron 8-pin quick release connectors to allow the operator to quickly disconnect the umbilical cable from the camera. The quick release is positioned 1' from the fan out. The cable does not transmit timecode. In the Box PSC Breakaway Cable for SD788T 8-Channel Portable HD Recorder (25') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC Breakaway Cable for SD788T 8-Channel Portable HD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC FPSC1091C Specs | Connectors | SD788T End: 3 x TA3F connectors
Camera End: 2 x full-size XLR 3-pin males, 1 x 3.5 mm right angle mini plug
Additional Connector: 1 x 3.5 mm mini jack | | Length | Camera End: 2.0' (0.6 m)
Return Input at SD788T End: 2.0' (0.6 m)
Entire Cable: 25.00' (7.62 m) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 8.6 x 6.7 x 1.3" |
