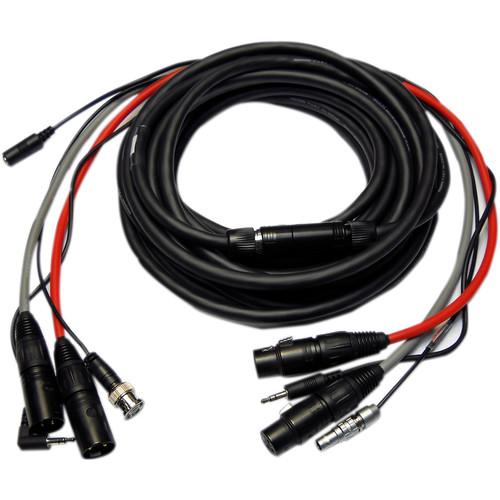

User Manual for PSC Breakaway Cable for Sound Devices 633 with Timecode Out Click to enlarge the picture
Contents of the user manual for the PSC Breakaway Cable for Sound Devices
- Product category: Portable Recorder Accessories PSC
- Brand: PSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PSC Portable Recorder Accessories
|
User manual for the PSC Breakaway Cable for Sound Devices contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PSC product will considerably shorten its lifespan!
|
Product description The 25' Breakaway Cable from PSC is an umbilical cable which connects the Sound Devices 663 to most video cameras. This cable features a 3.5mm stereo connector, two 5-pin Lemo connectors, and a 3-pin female XLR on one end and a BNC connector, two 3.5mm male stereo connectors, and two 3-pin male XLR cables on the other. It comes complete with an 8-pin Neutrik breakaway connection at the camera end, which allows the camera-end cable fan out to remain connected to the camera. This allows you to pull on one disconnect connection to release the camera from the umbilical cable. This cable provides left and right channel audio from the 633 to the camera as well as an audio confidence return line. In addition, there is a timecode connection, allowing timecode to be synced between the 633 and the camera. Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC Breakaway Cable for Sound Devices 633 with Timecode Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC FPSC1091ITC Specs | Compatibility | Sound Devices 663 | | Breakaway Connection | Quick release Neutrik 8-pin Neutricon | | Connector 1 | 3.5 mm phone jack stereo
5-pin Lemo
5-pin Lemo
3-pin XLR female | | Connector 2 | BNC
3.5 mm phone jack stereo
3.5 mm phone jack stereo
3-pin XLR male
3-pin XLR male | | Length | 25' (7.6 m) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.6 x 6.6 x 1.7" |
