User Manual for PSC DV PROMIX 3 Portable Audio Mixer Click to enlarge the picture
Contents of the user manual for the PSC DV PROMIX 3 Portable Audio
- Product category: Field Mixers PSC
- Brand: PSC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PSC Field Mixers
 |
User manual for the PSC DV PROMIX 3 Portable Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PSC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PSC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PSC product will considerably shorten its lifespan!
|

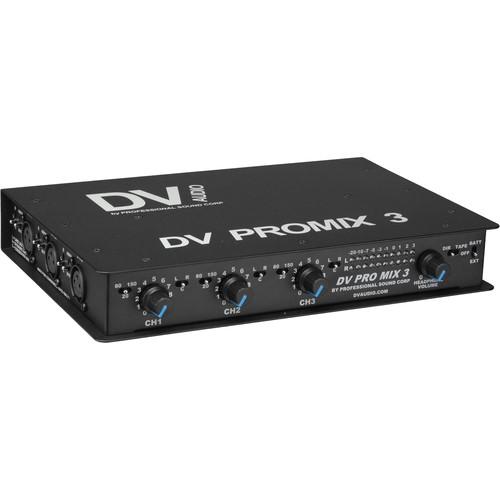

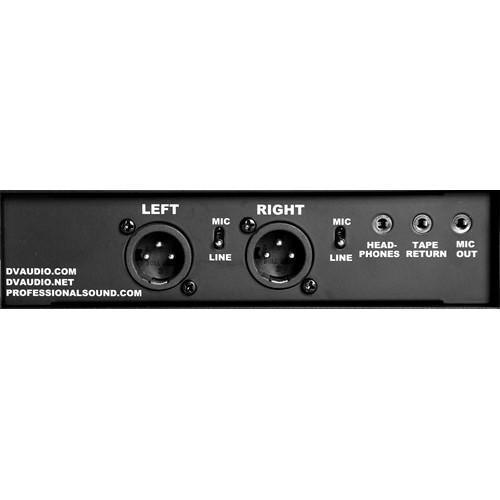

Product description The PSC DV PROMIX 3 is a professional field audio mixer designed to fit the needs of DV Cam users while remaining cost effective and flexible enough for camcorder users as well. The mixer features 3-balanced XLR female inputs, switchable between microphone and line level signal. Each input provides individually switchable +48v phantom power. Left, Right and Center position switches are located on every input channel, routing signals to separate destinations or for panoramic placement of audio via the stereo outputs. The output section features 2-balanced XLR male connectors that are also line level and microphone level switchable. Output peak limiting minimizes overloaded output signal, eliminating distortion and noisy recordings. A dedicated 1/8" mini tape return input allows accurate monitoring of recorded signals from video cameras, recording devices etc. A separate 1/8" mini output provides dedicated unbalanced microphone level output for compatibility with consumer camcorders. - Microphone & Line Level Inputs & Outputs

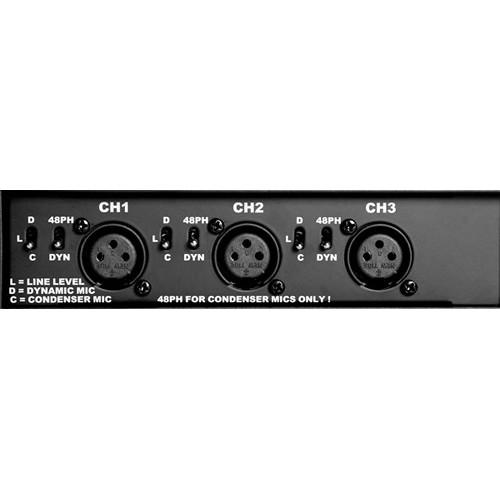

- The DV PROMIX 3 features 3-balanced XLR female inputs and 2-balanced XLR male outputs. Each feature microphone and line level (user switchable) signal flow. All inputs feature individually switched +48v phantom power, while mic and line level switchable outputs provide complete compatibility with DV Cameras.

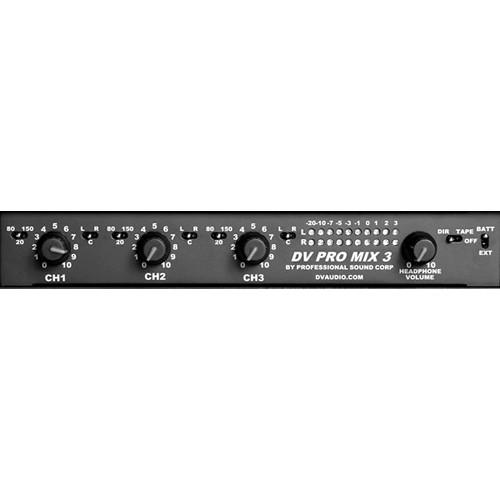

- Channel Assignment (Pan) Switches
- Dedicated Left, Right and Center position switches are located on every input channel. These channel assignment switches send signals to the left or right outputs, routing signals to separate destinations or for panoramic placement of audio.
- Low Cut Filters
- Each input section features a Low Frequency Cut (High Pass) filter switch. This effectively reduces noise and hum registering in the lower frequency spectrum.
- Tape / Direct Input Monitoring
- A 1/8" (3.5mm) mini tape return jack allows monitoring from video cameras and field recording devices, resulting in more accurate, noise free recordings.
- Output Limiters
- The output section features user switchable audio limiting, reducing peak distortion and noise caused by overloaded output signals.
- Dedicated Microphone Level Output
- A 1/8" (3.5mm) mini microphone level audio output jack is provided for feeding consumer style video cameras and field recorders, that would normally feature a 1/8" input as opposed to XLR.
- Bright LED Display
- A bright, comprehensive LED display effectively displays audio level under bright sun light.
In the Box PSC DV PROMIX 3 Portable Audio Mixer Limited 1-Year Warranty Carry Case and Strap Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC DV PROMIX 3 Portable Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC DV Promix 3 Specs | Inputs | 3 - Balanced XLR Female: 3k Ohm Impedance
Line / Microphone Level Switchable, +48V Condenser / Dynamic | | Output | 2 - Balanced XLR Male: 0dBv Line or -50dBv Mic Level Switchable | | Monitor/Headphone Out | 1/8" Mini (3.5mm): 25 to 600 Ohms | | ALT I/O | Microphone Level Output: 1/8" (3.5mm) -50dBv

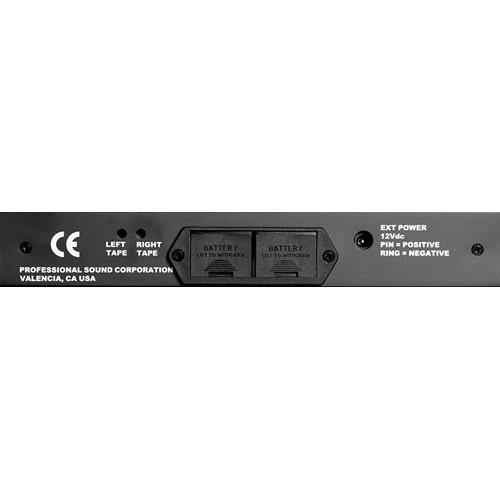

Tape Return / Direct Input: 1/8" (3.5mm) | | Link Input/Output | No | | Impedance | 3k Ohm Impedance (Balanced Inputs) | | Gain | 80dB | | Hum & Noise | 128dB EIN 150 Ohms | | Frequency Response | 20Hz to 20KHz +/-0.5dB | | Distortion | 0.08% THD @ 1KHz | | Metering | LED, Peak Reading, Sun Light Readable, -20dB to +3dB | | Control Voltage Out | No | | Phantom Power | +48v | | Operating Temperature | -4 to +158F (-20 to +70C) | | Power | 2x 9V Alkaline Batteries: 4 to 6 hours typical run time or
External Power: 7 to 18Vdc | | Dimensions | 9.950 x 6.675 x 1.500" (25 x 17 x 3.8cm) (W x D x H) | | Weight | 1 lb. 11.5 oz (0.8 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 12.1 x 9.5 x 4.7" |
