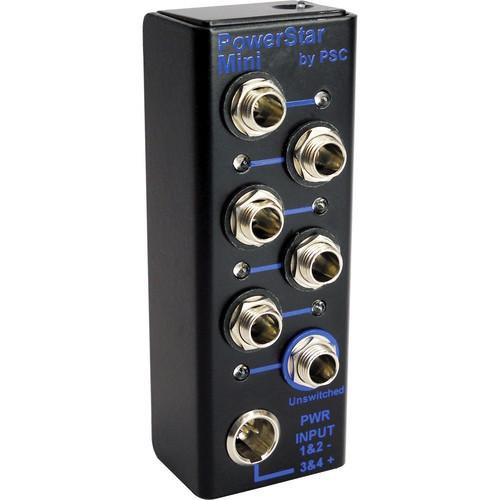

Product description The Power Star Mini from PSC is a compact and convenient power distribution system designed to provide 12VDC power to all of your ENG audio components from a single rechargeable battery. The unit has a 4-pin XLR power input and 6 outputs. Each output can deliver up to 3 amps of current, with a global total current of 5 amps. A top panel power switch controls 5 of the 6 outlets, while the 6th switch has an option of being controlled by the master switch or being in an always-on state.
The Power Star Mini uses PSC's exclusive Silent Power Technology, which filters out unwanted switch mode noise and RF interference. This ensures clean, quiet recordings with minimal intermodulation noise, RF interference, and other noise. Additionally, each of the outputs is individually polyfuse protected and monitored for short circuits. Built-in status LEDs allow you to visually detect when an output is overloaded. The unit also has reverse polarity protection and genuine Switchcraft connectors, all in a sturdy aircraft aluminum body with a powder coat finish. A removable stainless steel belt clip is included for portability. Note: Optional NP-1 battery cup and an assortment of PSC power cable are available separately. - Provides 12VDC power to up to 6 devices from a single power source
- Compact and durable aircraft aluminum case with a powder coat finish and a removable stainless steel belt clip
- Genuine Switchcraft connectors, with a 4-pin XLR power input and 6 coaxial power outputs
- Each output can deliver up to 3 amps of current, with a global total current of 5 amps
- A top panel power switch controls 5 of the 6 outlets, while the 6th switch has an option of being controlled by the master switch or being in an always-on state. The 6th output is toggled by an internal jumper and is marked with a blue ring for convenience
- Exclusive Silent Power Technology filters out unwanted switch mode noise and RF interference to ensure clean, quiet recordings with minimal intermodulation noise, RF interference, and other noise
- Each of the outputs is individually polyfuse protected and monitored for short circuits
- Built-in status LEDs allow you to visually detect when an output is overloaded
- Integrated reverse polarity protection
In the Box PSC Power Star Mini Power Distribution System Belt Clip 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC Power Star Mini Power Distribution System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC FPSCPSM Specs | Connectors | 1 x Switchcraft Mini 4-Pin XLR Male Input
6 x Switchcraft Female Coaxial Power Outputs | | Output Current | 5 Amp Global Max, 3 Amp Max Per Output | | LEDs | 1 x Green/Red Power/Fuse LED
6 x Red Overload LEDs | | Filter | RF: Better than 34dB Isolation from 100-900MHz | | Construction | Aircraft Aluminum with Powder Coat Finish and Stainless Steel Belt Clip | | Dimensions (HxWxD) | 3.58 x 1.33 x 1.2" (91 x 34 x 31mm) | | Weight | 3.7 oz (85g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.6 x 3.4 x 1.9" |
