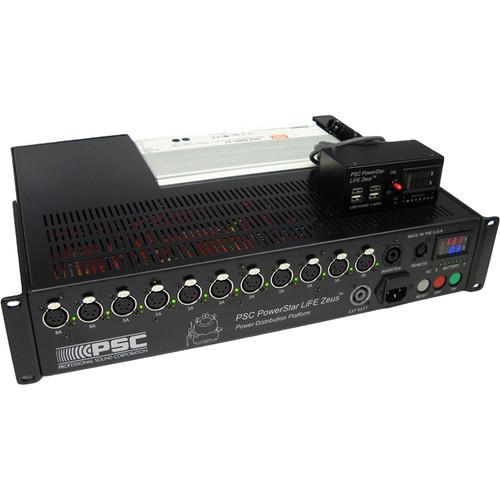

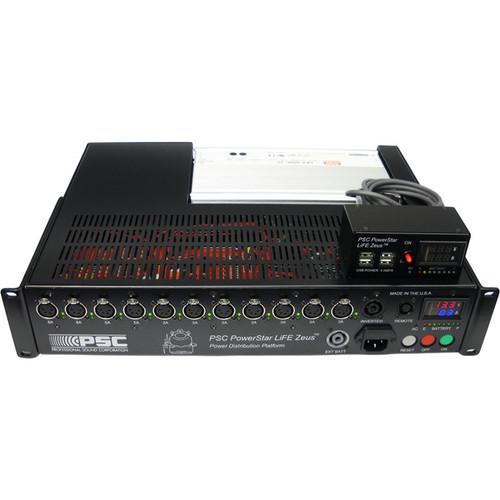

Product description The PowerStar LiFE Zeus Rechargeable Power Supply from PSC comes with a triple redundant 12.8V, 60Ah Lithium iron phosphate battery pack. The AC input is fully-filtered for common mode and differential noise, harmonic content, and spikes. This supply contains a built-in current limiting function to further protect itself under extreme conditions. It is also equipped with multiple point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the power supply and can be offset to provide clearance for XLR connectors in tight rack space environments. - LiFE Battery Pack
-
- It is a triple redundant 12.8V, 60A/hour Lithium iron phosphate battery pack. Each of the three onboard 20A battery packs contains individual cells that were chosen for their high capacity and their ability to be rapidly charged or discharged. This cell can be charged at a full 3C rate. The cells are factory measured, graded, and matched into precision sets for a better quality battery. It also contains built-in cell balancing electronics for a long life.
- AC Supply and Charger
-

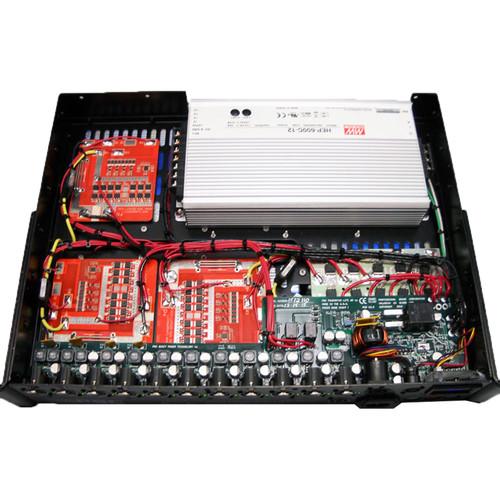

- This power supply is built around a highly integrated 600W switching power supply/charger. The AC input is fully-filtered for common mode and differential noise, harmonic content, and spikes. This supply contains a built-in current limiting function to further protect itself under extreme conditions. In addition, the charger has been designed to provide clean, quiet charging power so as to not cause noise problems in the field.
- Power Distribution and Output Filtering
-

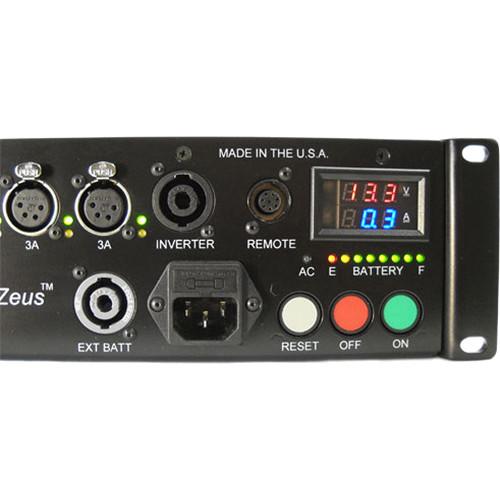

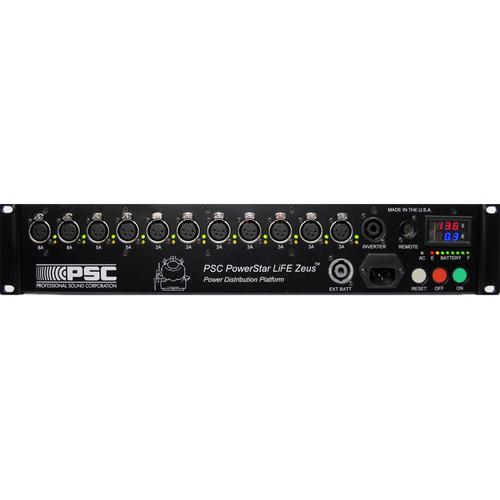

- The DC path of the power supply has been designed to provide clean, quiet, reliable DC power for all of your audio and video equipment needs. Each output has its own dedicated output filter that contains both audio and RF frequency filters. Each output is also individually polyfuse-protected and monitored via easy-to-read front panel LED indication. There are a total of eleven outputs; two 8A outputs, two 5A outputs, and seven 3A outputs. To lower internal power losses and extend battery life, the circuit boards are made with 4 oz copper.

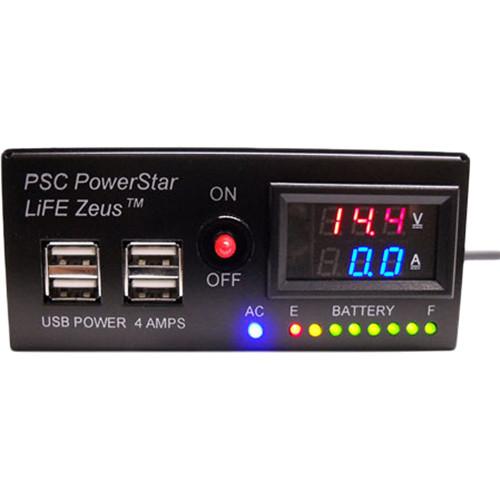

- Remote Control-Meter
-
- This power supply comes with a small remote control box. The use of the remote control allows the Power Star LiFE to be mounted down and out of the way on the sound cart if desired. This remote contains an additional set of on/off controls, an additional battery fuel gauge, digital LED volt and current meters, and four USB charging ports. It can be operated with or without the remote control box.
- Cooling
-
- The power supply is convection-cooled without the use of any fans.

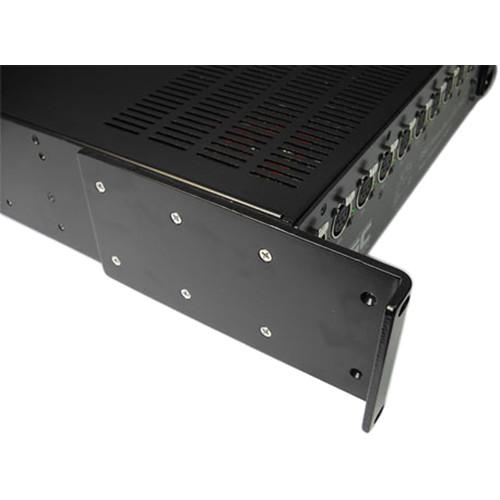

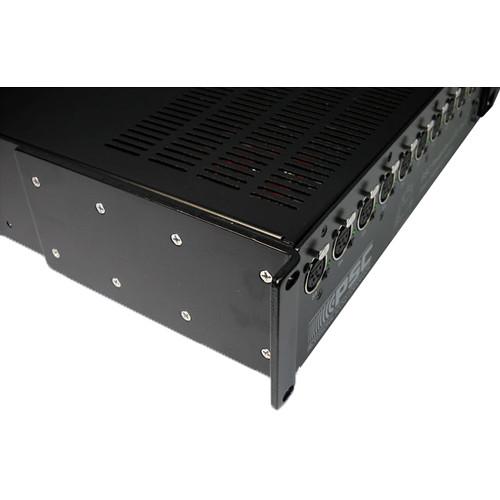

- Rack Mounting
-
- This power supply is equipped with multiple-point rack rail mounting brackets. These brackets can be mounted from either the front or the rear of the power supply and can be offset to provide clearance for XLR connectors in tight rack space environments.
- General Features
-
- 60Ah LiFE battery
- 35A High-capacity AC power supply
- Dedicated inverter power output
- Rapid recharge LiFE battery
- USB 4A charging current available
In the Box PSC PowerStar LiFE Zeus Rechargeable Power Supply Remote Control Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC PowerStar LiFE Zeus Rechargeable Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC FPSC0026ZEUS Specs | Charging Time | Typical Cart: 3 Hours
No Load (All Equipment Off): 1.5 to 2 Hours | | USB Charging | Four ports
Total Output: 5 VDC at 4 A | | Battery Capacity | LiFE: 12.8 V @ 60 Ah (768 W) | | Connector | Battery: SpeakOn two-pole (mating connector Neutrik NL2FC)
Inverter: SpeakON four-pole (mating connector Neutrik NL4FC) | | Outputs | 4P XLRs: 2 x 8 A, 2 x 5 A, 7 x 3 A
4P SpeakOn for Inverter: 18 A | | Output Voltage | 12.8 VDC nominal | | Output Current | On LiFE battery, 60 A AC only, 35 A | | AC Input | 100 to 240 VAC, 47 to 63 Hz
Fuse: 15 A, Slow blow, 5 x 20 mm glass | | Operating Temperature Range | -4 to 124°F (-20 to 50°C) | | Dimensions (W x D x H) | 17.5 x 13.5 x 3.5" (44.5 x 34.3 x 8.9 cm) | | Weight | 31 lb (14.1 kg) |
