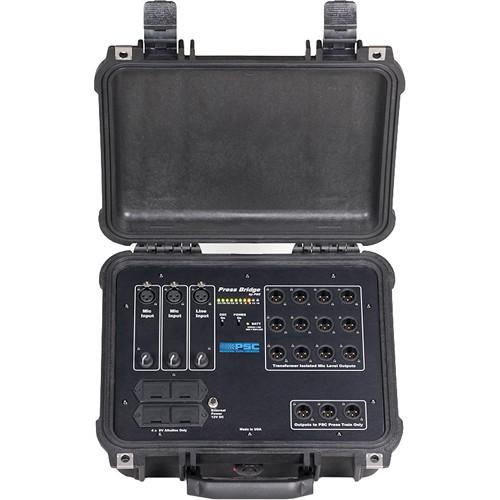

Product description The Press Bridge from PSC allows for easy and convenient audio distribution at press conferences. The unit features two, low-noise microphone pre-amplifier inputs for use with dynamic microphones, and a single line-level input for sending out house program audio or other line-level feeds. Each of the inputs has an independent level control for operating the Press Bridge without the use of an additional audio mixer.
Twelve balanced, transformer-isolated microphone level feeds are used to send audio to the attending news crews. Additionally, three balanced line-level feeds are used to daisy-chain one or more of the company's Press Trains. Each of these outputs can feed up to eight Press Trains, each with twelve additional outputs, providing up to a total of three-hundred outputs.
The twenty-four Press Train modules may be remotely located from the main unit using up to 500-foot standard microphone cables, thus eliminating multiple long cable-runs to each member of the media. The unit is housed in a waterproof Pelican 1400 case for ease of shipment, and can be powered for more than eight hours using four 9V batteries, or via the included a 12V DC adapter.
A built-in peak reading LED bar-graph meter and an internal reference tone oscillator are provided for level setting. A two-color power indicating LED lets the user know the condition of the battery. - Two microphone inputs and one line input, with twelve outputs audio distribution box designed for press conferences
- Supplies twelve microphone-level outputs for connecting to multiple cameras
- Independent level controls for each of the three inputs
- Three balanced, line-level feeds that are used to feed one or more PSC Press Trains
- Can be powered for more than eight hours from four 9V batteries, or from the 12V DC adapter
- Built-in peak reading LED bar-graph meter
- Internal reference tone oscillator
- Housed in a waterproof Pelican 1400 case
In the Box PSC Press Bridge - Audio Distribution Box External Power Supply One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC Press Bridge - Audio Distribution Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC FPSC0014 Specs | Inputs | 2 x XLR Microphone
1 x XLR Line, balanced | | Outputs | 12 x XLR, balanced microphone level 3 x XLR, balanced line level to additional units | | Oscillator | 440 Hz | | Case | Pelican 1400 | | Power Requirements | 4 x 9V alkaline batteries
12V DC, 100~240V AC external power adapter (included) | | Dimensions (WxDxH) | 13.4 x 11.6 x 6" (339 x 295 x 152 mm) | | Weight | 6 lb (2.7 kg) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 13.5 x 11.4 x 5.8" |
