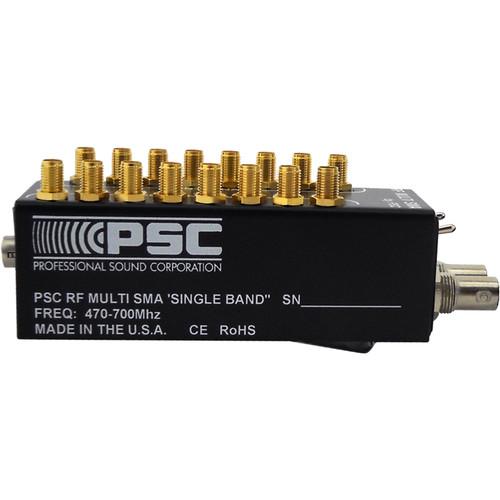

Product description The RF Multi SMA from PSC contains two, separate and active 1 x 8 RF splitters for use with up to eight diversity receivers. This rugged device is built with super-low noise RF amplifiers and will operate over an extended frequency range of 470 to 700 MHz. The device's two BNC inputs connect the interface with your external antennas. Each of the SMA outputs offer isolation of 24 to 28 dB between wireless UHF receivers (sold separately).The PSC RF Multi SMA can power external powered antennas or remote line amplifiers. There are two top panel switches: one marked power, controls overall power to the unit; the other switch is marked antenna and controls the power being sent to an external powered antenna or remote line amplifier. Both switches light up when in use. The entire unit is powered from any source of external DC power of 10 to 15 VDC at approximately 90 mA. In the Box PSC RF Multi SMA (470 to 700 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSC RF Multi SMA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSC RFSMASB Specs | Input Impedance | 50 Ohms | | Output Impedance | 50 Ohms | | Input Signal | Maximum: +13 dB | | Noise Figure | 0.8 dB | | Chassis Material | Aircraft Aluminum | | Dimensions (L x W x D) | 4.3 x 1.4 x 1.6" / 10.8 x 3.5 x 4.1 cm | | Weight | 6.5 oz / 184.3 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.0 x 3.0 x 2.0" |
