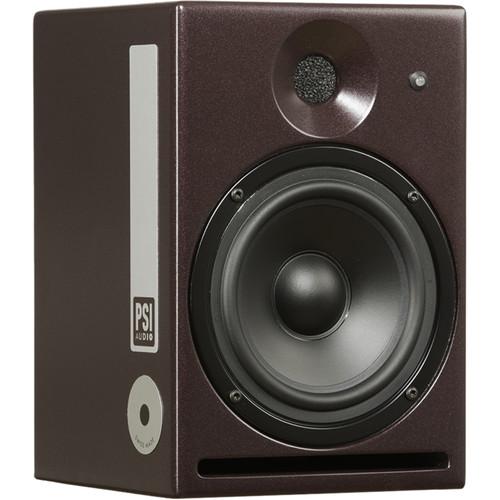

User Manual for PSI AUDIO A14-M Studio Compact Nearfield Powered Monitor Click to enlarge the picture
Contents of the user manual for the PSI AUDIO A14-M Studio Compact Nearfield
- Product category: Studio Monitors PSI AUDIO
- Brand: PSI AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PSI AUDIO Studio Monitors
|
User manual for the PSI AUDIO A14-M Studio Compact Nearfield contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PSI AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PSI AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PSI AUDIO product will considerably shorten its lifespan!
|
Product description The single, red PSI Audio A14-M Studio is a compact, powered, nearfield monitor designed to be tonally balanced with high-resolution detail and efficient transient response for accuracy in small surround setups and small studio environments. The bi-amplifier delivers 70W to the 5.8" woofer and 30W to the 2.8" tweeter, which combine to provide a frequency response of 56 Hz to 22 kHz at an SPL of 112 dB per pair.
The PSI Audio A14-M Studio incorporates all the technology from its larger siblings including the AOI output stages, while the active crossover with integrated CPR delivers an impulse behavior with accurate stereo imaging. The rear panel offers a balanced XLR input and features a volume control and a roll-off control for optimizing the low frequencies for standalone use or when using an optional subwoofer. The PSI Audio A14-M Studio includes a power cord, anti-slippage stickers, and an individual frequency-response diagram. -
- Flat frequency response
- Optimized directivity by phase coherency
- Protection circuits with overload indicator
- True balanced input
- Designed for stereo and multichannel monitoring
- Magnetically shielded for use near video monitors
- Adaptive Output Impedance (AOI)
- The AOI is made up of a system that detects the movement of the membrane and the coil, as well as a filtered counter reaction. This is then tuned to achieve the ideal dampening rate for each frequency
- Acoustic Load Guide (ALG)
- The ALG is used in all regular 2-way and 3-way PSI Audio speakers. The shape and dimensions of the waveguide used in PSI Audio's custom tweeter is specially designed to optimize directivity, maximize sound-pressure level, and extend bandwidth
- Compensated Phase Response (CPR)
- The CPR system is made up of several all-pass filters, each acting in a specific range. Combined, they create a compensated phase response, which provides a constant group delay that is kept to the bare minimum through the entirely analog technology
- Phantom Standby Control (PSC)
- The PSC technology enables remote activation and deactivation of the standby mode of your loudspeakers via the signal cable
UPC: 720260151518 In the Box PSI AUDIO A14-M Studio Compact Nearfield Powered Monitor (Single, Red) Power Cord Individual Frequency-Response Diagram and Data Sheet Set of Anti-Slippage Stickers Limited 5-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSI AUDIO A14-M Studio Compact Nearfield Powered Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSI AUDIO A14-M Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 100 W Peak | | Drivers | HF Driver: 1 x 2.8" / 70 mm Tweeter
LF Driver: 1 x 5.8" / 147 mm Woofer | | Amplification | HF Amplifier: Rated at 30 W
LF Amplifier: Rated at 70 W | | | | Frequency Range | 56 Hz to 22 kHz (at -6 dB) | | Frequency Response | 65 Hz to 18 kHz ± 2.5 dB | | Maximum Sound Pressure Level (SPL) | 112 dB | | Signal-to-Noise Ratio | 96 dBA | | Total Harmonic Distortion (THD) | 1.8% | | Maximum Input Level | +20.7 dBu | | Dispersion | 100 x 100° (Horizontal x Vertical) | | | | Crossover Frequency | 3.5 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms) | | | | AC Input Power | 115 to 230 VAC at 50/60 Hz | | Power Consumption | 1.4 W (Standby)
6 W (Idle)
100 W (Maximum) | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 90%
75% (Recommended) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 6.4 x 9.6 x 6.7" / 163.0 x 243.0 x 170.0 mm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 12.0 x 6.0 x 6.0" |
