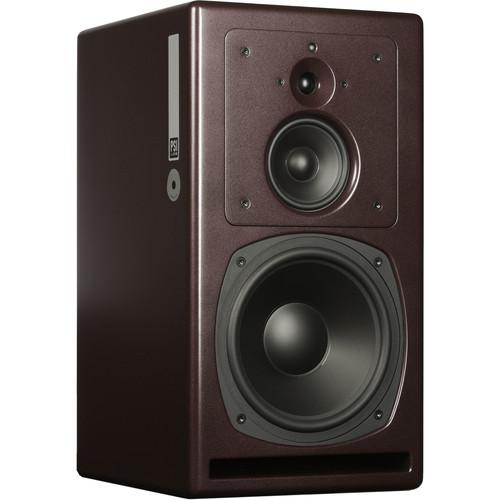

User Manual for PSI AUDIO A25-M High-Powered 3-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the PSI AUDIO A25-M High-Powered 3-Way Studio
- Product category: Studio Monitors PSI AUDIO
- Brand: PSI AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PSI AUDIO Studio Monitors
|
User manual for the PSI AUDIO A25-M High-Powered 3-Way Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PSI AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PSI AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PSI AUDIO product will considerably shorten its lifespan!
|
Product description The single, red PSI Audio A25-M is the company's flagship, high-powered, main and mid-field studio reference monitor designed to be tonally balanced; with high-resolution detail and an efficient transient response for precision accuracy in surround setups and stereo studio monitoring applications. The tri-amplifier delivers 170W to the 10.2" woofer, 80W to the mid-driver, and 50W to the 3.9" tweeter, which combine to provide a frequency response of 32 Hz to 23 kHz at an SPL of 121 dB per pair. The tweeter is hand-crafted in-house to ensure performance and accuracy.
The amplifier output also features the AOI output stages and includes a protection circuit, which can be monitored via the red LED on the front panel. The active crossover with integrated CPR delivers an impulse behavior with accurate stereo imaging. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical listening area. The electronics are housed in a unit that is mechanically isolated from the speaker cabinet to avoid resonance at high sound-pressure levels.
The rear panel offers a balanced XLR input and features a volume control and a roll-off control for optimizing the low frequencies for standalone use, or when using an optional subwoofer. The mid-high section can be turned 90°, allowing for the speaker to be placed in a horizontal position, while maintaining proper dispersion. The PSI Audio A25-M includes a power cord, anti-slippage stickers, and an individual frequency-response diagram. -
- Tweeter unit hand-made by PSI Audio
- Flat frequency response
- Optimized directivity by phase coherency
- Class-G low-temperature amplifier stage
- Rotation of mid-range section for horizontal use
- Compatible with industry-standard mounting systems
- Amplifier unit acoustically uncoupled from speaker cabinet
- Protection circuits with overload indicator
- True balanced input
- Designed for stereo and multi-channel monitoring
- Magnetically shielded for use near video monitors
- Adaptive Output Impedance (AOI)
- The AOI is made up of a system that detects the movement of the membrane and the coil, as well as a filtered counter reaction. This is then tuned to achieve the ideal dampening rate for each frequency
- Acoustic Load Guide (ALG)
- The ALG is used in all regular 2-way and 3-way PSI Audio speakers. The shape and dimensions of the waveguide used in PSI Audio's custom tweeter is specially designed to optimize directivity, as well as maximize sound-pressure level, and extend bandwidth
- Compensated Phase Response (CPR)
- The CPR system is made up of several all-pass filters, each acting in a specific range. Combined, they create a compensated phase response, which provides a constant group delay that is kept to the bare minimum through the entirely analog technology
- Phantom Standby Control (PSC)
- The PSC technology enables remote activation and deactivation of the standby mode of your loudspeakers via the signal cable
UPC: 720260151594 In the Box PSI AUDIO A25-M High-Powered 3-Way Studio Monitor (Single, Red) Power Cord Individual Frequency-Response Diagram and Data Sheet Set of Anti-Slippage Stickers Limited 5-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSI AUDIO A25-M High-Powered 3-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSI AUDIO A25-M Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 300 W Peak | | Drivers | HF Driver: 1 x 3.9" / 100 mm Tweeter
MF Driver: 1 x 5.6" / 142 mm Cone
LF Driver: 1 x 10.2" / 258 mm Woofer | | Amplification | HF Amplifier: Rated at 50 W
MF Amplifier: Rated at 80 W
LF Amplifier: Rated at 170 W | | | | Frequency Range | 32 Hz to 23 kHz (at -6 dB) | | Frequency Response | 38 Hz to 20 kHz ± 1.5 dB | | Maximum Sound Pressure Level (SPL) | 121 dB | | Signal-to-Noise Ratio | 96 dBA | | Total Harmonic Distortion (THD) | 1% | | Maximum Input Level | +20.7 dBu | | Dispersion | 90 x 80° (Horizontal x Vertical) | | | | Crossover Frequency | Low-Pass Frequency: 580 Hz
High-Pass Frequency: 3.1 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms) | | | | AC Input Power | 115 to 230 VAC at 50/60 Hz | | Power Consumption | 1.8 W (Standby)
8 W (Idle)
200 W (Maximum) | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 90%
75% (Recommended) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 9.8 x 15.7 x 11.8" / 250.0 x 400.0 x 300.0 mm | | Weight | 29.1 lb / 13.2 kg |
