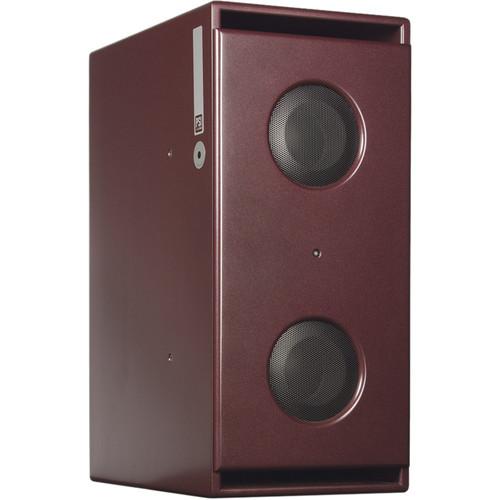

User Manual for PSI AUDIO Sub A225-M Dual 10" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the PSI AUDIO Sub A225-M Dual 10"
- Product category: Studio Monitors PSI AUDIO
- Brand: PSI AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PSI AUDIO Studio Monitors
|
User manual for the PSI AUDIO Sub A225-M Dual 10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PSI AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PSI AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PSI AUDIO product will considerably shorten its lifespan!
|
Product description The black PSI Audio Sub A225-M is a powered subwoofer designed to seamlessly extend the bandwidth of all PSI Audio's studio monitors. The 300W Class-G amplifier powers the two 10.2" woofers to provide a frequency response of 24 to 100 Hz at an SPL of 116 dB (half space).
The double-box MDF enclosure offers a built-in anti-resonance system, while the amplifier unit is acoustically uncoupled to provide uncolored performance without artifacts. The rear panel offers two XLR inputs and outputs for working with satellite speakers and is well suited for stereo and multi-channel (surround) monitoring. The level / input sensitivity control helps audio input signal calibration, while the "Roll-Off" control aligns the low frequency response to room conditions. The PSI Audio Sub A125-M includes a power cord, anti-slippage stickers, and an individual frequency response diagram. -
- Built-in anti-resonance system in a double box cabinet
- Class-G low temperature amplifier stage
- Amplifier unit acoustically uncoupled from speaker cabinet
- Real balanced input with outputs for satellite systems
- Protection circuits with overload indicator
- Designed for stereo and multichannel monitoring
- Magnetically shielded for use close to video monitors
- Phase and amplitude response compatible with all PSI Audio monitors
- Adaptive Output Impedance (AOI) Technology: The AOI system is made up of a system that detects the movement of the membrane and the coil, as well as a filtered counter reaction. This is then tuned to achieve ideal dampening rate for each frequency
- Compensated Phase Response (CPR) Technology: The CPR system is made up of several all-pass filters, each acting in a specific range of frequency and together obtaining a Compensated Phase Response. This provides a constant group delay that is kept to the bare minimum through our entirely analog technology
- Phantom Standby Control (PSC) Technology: The PSC technology enables to remotely activate and deactivate the standby mode of your loudspeakers through the signal cable
UPC: 720260151624 In the Box PSI AUDIO Sub A225-M Dual 10" Powered Subwoofer (Black) Power Cord Individual Frequency-Response Diagram and Data Sheet Set of Anti-Slippage Stickers Limited 5-Year Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PSI AUDIO Sub A225-M Dual 10" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPSI AUDIO Sub A225-M Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 200 W RMS
300 W Peak | | Drivers | LF Driver: 1 x 10.2" / 258 mm Woofer | | | | Frequency Range | 24 Hz to 100 Hz (at -6 dB) | | Frequency Response | 28 Hz to 65 Hz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 116 dB | | Signal-to-Noise Ratio | 116 dBA | | Total Harmonic Distortion (THD) | 1.5% | | | | Crossover Frequency | 90 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
2 x 3-Pin XLR Balanced Male Analog Output | | | | AC Input Power | 115 to 230 VAC at 50/60 Hz | | Power Consumption | 1.7 W (Standby)
4 W (Idle)
200 W (Maximum) | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 90%
75% (Recommended) | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 12.6 x 27.6 x 19.7" / 320.0 x 700.0 x 500.0 mm | | Weight | 84.7 lb / 38.4 kg |
