Product description - PTZOptics NewTek" NDI" Compatible Cameras

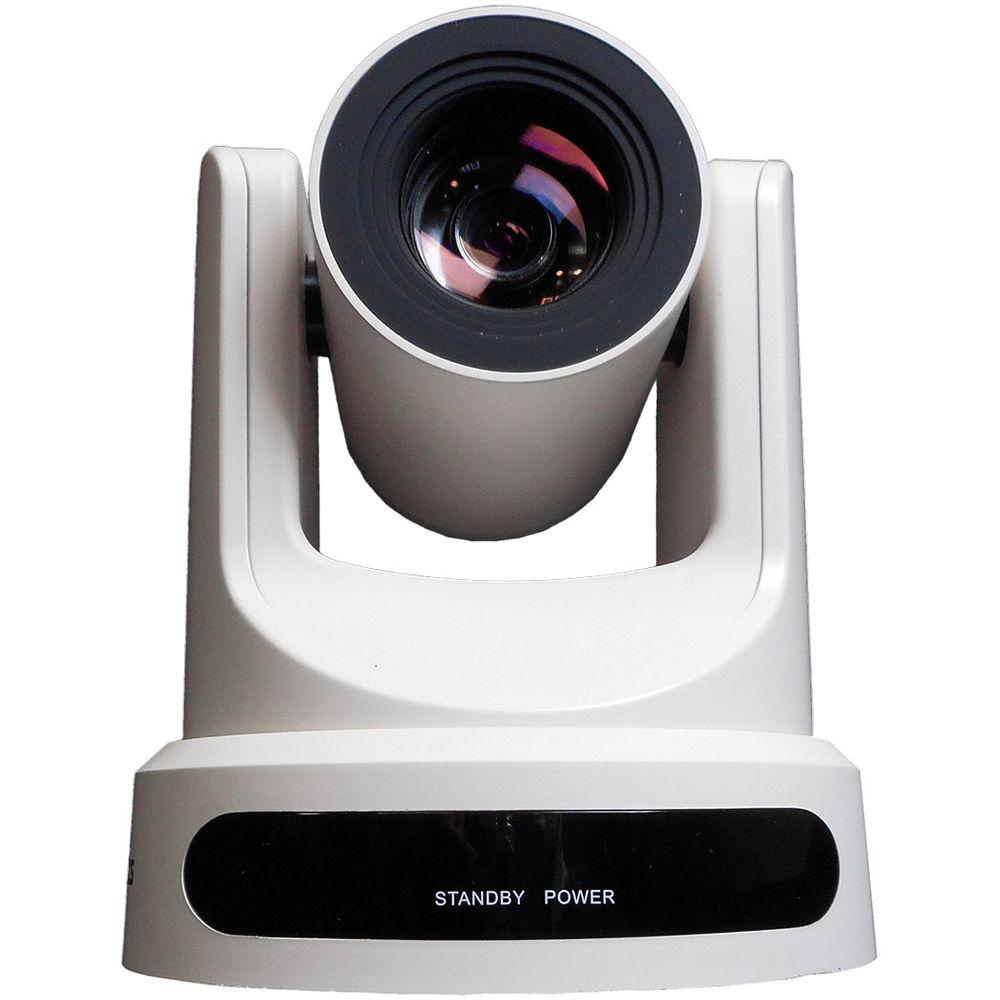

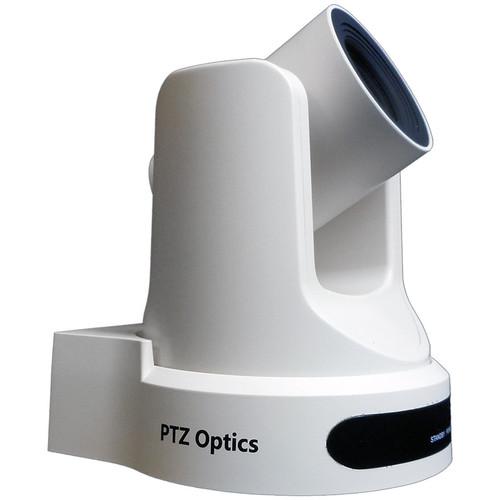

The 20X-NDI Broadcast and Conference Camera, in white, from PTZOptics, allows you to output up to a 1080p60 signal simultaneously via HDMI, SDI, and NDI or IP outputs (NDI and IP share the same RJ45 port). The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications. You won't be restricted to sources connected directly to a single system. The 20X-NDI comes with a NewTek NDI license, so you're set to go right out of the box. The camera also has a composite output that can be used on its own (without any of the other outputs at the same time) to deliver 576i/480i resolution. The 20X-NDI has a 4.4 - 88.5mm lens providing a 20x zoom range which is best used in midsize settings. The NDI versions of the PTZOptics 20x cameras are ideal for streaming applications, houses of worship, sports streaming, live productions and events, and when cable runs might be an issue (when you'd rather run Ethernet cables instead of coax). The camera does well in low-light conditions owing to a fast f/1.8 - 2.8 lens aperture and minimum illumination requirement of only 0.5 lux. On top of this, built-in wide dynamic range and 2D and 3D noise reduction further enhance the broadcast experience. The camera is completely open-source so developers can customize everything as they prefer using simple HTML. The 20X-NDI can be powered over PoE or using the included power supply. It offers RS-232 and RS-485 serial control, an audio line-in for HDMI and NDI/IP streams, and 10 presets via the included IR remote control or 255 via serial or IP control. - Key Features
-
- Simultaneous 1080p60 output via HDMI, SDI, and NDI/IP
- Low-latency NDI video
- Composite output (576i/480i)
- 20x zoom
- Minimum illumination requirement of only 0.5 lux, for better low-light performance
- Built-in wide dynamic range and 2D/3D noise reduction
- PoE support
- RS-232 and RS-485 serial control
- Audio line-in for HDMI and NDI/IP streams
- 10 presets via the included IR remote control or 255 via serial or IP control
- H.264, H.265, and MJPEG streaming over RJ45 port
- Open-source design
UPC: 737993160502 In the Box PTZOptics 20X-NDI Broadcast and Conference Camera (White) Power Adapter and Cord IR Remote Control RS-232C Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics 20X-NDI Broadcast and Conference Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

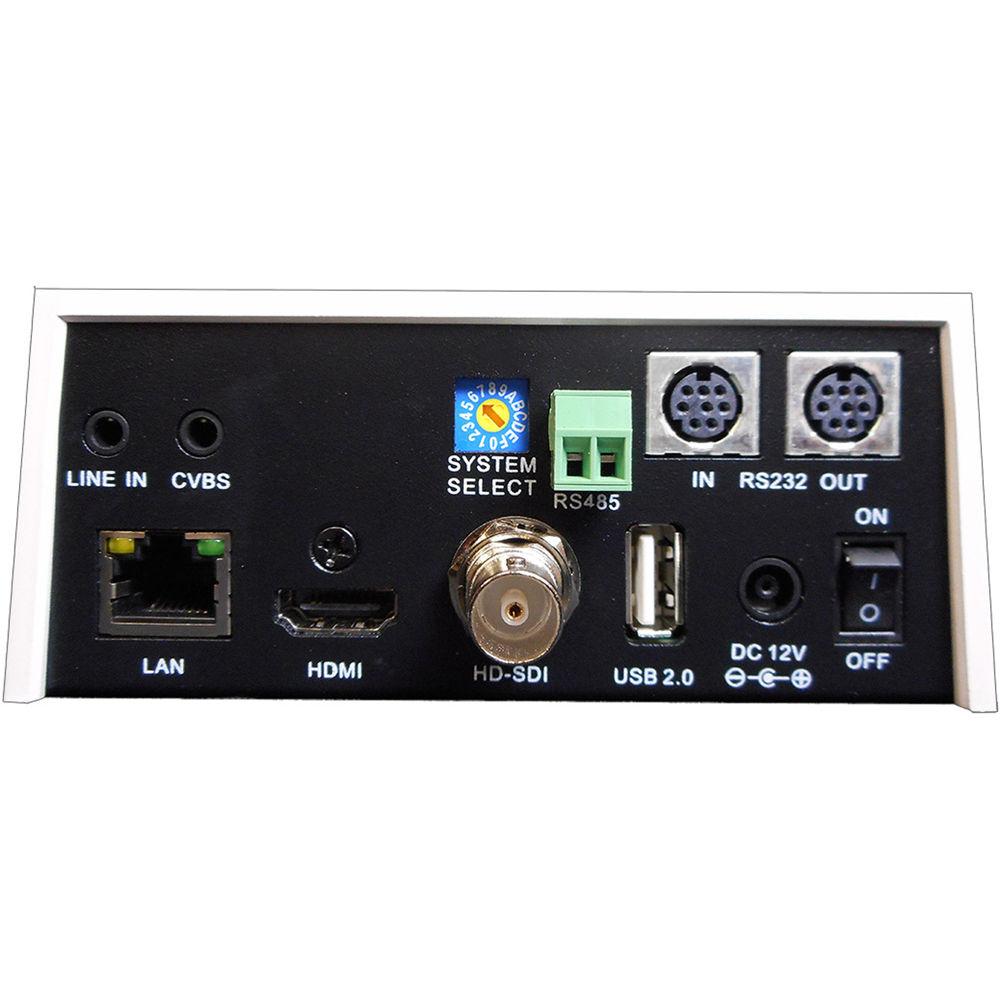

Technical parametersPTZOptics PT20X-NDI Specs Image Sensor | 2.1 MP, 1/2.7" CMOS | Output | NDI: NDI|HX (over IP interface) IP Interface: 1 x RJ45 3G-SDI: 1 x BNC (75 Ohms) HDMI: 1 x HDMI type A Composite: 1 x 1/8" / 3.5 mm | Audio Line In | Analog Audio: 1 x 1/8" / 3.5 mm (NDI/IP, HDMI) | Resolution | NDI/IP/SDI/HDMI: 1080p: 60/50/30/25 1080i: 60/50 720p: 60/50/30/25 Composite: 576i: 30 480i: 30 Note: All the outputs can stream up to 1080p60 simultaneously except for composite. When you use composite, the other outputs turn off. | Lens | 4.42 - 88.5mm, f/1.8 - 2.8 | Zoom | 20x optical | Field of View | Horizontal: 3.36° (tele) to 60.7° (wide) Vertical: 1.89° (tele) to 34.1° (wide) | Minimum Illumination | 0.5 lux at f/1.8, AGC on | Shutter Speed | 1/30 - 1/10000 sec | SNR | ≥55 dB | Flip / Mirror | Vertical | Working Environment | Indoor | Pan | ±170° | Tilt | Up: 90° Down: 30° | Presets | 10 via IR (255 via serial or IP) | Communication | RS-232: 1 x 8-pin mini DIN input, 1 x 8-pin mini DIN output RS-485: 1 x 2-pin PELCO-D/P NDI | Compression | H.264, H.265, and MJPEG streaming over RJ45 LAN port | Baud Rate | 2400 / 4800 / 9600 bits | Input Voltage | 12 VDC (10.8 - 13 VDC) or PoE 802.3af | Power Supply | JEITA-type power adapter (12 VDC in) included | Power Consumption | 12 W (max) | USB | USB 2.0 (future manufacturer use only) | Dimensions | 5.6 x 6.5 x 6.7" / 14 x 16 x 17 cm 5.6 x 7.8 x 6.7" / 14 x 20 x 17 cm (with tilt) | Weight | 3 lb / 1.4 kg | | Package Weight | 5.29 lb | Box Dimensions (LxWxH) | 11.35 x 9.35 x 9.15" |
