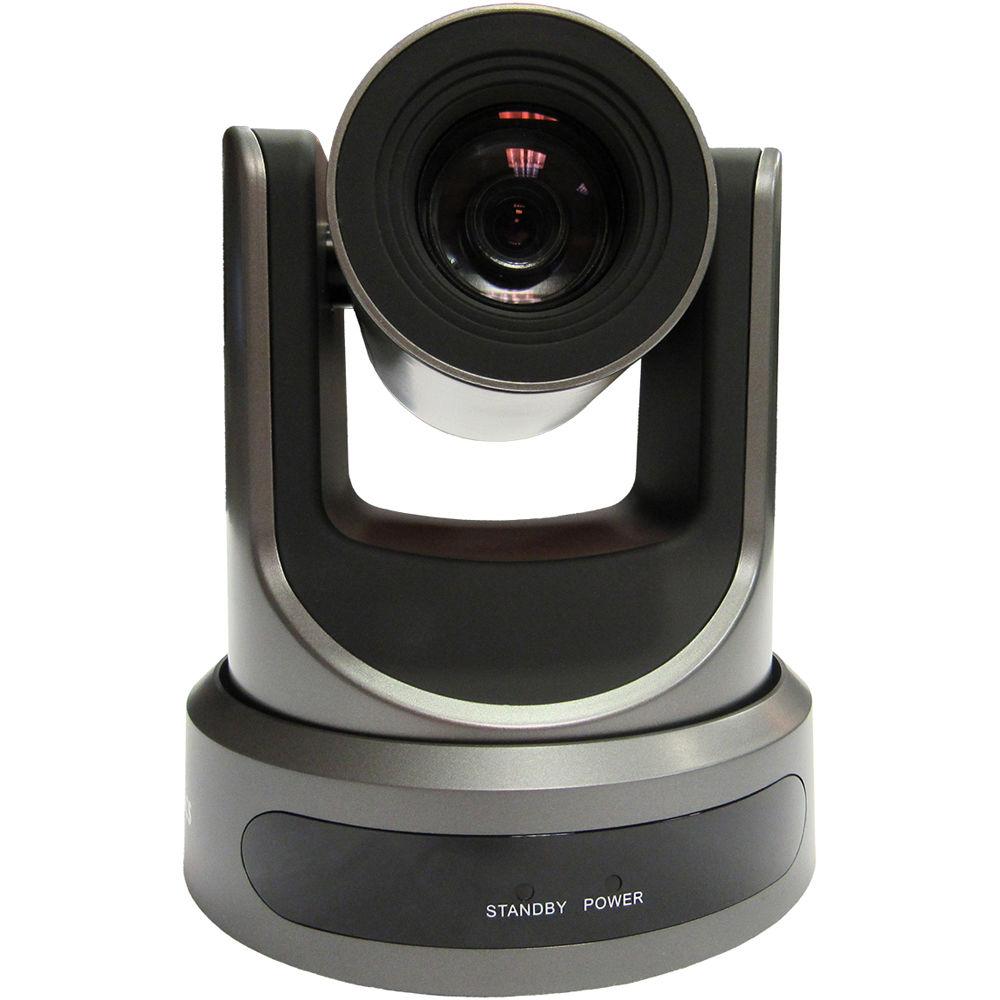

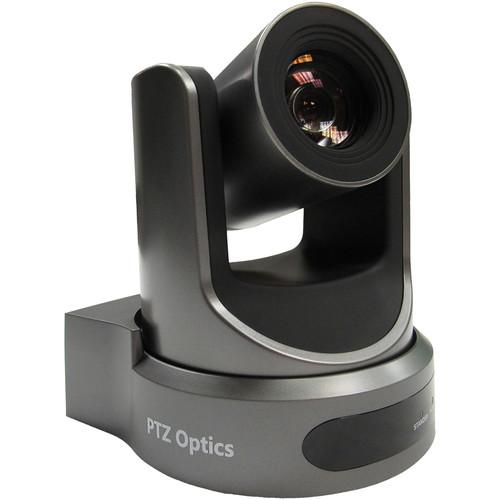

This is the 20x-USB Gen2 model of the PTZOptics line-up of advanced live streaming cameras, in gray, featuring a USB 3.0 output for connecting to a computer for HD web conferencing. The Gen2 model is capable of 1080p60/50 recording (instead of a max of 30 fps), and streaming in H.265 and MJPEG in addition to H.264.
This camera has a 4.4 - 88.5mm lens providing a 20x zoom range, allowing for effective close-focus and wide-angle shots to best suit both face-to-face and group meetings. It does well in low-light conditions owing to a fast f/1.8 - f/2.8 lens aperture and minimum illumination requirement of only 0.5 lux at f/1.8. On top of this, built-in wide dynamic range and 2D/3D noise cancellation further enhance the conferencing experience.
The USB output is also backward compatible with USB 2.0 as long as the resolution is set to 960 x 540. This camera, along with its entire family of 20x and 12x models, is completely open source so developers can customize everything they prefer using simple HTML commands. The USB models do require a quad-core computer (Mac or Windows) for reliable processing of their uncompressed 1080p video output, but most computers are presently up to this standard anyway.

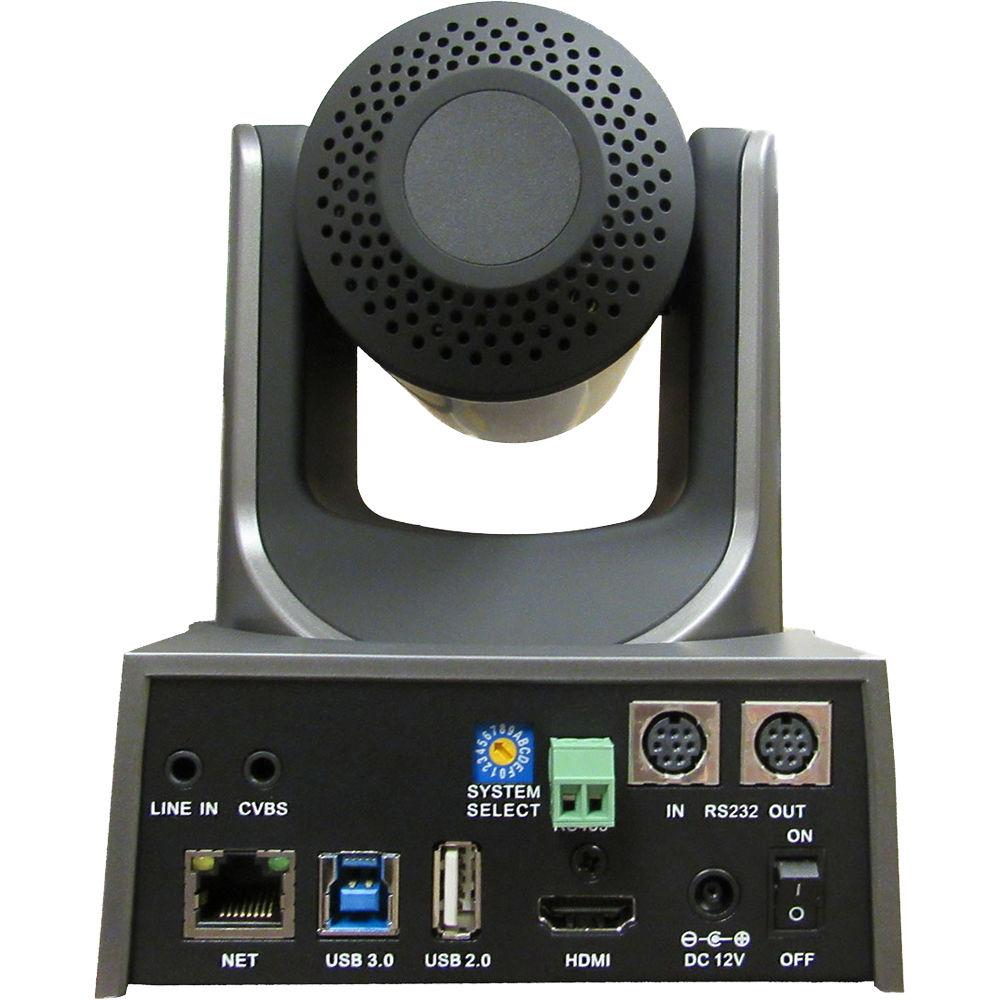

In addition to the USB output, the camera also has LAN, HDMI, and composite outputs, RS-232 input and output with daisy-chain capability, and an RS-485 port. The USB, LAN, and HDMI outputs can be used simultaneously at the same resolution, which can be assigned via a dial on the rear. The composite output can only be used by itself and at 480i/576i resolution. The LAN output is capable of streaming two H.264 or two H.265 RTSP signals, one in HD and one in SD, or a single MJPEG signal, and allows for direct distribution to CDNs, streaming services, and other destinations, using only the camera. There's also a 3.5mm audio input specifically for embedding audio into the LAN stream so you can deliver both audio and video to your destination. The LAN port is for streaming and control only and does not support Power-over-Ethernet. As an alternative to direct streaming from the LAN port, you can also connect external devices for more advanced conferencing.
The camera can be controlled via the LAN port over a network, ONVIF over a network, and RS-232 via VISCA commands. This USB model also features built-in UVC control, allowing for pan/tilt/zoom control over a USB cable, with the UVC protocol set to either absolute or relative for use with compatible software.
RS-232 control includes control from any NewTek TriCaster, including any of the TriCaster Mini models. Simply connect multiple cameras to the TriCaster using DB9 cables and operate all of them from its software. A TriCaster can also be used over IP control using third-party software.
A large variety of software is supported, including most online meeting software, mobile apps for control over your network, and the advanced PTZOptics Network Control, UVC Control, and VISCA Control applications.
An included IR remote control lets you adjust many settings via an on-screen display, allowing you to set and call presets, and control up to four cameras. You can set up to 64 presets in the camera (and up to 255 via RS-232), with a preset accuracy of 0.1°, and you can call up to 10 presets using the remote. The camera can be used desktop-mounted or ceiling-mounted, using an optional PTZOptics ceiling-mount bracket. - Key Features
-
- USB 3.0 output for HD live streaming and web conferencing
- 1080p HD video at up to 60/50 fps
- LAN, HDMI, and composite outputs, RS-232 input/output, RS-485 port
- H.264 and H.265 HD/SD dual-stream, or MJPEG single stream via LAN port
- 3.5mm audio input for embedding audio into the IP stream
- USB, LAN, and HDMI ports are simultaneously live
- USB 2.0 backward compatible at 960 x 540 resolution
- Open source customizable via HTML commands
- 4.4 - 88.5mm lens with 20x zoom range
- 1/2.7" 2.1MP CMOS sensor
- f/1.8 - f/2.8 lens aperture
- 0.5 lux minimum illumination at f/1.8
- Wide dynamic range
- 2D and 3D noise cancellation
- Control via LAN over a network, ONVIF over a network, RS-232 via VISCA commands, and UVC control
- Control multiple cameras from any NewTek TriCaster, directly from the TriCaster software
- Set up to 64 presets (or 255 via RS-232 / UVC), with a preset accuracy of 0.1°
- Use desktop-mounted or ceiling-mounted using an optional bracket
UPC: 053176516127 In the Box PTZOptics 20x-USB Gen2 Live Streaming Camera (Gray) USB A-to-B Cable RS-232 Cable Power Supply IR Remote Control 2 x AAA Batteries (for Remote Control) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics 20x-USB Gen2 Live Streaming Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPTZOptics PT20X-USB Gen 2 Specs | Image Sensor | 1/2.7" CMOS progressive, 2.12 MP | | Capture Resolution | 1080p 60/50/30/25
1080i 60/50
720p 60/50
576i
480i | | Video Standards | NTSC, PAL | | Lens | Integrated 4.4 - 88.5mm, f/1.8 - f/2.8 | | Zoom | Optical: 20x
Digital: 16x | | Angle of View | Horizontal: 3.36° (tele) to 60.7° (wide)
Vertical: 1.89° (tele) to 34.1° (wide) | | Minimum Illumination | 0.5 lux at f/1.8, AGC on | | Shutter Speed | 1/30 - 1/10000 sec | | SNR | ≥55 dB | | Flip / Mirror | Supported (vertical) | | Working Environment | Indoor | | Pan Movement | ±170° | | Tilt | Up: 90°
Down: 30° | | Presets | 64 (or 255 via RS-232 and UVC) | | Connectors | Video Outputs:
1 x USB 3.0 (type B, female)
1 x HDMI (1.3)
1 x RJ45 (10 m/100 m adaptive Ethernet port) (IP network interface)
1 x 3.5 mm Composite
Audio Interface:
1 x 3.5 mm line in (for embedding into IP stream only)
Communication Interface:
1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance)
1 x RS-232 output (pass-through) (8-pin mini-DIN) (98 ft / 30 m distance)
1 x RS-485 (2-pin Phoenix port) (4920 ft / 1500 m distance)
*RS-232 / RS-485 Protocols: VISCA/Pelco-D/Pelco-P | | Baud Rate | 2400 / 4800 / 9600 bits | | Power Supply | Input: 12 VDC (10.8 - 13.0 VDC)
JEITA power adapter (12 VDC in) included | | Power Consumption | 24 W (Max) | | Operating Temperature | 23 to 104°F (-5 to 40°C] | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions (W × H × D) | 5.6 x 6.6 x 5.9" (14.2 x 16.8 x 15.0 cm)
With Tilt Up: 5.6 x 7.3 x 5.9" (14.2 x 18.5 x 15.0 cm) | | Weight | 3 lb (1.4 kg) | | | | Package Weight | 5.435 lb | | Box Dimensions (LxWxH) | 11.25 x 9.3 x 9.3" |
