Product description

  • PTZOptics NDI HX Camera Setup

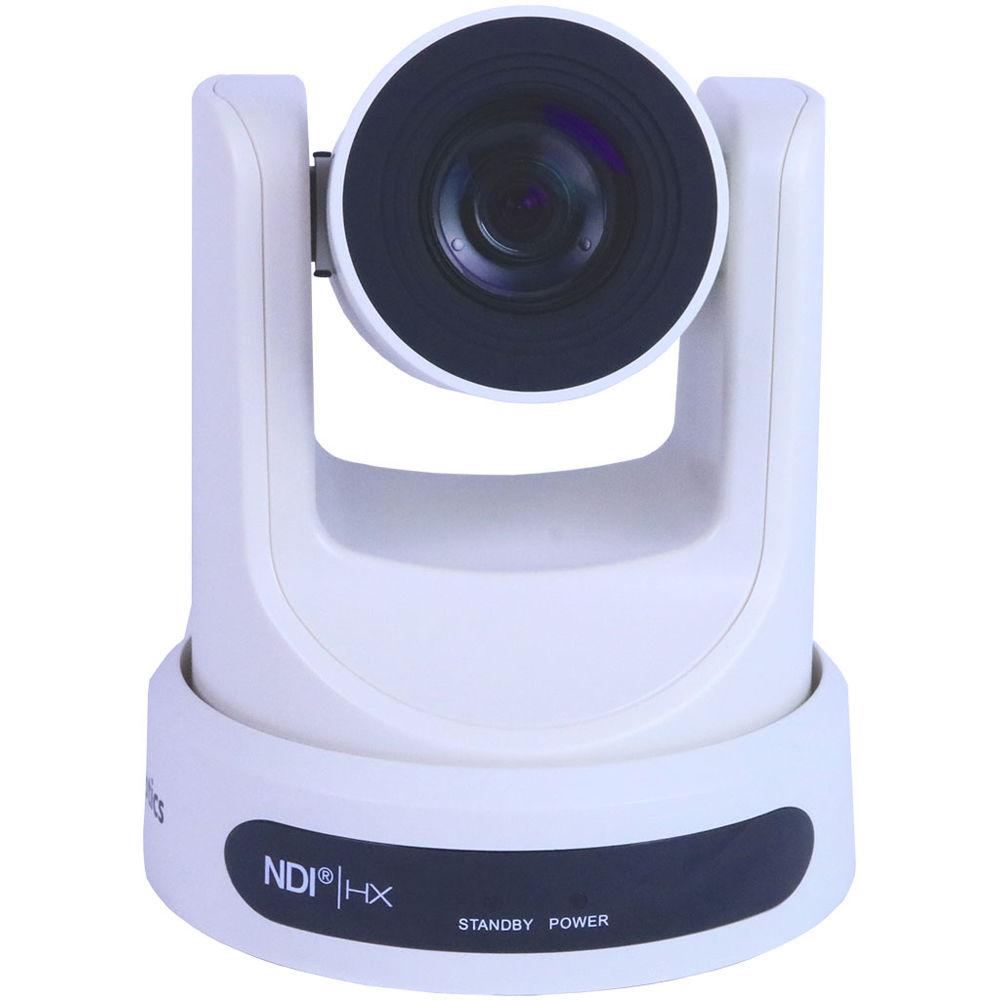

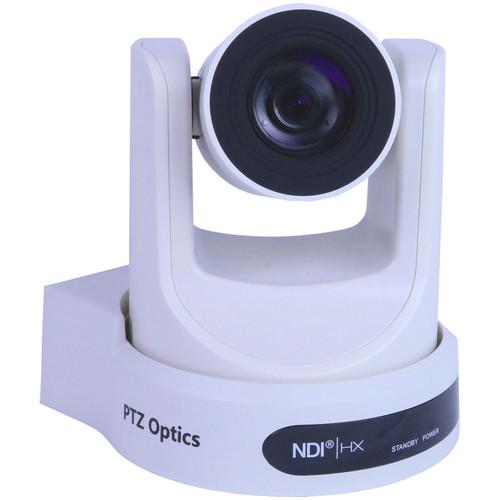

The 30X-NDI Broadcast and Conference Camera, in white, from PTZOptics, allows you to output up to a 1080p signal simultaneously via HDMI, SDI, and NDI or IP outputs (NDI and IP share the same RJ45 port). You can select 1080p60 for SDI and HDMI and up to 1080p30 for NDI/IP, or 1080p60 for NDI/IP and 1080p30 for SDI and HDMI. The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications. You won't be restricted to sources connected directly to a single system. The 30X-NDI comes with a NewTek NDI license, so you're set to go right out of the box. The camera also has a composite output that can be used on its own (without any of the other outputs at the same time) to deliver 576i/480i resolution.

The 30X-NDI has a 4.4 - 132.6mm lens providing a 30x zoom range which is best used in large settings, such as gymnasiums and auditoriums. The NDI versions of the PTZOptics 30x cameras are ideal for streaming applications, houses of worship, sports streaming, live productions and events, and when cable runs might be an issue (when you'd rather run Ethernet cables instead of coax). The camera does well in low-light conditions owing to a fast f/1.8 - 2.8 lens aperture and minimum illumination requirement of only 0.5 lux. On top of this, built-in wide dynamic range and 2D and 3D noise reduction further enhance the conferencing experience. The camera is completely open-source so developers can customize everything as they prefer using simple HTML.

The 30X-NDI can be powered over PoE or using the included power supply. It offers RS-232 and RS-485 serial control, an audio line-in for HDMI and NDI/IP streams, and 10 presets via the included IR remote control or 255 via serial or IP control.
    Key Features
    • Simultaneous 1080p output via HDMI, SDI, and NDI/IP (SDI and HDMI at 1080p60 and NDI/IP at up to 1080p30, or NDI/IP at 1080p60 and SDI and HDMI at 1080p30)
    • Low-latency NDI video
    • Composite output (576i/480i)
    • 30x zoom
    • Minimum illumination requirement of only 0.5 lux, for better low-light performance
    • Built-in wide dynamic range and 2D/3D noise reduction
    • PoE support
    • RS-232 and RS-485 serial control
    • Audio line-in for HDMI and NDI/IP streams
    • 10 presets via the included IR remote control or 255 via serial or IP control
    • H.264, H.265, and MJPEG streaming over RJ45 port
    • Open-source design
UPC: 737993161141 In the Box PTZOptics 30X-NDI Broadcast and Conference Camera (White)
  • Power Adapter and Cord
  • IR Remote Control
  • RS-232C Cable
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the PTZOptics 30X-NDI Broadcast and Conference Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

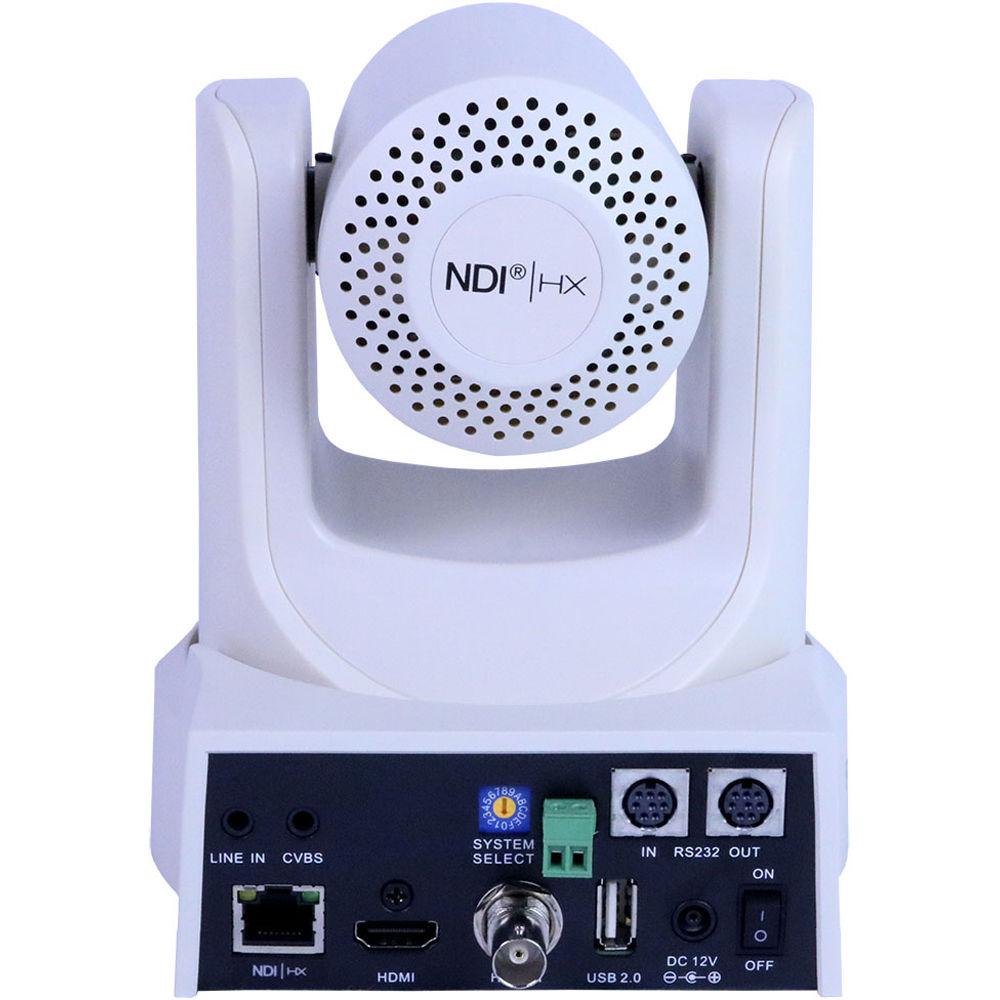

    Technical parameters

    PTZOptics PT30X-NDI Specs

    Image Sensor 2.07 MP, 1/2.7" CMOS
    Output NDI: NDI|HX (over IP interface)
    IP Interface: 1 x RJ45
    3G-SDI: 1 x BNC (75 Ohms)
    HDMI: 1 x HDMI type A
    Composite: 1 x 1/8" / 3.5 mm
    Audio Line In Analog Audio: 1 x 1/8" / 3.5 mm (NDI/IP, HDMI)
    Resolution NDI/IP/SDI/HDMI:
    1080p: 60/50/30/25
    1080i: 60/50
    720p: 60/50/30/25

    Composite:
    576i: 30
    480i: 30

    Please note: 1) When streaming over SDI, HDMI, and NDI/IP simultaneously, if SDI and HDMI are set to 1080p60, NDI/IP can only stream up to 1080p30. If NDI/IP is set to 1080p60, SDI and HDMI can only stream up to 1080p30. 2) All the outputs can be used simultaneously except for composite. When you use composite, the other outputs turn off.
    Lens 4.42 - 132.6mm, f/1.8 - 2.8
    Zoom 30x optical
    Field of View Horizontal: 2.28° (tele) to 60.7° (wide)
    Vertical: 1.28° (tele) to 34.1° (wide)
    Minimum Illumination 0.5 lux at f/1.8, AGC on
    Shutter Speed 1/30 - 1/10000 sec
    SNR ≥55 dB
    Flip / Mirror Vertical
    Working Environment Indoor
    Pan ±170°
    Tilt Up: 90°
    Down: 30°
    Presets 10 via IR (255 via serial or IP)
    Communication RS-232: 1 x 8-pin mini DIN input, 1 x 8-pin mini DIN output
    RS-485: 1 x 2-pin
    PELCO-D/P
    NDI
    Compression H.264, H.265, and MJPEG streaming over RJ45 LAN port
    Baud Rate 2400 / 4800 / 9600 bits
    Input Voltage 12 VDC (10.8 - 13 VDC) or PoE 802.3af
    Power Supply JEITA-type power adapter (12 VDC in) included
    Power Consumption 12 W (max)
    USB USB 2.0 (future manufacturer use only)
    Dimensions 5.6 x 6.5 x 6.7" / 14 x 16 x 17 cm
    5.6 x 7.8 x 6.7" / 14 x 20 x 17 cm (with tilt)
    Weight 3 lb / 1.4 kg
    Package Weight 5.6 lb
    Box Dimensions (LxWxH) 10.4 x 9.3 x 9.3"

    Rating

    100% users recommend this product to others. And what about you?
