Product description - PTZOptics SDI Camera Setup

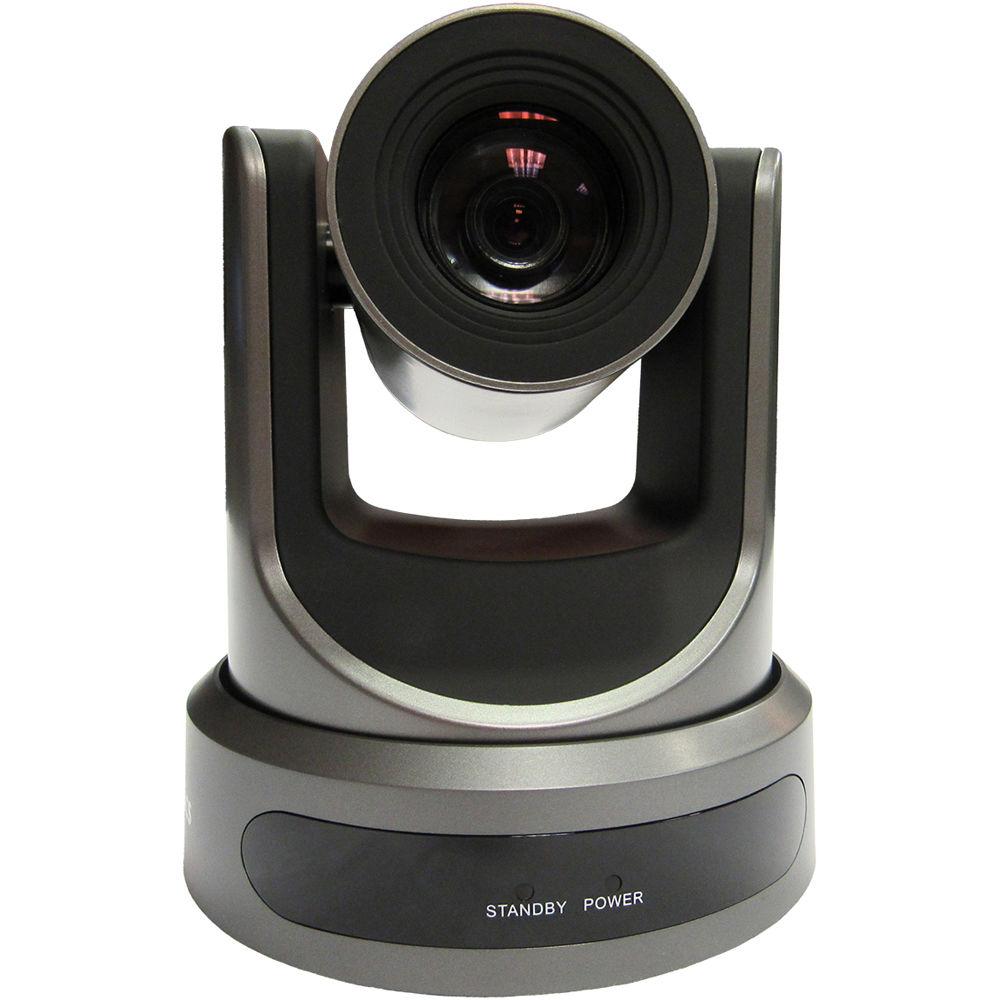

The 30X-SDI Gen 2 Live Streaming Broadcast Camera, in gray, from PTZOptics, features simultaneous 1080p 3G-SDI, HDMI, and IP streaming and offers a 30x optical zoom, which is suitable for large conferencing rooms and auditoriums. It also has a composite output that can be used on its own (without any of the other outputs concurrently) to deliver 576i/480i resolution. The camera streams up to 1080p60 resolution. When streaming over all three of the main outputs at the same time, you can select 1080p60 for SDI and HDMI while up to only 1080p30 for IP. Or you can select 1080p60 for IP and 1080p30 for SDI and HDMI.
The 30X-SDI Gen 2 can be powered over PoE or an included power supply. It offers RS-232 and RS-485 serial control, an audio line in for HDMI and IP streaming, and 10 presets via the included IR remote control or 255 via serial or IP control. - Key Features
-
- 60.7° wide-angle lens
- Low-light sensitive with Wide Dynamic Range (WDR)
- Simultaneous 3G-SDI, HDMI, and IP streaming
- Up to 1080p60 resolution
- Composite output (576i/480i)
- 2D and 3D noise reduction
- RS-232 and RS-485 serial control
- IP (LAN/WAN) control
- H.264, H.265, and MJPEG streaming over RJ45 LAN port
- Power over Ethernet or 12 VDC power supply
- RTMP and RTSP IP streaming
UPC: 737993161059 In the Box PTZOptics 30X-SDI Gen 2 Live Streaming Broadcast Camera (Gray) Power Supply IR Remote Control RS-232C Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics 30X-SDI Gen 2 Live Streaming Broadcast Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

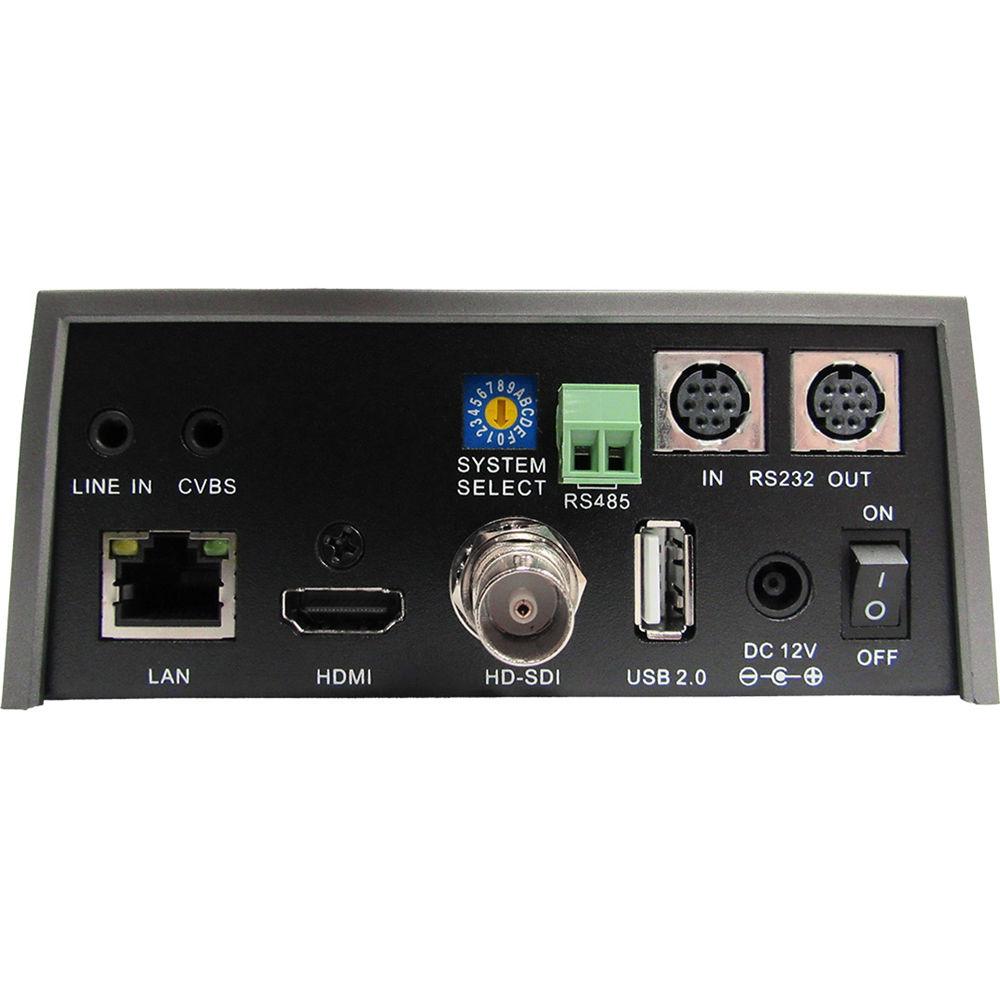

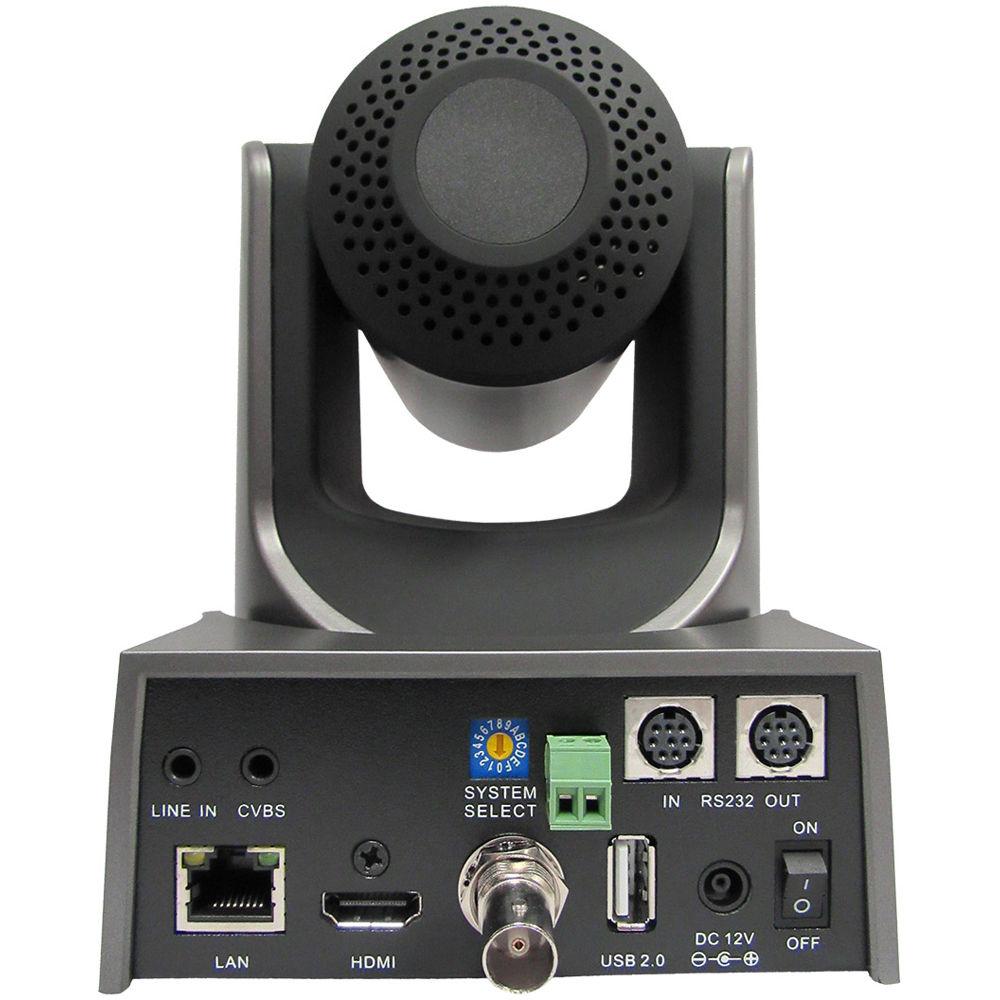

Technical parametersPTZOptics PX30X-SDI Gen 2 Specs | Image Sensor | 1/2.7" CMOS progressive, 2.07 MP | | Output | 3G-SDI: 1 x BNC (75 Ohms)
HDMI: 1 x HDMI type A
IP: 1 x RJ45
Composite: 1 x 1/8"/ 3.5 mm | | Resolution | SDI/HDMI/IP:
1080p: 60/50/30/25
1080i: 60/50
720p: 60/50/30/25
Composite:
576i/480i
Please note: When streaming over SDI, HDMI, and IP simultaneously, if SDI and HDMI are set to 1080p60, IP can stream 1080p30 max; if IP is set to 1080p60, SDI and HDMI can stream 1080p30 max (resolution is adjusted for both SDI and HDMI at the same time with the same control) | | Audio Line In | Analog Audio: 1 x 1/8"/ 3.5 mm (HDMI & IP stream only) | | Lens | 4.42 - 132.6mm, f/1.8 - 2.8 | | Zoom | 30x optical | | Field of View | Horizontal: 2.28° (tele) to 60.7° (wide)
Vertical: 1.28° (tele) to 34.1° (wide) | | Minimum Illumination | 0.5 lux at f/1.8, AGC on | | Shutter Speed | 1/30 - 1/10000 sec | | SNR | ≥55 dB | | Flip / Mirror | Vertical | | Working Environment | Indoor | | Pan Movement | ±170° | | Tilt | Up: 90°
Down: 30° | | Presets | 10 via IR (255 via serial or IP) | | Communication | RS-232: 1 x 8-pin mini DIN input, 1 x 8-pin mini DIN output
RS-485: 1 x 2-pin | | Compression | H.264, H.265, and MJPEG IP streaming | | Baud Rate | 2400 / 4800 / 9600 bits | | Input Voltage | 12 VDC (10.8 - 13 VDC) | | Power Supply | JEITA power adapter (12 VDC in) included | | Power Consumption | 12 W (Max) | | USB | USB 2.0 (future manufacturer use only) | | Dimensions | 5.6 x 6.5 x 6.7" / 14 x 16 x 17 cm
5.6 x 7.8 x 6.7" / 14 x 20 x 17 cm (with tilt) | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 10.3 x 9.3 x 9.1" |
