User Manual for PTZOptics 4D IP Joystick Controller Click to enlarge the picture
Contents of the user manual for the PTZOptics 4D IP Joystick Controller
- Product category: Camera Controllers PTZOptics
- Brand: PTZOptics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PTZOptics Camera Controllers
 |
User manual for the PTZOptics 4D IP Joystick Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PTZOptics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PTZOptics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PTZOptics product will considerably shorten its lifespan!
|
Product description - PTZOptics IP Joystick Setup Video (Gen 3)

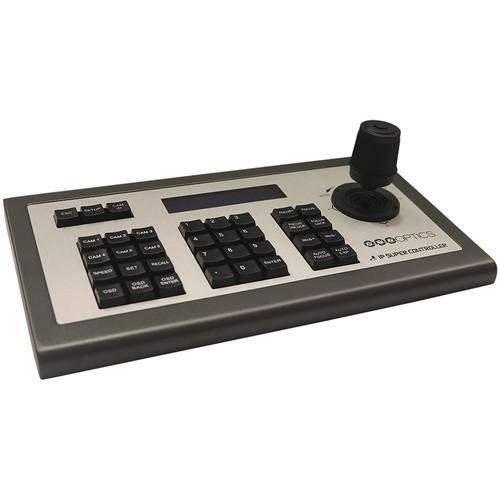

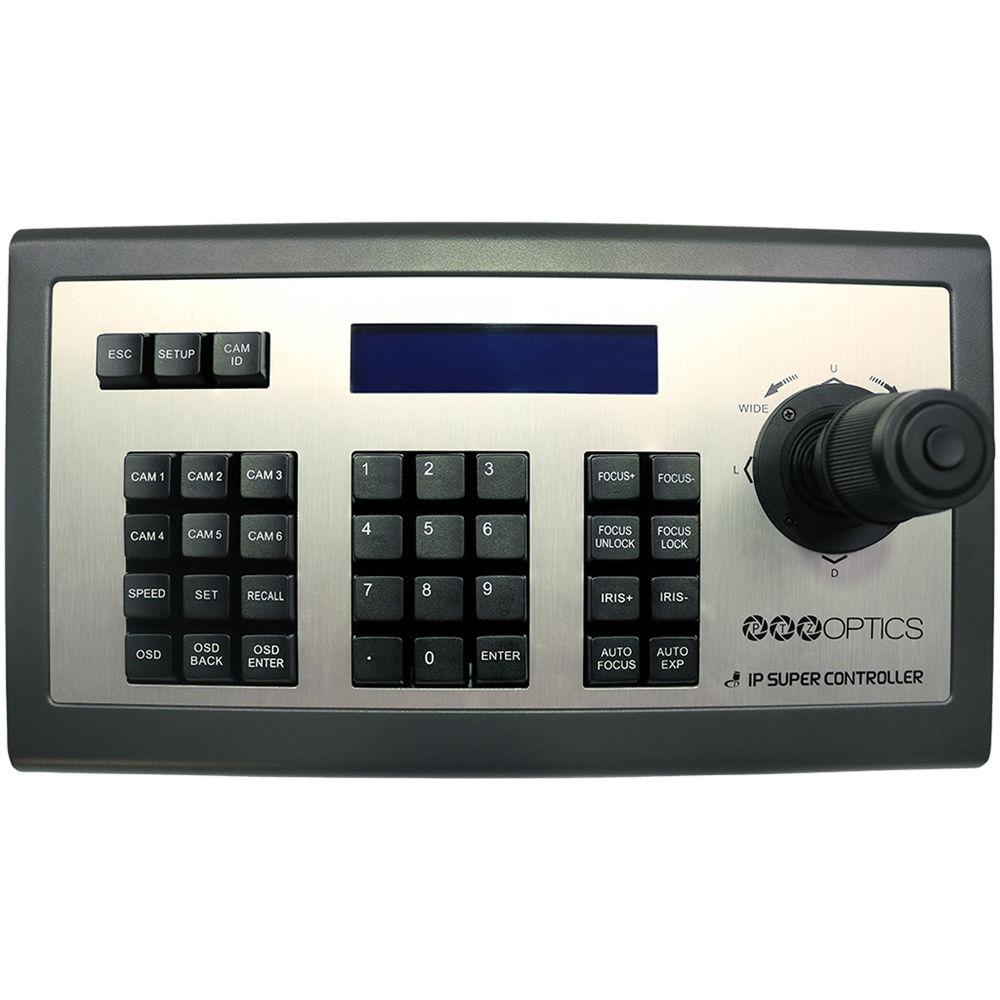

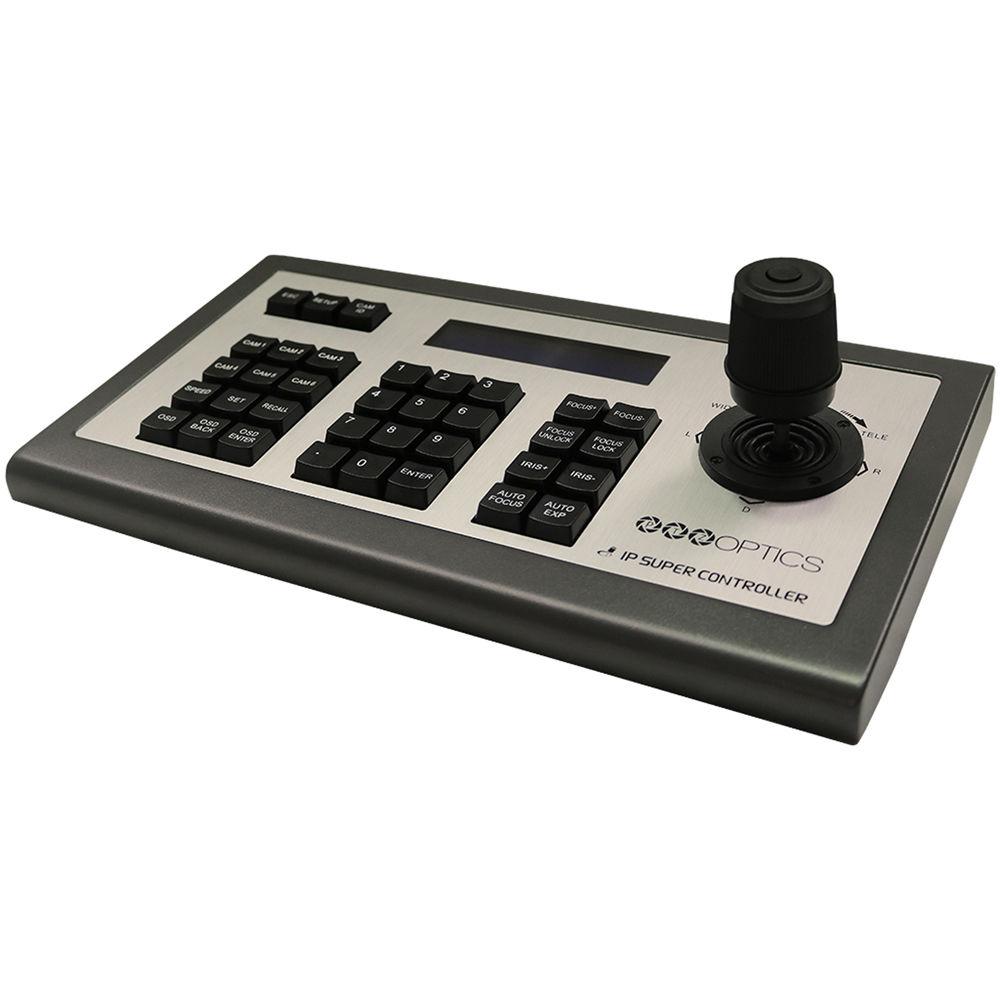

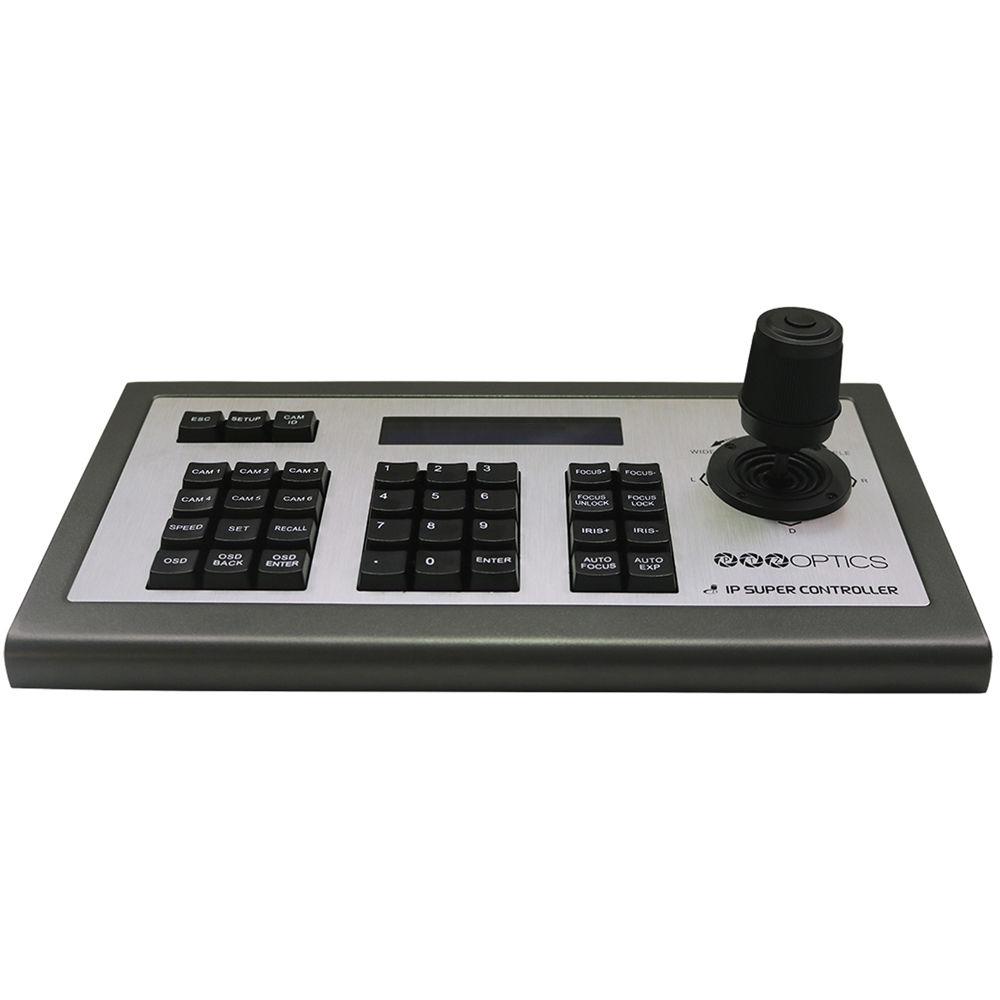

Offering control for up to 253 PTZ cameras, PTZOptics' 4D IP Joystick Controller (GEN3) uses the Sony VISCA-over-IP protocol for effectively latency-free operation. The 4D joystick and keyboard unit can be used with all PTZOptics cameras or with other VISCA-over-IP cameras.This third-generation controller has been redesigned to provide access to the finest camera detail settings and offers the ability to set custom PTZ speeds and presets for each camera. Quick-switching hot keys are provided for up to six cameras, and its focus lock/unlock buttons enable you to customize focus settings for each camera.Pan and tilt with the 4D joystick and twist simultaneously for focus and zoom control. Adjust camera settings via the keypad buttons and view status and menu choices on the panel's LCD display. Offering advanced control for professionals yet easy enough for general users, the 4D IP Joystick Controller (GEN3) can be powered using PoE (Power over Ethernet) or via the included 12V power supply. Features - Third-generation redesign with advanced PTZ speed controls, focus lock/unlock controls, and access to OSD menu
- Sony VISCA-over-IP protocol effectively eliminates latency
- Offers advanced pro-style control but is easy enough to operate by general users
- Control up to 253 PTZOptics cameras or other VISCA-over-IP PTZ cameras
- 4D joystick offers simultaneous pan, tilt, zoom, and focus control
- Quick-switching hot keys for up to six cameras
- LED status and menu display
- Power via PoE (Power over Ethernet) or the included 12V power supply
UPC: 737993161523 In the Box PTZOptics 4D IP Joystick Controller (GEN3) Power Supply (12 VDC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics 4D IP Joystick Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

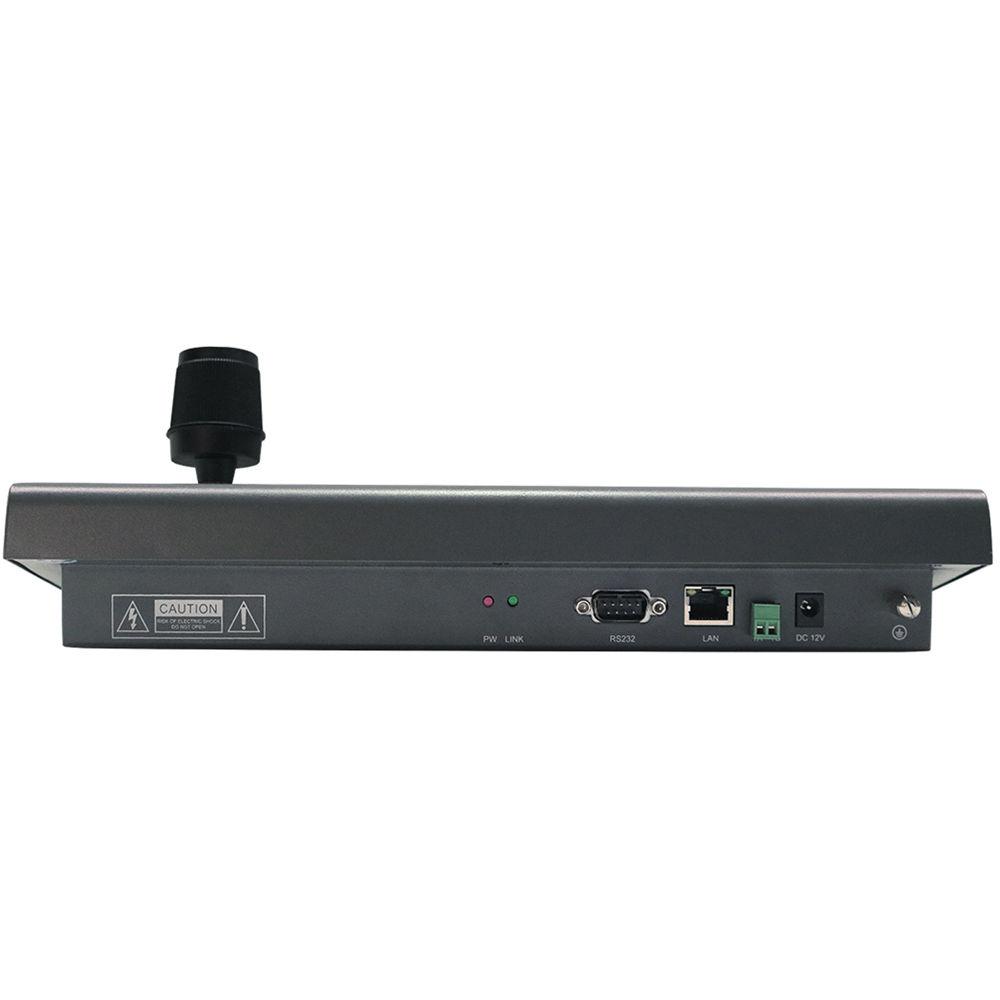

Technical parametersPTZOptics PT-JOY-G3 Specs | | | Ports and Connectors | 1 x LAN (RJ45, PoE-enabled)
1 x RS-232 (inactive)
1 x RS-485 (inactive)
1 x 12 VDC barrel input | | Maximum Number of Cameras | 253 | | Maximum Cable Distance | 328' / 100 m (to nearest LAN switch) | | | | Power Consumption | 5 W, 12 VDC
PoE (802.3af) | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Operating Humidity Range | 10-90% (non-condensing) | | Material of Main Chassis | Metal | | Dimensions (WxHxD) | 12.6 x 7.1 x 4.3" / 32.0 x 18.1 x 11.0 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 14.0 x 9.0 x 5.75" |
