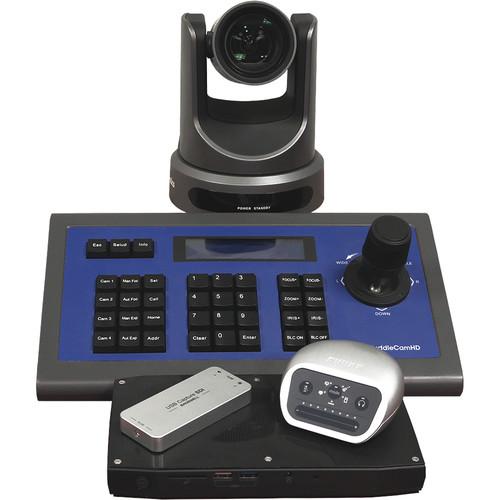

Product description

• NUC6i7KYK Mini PC NUC Kit
  • PTZOptics Producer Kit Setup Video
  The Intel NUC6i7KYK Mini PC NUC Kit features an Intel Core i7-6770HQ processor and the capabilities you need to build a powerful portable system that you can take with you or fit neatly behind the monitor. The 2.6 GHz 6th-generation Intel Core i7-6770HQ processor comes armed with four cores for multitasking as well as offering speed bursts of up to 3.5 GHz while handling demanding apps. For memory capabilities, this NUC can support up to 32GB of DDR4 SO-DIMM memory modules as well as house two M.2 2242/80 SSDs that have a SATA- or PCIe-based interface. Moreover, it sports an integrated Intel Iris Pro Graphics 580 chipset so you can experience 4K visuals as well as smooth frame rates.

  Intel has outfitted this NUC with a feature you do not normally find with most other NUCs by equipping it with a Thunderbolt 3 port that lets you daisy chain multiple devices such as monitors and storage drives. You can also enhance the graphics capabilities of this NUC by utilizing a dedicated graphics card, which is housed in a Thunderbolt enclosure. Other notable ports included with this NUC are four USB 3.0 ports and two audio jacks along with an HDMI 2.0 port, mini-DisplayPort 1.2, and Gigabit Ethernet port. Aside from ports, an SDXC slot, 802.11ac Wi-Fi, and Bluetooth 4.2 wireless are on board. Included along with the NUC are an external power adapter and a VESA mount that attaches the NUC6i7KYK behind your display.
  Quad-Core Skylake Intel Core i7 Performance
  • This NUC features a 2.6 GHz 6th-generation Skylake Intel Core i7-6770HQ processor, with 6MB of L3 cache. The Skylake processor uses less energy when compared to previous Intel processors. With Intel Turbo Boost Technology, the maximum clock rate this processor can achieve is 3.5 GHz. Having four cores also allows the NUC to run multiple programs at the same time without slowing down the system.
  Intel Iris Pro Graphics
  • The Intel Iris Pro Graphics chipset with 4K display capabilities allows you to edit photos and videos like a professional or immerse yourself in seamless 3D gameplay, all in 4K on three monitors at once. With Intel Iris Pro graphics, the NUC can quickly convert media files and provide fast frame rates.
  Wireless
  • The NUC6i7KYK comes with Intel 802.11ac wireless, so you can connect out-of-the-box to access files, movies, and music in the cloud. Furthermore, Bluetooth 4.2 is onboard, so you can connect wireless peripherals such as headsets and keyboards.
  Additional Features
  • This NUC supports up to 32GB of RAM, so you can install the memory you need for fast map load times and app switching. The four USB 3.0 ports enable you to connect a keyboard, a mouse, and an Intel RealSense camera to the NUC. Additionally, one of these four USB 3.0 ports supports USB charging.
  UPC: 735858303439

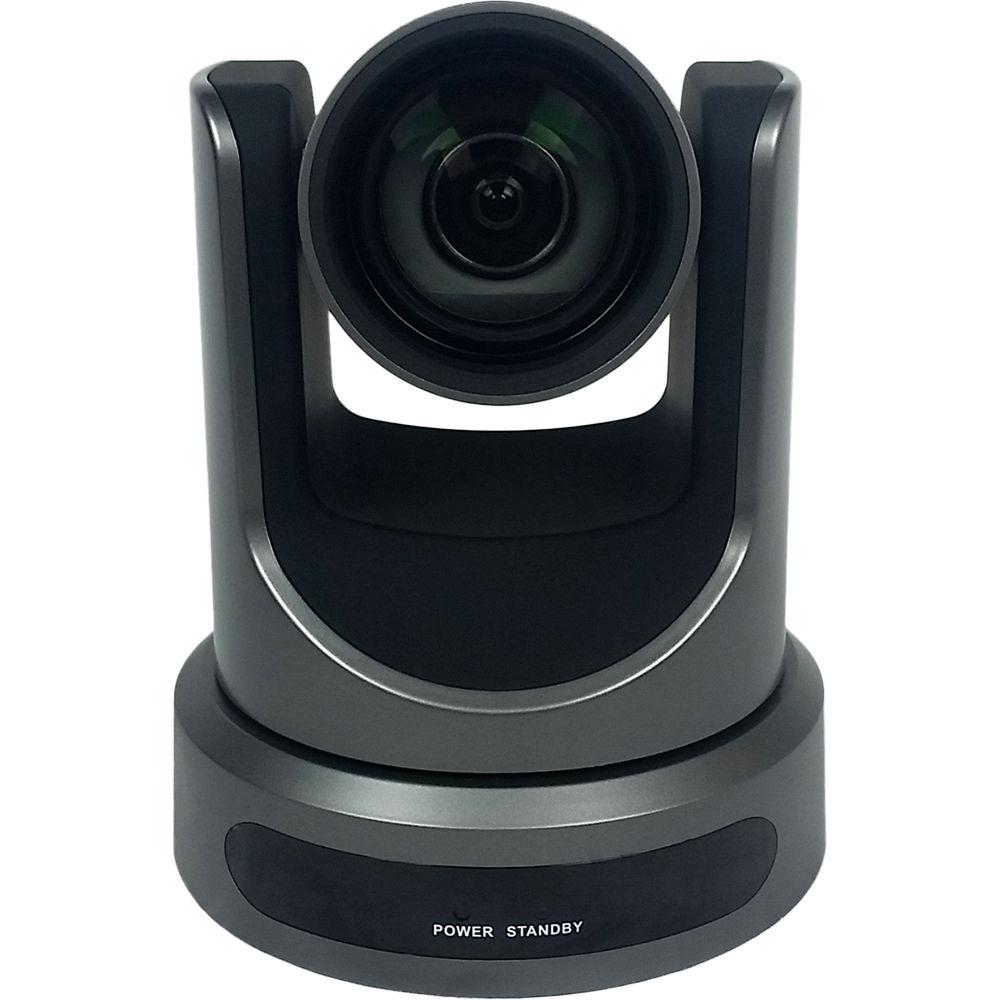

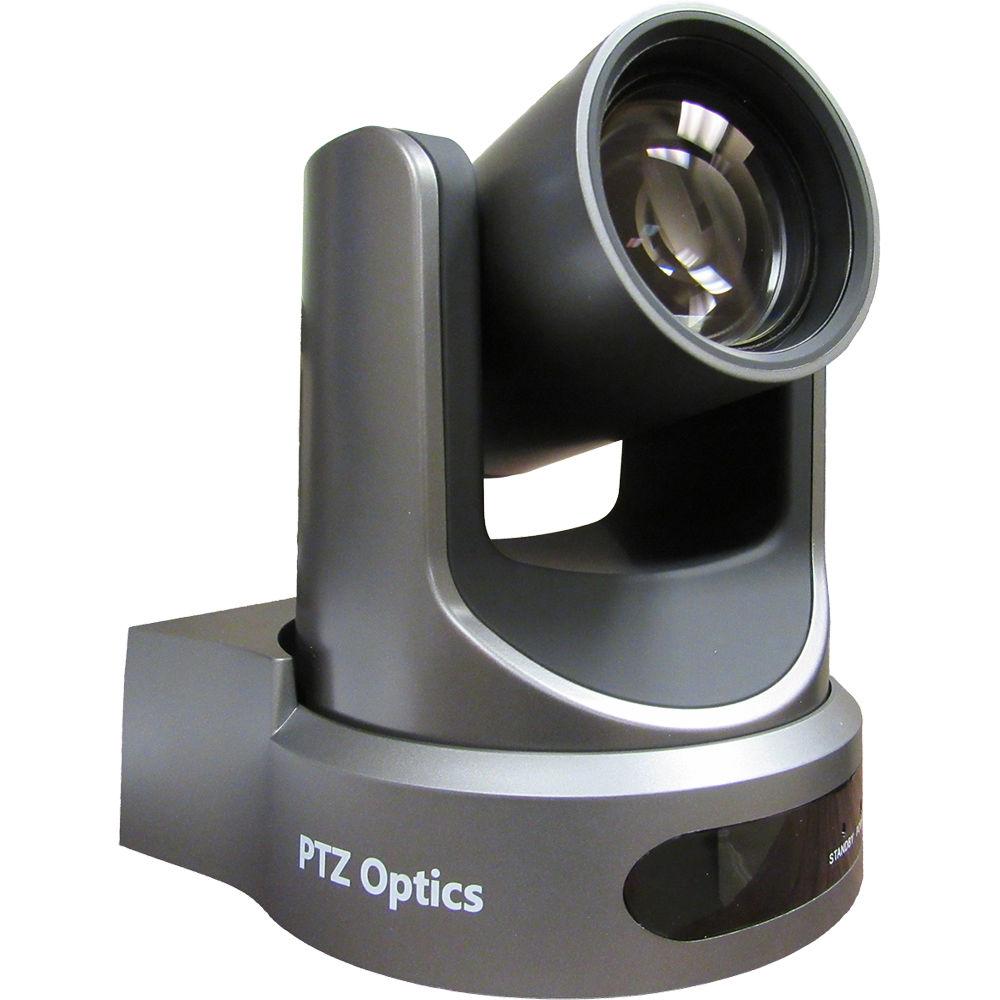

• 12x-SDI Gen2 Live Streaming Camera (Gray) This is the 12x-SDI Gen2 model of the PTZOptics lineup of advanced live streaming cameras, in gray, featuring a 3G-SDI output for connecting to switching equipment for broadcast conferencing. The Gen2 model is capable of 1080p60/50 recording (instead of a max of 30 fps), and streaming in H.265 and MJPEG in addition to H.264.

  This camera has a 3.5 - 42.3mm lens providing a 12x zoom range, allowing for effective close-focus and wide-angle shots to best suit both face-to-face and group meetings. It does well in low-light conditions owing to a fast f/1.8 - f/2.8 lens aperture and minimum illumination requirement of only 0.5 lux at f/1.8. On top of this, built-in wide dynamic range and 2D and 3D noise cancellation further enhance the conferencing experience. The camera, along with its entire family of 20x and 12x models, is completely open source so developers can customize everything as they prefer using simple HTML commands.

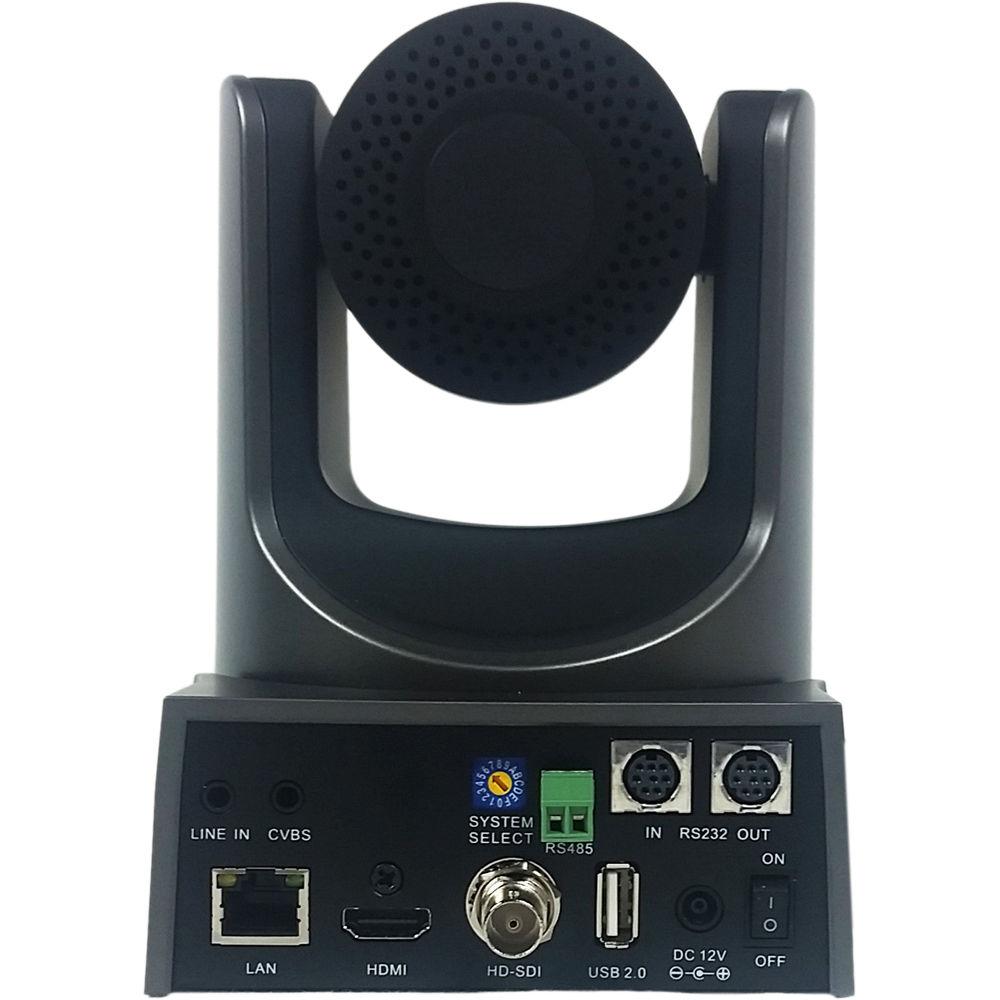

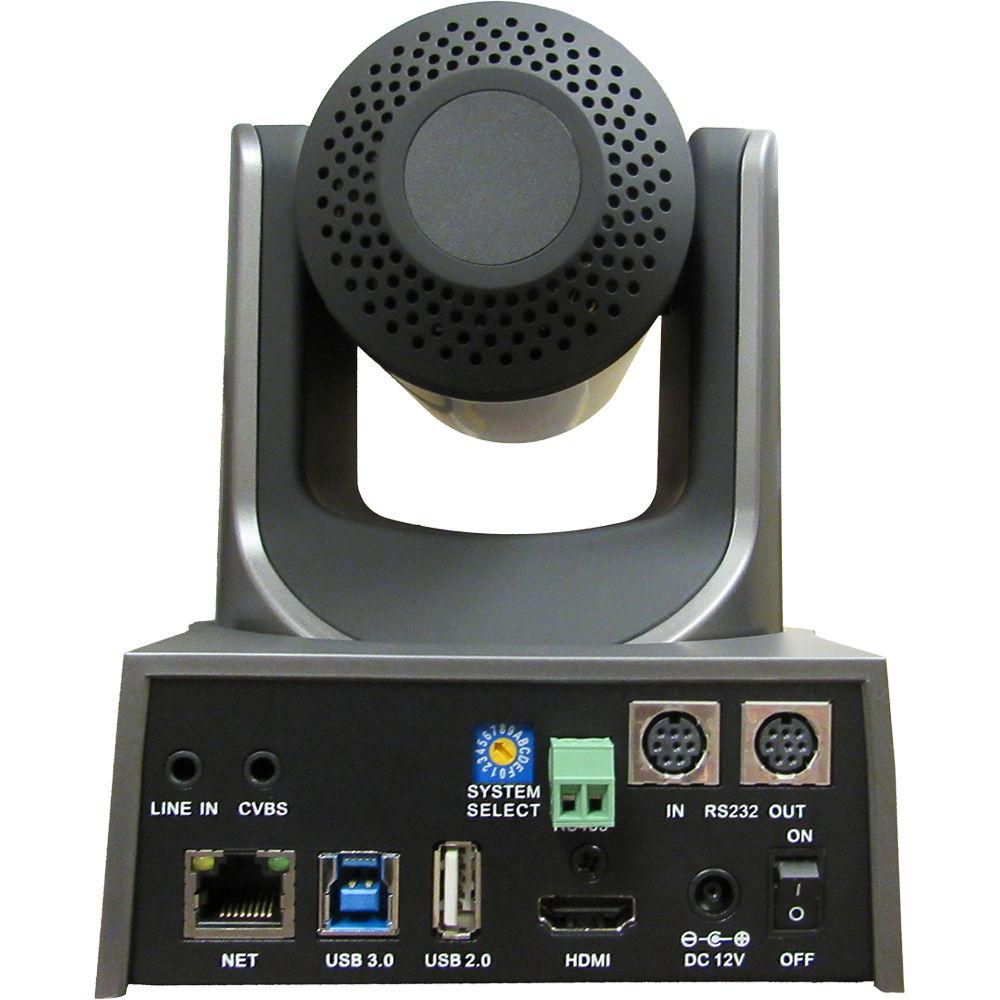

  In addition to the 3D-SDI output, the camera also has LAN, HDMI, and composite outputs, RS-232 input and output with daisy-chain capability, and an RS-485 port. The SDI, LAN, and HDMI outputs can be used simultaneously at the same resolution, which can be assigned via a dial on the rear. The composite output can only be used by itself and at 480i/576i resolution. The LAN output is capable of streaming two H.264 or two H.265 RTSP signals, one in HD and one in SD, or a single MJPEG signal, and allows for direct distribution to CDNs, streaming services, and other destinations using only the camera. There's also a 3.5mm audio input for embedding audio into an HDMI signal or LAN stream so you can deliver both audio and video to your destination. The LAN port can be used for streaming and control and also supports Power-over-Ethernet. As an alternative to direct streaming from the LAN port you can also connect external devices for more advanced conferencing. You'll also find a USB 2.0 port among all the connections, but this is strictly for firmware updates.

  The camera can be controlled via the LAN port over a network, ONVIF over a network, and RS-232 via VISCA commands. RS-232 control includes control from any NewTek TriCaster, including any of the TriCaster Mini models. Simply connect multiple cameras to the TriCaster using DB9 cables and operate all of them from its software. A TriCaster can also be used over IP control using third-party software.

  A large variety of software is supported, including most online meeting software, mobile apps for control over your network, and the advanced PTZOptics Network Control and VISCA Control applications.

  An included IR remote control lets you adjust many settings via an on-screen display, allowing you to set and call presets, and control up to four cameras. You can set up to 64 presets in the camera (and up to 255 via RS-232), with a preset accuracy of 0.1°, and you can call up to 10 presets using the remote. The camera can be used desktop-mounted or ceiling-mounted, using an optional PTZOptics ceiling-mount bracket.
  Key Features
  • • 3G-SDI output for connecting to professional switching equipment for broadcast conferencing
    • 1080p HD video at up to 60/50 fps
    • LAN, HDMI, and composite outputs, RS-232 input/output, RS-485 port
    • 3.5mm audio input for embedding audio into an HDMI signal or IP stream
    • H.264 and H.265 HD/SD dual-stream, or MJPEG single stream via LAN port
    • SDI, LAN, and HDMI ports are simultaneously live
    • Open source customizable via HTML commands
    • 3.5 - 42.3mm lens with 12x zoom range
    • 1/2.7" 2.1MP CMOS sensor
    • f/1.8 - f/2.8 lens aperture
    • 0.5 lux minimum illumination at f/1.8
    • Wide dynamic range
    • 2D and 3D noise cancellation
    • Control via LAN over a network, ONVIF over a network, and RS-232 via VISCA commands
    • Control multiple cameras from any NewTek TriCaster, directly from the TriCaster software
    • Set up to 64 presets (or up to 255 via RS-232), with a preset accuracy of 0.1°
    • Use desktop-mounted or ceiling-mounted using an optional bracket
  UPC: 737993158769

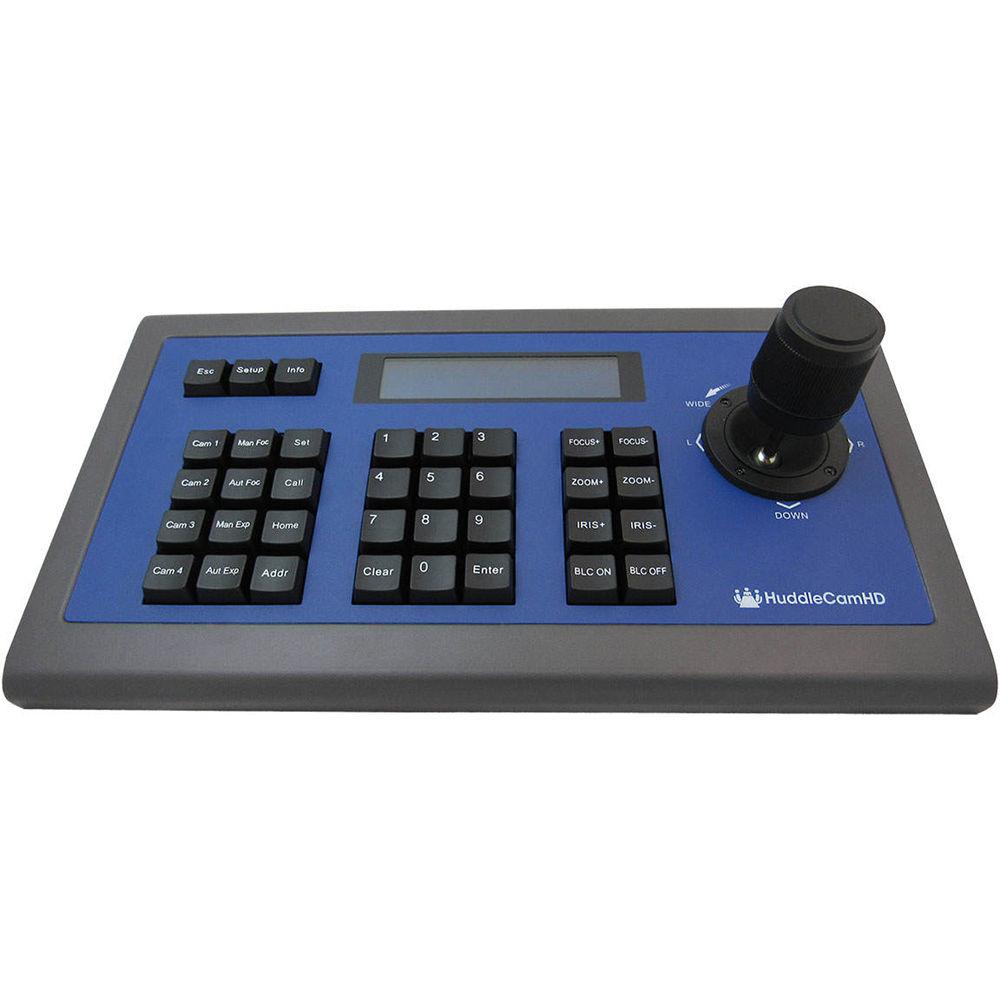

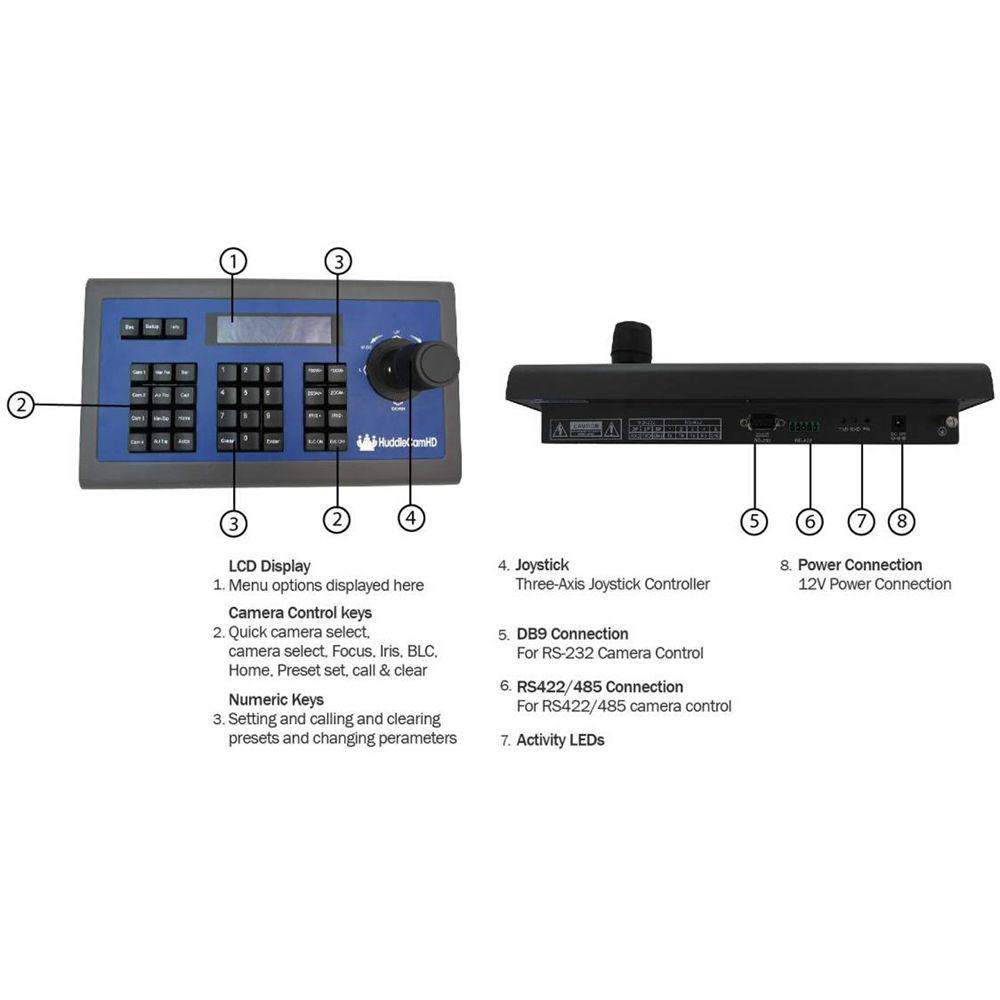

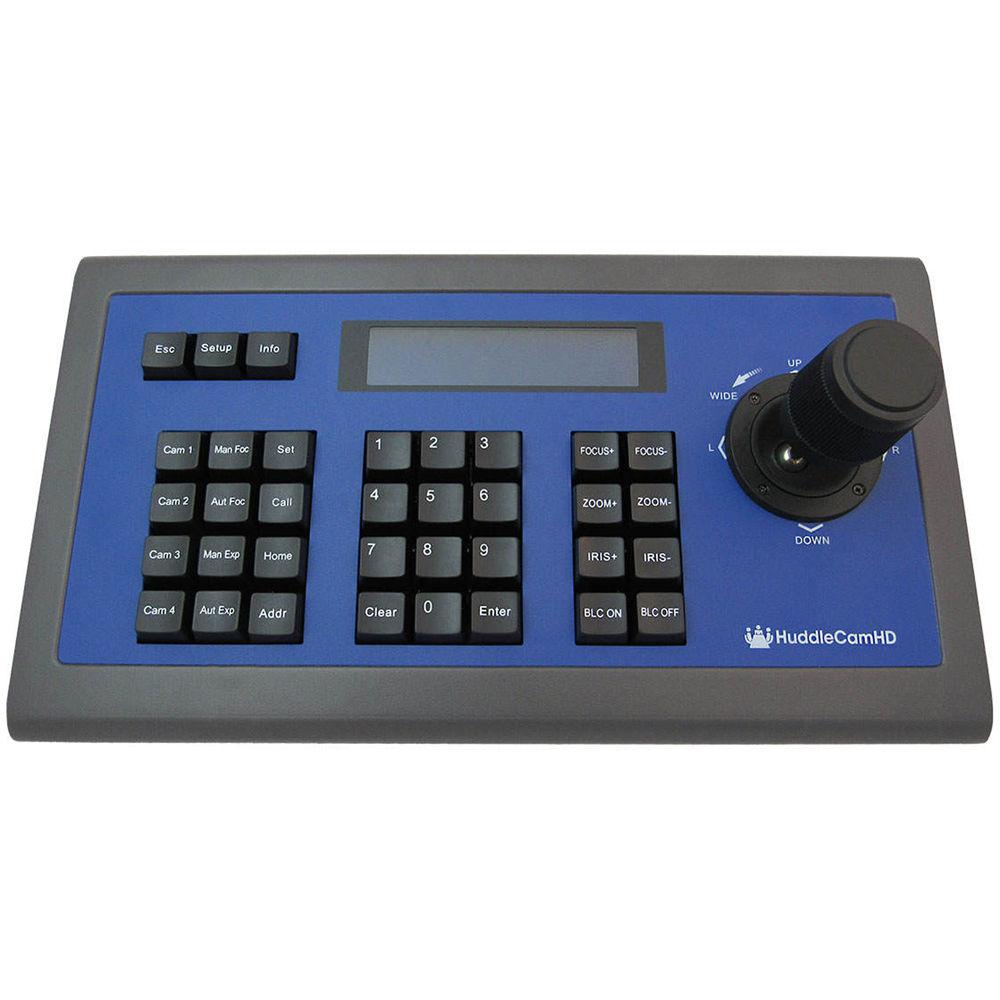

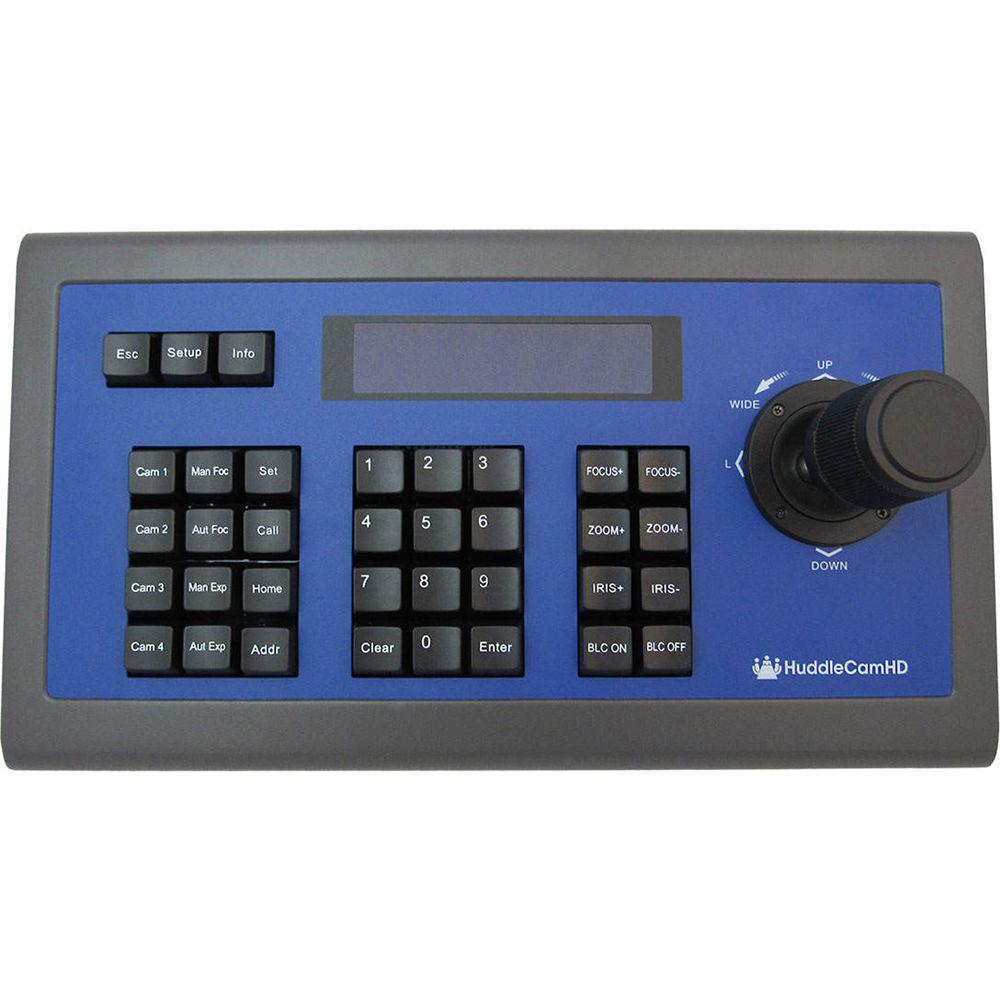

• HC-JOY-G2 Serial Controller Joystick with VISCA/Pelco-D/Pelco-P Protocol Protected by a metal housing, the HC-JOY-G2 Serial Controller Joystick with VISCA/Pelco-D/Pelco-P Protocol from HuddleCamHD is built to survive the daily production grind. It features a three-axis joystick that enables variable speed PTZ control. Supporting VISCA, Pelco-D, and Pelco-P protocols, the controller can be used to control a wide variety of cameras through its RS232, RS422, and RS485 interfaces.

  You can control up to 255 cameras from the controller, and it supports cable runs over 3900' with 24 gauge twisted pair cable. The controller incorporates an LCD screen for local information confirmation, as well as supporting OSD. You can control up to 255 cameras with up to 255 presets including iris, focus, home, and backlight compensation controls.
  • • Easy pan, tilt, and zoom camera controls
    • Use three dimensional joystick with "twist" for variable control of zoom
    • Support for R232, RS422, RS485, VISCA, Pelco-D, and Pelco-P protocol
    • Large LCD menu display
    • Key-press "BEEP" confirmation (optional - set on or off)
    • Pan, tilt, zoom, iris, and focus control
    • Variable speed control of pan, tilt, and zoom
    • Auto/manual focus and iris
    • Backlight compensation control
    • Cameras #1-4 Quick Key select buttons
    • Preset save, call, and clear
    • Real-time display of the current status
    • Short circuit and overcurrent protection
    • Automatic recovery program for the communication port(s)
  UPC: 737993159704
• XI100DUSB SDI USB 3.0 Capture Dongle Supporting resolutions up to 1080p, the Magewell XI100DUSB SDI USB 3.0 Capture Dongle can send full HD video to your computer for recording or streaming. The XI100 has a micro-coaxial input which can be converted to a standard BNC port with the included adapter. Through this port the XI100 will accept SD, HD, and 3G-SDI signals. If you need to stream or record at a certain resolution, regardless of the input, the XI100 will internally up or down-covert the input signal to the set resolution. It can also perform frame-rate conversion and de-interlacing in real-time with its own hardware, taking the processing load off of your computer's CPU. Because the XI100 uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the XI100 will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.
  • No drivers needed for Windows, Mac, or Linux
  • Automatically determines input video format and converts it to the specified output size and frame rate
  • Automatically converts input audio formats to 48KHz PCM stereo audio
  • 64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied

• Power Adapter

• VESA Mount

• Additional Lid (No Skull)

• Limited 3-Year Warranty

• RS-232 Cable

• Power Supply

• IR Remote Control

• 2 x AAA Battery

• Limited 3-Year Warranty

• RS232 Cable

• 12 VDC Power Supply

• 5p Screw Terminal Plug

• Limited 2-Year Warranty

• Mini-Coax to Full-Size BNC Adapter

• USB 3.0 Cable

• Limited 1-Year Warranty

Also Includes

• Shure MVi - Digital Audio Interface
• Logitech Wireless Touch Keyboard K400
• 100' 3G-SDI Cable
• 100' RS-232 Cable
• 6.6' HDMI Cable
• 8" (20 cm) Mini Display Port to HDMI Adapter
• 7 Port USB3 HUB

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• NUC6i7KYK Mini PC NUC Kit

  Operating System

  None

  CPU	2.6 GHz Intel Core i7-6770HQ Quad-Core
  Maximum Boost Speed	3.5 GHz
  L3 Cache	6 MB
  Memory Type	2133 MHz DDR4
  Total Installed Memory	None
  Memory Slot Type	260-Pin SO-DIMM
  Available Memory Slots	2
  Graphics Type	Integrated
  GPU	Intel Iris Pro 580

  Optical Drive	None

  Ports	4 x USB Type-A (USB 3.1 Gen 1)
  USB Type-C Ports	1 x Thunderbolt 3
  Display	1 x HDMI 1 x Mini DisplayPort
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm S/PDIF Output
  Media Card Slots	1 x SDXC

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
  Bluetooth	4.2

  Power Supply	120 W
  Dimensions	8.3 x 4.6 x 1.1" / 210.8 x 116.8 x 27.9 mm

  Box Dimensions (LxWxH)	9.3 x 5.8 x 4.7"

• 12x-SDI Gen2 Live Streaming Camera (Gray)

  Image Sensor	1/2.7" CMOS progressive, 2.12 MP
  Capture Resolution	1080p 60/50/30/25 1080i 60/50 720p 60/50 576i 480i
  Video Standards	NTSC, PAL
  Lens	Integrated 3.5 - 42.3mm, f/1.8 - f/2.8
  Zoom	Optical: 12x Digital: 16x
  Angle of View	Horizontal: 6.9° (tele) to 72.5° (wide) Vertical: 3.9° (tele) to 44.8° (wide)
  Minimum Illumination	0.5 lux at f/1.8, AGC on
  Shutter Speed	1/30 - 1/10000 sec
  SNR	≥55 dB
  Flip / Mirror	Supported (vertical)
  Working Environment	Indoor
  Pan Movement	±170°
  Tilt	Up: 90° Down: 30°
  Presets	Up to 64 presets (255 presets via RS-232)
  Connectors	Video Outputs: 1 x 3G-SDI 1 x HDMI (1.3) 1 x RJ45 (10 m/100 m adaptive Ethernet port) (IP network interface) 1 x 3.5 mm Composite Audio Interface: 1 x 3.5 mm line in (for embedding into HDMI and IP stream only) Communication Interface: 1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance) 1 x RS-232 output (pass-through) (8-pin mini-DIN) (98 ft / 30 m distance) 1 x RS-485 (2-pin Phoenix port) (4920 ft / 1500 m distance) Firmware Updates: 1 x USB 2.0 *RS-232 / RS-485 Protocols: VISCA/Pelco-D/Pelco-P
  Baud Rate	2400 / 4800 / 9600 bits
  Power Supply	Input: 12 VDC (10.8 - 13.0 VDC) JEITA power adapter (12 VDC in) included
  PoE	Supported via LAN port
  Power Consumption	24 W (Max)
  Operating Temperature	23 to 104°F / -5 to 40°C
  Storage Temperature	-4 to 140°F / -20 to 60°C
  Dimensions (W × H × D)	5.6 x 6.6 x 5.9" / 14.2 x 16.8 x 15.0 cm With Tilt Up: 5.6 x 7.3 x 5.9" / 14.2 x 18.5 x 15.0 cm
  Weight	3 lb / 1.4 kg

  Box Dimensions (LxWxH)	11.25 x 9.2 x 9.15"

• HC-JOY-G2 Serial Controller Joystick with VISCA/Pelco-D/Pelco-P Protocol

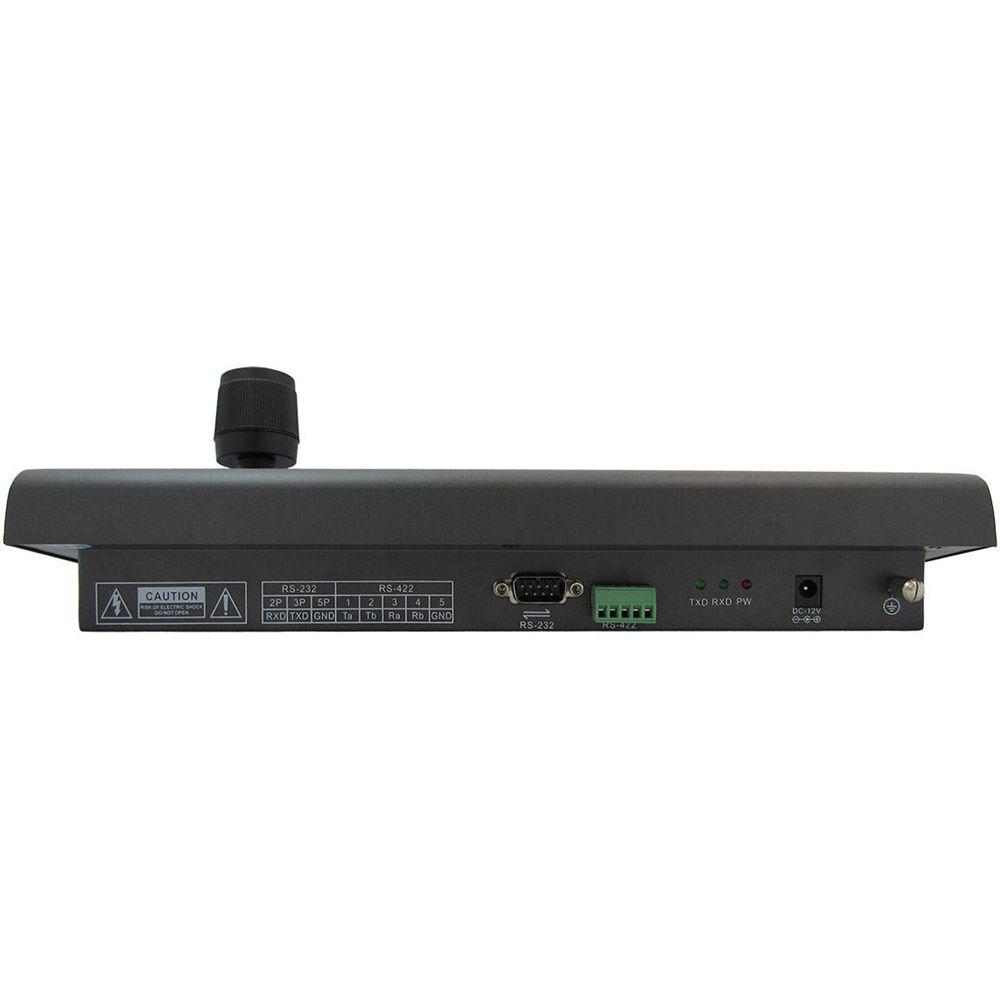

  Connectors	RS232: 1 x DB9 RS422/RS485: 1 x 5SCT
  Baud Rate	1200 to 1900 bps
  Cameras Supported	255
  Presets	255
  Maximum Cable Distance	3,937' / 1,200 m
  Power	6 W, 12 VDC
  Operational Temperature	14 to 122°F / -10 to 50°C
  Humidity (Non-Condensing)	10 to 90%
  Dimensions	12.6 x 7.1 x 4.3" / 32.0 x 18.1 x 11.0 cm
  Weight	3.4 lb / 1.6 kg

  Box Dimensions (LxWxH)	16.55 x 10.65 x 7.05"

• XI100DUSB SDI USB 3.0 Capture Dongle

  Host Interface	USB 3.0, 300-350 MB/s throughput USB 2.0 40 MB/s throughput
  SDI Input	1 x Mini-Coaxial SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292
  Output Resolutions	Resolutions: 640×480/640×360/720×480/720×576/768×576/856×480/960×540/1024×576/1280×720/1920×1080 Frame Rate: 25/29.97/30/50/59.94/60 fps
  Transmission Speed	SDI: 270 Mb/s, 1.485 Gb/s, 2.97 Gb/s
  USB Standard	Meets the standards of UVC (USB video class) and UAC（USB audio class）
  Color Space	YUY2, RGB24 Hardware adjustable
  Scaling	Hardware based
  Image Adjustment	Brightness, contrast, hue, saturation
  Operating System	Windows 7 (x86 and x64 version) Windows Server 2008 R2 Windows 8 Windows 8.1 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above)
  Software Compatibility	Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X)
  APIs	DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)
  Onboard Memory	64MB DDR2, 16 bits at 300MHz
  Upgradeable Firmware	Yes
  Power Consumption	<= 2.5 W
  Operating Temperature	32 to 122°F / 0 to 50°C
  Storage Temperature	-4 to 158°F / -20 to 70°C
  Relative Humidity	5 - 90%
  Dimensions	3.3 x 1.7 x 0.5" / 84 x 43 x 13 mm
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	7.3 x 4.1 x 0.4"
