Product description - PTZOptics Producer Kit Setup Video

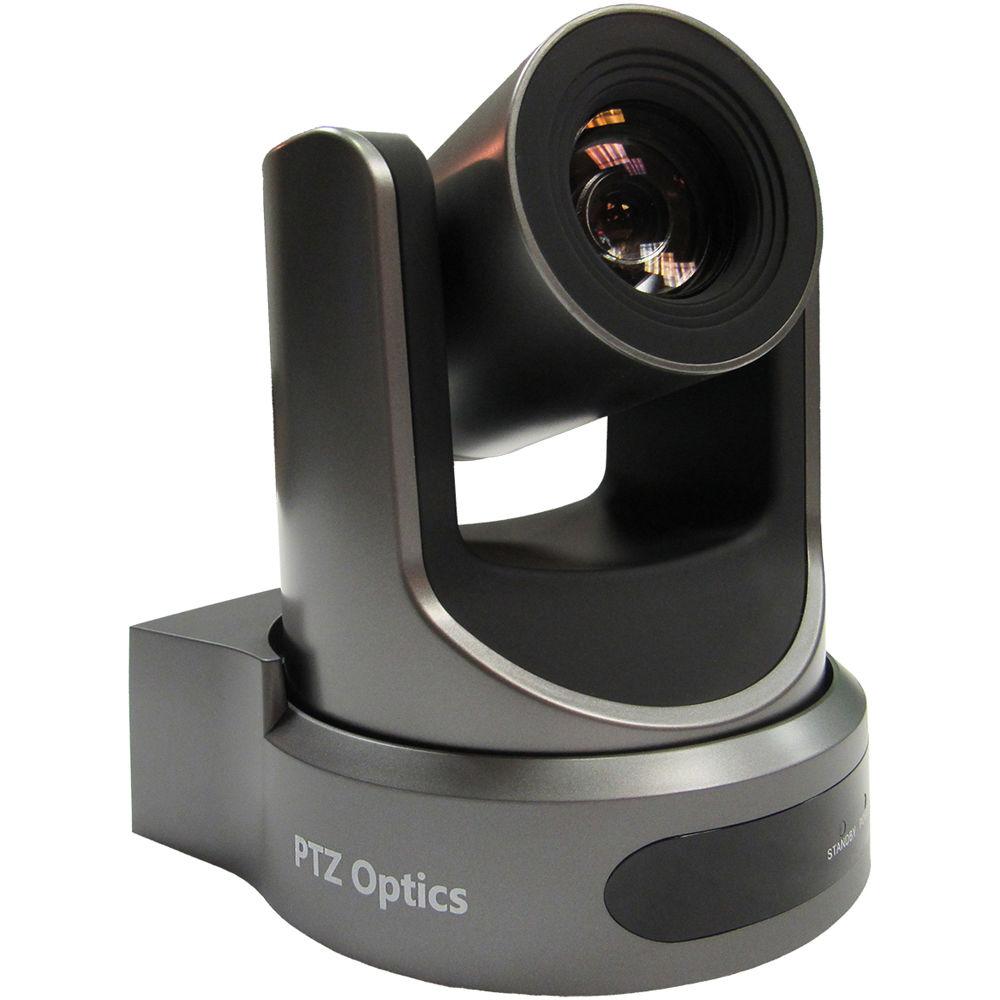

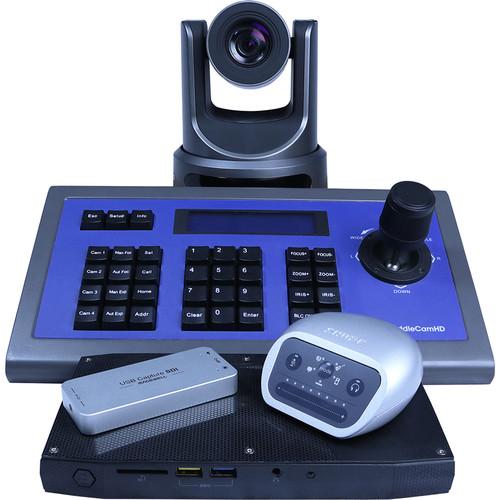

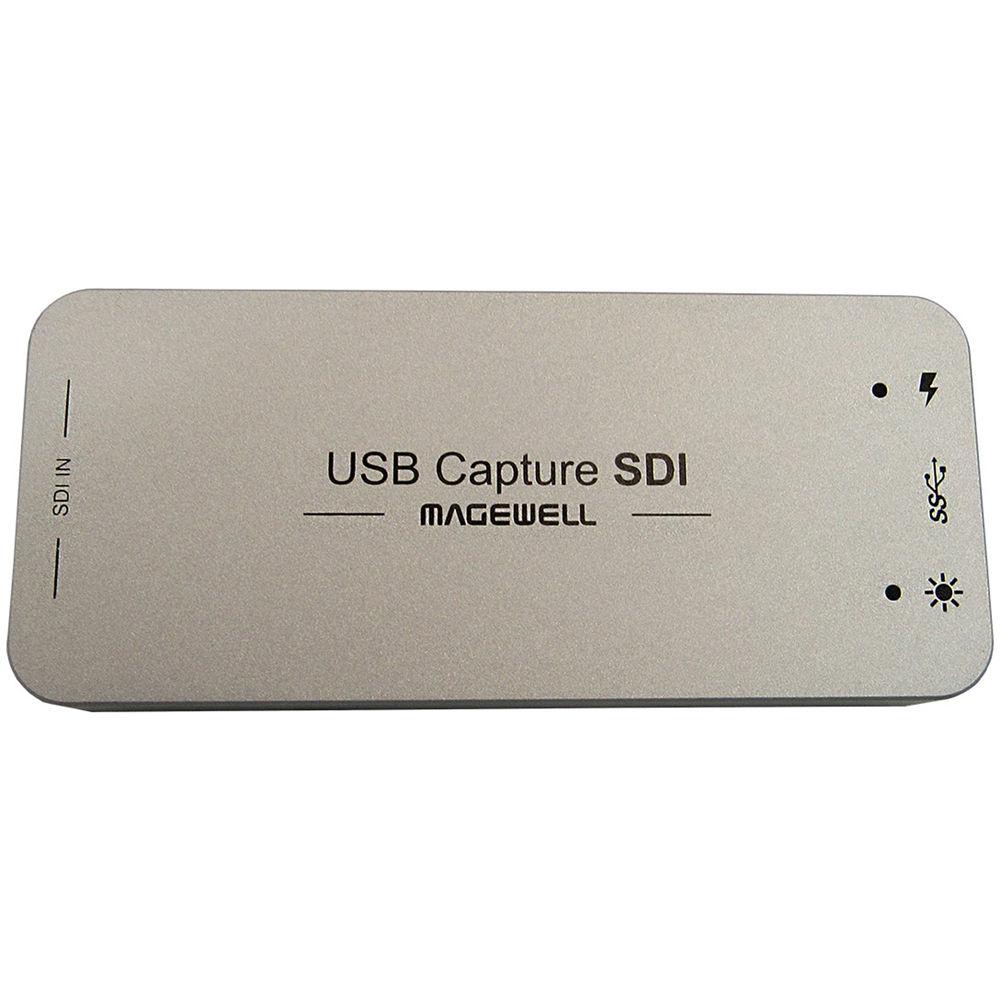

This Producer Kit from PTZOptics includes an Intel NUC6i7KYK Mini PC NUC kit, a 20x-SDI Gen2 live streaming camera, a HuddleCamHD HC-JOY-G2 serial controller joystick, a Magewell XI100DUSB SDI USB 3.0 capture dongle, a Shure MVi digital audio interface, a Logitech K400 wireless touch keyboard, a 100' 3G-SDI and a RS-232 cable, a 6.6' HDMI high-speed cable with Ethernet, an 8" Mini DisplayPort to HDMI adapter, and a 7-port USB 3.0 hub.

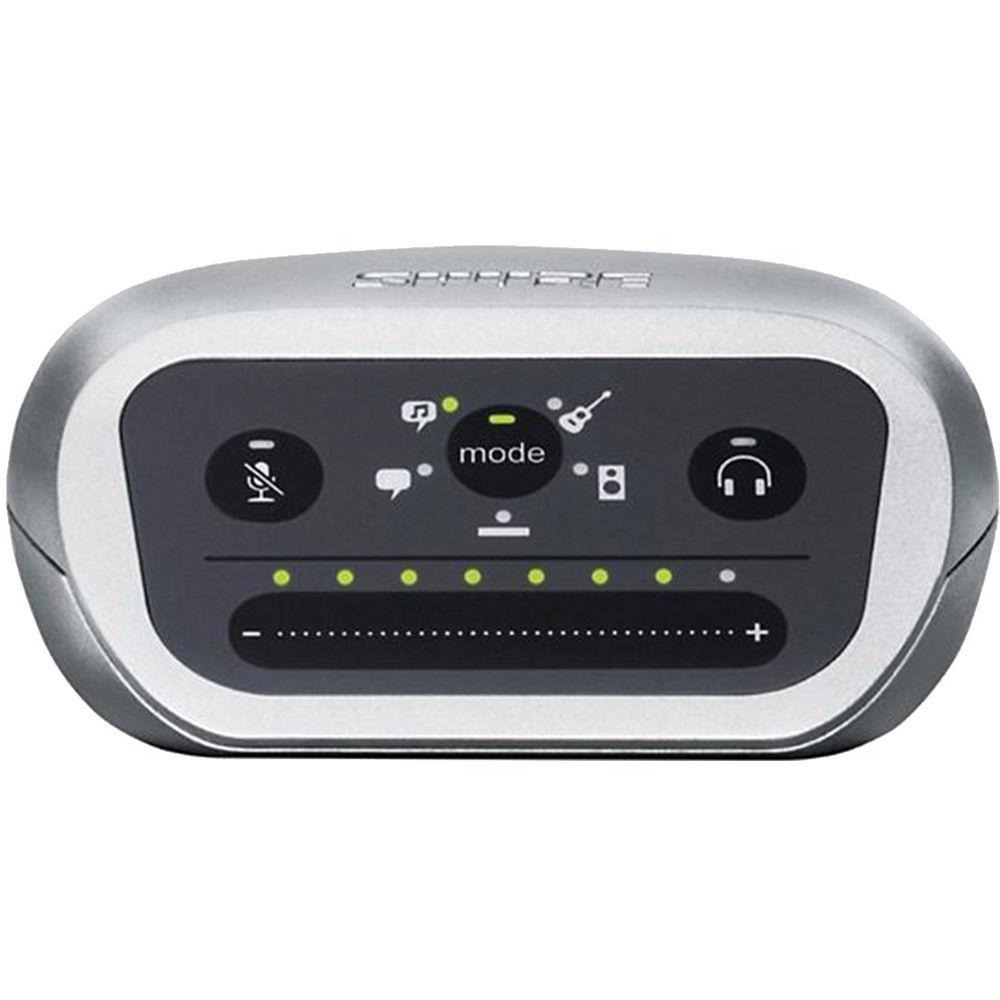

The MVi from Shure is a single-channel, simple to use, digital interface for connecting microphones and instruments to Mac and Windows computers, as well as to a range of iOS and Android devices. The K400 black wireless touch keyboard from Logitech makes it easy for you to command your entertainment. It features a reliable 2.4 GHz connection and a petite USB receiver designed to stay plugged into your computer and out of the way.

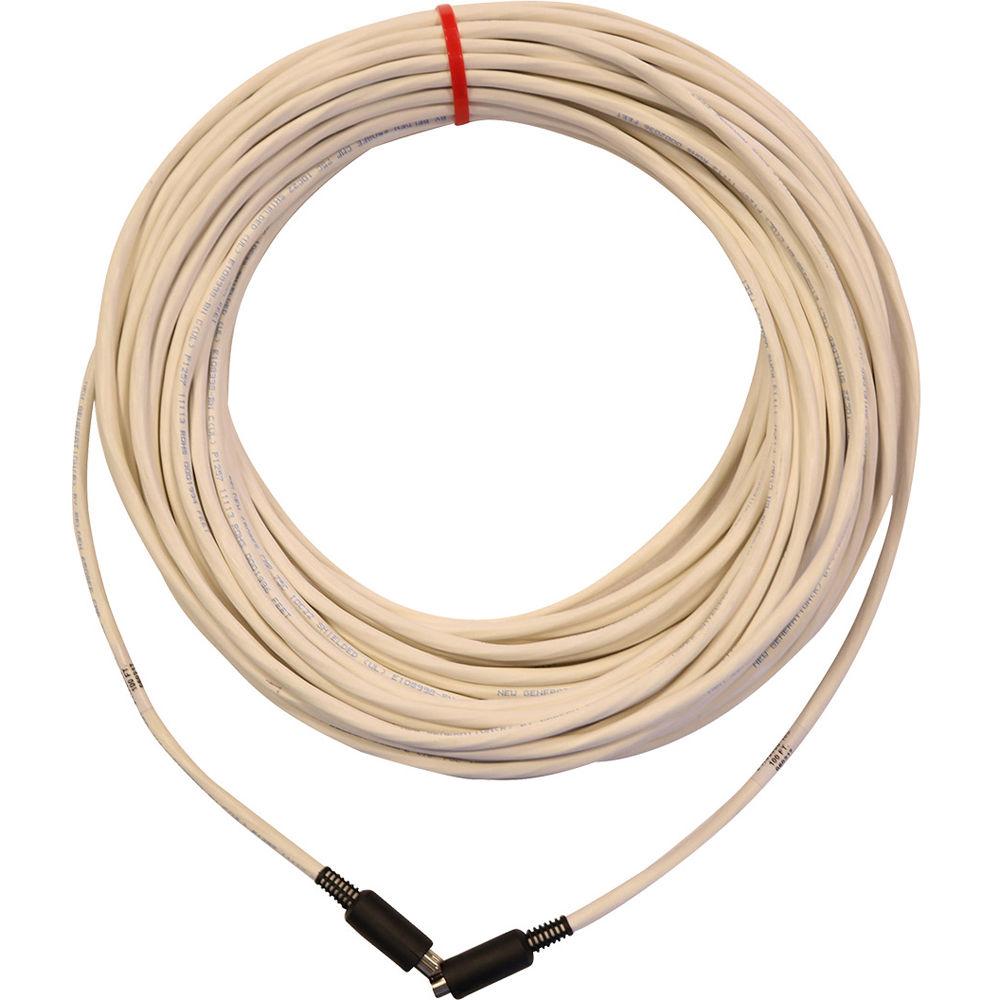

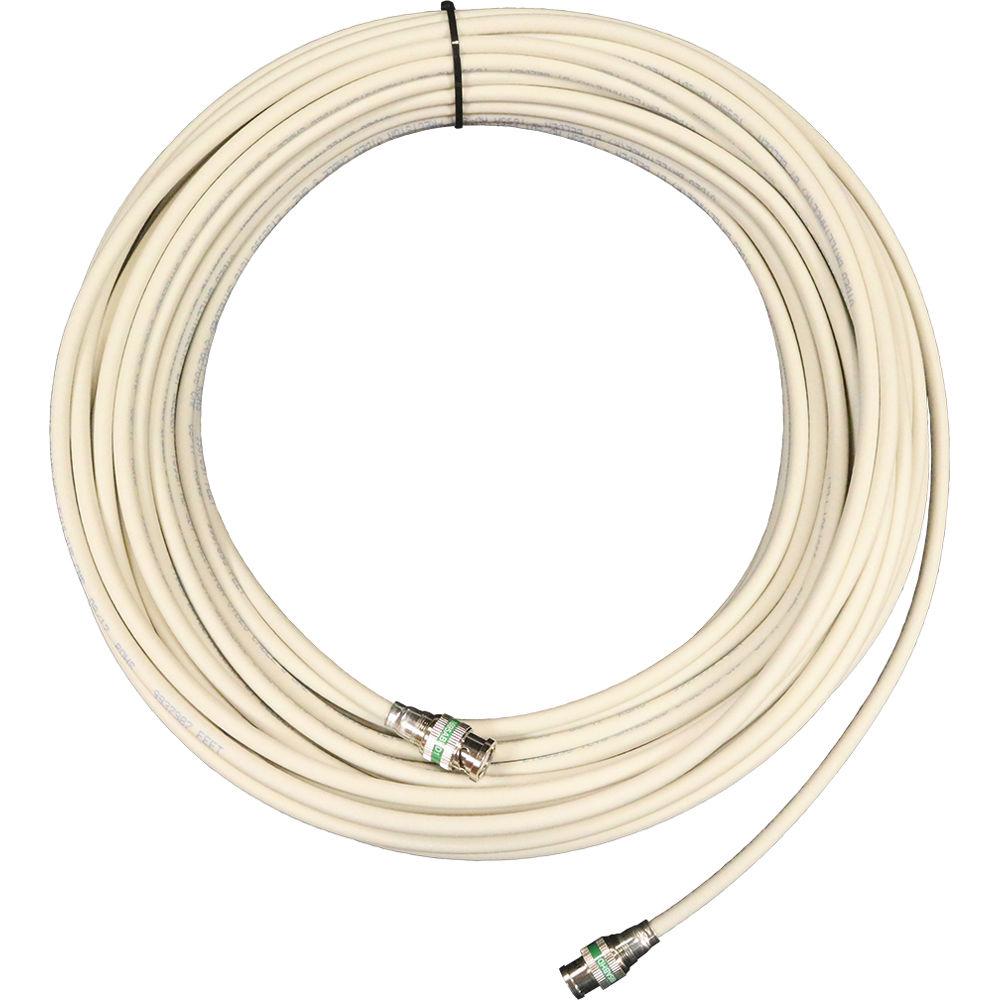

The 3G plenum-rated HD-SDI cable is made for broadcasting a video signal from your camera to a video input such as a broadcast switcher or frame grabber. The RS-232 cascade cable is designed to daisy chain cameras to each other for the ability to control multiple cameras with a joystick or VISCA software.
An HDMI cable is included to connect the Intel NUC computer to your first display. Furthermore, an additional display adapter is included for connection to a second display, as well as a USB hub for connection to additional USB devices. - MVi
-
- Connect a standard XLR microphone or 1/4" plug for guitar, bass or keyboard to an iOS device, Mac computer, or Windows computer for seamless audio capture
- Five built-in DSP preset modes
- Phantom power
- Touch panel allows volume, gain, and mode selection adjustments
- Headphone output
- Cables included
- Wireless Touch Keyboard
-
- Control your entertainment wirelessly from a generous distance. Its advanced 2.4 GHz wireless connection is designed to eliminate delays, dropouts, and interference
- A large 3.5" built-in touchpad makes vertical scrolling intuitive, and multi-touch navigation lets you point and scroll easily when you are on the web
- The tiny USB receiver stays plugged into your computer and out of the way. You can even add a compatible wireless mouse, keyboard, or number pad without the hassle of multiple receivers
- Sleek, low-profile keys allow for comfortable and quiet typing
- Mute, volume up, volume down, and a home button help you do your favorite things instantly
- Bold, bright, white characters make the keys easier to read in any lighting environment
- 128-bit AES encryption helps protect your information by encrypting data transfer between the keyboard and receiver with a high level of data encryption
- Enjoy up to a whole year of productivity before swapping batteries. An on/off switch helps save power when you're not using the keyboard
- Just plug the wireless receiver into a USB port on your computer; no software driver installations are needed to get started
- Keyboard stands vertically for easy storage if your living room is on the small side
UPC: 737993159469 In the Box PTZOptics Producer Kit with One 20x-SDI Live Streaming Camera NUC6i7KYK Mini PC NUC Kit 20x-SDI Gen2 Live Streaming Camera (Gray) HC-JOY-G2 Serial Controller Joystick with VISCA/Pelco-D/Pelco-P Protocol Magewell XI100DUSB SDI USB 3.0 Capture Dongle Shure MVi Digital Audio Interface Logitech Wireless Touch Keyboard K400 100' 3G-SDI Cable 100' RS-232 Cable 6.6' HDMI Cable with Ethernet 8" Mini DisplayPort to HDMI Adapter 7-Port USB 3.0 Hub Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics Producer Kit with One 20x-SDI Live Streaming Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPTZOptics PT20X-SDI Specs | | | Connections | 1 XLR/TS combo input
1 x 1/8" / 3.5 mm TRS headphone output
1 x micro-USB Type-B | | | | Interface | 2.4 GHz frequency | | Wireless | Yes | | Operating Distance | Up to 33' / 10 m | | Enhanced Function Keys | Yes: Mute, volume up, volume down, home button | | Ergonomic | No | | Power Requirements | Battery powered | | System Requirements | Windows XP, Vista, 7
USB port | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 23.6 x 16.5 x 12.5" |
