User Manual for PTZOptics PT20X-ZCAM 2.07MP Full HD 3G-SDI Box Camera Click to enlarge the picture
Contents of the user manual for the PTZOptics PT20X-ZCAM 2.07MP Full HD 3G-SDI
- Product category: Industrial & Multi-Purpose Cameras PTZOptics
- Brand: PTZOptics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PTZOptics Industrial & Multi-Purpose Cameras
 |
User manual for the PTZOptics PT20X-ZCAM 2.07MP Full HD 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PTZOptics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PTZOptics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PTZOptics product will considerably shorten its lifespan!
|
Product description - 20X Lens 3G HD-SDI IP Streaming ZCam

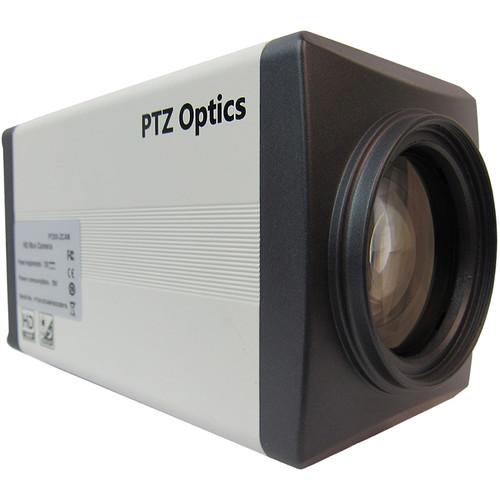

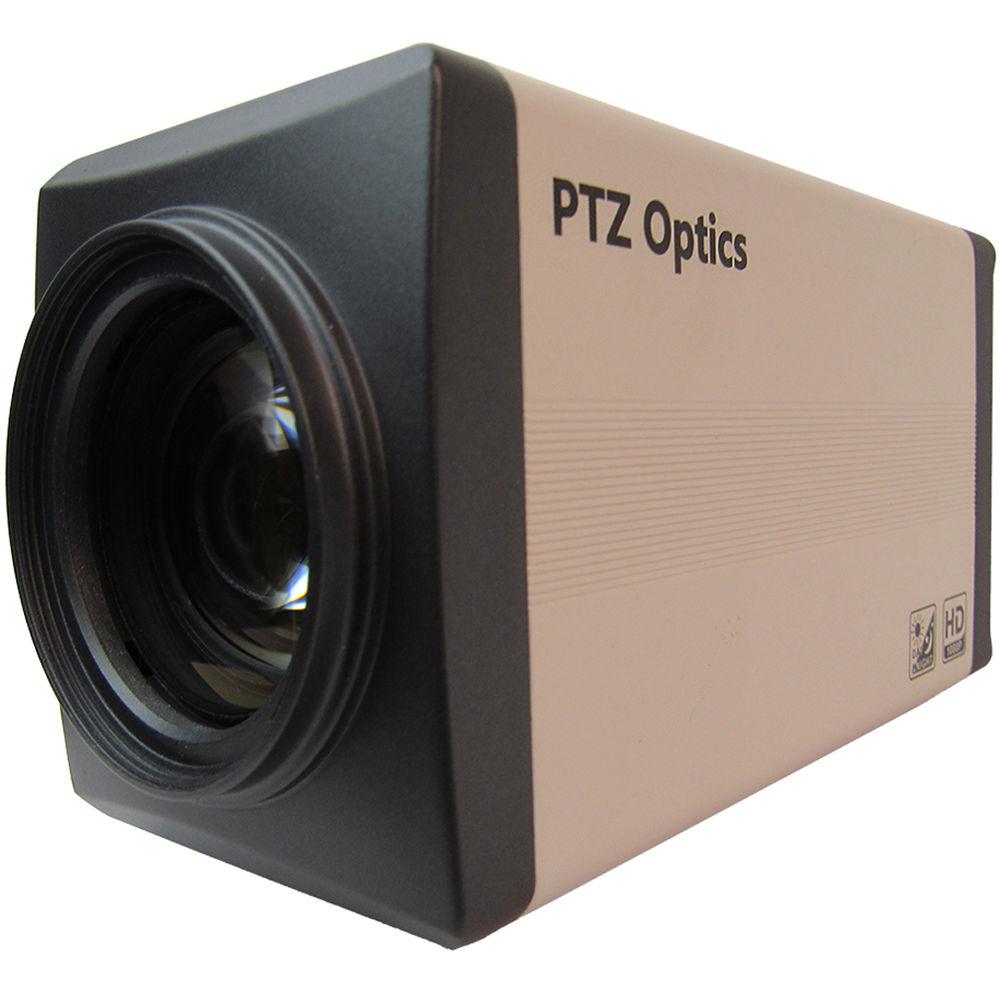

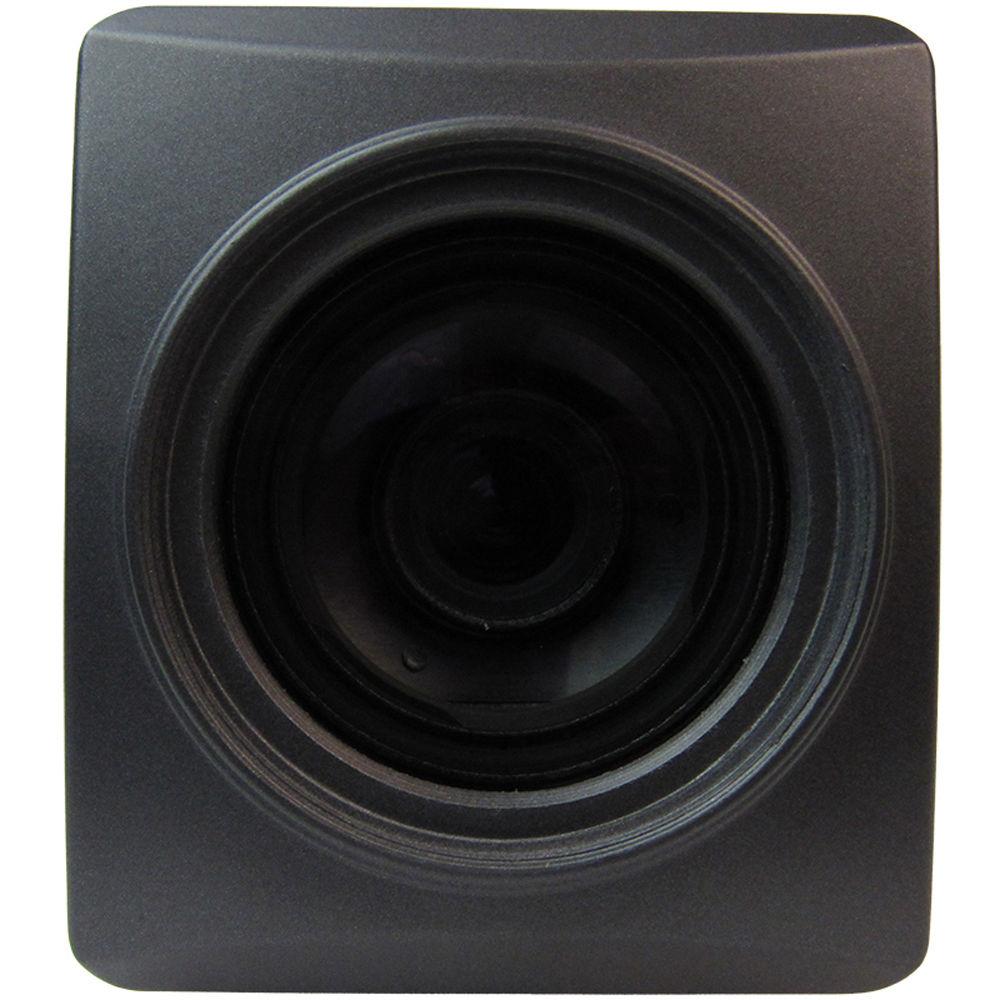

The PT20X-ZCAM 2.07MP Full HD 3G-SDI Box Camera from PTZ Optics features a 20x optical zoom for capturing HD video, even at a distance. With 3G-SDI and IP streaming support for up to 1920 x 1080p60 resolution, this camera is suitable for broadcasting or videoconferencing applications. - Panasonic 1/2.7" HD CMOS sensor
- High performance in low-illumination situations
- H.264, H.265, and MJPEG IP streaming output (dual stream)
- AAC audio encoding over IP
- Up to Full HD, 1920 x 1080p60 resolution via SDI
- 2D and 3D noise reduction with low-noise CMOS sensor

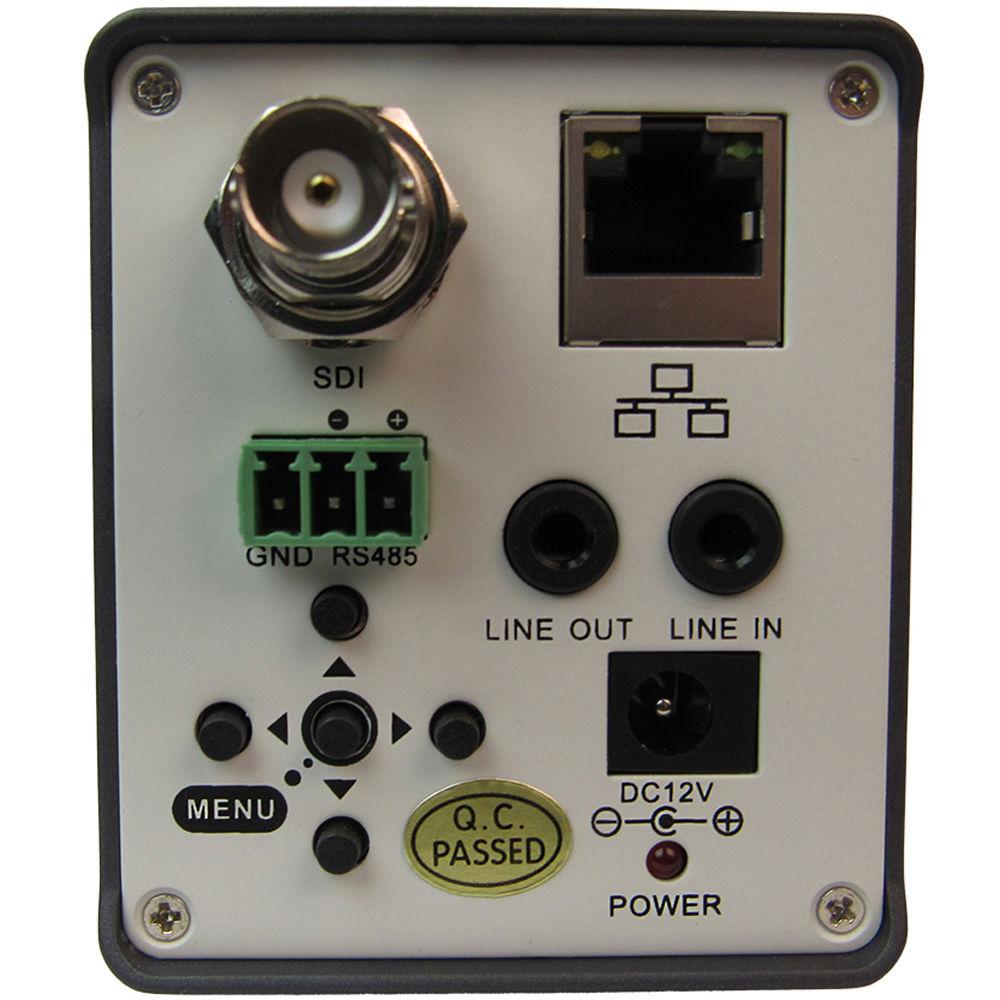

- Menu controls on back of camera
- RS-485 and IP remote camera control
- Standard 1/4"-20 female thread for camera mounting (bottom)
- Power over Ethernet (PoE)
UPC: 737993157700 In the Box PTZOptics PT20X-ZCAM 2.07MP Full HD 3G-SDI Box Camera Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics PT20X-ZCAM 2.07MP Full HD 3G-SDI Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPTZOptics PT20X-ZCAM Specs | | | Sensor | 1/2.7" 2.07 MP CMOS sensor | | Frame Rate | 1080p 60/50/30/25
1080i 60/50/30/25
720p 60/50/30/25 | | Focal Length | 4.42 to 88.5mm | | Aperture | f/1.8 to f/2.8 | | Zoom | 20x optical | | Field of View | 60.7° | | Minimum Illumination | 0.05 lux (f/1.8, AGC ON) | | Shutter Speed | 1/25 to 1/10000 sec | | Signal to Noise Ratio (SNR) | ≥55 dB | | Mirror | Supported | | Angle of View | Horizontal: 3.4° (tele) to 60.7° (wide)
Vertical: 1.9° (tele) to 34.1° (wide) | | | | Power Supply | 12 W, 1 A | | Input Voltage | 12 VDC (10.8 to 13.0 VDC)
PoE Class 3 - 802.3af | | | | Output Interface | 3G-SDI, RJ45 | | Communication Interface | RS-485 VISCA, Pelco-D, and Pelco-P | | Baud Rate | 2400/4800/9600 bits | | Power Supply | JEITA type power adapter (12 VDC in)
PoE 802.3af | | | | Dimensions (W x D x H) | 2.4 x 5.7 x 3.0" / 6.0 x 14.5 x 8.0 cm | | Weight | 1.4 lb / 0.6 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.2 x 6.3 x 4.6" |
