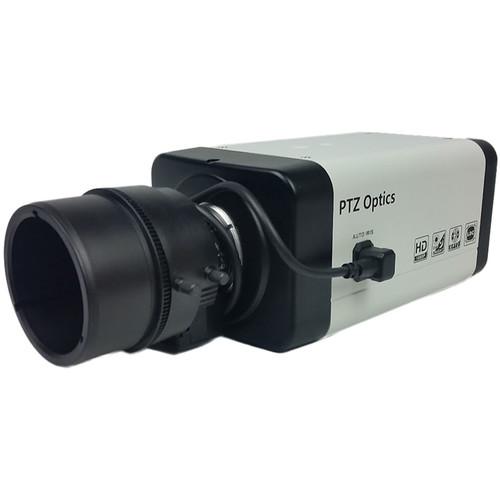

User Manual for PTZOptics PVTL-ZCAM 2.07MP 3G-SDI Box Camera with 4x Zoom Lens Click to enlarge the picture
Contents of the user manual for the PTZOptics PVTL-ZCAM 2.07MP 3G-SDI Box Camera
- Product category: Industrial & Multi-Purpose Cameras PTZOptics
- Brand: PTZOptics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PTZOptics Industrial & Multi-Purpose Cameras
 |
User manual for the PTZOptics PVTL-ZCAM 2.07MP 3G-SDI Box Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PTZOptics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PTZOptics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PTZOptics product will considerably shorten its lifespan!
|
Product description - PTZOptics ZCam Setup Video
The PVTL-ZCAM 2.07MP 3G-SDI Box Camera from PTZ Optics captures and streams HD video with a 2.8 to 12mm, varifocal 4x optical zoom lens. Offering support for 3G-SDI and IP streaming, this camera is suitable for broadcasting a high-definition video signal for broadcast or videoconferencing applications, supporting up to 1920 x 1080 resolution at 60 fps. - Panasonic 1/2.7" HD CMOS sensor
- 122° wide-angle field of view
- H.264, H.265, and MJPEG IP streaming output (dual stream)
- High-performance in low illumination situations
- Up to Full HD 1080p60 resolution
- 2D and 3D noise reduction with low-noise CMOS sensor

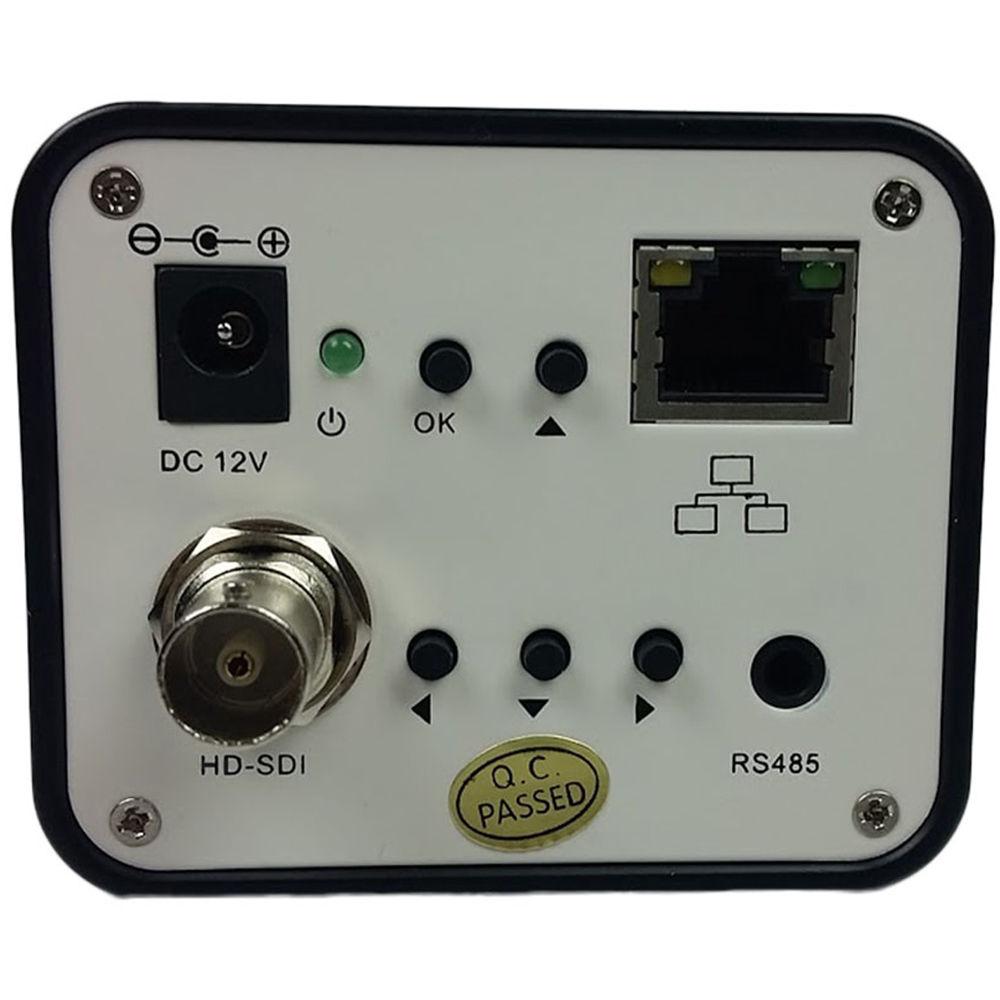

- Menu controls on back of camera
- RS-485 and IP remote camera control
- Supports vertical flip and mirror
- Standard 1/4"-20 female thread for camera mounting (top and bottom)
- Powered by PoE (Power over Ethernet) or 12 VDC
UPC: 737993157694 In the Box PTZOptics PVTL-ZCAM 2.07MP 3G-SDI Box Camera with 4x Zoom Lens Wide-Angle Zoom Lens (4x) Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PTZOptics PVTL-ZCAM 2.07MP 3G-SDI Box Camera with 4x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPTZOptics PTVL-ZCAM Specs | | | CMOS Sensor | 1/2.7" CMOS, 2.07 MP | | Frame Rate | 1080p 60/50/30/25
1080i 60/50/30/25
720p 60/50 30/25 | | Focal Length | 2.8 to 12mm | | Aperture | f/1.4 | | Zoom | 4x optical zoom | | Field of View | 122° | | Minimum Illumination | 0.05 lux (f/1.8, AGC on) | | Shutter Speed | 1/30 to 1/10000 sec | | SNR | ≥ 55 dB | | Angle of View | Horizontal: 28° (tele) to 122° (wide)
Vertical: 16° (tele) to 91° (wide) | | Working Environment | Indoor | | | | Power Supply | 12 W max or PoE 802.3af | | Input Voltage | 12 VDC (10.8 to 13 VDC) or PoE 802.3af | | | | Video Output | 3G-SDI, RJ45 IP network | | Network Interface | RJ45 | | Communication Interface | RS-485 VISCA, Pelco-D&P | | Power Supply | JEITA type power adapter (12 VDC in) | | Baud Rate | 2400/4800/9600 bits | | | | Dimensions | Without Lens: 2.8 x 2.4 x 5.9" / 7.1 x 6.1 x 15 cm
With Lens: 2.8 x 2.4 x 8.3" / 7.1 x 6.1 x 21.1 cm | | Weight | Without Lens: 0.82 lb / 0.37 kg
With Lens: 1.1 lb / 0.5 kg | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.3 x 6.3 x 4.7" |
