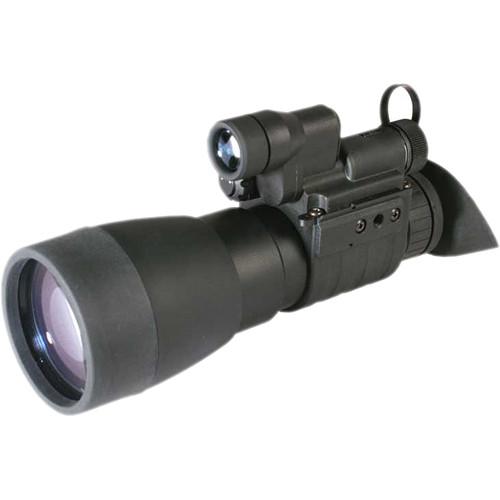

User Manual for Pulsar 3.5x56 Challenger Gen 2 Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Pulsar 3.5x56 Challenger Gen 2 Night
- Product category: NV Monoculars & Multi-Systems Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar NV Monoculars & Multi-Systems
|
User manual for the Pulsar 3.5x56 Challenger Gen 2 Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|
Product description The 3.5x56 Challenger Gen 2 Night Vision Monocular from Pulsar is a multi-purpose NVD featuring a second generation image intensifier, built-in infrared illuminator, accessory rail, and two 1/4"-20 threaded mounts. The Gen 2 intensifier tube is protected from excessive light levels and prevents damage to the viewer's eye by automatically deactivating the device when exposed to a bright light source. Two mounting options allow the observer to tripod-mount the monocular or attach it to head gear for long-duration viewing.Included with the Challenger NVD is a 100mW infrared illuminator that will enhance detail of the viewed image and extend the visible range of the monocular as well as enable the observer to see in pitch darkness. Additional functionality is provided by an integrated Weaver rail for attaching a long-range IR illuminator or other NV accessory.This configuration of the Challenger is equipped with a 3.5x lens system that transmits a 12° angle of view and is capable of being focuses as close as 5 ft. A 56mm objective lens allows the optical system to gather adequate light to create a night vision image that is rich with detail and contrast. The Challenger's 40lp/mm minimum resolution renders more than enough detail for recreational viewing and surveillance tasks. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARaeaszqrfrt), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Imaging Performance
-
- Gen 2 intensifier tube
- Resolution: 40lp/mm (minimum)
- Automatic Bright Source Protection
- Five-lens eyepiece improves edge sharpness
- Magnification: 3.5x
- Objective lens: 56mm diameter
- 5 ft minimum focus distance
- 25mm eye relief
- Use and Handling
-
- 100mW infrared illuminator extends the visible range of NVD
- Two 1/4"-20 threaded mounts for tripod or helmet/head gear mounting
- Single button interface controls NVD and illuminator
- Weaver rail for mounting accessory
- Construction Details
-
- Water-resistant construction
- Fiberglass-infused composite housing
- Weight: 24.7 oz
In the Box Pulsar 3.5x56 Challenger Gen 2 Night Vision Monocular Carrying Case CR123 Battery Lens Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar 3.5x56 Challenger Gen 2 Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar Challenger G2 Specs | Intensifier Tube | Gen 2 | | Resolution | 40 lp/mm (minimum) | | Magnification | 3.5x | | Angle of View | 12° | | Objective Lens Diameter | 56 mm | | Minimum Focus Distance | 5 ft (1.5 m) | | Eye Relief | 25 mm | | Dioptric Correction | &plusm;6 | | Infrared Illuminator | 100 mW 805 nm | | Power Supply | (1) CR123 battery | | Weatherproof Rating | IPX6 | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 9.4 x 4 x 2.7" (24 x 10 x 7 cm) | | Weight | 24.7 oz (700 g) |
