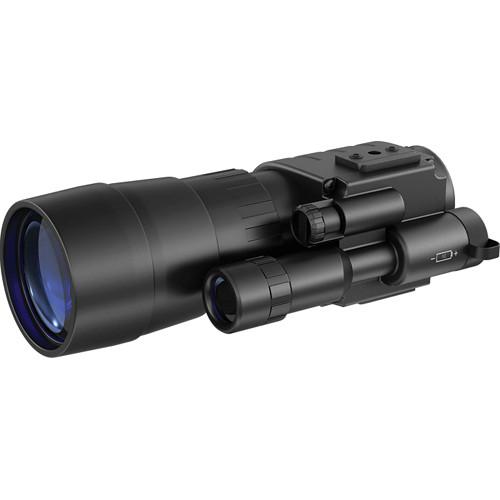

User Manual for Pulsar 3x50 Gen 3 Phantom Riflescope Click to enlarge the picture
Contents of the user manual for the Pulsar 3x50 Gen 3 Phantom Riflescope
- Product category: Night Vision Riflescopes Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar Night Vision Riflescopes
|
User manual for the Pulsar 3x50 Gen 3 Phantom Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|
Product description The Pulsar 3 x 50 Gen 3 Phantom Riflescope comes with ITT F9800SLG Pinnacle image intensifier tube with 64 to 72 lp/mm (lines per mm) resolution, and 3x magnification. The riflescope features internal focus optical system that allows focusing from 16.4' to infinity, providing clear images at extremely short distances as well as optimizing quality at all distances within the riflesope’s effective range. The riflescope comes with remote control, with 3 buttons to duplicate the “on/off” function of the device and the IR illuminator. The 3rd button is for a quick start-up of the riflescope and IR illuminator. This function is convenient when constant observation is not required, or you just want the IR to be on momentarily. The riflescope can be powered by 1 AA or 1 CR123A battery. The stabilized voltage of the power supply system ensures correct operation even when the battery is nearly depleted. This also prevents reticle brightness changes. The riflescope features a red-on-green or green-on-green mil-dot reticle with brightness control. Internal Focus Optical System - The focusing mechanism operates via a positive click-stopped focus wheel on the right side of the housing that allows focusing from 16.4' to infinity. The focusing provides clear images at extremely short distances as well as optimizing quality at all distances within the riflesope's effective range.
Remote Control - The remote control has 3 buttons to duplicate the "on/off" function of the device and the IR illuminator. The third button is intended for a quick start-up of the riflescope and IR illuminator. This function is very convenient when constant observation is not required or you just want the IR on momentarily
- Remote Control
- The riflescope's remote control has 3 buttons to duplicate the "on/off" function of the device and the IR illuminator. The 3rd button is intended for a quick start-up of the riflescope and IR illuminator. This function is very convenient when constant observation is not required, or when you just want the IR on momentarily.
- Stabilized Power Supply
- The riflescope can be powered with either one AA, or one CR123A battery. The stabilized voltage of the power supply system ensures correct operation even when the battery is nearly depleted. This also prevents reticle brightness changes.
- Reticle
- The riflescope features a red-on-green, or green-on-green mil-dot reticle with brightness control. 1
Please Note: If the reticle starts blinking, the battery should be replaced in 15 to 30 minutes. close In the Box Pulsar 3x50 Gen 3 Phantom Riflescope Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar 3x50 Gen 3 Phantom Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL76077T Specs | IIT Generation | 3 | | Tube Type | ITT F9800SLG Pinnacle | | Diameter | Useful Photocathode: 18 mm | | Photocathode Type | GaAs | | Sensitivity | Integral Photocathode μÁ/l m: 1,350 minimum value | | Resolution | 64 to 72 lp/mm | | S/N Ratio | 16.2 not less than / 21 typical value | | Lens Diameter | 50 mm | | Focus | Lens: 81.5 mm | | Magnification | 3x | | Relative Aperture (f) | 1:1.63 | | Field of View | 11º | | Focusing Distance | Minimum: 16.4' (5.0 m) | | Eye Relief | 50 mm | | Diopter Adjustment | ±3.5 | | IR Wavelength | 805 nm | | Range | Detection: 0.4 mile (700 m) | | Power Supply | 1.5 / 3 V | | Battery Type | 1 x AA, or 1 x CR123A | | Battery Life | With IR: 5 to 8 hours
Without IR: 15 to 24 hours | | Material | Body: Glass filled nylon composite and duraluminum | | Dimensions | 11.0 x 3.7 x 4.0" (278.0 x 95.0 x 103.0 mm) | | Weight | 29.6 oz (0.8 kg) |
