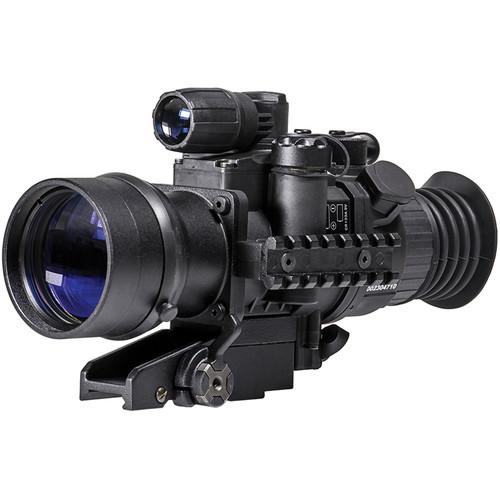

Product description The 3x50 Phantom Gen 3 Night Vision Riflescope with Quick-Detach Mount from Pulsar features a 3rd generation intensifier tube with a resolution of 64 lp/mm, a 81.5mm f/1.63 lens system, a 11° angular field of view, a 5.45 yd minimum focus, a 50mm eye relief, and +3.5 to -3.5 dioptric adjustment. It also offers a red Mil-Dot reticle with adjustable brightness and a low battery indicator. When compared to 1st and 2nd generation tubes, this 3rd generation intensifier tube offers significant improvements in image resolution, brightness, and provides softer tones of green. To help you account for wind drift and ballistic bullet drop, there are windage and elevation adjustments with 1/2 MOA impact point correction. The riflescope operates on an AA or CR123 battery.
The duralumin and glass-filled nylon composite housing is lightweight, water resistant and fogproof. It allows mounting this night vision riflescope to a barrel via an integrated quick-detach mount that fits either a Picatinny or a Weaver rail. If you need to use other accessories like laser pointers, cameras or flashlights, this scope is supplied with a side Picatinny accessory rail. The battery compartment cap, diopter ring, and windage and elevation adjustment knobs are knurled to ensure comfortable slip-free adjustments even when wearing gloves. The included objective lens cover is tethered to the housing to prevent loss. The wide compressible rubber eye cup covers the entire orbit of the eye to prevent leakage of the green intensifier light and to help protect your eye from the recoil. Also included with this NVD are a hard durable carry case, remote control, cleaning cloth, and a removable IR illuminator. - Intensifier Tube and Illuminator
-
- Intensifier tube: thin film 3rd generation
- Resolution: 64 lp/mm
- Removable infrared illuminator
- Reticle
-

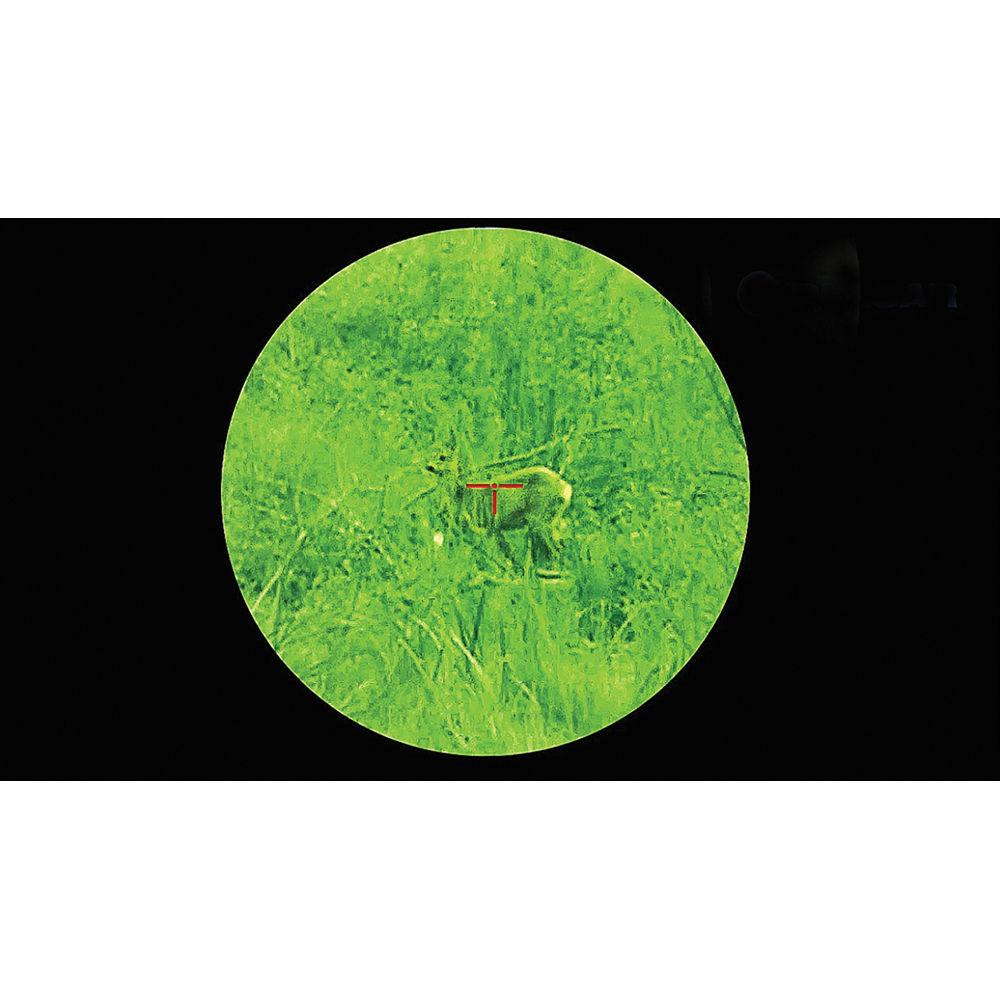

- Red Mil-Dot
- Adjustable brightness
- Reticle blinks to indicate low battery
- Optical Performance
-
- Magnification: 3x
- Lens system: 81.5mm f/1.63
- Angular field of view: 11°
- Minimum focus distance: 5.45 yd
- Diopter adjustment: ±3.5
- Eye relief: 50mm
- Use and Handling
-
- Included remote control turns on and off the intensifier and the infrared illuminator
- Built-in voltage stabilization circuit provides proper operation throughout battery life
- Construction Details
-
- Lightweight and durable duraluminum and glass-filled nylon composite housing
- Knurled diopter ring and adjustment knobs
- Internal focusing knob allows easy operation

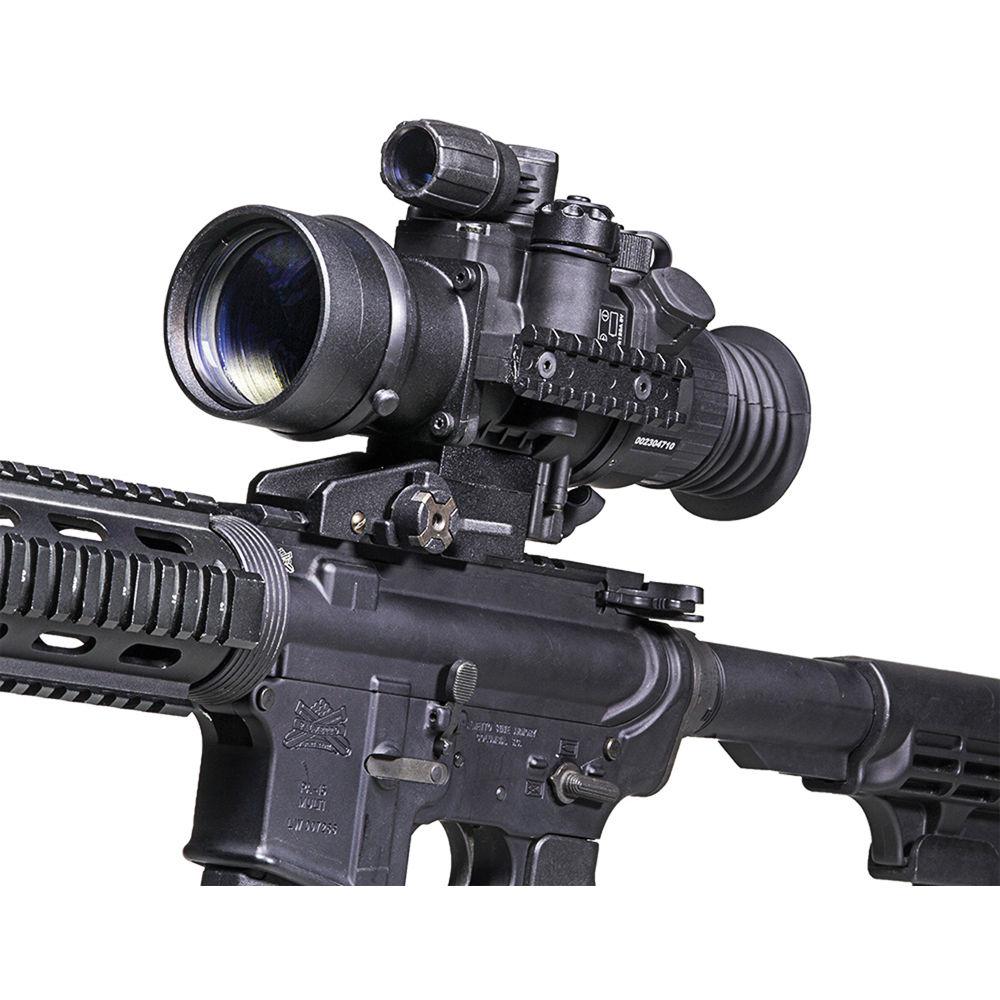

- Quick-detach mount is compatible with Picatinny or Weaver rails

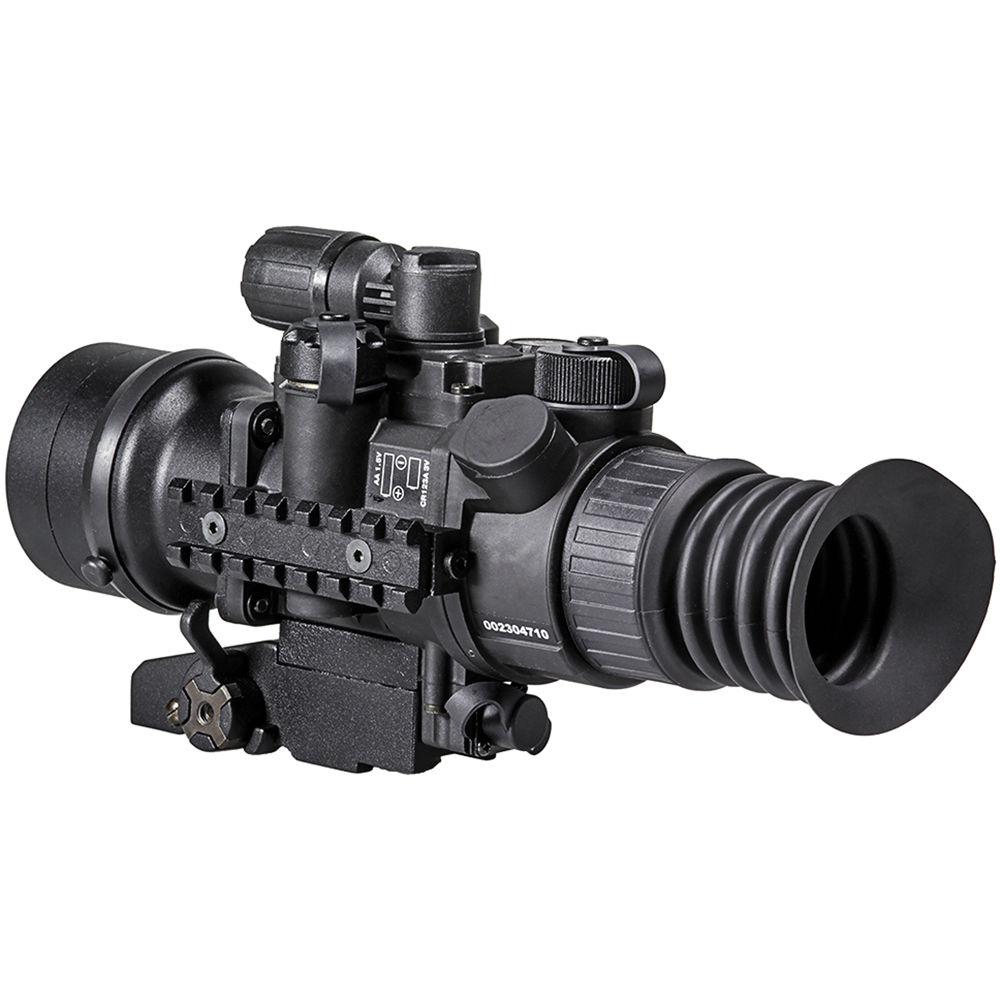

- Side Picatinny rail allows mounting accessories

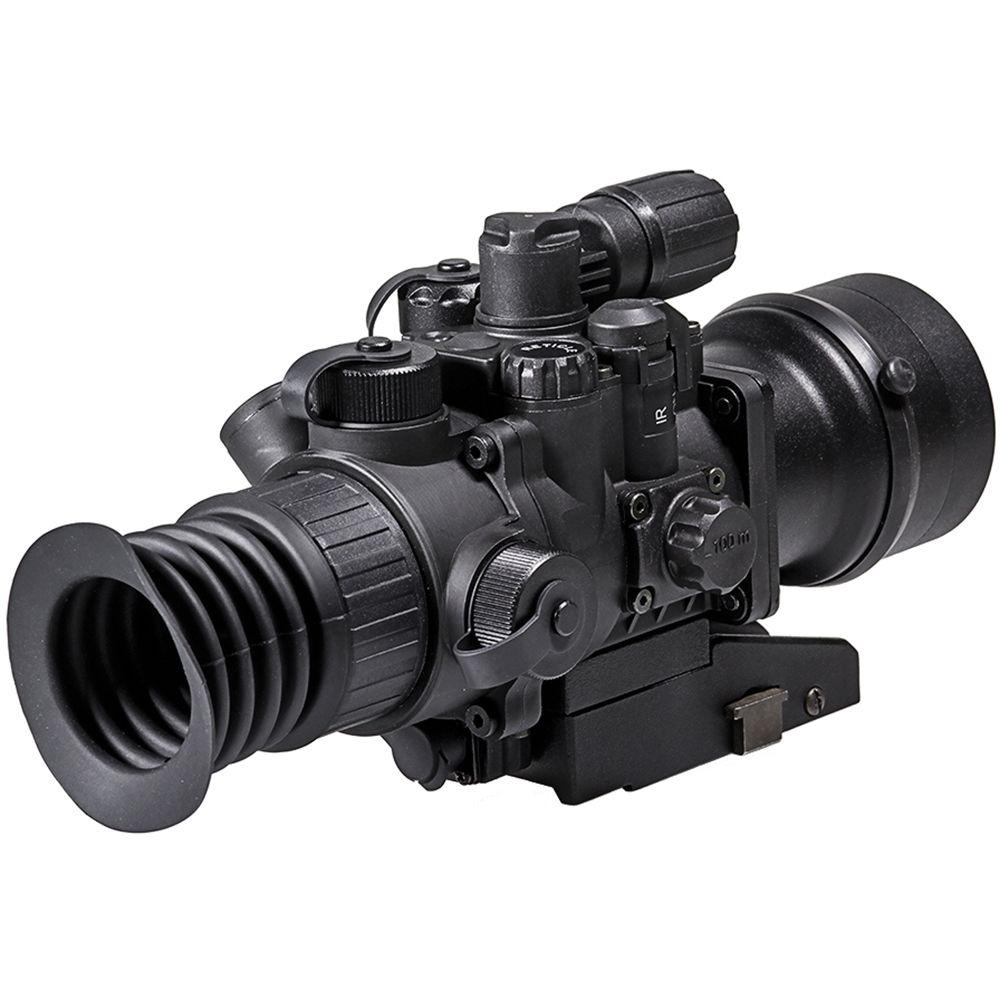

- Wide rubber eyecup with long eye relief
- Fogproof by nitrogen purging
- Water resistant

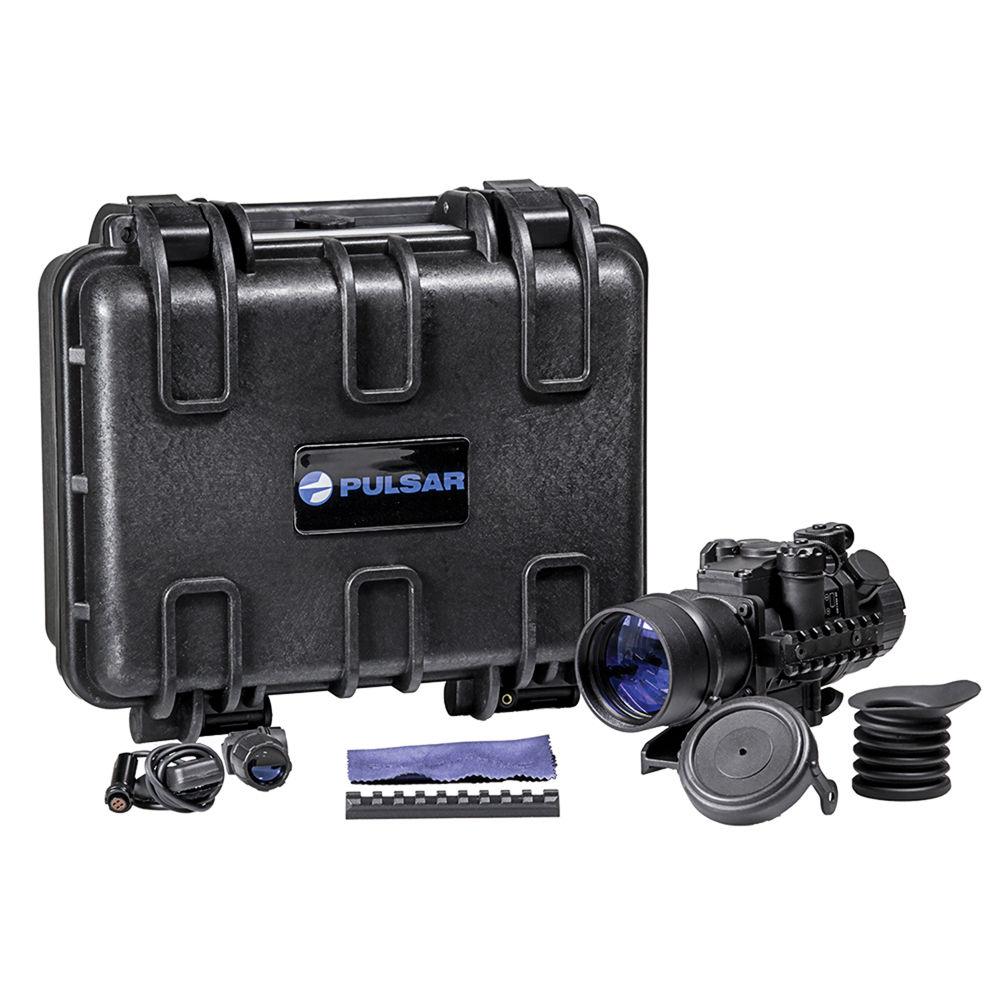

In the Box Pulsar 3x50 Phantom Gen 3 Night Vision Riflescope with Quick-Detach Mount (Mil-Dot Reticle) - Hard Protective Case
- Cleaning Cloth
- Remote Control
- Weaver Rail for Digital Camera Adapter
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar 3x50 Phantom Gen 3 Night Vision Riflescope with Quick-Detach Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL76080T Specs | Intensifier Tube | Thin film 3rd generation
GaAs photocathode
Type: MX-10160
Resolution: 64 lp/mm
Integral Photocathode Sensitivity: 1350 μÀ/lm
SNR: 16.2/21
Luminance Gain: 45,000-70,000 fl/fc | | Reticle | Red Mil-Dot, variable illumination | | Infrared Illuminator | Built-in, removable
Wavelength: 805 nm
Output Power: 100 mW | | Magnification | 3x | | Angle/Field of View | Angular: 11°
Linear: 60' @ 100 yd (20 @ 100 m) | | Lens Diameter | 50 mm | | Lens System | Focal Length: 81.5 mm
Relative Aperture: 1:1.63 | | Minimum Focus Distance | 5.45 yd (5 m) | | Focusing | Internal | | Impact Point Correction | 1/2 MOA | | Eye Relief | 2" (50 mm) | | Exit Pupil | 7 mm | | Dioptric Correction | ±3.5 | | Battery / Runtime | 1 x AA / IR Off: 15 hr, IR on: 5 hr
1 x CR123 / IR Off: 24 hr, IR on: 8 hr | | Weatherproofing | Rated IP66, water resistant
Fogproof | | Temperature Ranges | -22 to 122°F (-30 to 50°C) | | Mount | Picatinny or Weaver rail | | Material | Duraluminum, glass-filled nylon composite housing | | Dimensions | 11 x 4 x 3.7" (278 x 103 x 95 mm) | | Weight | 29.6 oz (839 g) |
