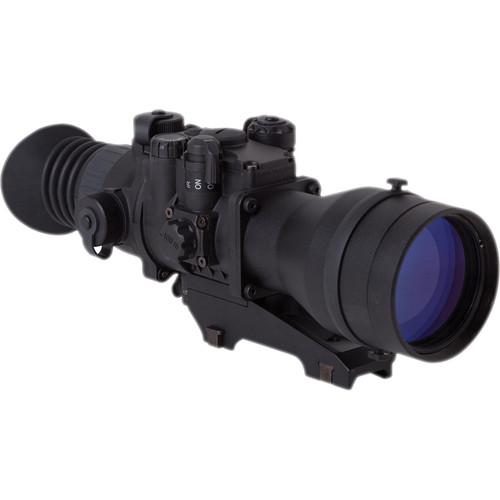

User Manual for Pulsar 4x60 Phantom NV Riflescope Click to enlarge the picture
Contents of the user manual for the Pulsar 4x60 Phantom NV Riflescope
- Product category: Night Vision Riflescopes Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar Night Vision Riflescopes
|
User manual for the Pulsar 4x60 Phantom NV Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|
Product description The 4x60 Phantom NV Riflescope with Mil Dot reticle from Pulsar is a third generation night vision device for mid-range targeting. The weather sealed and shockproof housing is designed to withstand a wide range of shooting conditions, including use in extreme weather and with heavy caliber firearms. A 60mm objective lens and fully multicoated optics supply the Gen III intensifier tube with ample light to render highly detailed images even in low light conditions. The intensifier tube typically provides 51 lp/mm of resolution and features automatic brightness control, which maintains an optimum brightness level and protects the tube from bright light damage. This configuration of the Phantom riflescope includes an integrated Weaver rail on the scope body to attach a high-output infrared illuminator, laser aiming device, or other tactical accessory. Additionally, this scope features a voltage-stabilized power supply, removable infrared illuminator, and remote control activation switch, making this night vision riflescope a full-featured optic for hunters and tactical professionals. - Optical Performance
-
- 4.0x magnification, 60mm objective lens
- Gen III intensifier tube with 51 lp/mm resolution
- 9° angle of view, 47 ft (14.3 m) at 100 yd field of view
- 26 ft (8 m) to infinity focusing distance
- Internal focus optical system
- Automatic brightness control
- Fully multicoated optics
- Mil Dot reticle
- Use and Handling
-
- Removable infrared illuminator with spot/flood focus
- Accessory Weaver rail for attaching accessories
- Voltage regulated power supply prevents reticle shift and ensures constant brightness
- Power supply accepts a single AA or CR123 battery
- Instant-On button for momentary activation
- Remote control activation of On/Off and IR illuminator
- Tethered flip-down protective lens cap
- Construction Details
-
- IPX6 waterproof rating
- Nitrogen filled optical channel
- Glass-infused plastic housing
In the Box Pulsar 4x60 Phantom NV Riflescope (Mil Dot) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar 4x60 Phantom NV Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL76076T Specs | Magnification | 4.0x | | Objective Lens Diameter | 60 mm | | Intensifier Tube | Gen III | | Resolution | 51 lp/mm | | Field of View | 47 ft (14.3 m) at 100 yd field of view | | Angle of View | 9° | | Eye Relief | 50 mm | | Minimum Focus Distance | 26 ft (8 m) | | Diopter Correction | +/- 3.5 | | Power Supply | (1) AA or (1) CR123 battery | | Weatherproof Rating | IPX6 | | Dimensions | 12.6 x 4 x 3.7" (32 x 10.3 x 9.5 cm) | | Weight | 35 oz (1 kg) without mount |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
