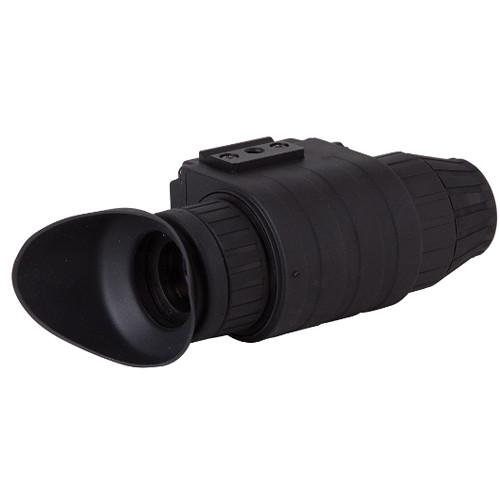

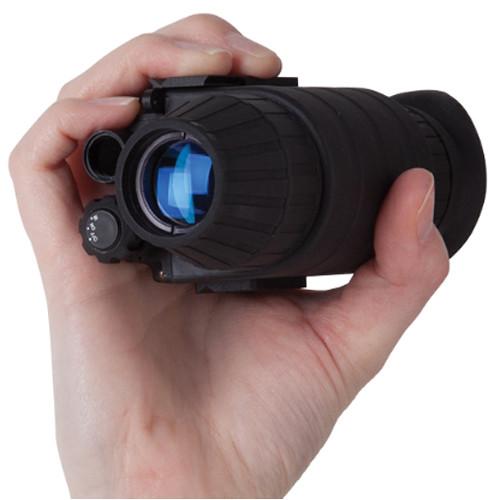

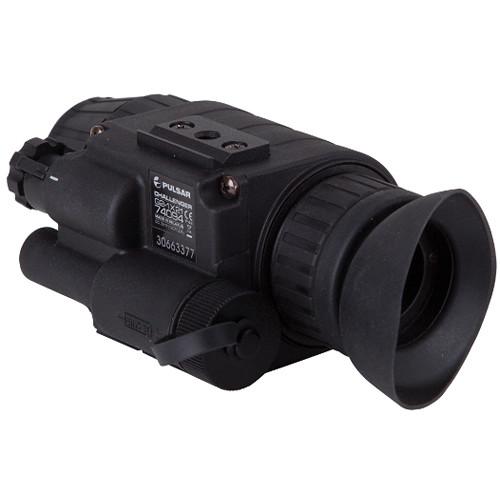

User Manual for Pulsar Challenger 1x21 3rd Gen Night Vision Monocular with Compact Head Mount Click to enlarge the picture
Contents of the user manual for the Pulsar Challenger 1x21 3rd Gen Night
- Product category: NV Monoculars & Multi-Systems Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar NV Monoculars & Multi-Systems
 |
User manual for the Pulsar Challenger 1x21 3rd Gen Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|
Product description The Challenger 1x21 3rd Generation Night Vision Monocular from Pulsar features a 3rd generation thin film night vision intensifier tube with resolution of 57-64 lp/mm and a lightweight water and dust resistant glass-fiber reinforced nylon housing. The optical system offers a 27mm focal length lens, a 40° angular field of view, 8" minimum focus, a 25mm eye relief and +4 to -4 dioptric adjustment. When compared to 1st generation and 2nd generation intensifier tubes, the 3rd generation intensifier tubes offers highest image resolution and brightness. If you are observing your target in complete darkness, where there is not enough natural infrared illumination, you can use the 30 mW integrated infrared illuminator to improve image visibility. The monocular operates using one CR123.
The glass-fiber reinforced nylon housing is designed to be durable, lightweight and water and dust resistant. You can use the monocular as a handheld device as well as mount it to a barrel with optional Picatinny or Weaver adapters. Moreover, for a hands free operation you can connect it to the included compact head mount. For prolonged observations, you can also mount it on tripods with standard 1/4"-20 threads. The battery compartment cap, diopter ring, and focusing ring are knurled to ensure comfortable slip-free adjustments even when wearing gloves. Also included with the monocular are a carry case and a shoulder strap. - Intensifier Tube and Illuminator
-
- Intensifier tube: thin film 3rd generation
- Resolution: 57-64 lp/mm
- Integral 30 mW infrared illuminator
- Optical Performance
-
- Magnification: 1x
- Angular field of view: 40°
- Lens system: 27mm focal length
- Minimum focus distance: 8"
- Exit pupil: 7mm
- Eye relief: 25mm
- Dioptric adjustment: ±4
- Construction Details
-
- Handheld operation or mountable to the included compact head mount
- Lightweight glass-fiber reinforced nylon housing with contoured rubberized armoring
- Knurled objective ring, diopter ring and battery compartment cap
- 1/4"-20 socket for mounting on a tripod
- Winged rubber eyecup
UPC: 812495020049 In the Box Pulsar Challenger 1x21 3rd Gen Night Vision Monocular with Compact Head Mount NV Compact Head Mount Cleaning Cloth Carrying Case Shoulder Strap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar Challenger 1x21 3rd Gen Night Vision Monocular with Compact Head Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL74115 Specs | Intensifier Tube | 3rd generation, thin film, not gated
Resolution: 57-64 lp/mm
Type: MX-10160
Luminance Gain: 45,000 to 70,000 fl/fc | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | Focal length: 27mm
Relative Aperture: 1:1.3 | | Minimum Focus Distance | 8" (20 cm) | | Eye Relief | 1" (25 mm) | | Exit Pupil | 7 mm | | Dioptric Correction | ±4 | | Infrared Illuminator | Wavelength: 805nm
Power: 30 mW max | | Battery / Runtime | 1 x CR123 / IR Off: 50 hr max, IR On: 20 hr max | | Weatherproofing | Rated IP65, water and dust resistant | | Temperature Ranges | -4 to 122°F (-20 to 104°C) | | Tripod Adaptable | 1/4"-20 | | Material of Construction | Housing: glass-fiber reinforced nylon | | Dimensions | 6.4 x 3.1 x 2.2" (163 x 79 x 57 mm) | | Weight | 12.7 oz (360 g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 10.6 x 9.3 x 4.1" |
