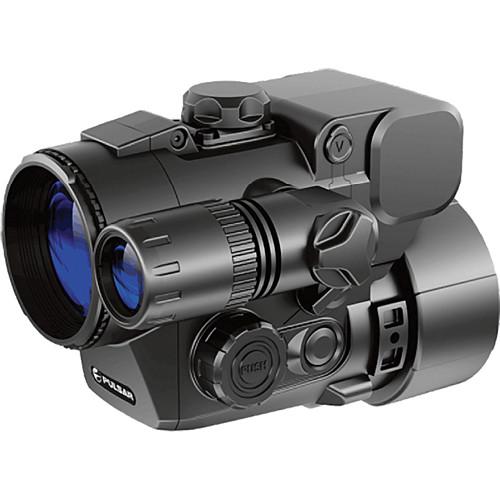

Product description The DFA75 Clip-On Digital NV Sight from Pulsar is a clip-on optical accessory that mounts in front of a daytime optic to transform a riflescope or spotting scope into a night vision sighting system. Using a scope cover ring adapter (sold separately), the DFA75 easily clamps to the objective bell of optics with a 42mm, 50mm, or 56mm objective diameter. This night vision device combines a 582x500 CCD image sensor, detachable 20mW infrared illuminator, and video output port to create a low-light imager that is equally useful as a weapon sight and as a tool for evidence gathering.A multicoated 50mm f/1.0 lens system, SumLight increased sensitivity mode, and included IR illuminator allow the DFA75 sight to gather adequate light for pitch dark viewing indoors—or outdoor observations under a moonless night. Additionally, manually adjustable brightness and contrast allow the operator to enhance the transmitted view for optimal viewing and image recording. For remote viewing and recording, the included wireless control has programmable functions that allow the operator to activate system functions and the IR illuminator.A floating crosshair reticle with adjustable aiming point, fiberglass-infused composite housing with weather-resistant seals, and several in-view function indicators make the DFA75 a well-rounded digital night vision device for recreational tasks, as well as a surveillance tool for law enforcement and home security. - Imaging Performance
-
- 582x500 CCD image sensor
- 50mm f/1.0 lens system
- Magnification: 1x
- Objective lens: 50mm diameter
- Internal manual focus mechanism
- 640x480 OLED display
- Selectable reticle: floating crosshair with "X" aiming point
- Use and Handling
-
- Adjustable windage and elevation for selectable reticle
- Detachable 915nm IR illuminator with 20mW output
- SumLight mode for enhanced light sensitivity in low-light
- Manual brightness and contrast adjustment
- In-view indicators: Low-Battery, Clock, IR-On, Wireless-On
- Wireless remote control for activation of system functions
- Accepts external DC power supply for long-duration viewing
- Video output port with selectable NTSC / PAL format
- Quick-release adapters available for 42mm, 50mm, 56mm scopes
- Construction Details
-
- Fiberglass-infused composite housing
- Operating temperature: -4 to 122°F
- Shock-resistance: 6000 joules
- Weight with batteries: 22.9 oz
In the Box Pulsar DFA75 Clip-On Digital NV Sight Carrying Case IR Illuminator Wireless Remote Control Video Output Cable Lens Cover Set Lens Cloth Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar DFA75 Clip-On Digital NV Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL78114 Specs | Sensor | 1/3" CCD | | Resolution | 582 x 500 | | Magnification | 1.0x | | Lens System | 50 mm f/1.0 | | Angle of View | 5° | | Field of View | 26' @ 100 yd (8.7 m @ 100 m) | | Exit Pupil | 30 mm | | Minimum Focus Distance | 16 ft (5 m) | | Impact Point Correction | Not specified by manufacturer | | Display | 640 x 480 OLED | | Infrared Illuminator | 20 mW, 915nm Class 1 laser | | Power Source | NV Sight: (4) AA batteries; or 8.4-15 V DCWireless Control: (3) CR2032 batteries | | Runtime | NV Sight: Up to 1.5 hours (with IR illumination)Wireless Control: Not specified by manufacturer | | Weatherproofing | Not specified by manufacturer | | Shock Resistance | Up to 6000 joules | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | 6.1 x 4.6 x 3.2" (15.5 x 12 x 8 cm) | | Weight (with Batteries) | 22.9 oz (649 g) |
