User Manual for Pulsar DFA75 Digital NVD Forward Attachment with 42mm Cover Ring Adapter Click to enlarge the picture
Contents of the user manual for the Pulsar DFA75 Digital NVD Forward Attachment
- Product category: Night Vision Riflescopes Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar Night Vision Riflescopes
 |
User manual for the Pulsar DFA75 Digital NVD Forward Attachment contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|

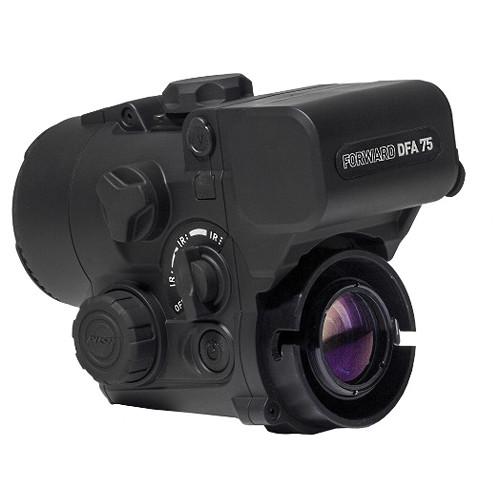

Product description The DFA75 Night Vision Digital Forward Attachment from Pulsar is a digital night vision device that attaches to your riflescope objective and converts it to a night vision riflescope with a detection range of 437 yards. It is compatible with 42mm riflescope objectives and attaches directly to the objective using an included 42mm cover ring adapter. This NVD features a Sony ICX-255AL 0.33" CCD array which offers a resolution of 500x582 pixels and provides resistance to bright light. In addition to using the display, the video port and included cable allow to use an external monitor or a recording device.
The optical system features a 50mm f/1.1 lens system, a 1x magnification, a 5° angular field of view, a 16' minimum focus, and an exit pupil diameter of 30mm. If you are training or hunting in very low light conditions, use the included modular infrared laser to illuminate your target or game. The illuminator has three beam brightness settings, emits a 915 nm laser beam, and has a flood-beam focusing lens. If you need even more illumination, you can attach an optional illuminator to a Weaver-style mount on the right side of your DFA75.

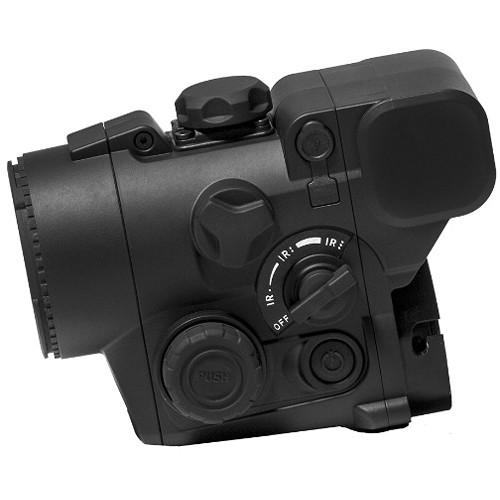

On top of the housing, you will find an internal focusing knob for fine-tuning image sharpness. This night vision device has electronic windage and elevation adjustments and a crosshair to align its optical system with your riflescope. Additionally, to provide you with easy one-click activation, a wireless remote control is included.
The weather resistant housing is made of a very light and durable glass-nylon composite. Also included with this digital NVD attachment are one CR2032 battery for the remote control, four AA batteries, a carrying case, a protective lens cap, a spare battery container, a video cable, and a lens cloth. - Camera, Display, Infrared Laser Illuminator
-
- CCD sensor: Sony ICX-255AL, 0.33", 500x582 pixels
- Image resolution: 50 lp/mm
- Digital CCD array is resistant to bright light
- Modular infrared laser illuminator emits at 915 nm
- Display: Micro OLED MDP01A, VGA 640x480
- Display diagonal: 0.31"
- Video Output pin type: 3.5 mm jack
- Laser illuminator has three output power settings: low, medium, and high
- Optical Performance
-
- Magnification: 1x
- Lens system: 50mm f/1.1
- Field of view: 5°
- Exit pupil diameter: 30 mm
- Close focus: 16'
- Use and Handling
-
- Attaches to a 42mm riflescope objective via an included cover ring adapter
- Internal focusing dial knob is located on the top of the housing
- Wireless remote control is included
- Construction Details
-
- Weather resistant
- Mounts to the objective lens of the rifle scope with an adapter cover ring
- Weaver or Picatinny adapter for additional optional illuminator
UPC: 744105207369 In the Box Pulsar DFA75 Digital NVD Forward Attachment with 42mm Cover Ring Adapter 915nm Attachable Laser IR Illuminator Protective Lens Cap Spare Battery Container Wireless Remote Control Carrying Case Video Cable Lens Cloth 4 x AA Batteries CR2032 Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar DFA75 Digital NVD Forward Attachment with 42mm Cover Ring Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar DFA75 Specs | Sensor Type | CCD camera | | CCD Type | Sony ICX-255AL, 0.33" | | Camera Resolution | 500 x 582 pixels | | Video Output | CCIR / EIA | | Resolution | 50 lp/mm | | Display | Micro OLED MDP01A
VGA 640x480
Diagonal: 0.31" | | Video Output Connector | Pin type: 3.5mm jack | | Laser | 915 nm | | Magnification | 1x | | Field of View | Angular: 5°
Linear: (8.7 @ 100 m) | | Lens | Diameter: 50mm
Focal Length: 50mm | | Exit Pupil Diameter | 30 mm | | Detection Range | 437 yd (400 m) | | Minimum Focus Distance | 16' (5 m) | | Battery / Runtime | Main unit:
4 x AA / IR on: 1.5 hr max; no IR: 2 hr max
Remote: 1 x CR2032 | | External Power Supply | DC output 15V, 3W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Weatherproofing | Weather resistant | | Dimensions | 6.1 x 4.6 x 3.2" (155 x 117x 82 mm) | | Weight | 23 oz (653 g) |
