User Manual for Pulsar Digiforce 860RT 6.5-13x50 Digital Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Pulsar Digiforce 860RT 6.5-13x50 Digital Night
- Product category: NV Monoculars & Multi-Systems Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar NV Monoculars & Multi-Systems
 |
User manual for the Pulsar Digiforce 860RT 6.5-13x50 Digital Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|

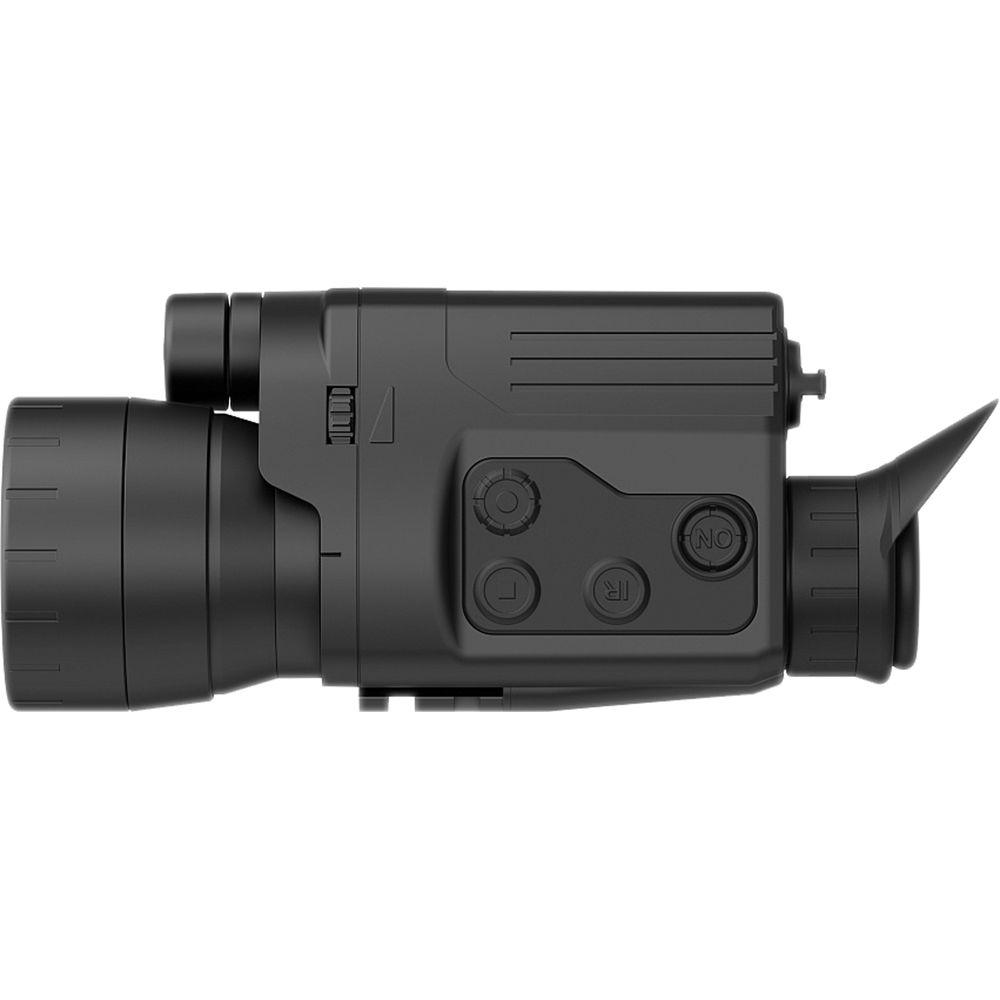

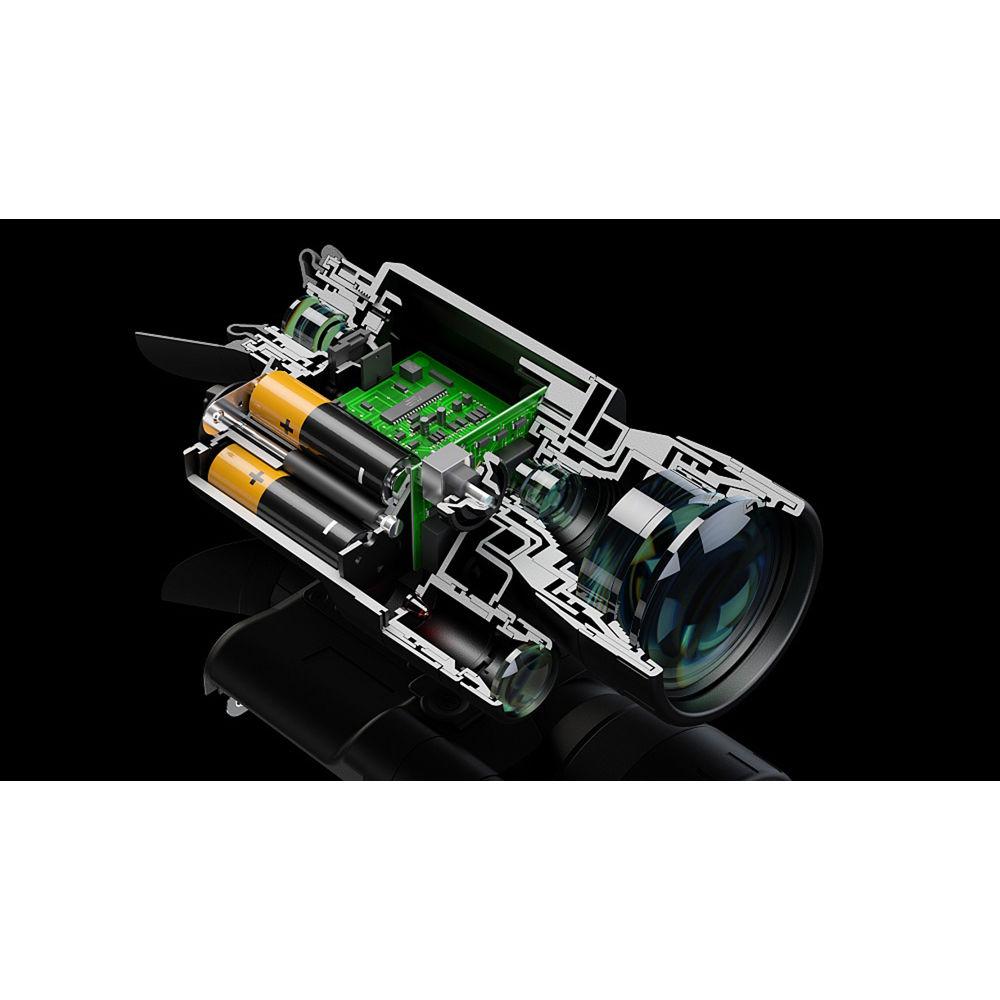

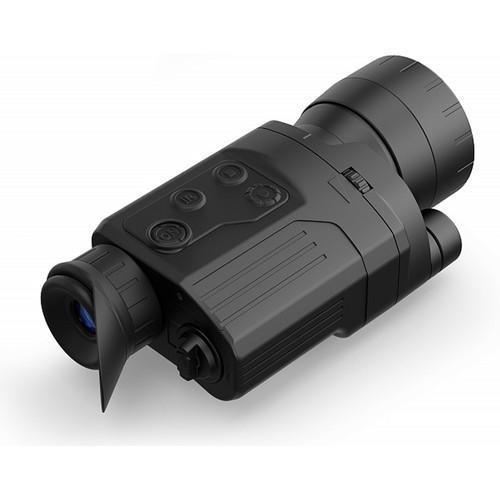

Product description Explore the night with the Pulsar Digiforce 860RT 6.5-13x50 Digital Night Vision Monocular. Featuring a CMOS digital sensor and a built-in infrared LED illuminator, this NVD allows users to make vivid nighttime observations of wildlife or other settings. In addition to viewing the scenery on its LCD display, you can capture AVI videos (with sound) and JPG images and store them on its internal 8.0GB memory or stream them to your mobile device over Wi-Fi. The Wi-Fi data transfer is enabled by the Stream Vision App and has a range of 49'. For hunting applications or to satisfy your curiosity, the scope can help you estimate ranges to your targets using its three digital range-finding reticles.

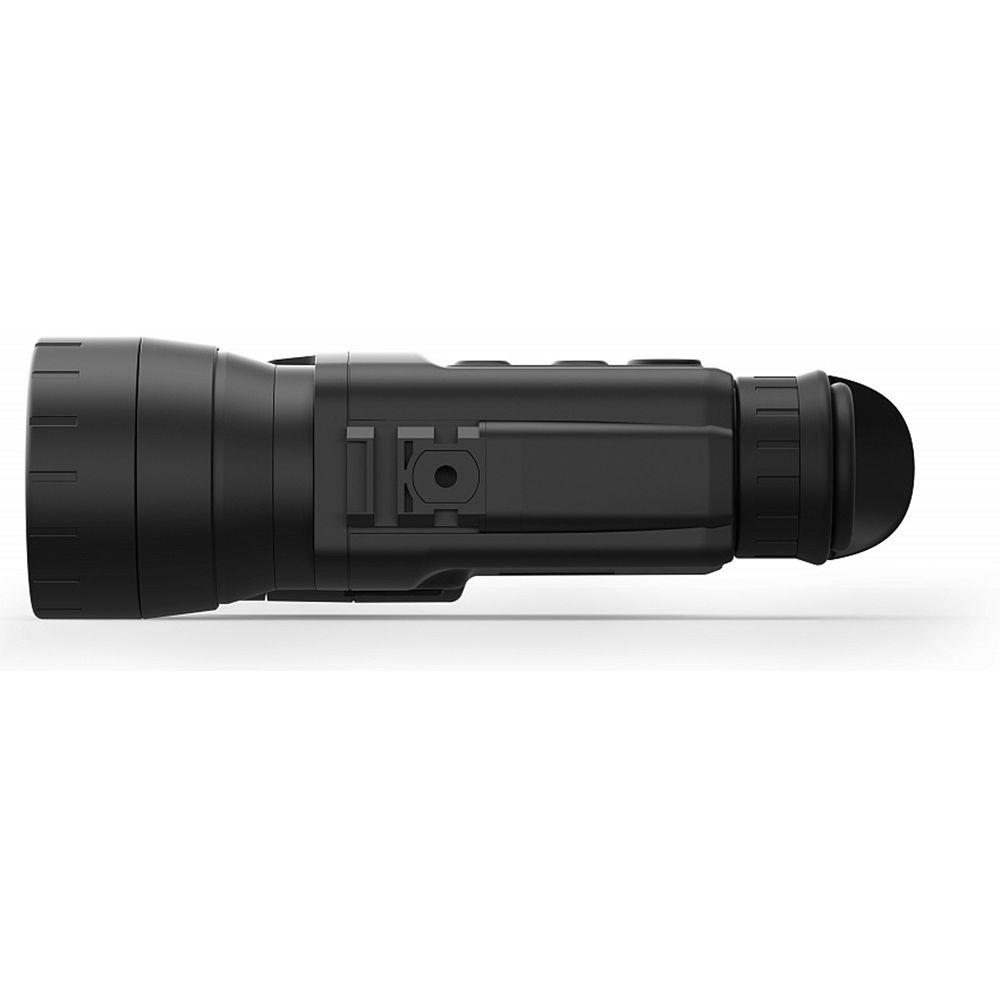

To afford you enough time for your adventures, the monocular provides a minimum 4.5 of hours of runtime on four AA batteries. The unit can also be powered externally via a micro-USB port or an AC power supply port. It is designed to be able to accompany you in a wide range of temperatures and has a lightweight and impact-resistant ABS plastic housing. For versatility, the body features a 1/4"-20 tripod socket and a short Picatinny/Weaver rail for mounting an optional laser illuminator or other accessories. - Sensor, IR, Display, Wi-Fi
-
- 640 x 480, 1/3" CMOS digital sensor
- Immune to bright light exposure
- Captures images and videos with sound
- Built-in LED infrared illuminator: 810nm, adjustable brightness
- 640 x 480 LCD display
- Three digital range-finding reticles
- Built-in Wi-Fi capability allows wireless monitoring, streaming, and capturing data using the Stream Vision App
- Optical Performance
-
- Glass optical elements
- 6.5x optical magnification
- 2x digital zoom
- 13x total magnification
- 16.4' minimum focus
- 4.6° angle of view at 6.5x
- Use and Handling
-
- 0.55" eye relief
- 1/4"-20 tripod socket
- Short Picatinny/Weaver rail for optional IR illuminator or other accessories
- Construction
-
- Plastic ABS housing
- Uses four AA batteries
- Winged rubber eyecup
- Weather-resistant
In the Box Pulsar Digiforce 860RT 6.5-13x50 Digital Night Vision Monocular (Black) - Carrying Case
- Wrist Strap
- Micro-USB Cable
- 4 x AA Batteries
- Tripod Adapter
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar Digiforce 860RT 6.5-13x50 Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar Digiforce 860RT Specs | Sensor | 640 x 480 CMOS | | Resolution | Video: 320 x 240, 640 x 480
Image: 320 x 240, 640 x 480, 1280 x 960 | | Sensitivity | 780 nm (at 25 lp/mm): 5x10-5 mW
915 nm (at 25 lp/mm): 3x10-4 mW | | Format | Video: AVI
Image: JPG | | Display | 640 x 480 LCD | | Wi-Fi | Frequency: 2.4 GHz
Line-of-Sight Range: 49.2' / 15.0 m
Standard 802.11 b/g/n | | Built-In Memory Capacity | 8.0 GB | | Magnification | 6.5x, optical
2x, digital
6.5 - 13x maximum total magnification | | Angle/Field of View | 4.6° at 6.5x | | Lens System | 50mm, f/1.1, glass elements | | Minimum Focus Distance | 16.4' / 5.0 m | | Eye Relief | 0.5" / 14 mm | | Dioptric Correction | +5 to -5 | | Infrared Illuminator | LED: 810 nm | | Battery / Runtime | 4 x AA batteries / Without IR: 6 hours, With IR/REC/Wi-Fi: 4.5 hours | | External Power | Power Bank: 5 V USB port
External Power Supply: 4-6.5 V | | Weatherproofing | Weather-resistant | | Temperature Ranges | 5 to 113°F / -15 to 45°C | | Dimensions | 6.9 x 3.3 x 2.4" / 17.6 x 8.3 x 6.2 cm | | Weight | 14.8 oz / 420.0 g |
