User Manual for Pulsar DN55 Digital NVD Forward Attachment with 10x32 Eyepiece Click to enlarge the picture
Contents of the user manual for the Pulsar DN55 Digital NVD Forward Attachment
- Product category: NV Monoculars & Multi-Systems Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar NV Monoculars & Multi-Systems
 |
User manual for the Pulsar DN55 Digital NVD Forward Attachment contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|

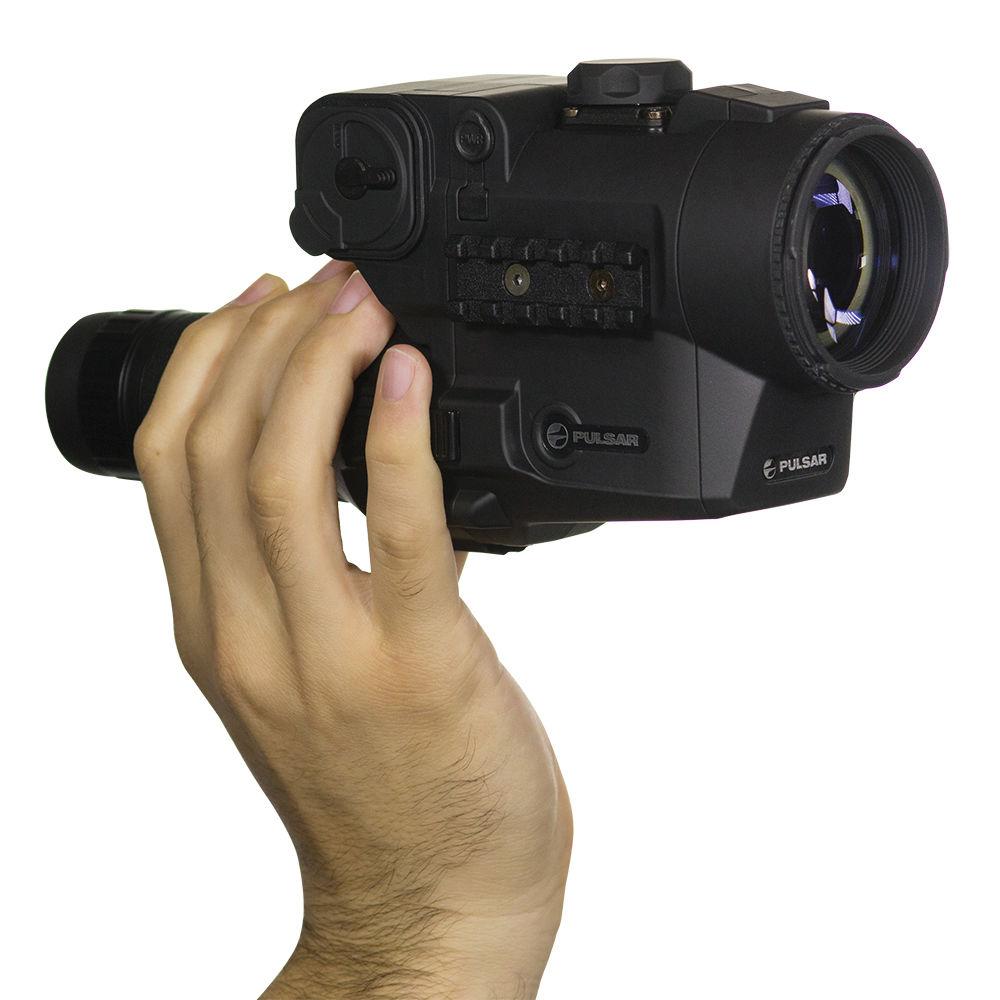

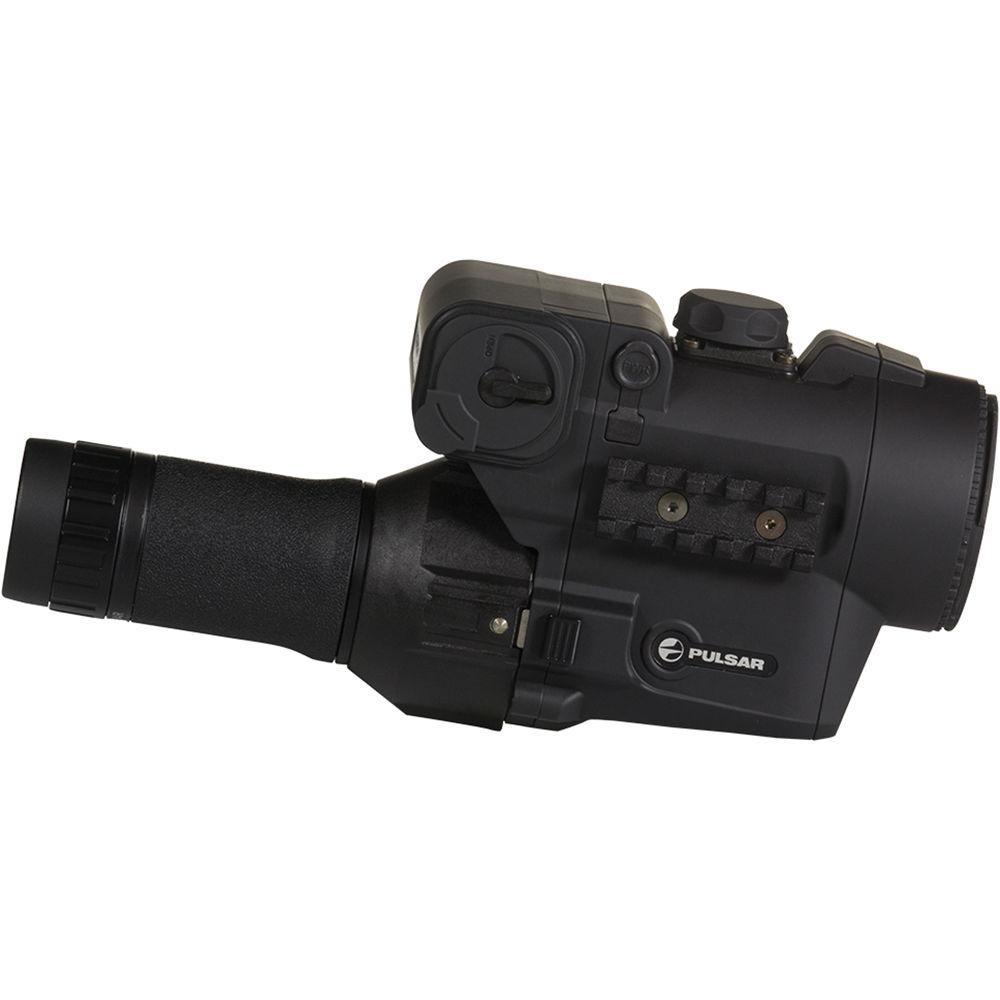

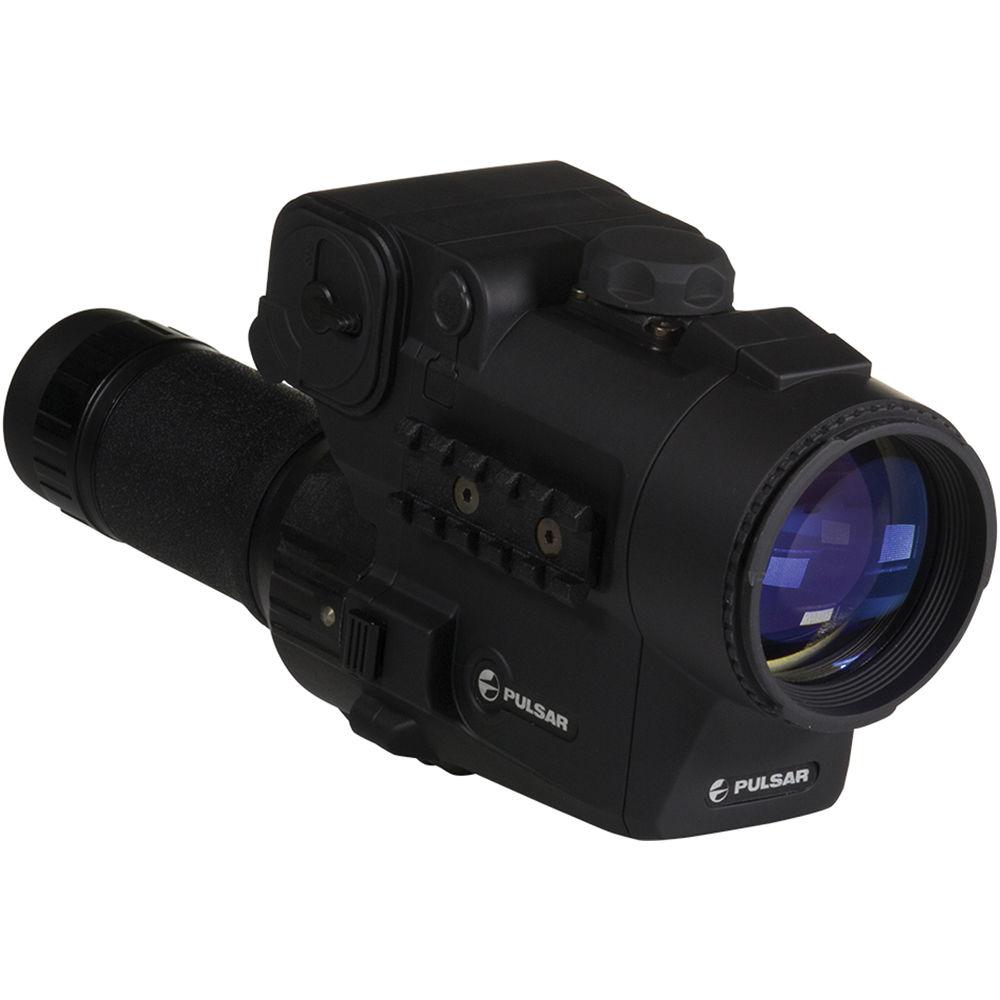

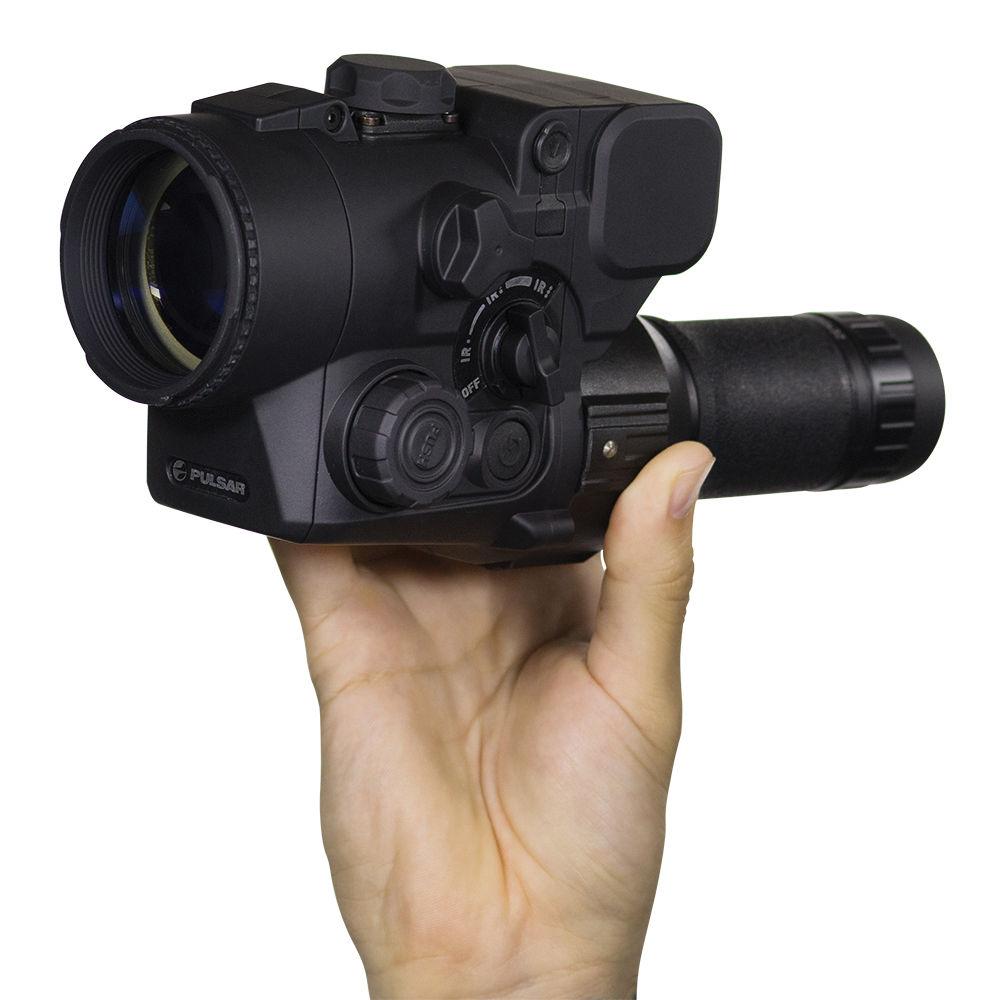

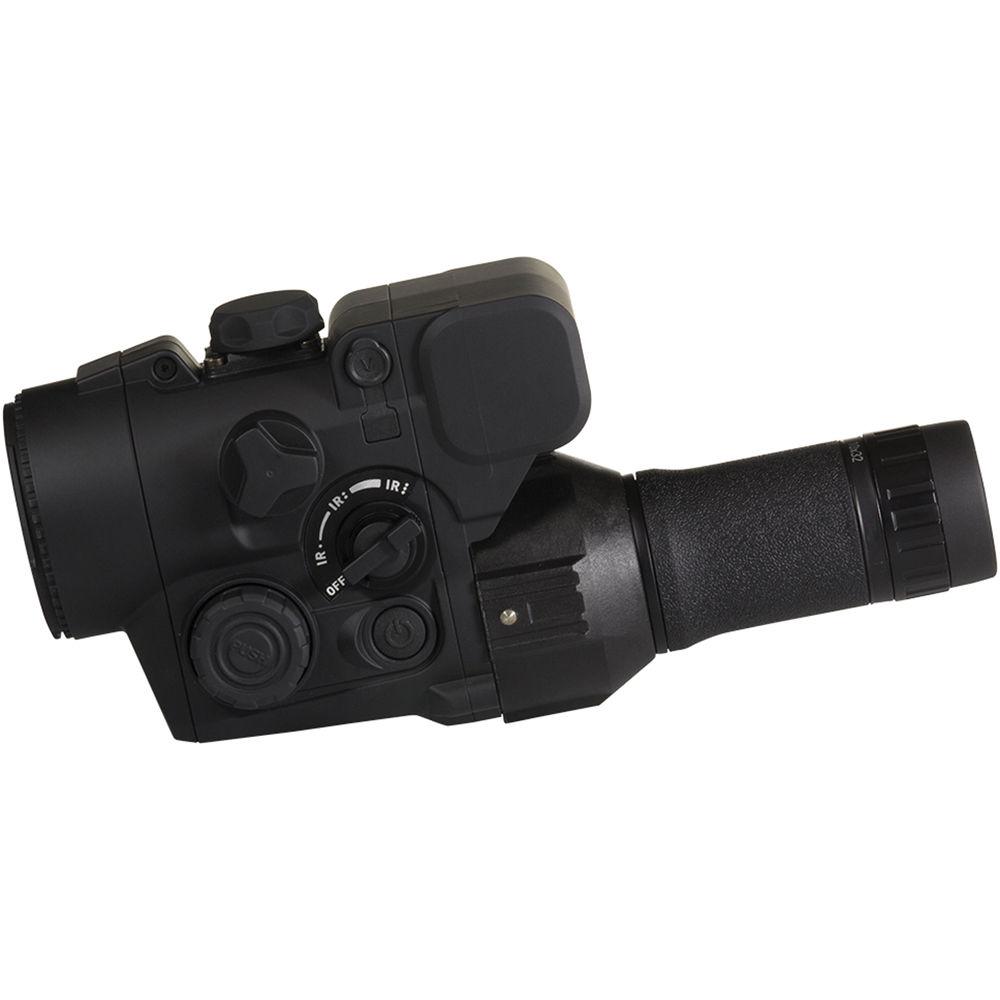

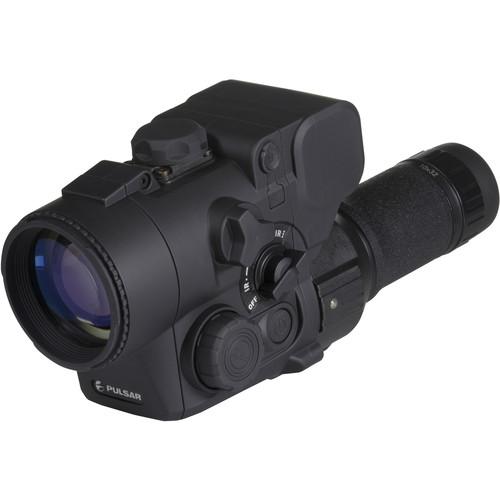

Product description The DN55 Digital NVD Forward Attachment from Pulsar is a DFA75 digital night vision device with a 10x32 eyepiece. You can attach this NVD to your riflescope objective by removing the included eyepiece and using a select optional adapter. This NVD features a Sony ICX-255AL 0.33" CCD with a resolution of 500x582 pixels and provides resistance to bright light. In addition to using the built-in Micro OLED display, the video port and included cable allow you to use it with an external monitor or a recording device.
The optical system features a 50mm f/1.1 lens system, a 1x main unit magnification, 10x magnification with the eyepiece, a 5° angular field of view, a 16.3' minimum focus, and an exit pupil diameter of 30mm. If you are training or hunting in very low light conditions, use the included modular infrared laser to illuminate your target or game. The illuminator has three beam brightness settings, emits a 915 nm laser beam, and has a flood-beam focusing lens. If you need even more illumination, you can attach an optional illuminator to an integrated Weaver-style mount on the right side of your DN55.
On top of the housing, you will find an internal focusing knob for fine-tuning image sharpness. This night vision device has electronic windage and elevation adjustments and a crosshair to align its optical system with your riflescope. Additionally, to provide you with easy one-click activation, a wireless remote control is included.
The weather resistant housing is made of a very light and durable glass-nylon composite. Also included with this digital NVD attachment are a remote control, a laser illuminator, a carrying case, a protective lens cap, a spare battery container, a video cable, four AA batteries, a CR2032 battery, and a lens cloth. - Camera, Display, Infrared Laser Illuminator
-
- CCD sensor: Sony ICX-255AL, 0.33", 500x582 pixels
- Image resolution: 50 lp/mm
- Digital CCD array is resistant to bright light
- Modular infrared laser illuminator emits at 915 nm
- Display: Micro OLED MDP01A, VGA 640x480
- Display diagonal: 0.31"
- Video Output pin type: 3.5 mm jack
- Laser illuminator has three output power settings: 90mW low, 110mW medium, and 150mW high
- Optical Performance
-
- Main unit magnification: 1x
- Magnification with the included eyepiece: 10x
- Lens system: 50mm f/1.1
- Field of view: 5°
- Exit pupil diameter: 30 mm
- Close focus: 16.4'
- Use and Handling
-
- Internal focusing dial knob is located on the top of the housing
- Wireless remote control is included
- Construction Details
-
- Durable and lightweight glass-fiber reinforced nylon housing
- Weather resistant
- Weaver or Picatinny adapter for additional optional illuminator
In the Box Pulsar DN55 Digital NVD Forward Attachment with 10x32 Eyepiece 915nm Attachable Laser IR Illuminator Protective Lens Cap Spare Battery Container Wireless Remote Control Carrying Case Video Cable Lens Cloth 4 x AA Batteries CR2032 Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar DN55 Digital NVD Forward Attachment with 10x32 Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL78115 Specs | Sensor Type | CCD camera | | CCD Type | Sony ICX-255AL, 0.33" | | Camera Resolution | 500 x 582 pixels
Luminance range: 0.0001 - 30000 lux | | Video Output | CCIR / EIA | | Resolution | 50 lp/mm | | Display | Micro OLED MDP01A
VGA 640x480
Diagonal: 0.31" | | Video Output Connector | Pin type: 3.5 mm jack | | Laser | 915 nm
Power Settings: Low: 90 mW , Medium: 110 mW , High: 150 mW | | Magnification | Main unit: 1x
Eyepiece: 10x | | Field of View | Angular: 5°
Linear: (8.7 @ 100 m) | | Windage/Elevation Adjustment | Digital: 37 MOA | | Impact Point Correction | Digital: 1/2" MOA | | Lens | Diameter: 50mm
Focal Length: 50mm | | Exit Pupil Diameter | 30 mm | | Detection Range | 437 yd (400 m) | | Minimum Focus Distance | 16' (5 m) | | Battery / Runtime | Main unit:
4 x AA / IR on: 1.5 hr max; no IR: 2 hr max
Remote: 1 x CR2032 | | External Power Supply | DC output 15 V, 3 W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Weatherproofing | Weather resistant | | Dimensions | 9.7 x 4.6 x 3.2" (246 x 117 x 82 mm) | | Weight | 19.7 oz (558 g) without batteries |
