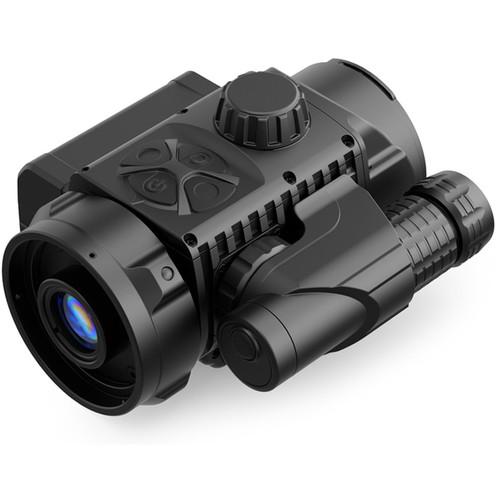

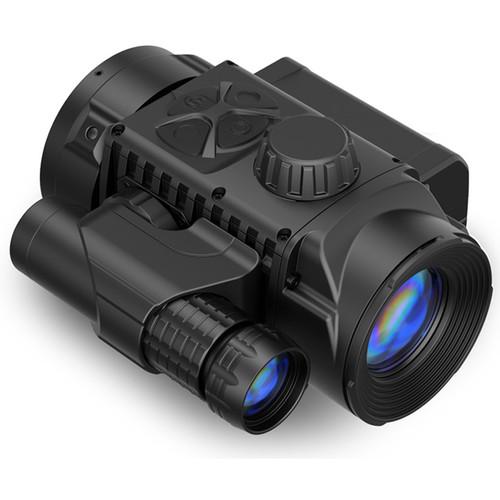

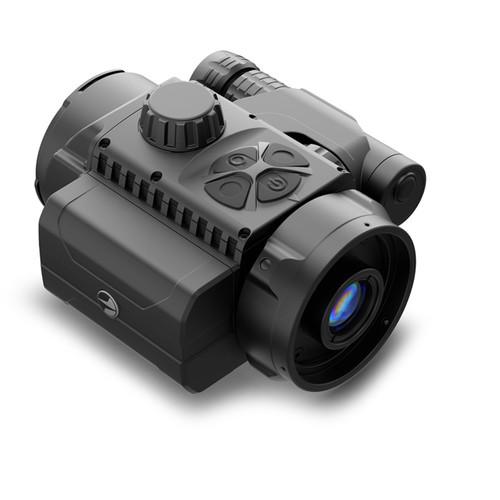

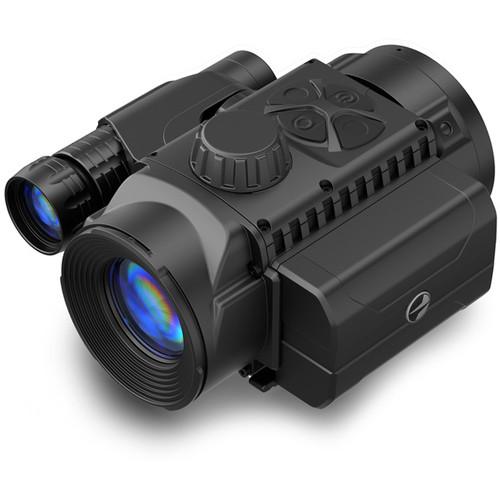

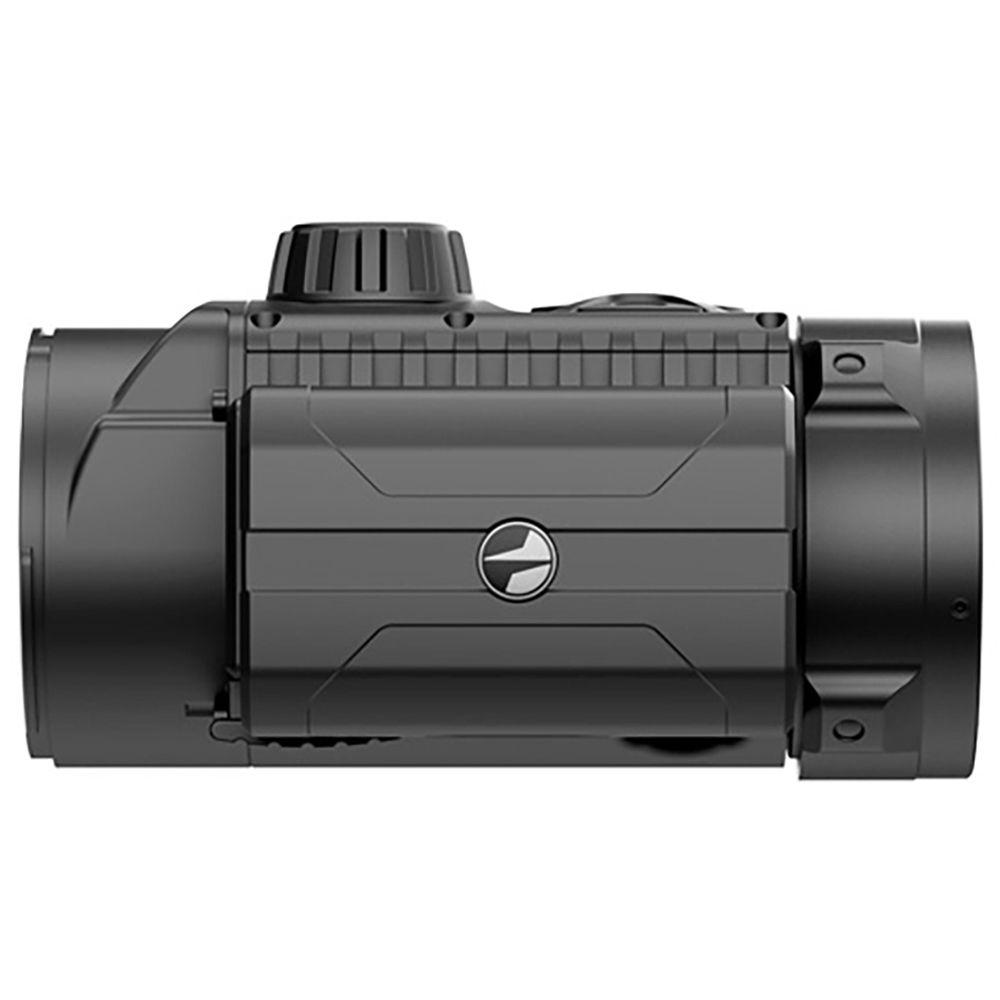

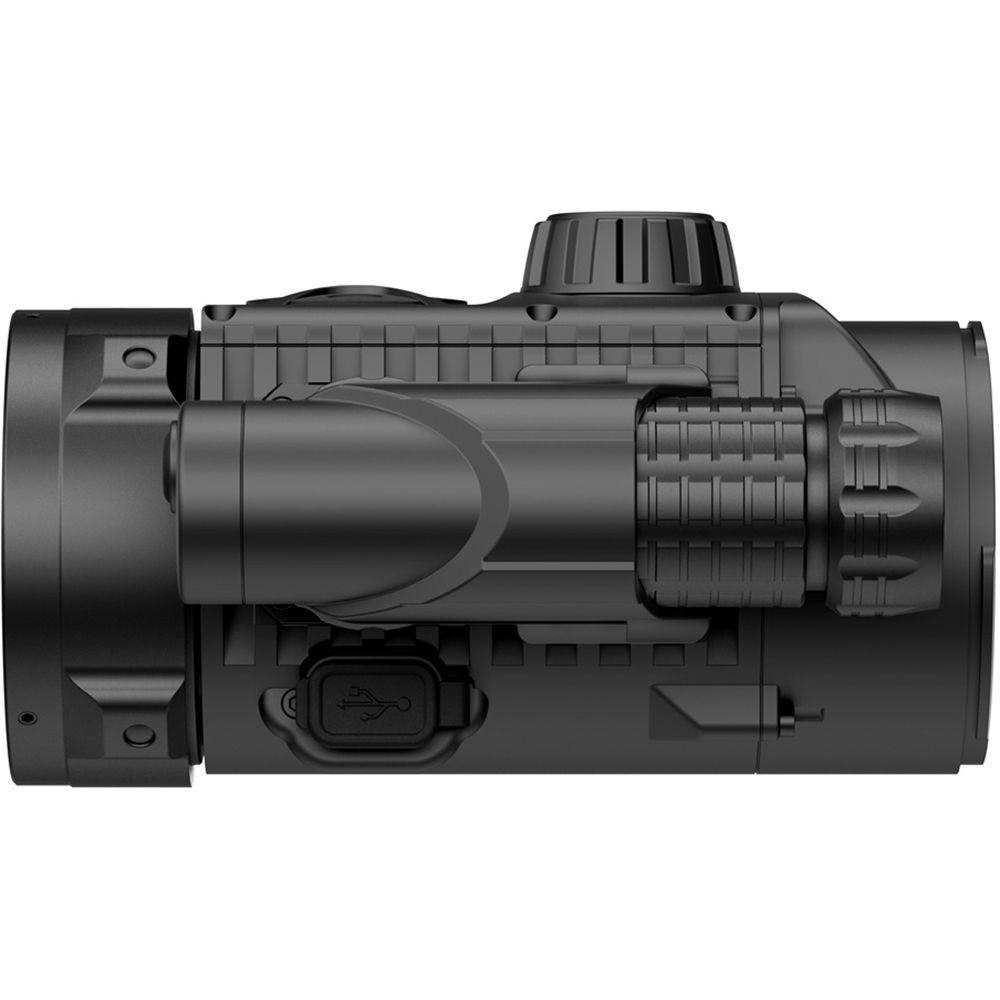

Product description Enhance the stealth of your activities using the Pulsar F155 Digital Night Vision Attachment Forward. Featuring a 702 x 526 CMOS digital sensor and a modular (detachable) infrared LED illuminator this NVD allows you to use your 4-8x day scope for nighttime applications. It attaches to the objective bell of your scope via optional adapter rings and projects night vision imagery through its AMOLED display. You can capture AVI videos (with sound) and JPG images and store them on its internal 16GB memory or stream them to your mobile device over Wi-Fi. The Wi-Fi data transfer is enabled by the Stream Vision App and has a range of 49'.
To afford you enough time for your activities, this NVD provides a minimum 5 of hours of runtime with its detachable IPS5 Li-ion battery. The unit can also be powered externally via a micro-USB port or an AC power supply port. It is designed to be able to accompany you in a wide range of temperatures and has a lightweight, waterproof, and recoil-resistant glass-nylon composite housing. - Sensor, IR, Display, Wi-Fi
-
- 702 x 526 CMOS digital sensor
- Immune to bright light exposure
- 640 x 480 AMOLED display
- Captures videos with sound
- Integrated Wi-Fi allows Stream Vision support
- Modular LED IR illuminator: 940nm wavelength, three power settings
- Optical Performance
-
- 50mm objective diameter
- 16.4' minimum focus
- 4.8° angle of view
- Use and Handling
-
- For 4-8x day riflescopes
- Internal focusing
- Rubber control pad on the top
- Detachable battery can be quickly exchanged
- IR illuminator can be easily removed
- Construction
-
- Glass-nylon composite housing
- Uses detachable Li-ion battery
- Weatherproof, submersible
- Nitrogen-purged, fogproof
- Impact-resistant
In the Box Pulsar F155 Digital Night Vision Attachment Forward (Matte Black) - Wireless Remote Control
- Lens Cover
- Li-Ion Battery
- IR Illuminator
- Carry Case
- Battery Charger
- USB Cable
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar F155 Digital Night Vision Attachment Forward in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PUF155 Specs | Sensor | 702 x 526 CMOS | | Sensitivity | 3x10-5 mW (at 780 nm, 25 lp/mm)
1.5x10-4 mW (at 915 nm, 25 lp/mm) | | Display | 640 x 480 AMOLED | | Wi-Fi | Yes, stream vision support
Frequency: 2.4 GHz
Standard: 802.11b/g/n | | Internal Memory | 16 GB | | Video Format | AVI | | Video Resolution | 640 x 480 | | Image Resolution | 640 x 480, 1280 x 960 | | Image Format | JPG | | Objective Lens Diameter | 50mm | | Infrared Illuminator | LED: 940 nm | | Angle of View | 4.8° | | Linear Field of View | 25.2' at 100 yd / 8.4 m at 100 m | | Minimum Focus Distance | 16.4' / 5.0 m | | Focusing | Internal | | Battery / Runtime | 1 x IPS5 5000 mAh (3.7 V) Li-ion battery / 9 hours without IR, 5 hours with IR | | External Power | Micro-USB port | | Port | Micro-USB power port | | Weatherproofing | Waterproof, dustproof, submersible, rated IP67
Nitrogen-purged, fogproof | | Maximum Recoil | 0.375 H&H
Maximum caliber on smooth-bore firearm: 12
Maximum recoil power on rifled firearm: 6000 joules | | Operating temperature | -13 to 104°C / -25 to 50°F | | Dimensions | 6.1 x 3.6 x 3.0" / 155.0 x 92.0 x 77.0 mm | | Weight | 19.0 oz / 538.6 g | | | | Package Weight | 3.31 lb | | Box Dimensions (LxWxH) | 9.4 x 6.9 x 5.0" |
