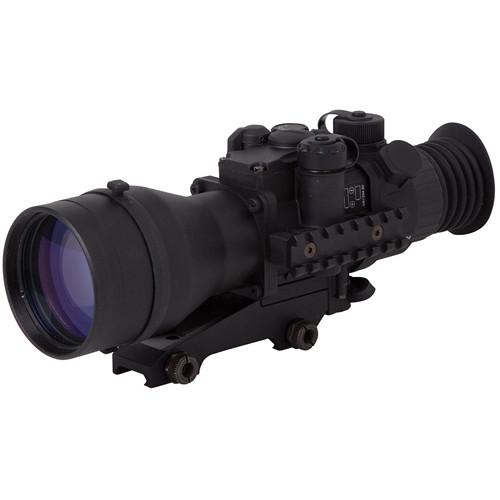

User Manual for Pulsar PL76158BWT Phantom 4x60 MD B&W Night Vision Scope Click to enlarge the picture
Contents of the user manual for the Pulsar PL76158BWT Phantom 4x60 MD B&W
- Product category: Night Vision Riflescopes Pulsar
- Brand: Pulsar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pulsar Night Vision Riflescopes
|
User manual for the Pulsar PL76158BWT Phantom 4x60 MD B&W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pulsar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pulsar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pulsar product will considerably shorten its lifespan!
|
Product description The PULSAR PL76158BWT Phantom 4 x 60 MD B&W Night Vision Scope takes into account all the requirements for modern night hunting. Featuring a military-style design, this night vision scope offers maximum functionality and reliability. It is fully weatherproof, thanks to the nitrogen-filled optical channel, and IPX6 rated (waterproof). It can be used anywhere such as arctic ice fields or desert sands, humid tropical forests, or harsh Siberian taiga.The body of this night vision scope is made of durable glass-filled plastic. The bodyshell design and high grade intensifier tubes ensure shockproofing to heavy calibers, including 9.3 x 62, 9.3 x 74 and 375H&H. The Gen 2+ tube has ABC (Automatic Brightness Control) and coupled with the high quality, wide-aperture lens, provides sharp and clear pictures.The high light gain, combined with the built-in IR illuminator, allows hunting even in situations of critically low night illumination (down to 10 to 4 lux overcast starlight). The fast start-up function (the sight is On only while pressing a button) is useful for making quick assessments.You can choose the most suitable reticle configuration and change it by simply pressing a button. The voltage stabilization system eliminates reticle shift even with an almost discharged battery. All main controls are on the top of the body, which simplifies accessibility. - Fine image quality and resolution
- User choice of the reticle shapes
- Shockproof with use of heavy recoil ammunition (.375 H&H, .416 Rigby, and .50 cal.)
- Nitrogen-purged optical path
- IPX6 rating for water intrusion
- Stabilized power supply unit
- Functions with 1 AA (1.5V) or CR123A (3V) battery
- Accurate internal front lens focus adjustment
- Ergonomic design and easy-to-use interface
- Remote control with secure attachment
- Can be used with additional MIL-STD-1913 weaver rail for mounting accessories (both sold separately)
- Flip-up objective lens cover
In the Box Pulsar PL76158BWT Phantom 4x60 MD B&W Night Vision Scope Carrying Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pulsar PL76158BWT Phantom 4x60 MD B&W Night Vision Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPulsar PL76158BWT Specs | Generation | 2+ | | Tube Type | EPM66G-2-U-WPT | | Magnification | 4x | | Objective Lens Diameter | 60 mm | | Field of View | Angular: 9° | | Eye Relief | Distance: 50 mm | | Resolution | Line/mm: 45 (minimum) | | Detection Range | Maximum: 2296.5' (700.0 m) | | Diopter Range | ±3.5 D | | Range | Close-up: 8 m to infinity | | Power Supply | 1.5 V with 1x AA battery
3 V with 1x CR-123 battery | | Rating | Water intrusion: IPX6 (IEC 60529) | | Dimensions | 12.59 x 3.74 x 4.05" (320.00 x 95.00 x 103.00 mm) | | Weight | Approximately 2.2 lb (1.0 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
